1. Introduction
This manual provides essential instructions for the proper installation, operation, and maintenance of your Fydun Remote Start Key Fob. Please read this manual thoroughly before attempting any installation or operation to ensure correct usage and to prevent potential damage or malfunction. This device is designed to provide remote control functionality for compatible Ford Transit Mk6 vehicles.

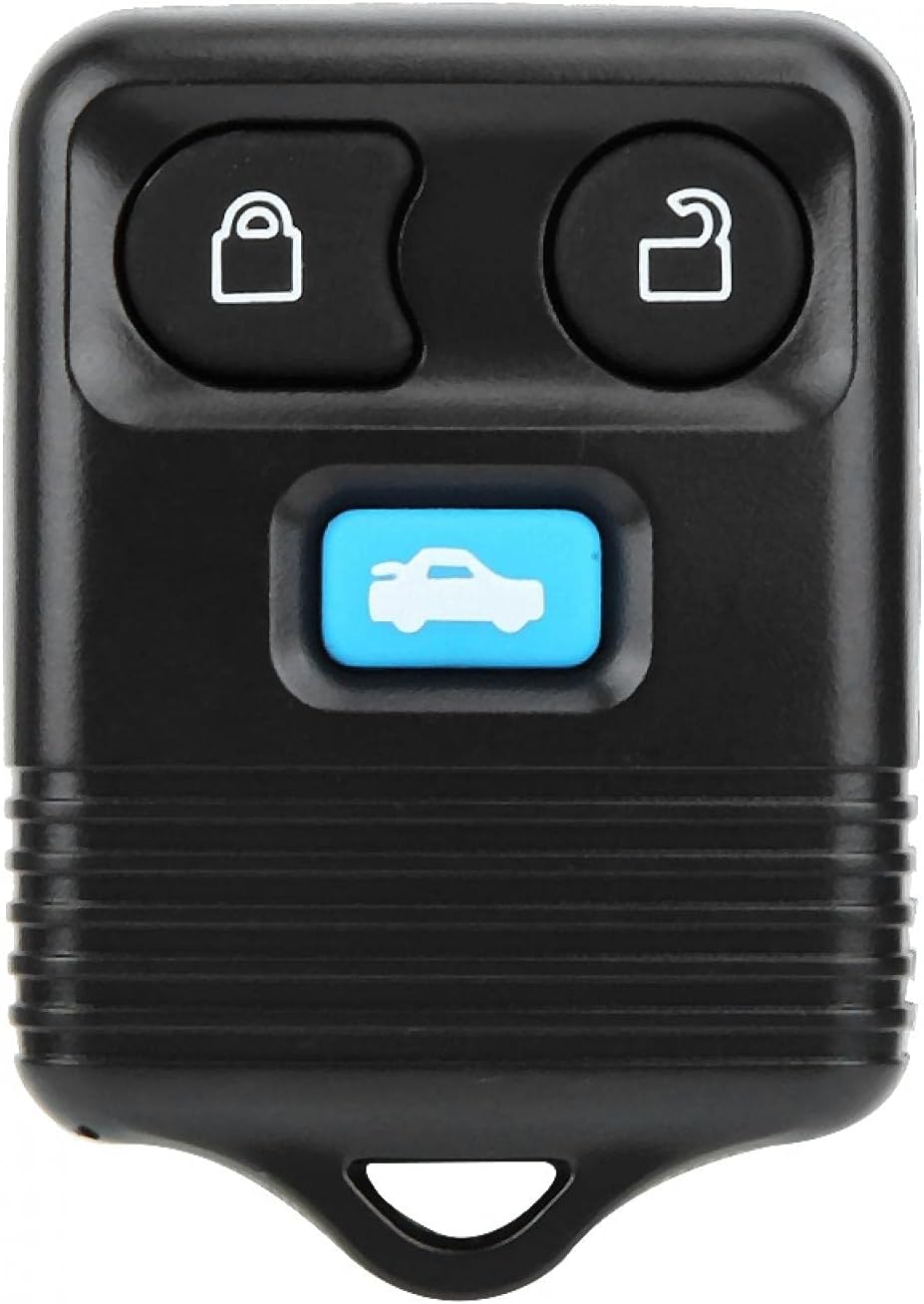

Image 1.1: The Fydun Remote Start Key Fob. This image displays the front of the black key fob with three buttons: lock, unlock, and a blue button featuring a car icon, indicating remote start or trunk release functionality.
2. Safety Information
Always observe the following safety precautions:
- Professional Installation Recommended: Installation of automotive electronic systems can be complex. It is highly recommended that installation be performed by a qualified automotive technician to avoid damage to the vehicle's electrical system or the product.
- Vehicle Compatibility: Ensure this product is compatible with your specific vehicle model and year before installation. Refer to Section 3 for compatibility details.
- Battery Safety: Do not attempt to open or modify the key fob. Battery replacement should be done carefully, following instructions in Section 5.
- Environmental Conditions: Avoid exposing the key fob to extreme temperatures, direct sunlight for prolonged periods, or water.
3. Compatibility
This Fydun Remote Start Key Fob (Model: miyinlabulk800) is specifically designed for:
- Ford Transit Mk6 models manufactured between 2000 and 2006.
Verify your vehicle's make, model, and year before proceeding with installation or programming.
Image 3.1: The Fydun Remote Start Key Fob positioned in front of a white Ford Transit Mk6 van. This image visually confirms the product's intended vehicle compatibility.
4. Setup and Programming
This section outlines the general steps for programming the remote key fob to your vehicle. Specific programming procedures can vary by vehicle model and may require specialized tools or diagnostic equipment. It is strongly recommended to consult your vehicle's owner's manual or a professional automotive locksmith/technician for precise programming instructions.
General Programming Steps (Consult Professional Guidance):
- Gather All Existing Remotes: Ensure all existing working key fobs are present, as they may need to be reprogrammed simultaneously.
- Enter Programming Mode: This typically involves a sequence of turning the ignition key ON and OFF, pressing a button on the vehicle's dashboard, or a combination of actions within a specific timeframe.
- Program New Remote: Once in programming mode, press a button on the new Fydun key fob. The vehicle's locks may cycle to confirm successful programming.
- Exit Programming Mode: Turn the ignition OFF or wait for the vehicle to automatically exit programming mode.
- Test Functionality: Test all buttons (lock, unlock, remote start) to ensure proper operation.
Note: Incorrect programming attempts can lead to existing remotes losing their programming or the new remote failing to function. Seek professional assistance if you are unsure about any step.
5. Operating Instructions
Once programmed, your Fydun Remote Start Key Fob provides convenient control over your vehicle's locking and remote start functions.
Key Fob Button Functions:
Image 5.1: An angled view of the Fydun Remote Start Key Fob, highlighting its three distinct buttons: a lock icon, an unlock icon, and a blue button with a car symbol.
- Lock Button (Padlock Closed Icon): Press once to lock all vehicle doors. The vehicle's lights may flash and/or horn may chirp to confirm.
- Unlock Button (Padlock Open Icon): Press once to unlock the driver's door, or twice to unlock all vehicle doors (behavior may vary by vehicle settings). The vehicle's lights may flash to confirm.
- Remote Start/Trunk Release Button (Blue Car Icon): This button typically activates the remote start function or opens the trunk/rear hatch, depending on your vehicle's configuration and the remote's programming. Consult your vehicle's manual for specific functionality. For remote start, it often requires pressing the button multiple times (e.g., twice) within a short period.
Operating Range: The effective operating range of the key fob can vary depending on environmental factors, battery strength, and vehicle location. Obstructions and radio interference can reduce the range.
6. Maintenance
To ensure the longevity and optimal performance of your Fydun Remote Start Key Fob, follow these maintenance guidelines:
Battery Replacement:
If the remote's range decreases significantly or it stops responding, the battery may need replacement. The key fob typically uses a standard coin cell battery (e.g., CR2032).
- Open the Casing: Carefully pry open the key fob casing using a small flat-head screwdriver or a coin at the designated notch.
- Remove Old Battery: Note the orientation (+/-) of the old battery and gently remove it.
- Insert New Battery: Insert a new, identical battery with the positive (+) side facing the same direction as the old one.
- Close Casing: Snap the two halves of the key fob casing back together securely.
- Test: Test the key fob's functionality with your vehicle.
Cleaning:
Wipe the key fob with a soft, dry cloth. Avoid using harsh chemicals, solvents, or abrasive cleaners, as these can damage the casing or internal components.
7. Troubleshooting
If you encounter issues with your Fydun Remote Start Key Fob, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Key fob not responding | Dead or low battery | Replace the battery (refer to Section 6). |
| Reduced operating range | Weak battery, environmental interference, physical obstructions | Replace battery. Move closer to the vehicle. Avoid areas with high radio frequency interference. |
| Vehicle not responding after battery replacement | Key fob may need reprogramming | Refer to Section 4 for programming guidance, or consult a professional. |
| Remote start not activating | Incorrect button sequence, vehicle conditions not met (e.g., hood open, low fuel), programming issue | Ensure correct button presses. Check vehicle status. Consult a professional for programming verification. |
If these steps do not resolve the issue, please contact customer support.
8. Specifications
- Brand: Fydun
- Model Number: miyinlabulk800
- Item Weight: 0.88 ounces
- Package Dimensions: 6.54 x 4.92 x 0.59 inches
- Special Features: Ergonomic design
- Compatibility: Ford Transit Mk6 (2000-2006)
9. Warranty and Support
Warranty Information:
Specific warranty details for this Fydun product may vary. Please refer to the product packaging or contact the seller directly for information regarding warranty coverage, terms, and conditions.
Customer Support:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact the Fydun customer support team or the retailer from whom you purchased the product. Provide your product model number (miyinnlabulk800) and purchase details when contacting support.
