Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your SWIMLINE HYDROTOOLS Model 76101 Sure-Flo Above-Ground Pool Cartridge Filter System. Please read all instructions carefully before assembly and use. Proper installation and maintenance are crucial for optimal performance and longevity of the system.
Safety Information
Always observe basic safety precautions when installing and operating this electrical equipment. Failure to follow these instructions could result in injury or property damage.
- Electrical Safety: Connect the pump only to a grounded, ground-fault circuit interrupter (GFCI) protected outlet. Do not use extension cords. Ensure all electrical connections are dry and secure.
- Water Safety: Never operate the pump dry. Ensure the pump is primed with water before starting. Keep children away from the filter system during operation.
- Pressure Safety: Do not attempt to open the filter tank or service the system while it is under pressure. Always turn off the pump and release all pressure using the air relief valve before performing any maintenance.
- Chemical Safety: Handle pool chemicals with care and keep them away from the filter system components to prevent corrosion or damage.
Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact customer service.
- Heavy-duty filter tank
- Filter cartridge element
- Base for filter and pump
- High-efficiency single-speed pump (1.5 HP, 4,980 GPH)
- (2) 1.5-inch filter connection hoses
- Hose adapters
- Pressure gauge
- Air relief valve
- Ring and latch locking system components
- All necessary hardware for assembly
Figure 1: Included accessories and components.
Setup and Installation
Follow these steps for proper assembly and installation of your filter system. Refer to the video for visual guidance.
Video 1: SWIMLINE HYDROTOOLS Extra-Flo Cartridge Pool Filter Assembly Guide. This video demonstrates the installation process for the cartridge filter system.
- Positioning the System: Place the filter system on a firm, level surface, preferably concrete, as close to the pool as possible. Ensure it is at least 10 feet from the pool edge and protected from direct sunlight and harsh weather.
- Assemble the Base: Secure the pump and filter tank to the provided base according to the diagrams.
- Install the Cartridge Element: Carefully insert the filter cartridge element into the filter tank. Ensure it is seated correctly.
- Secure the Tank Lid: Place the lid on the filter tank and engage the ring and latch locking system. Tighten until firm to ensure an airtight seal.
- Connect Hoses: Attach the two 1.5-inch connection hoses between the pump and the filter tank, and from the filter tank to your pool's return line. Use the provided adapters as needed. Ensure all connections are tight to prevent leaks.
- Electrical Connection: Connect the pump's power cord to a GFCI-protected electrical outlet. Do not plug in the pump until all water connections are complete and the system is primed.
Figure 2: Fully assembled filter system.
Figure 3: Key components for assembly and maintenance.
Operating Instructions
Once the system is installed and all connections are secure, you can begin operation.
- Priming the Pump: Before starting the pump for the first time, ensure the pump basket is full of water. Open the air relief valve on top of the filter tank to allow air to escape as water fills the system. Close the valve once a steady stream of water emerges.
- Starting the Pump: Plug the pump into the GFCI-protected outlet. The pump will begin to circulate water.
- Monitoring Pressure: Observe the pressure gauge. The initial operating pressure will be your clean filter pressure. As the filter collects debris, the pressure will gradually rise.
- Run Time: Operate the filter system for a sufficient duration each day to ensure proper water circulation and filtration. The required run time depends on pool size, usage, and environmental factors.
- Shutting Down: To turn off the system, simply unplug the pump from the electrical outlet.
Maintenance
Regular maintenance ensures efficient filtration and extends the life of your system.
- Filter Cartridge Cleaning: When the pressure gauge reads 8-10 PSI above the clean filter pressure, it's time to clean the cartridge. Turn off the pump and release all pressure using the air relief valve. Open the filter tank, remove the cartridge, and rinse it thoroughly with a garden hose. For stubborn debris, use a specialized filter cleaning solution.
- Cartridge Replacement: Over time, filter cartridges wear out and become less effective. Replace the cartridge element annually or as needed, depending on usage and water quality. The recommended replacement element for Model 76101 is 77100 (50 Microns).
- Pump Basket Cleaning: Periodically check and clean the pump's strainer basket to remove large debris that could impede flow.
- Winterization: Before freezing temperatures arrive, drain all water from the pump and filter tank. Disconnect hoses and store the system in a dry, protected area.
Figure 4: Efficient filtration is maintained by regular cartridge cleaning.

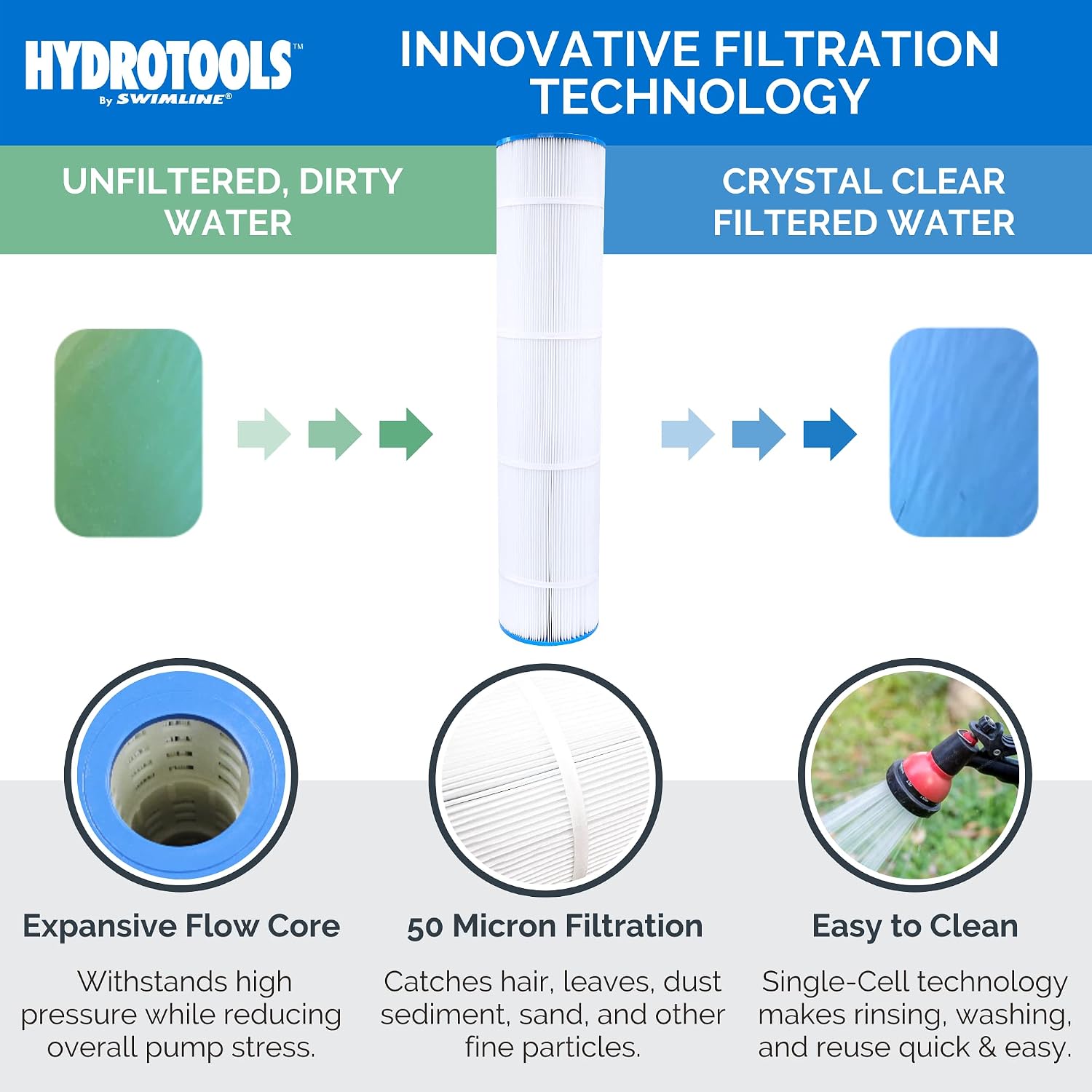

Figure 5: Innovative filtration technology and cartridge features.
Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow / Poor filtration | Clogged filter cartridge; Clogged pump strainer basket; Air in the system; Low water level in pool. | Clean or replace filter cartridge; Clean pump strainer basket; Bleed air from system using air relief valve; Add water to pool. |
| Water leaks from connections | Loose hose clamps; Damaged O-rings or gaskets; Improperly seated connections. | Tighten hose clamps; Inspect and replace O-rings/gaskets if damaged; Reassemble connections ensuring proper fit. |
| Pump not starting | No power; GFCI tripped; Motor overload; Impeller jammed. | Check power supply; Reset GFCI; Allow motor to cool and reset; Inspect impeller for obstructions (ensure power is off). |
| Cloudy pool water | Dirty filter cartridge; Insufficient run time; Chemical imbalance. | Clean or replace filter cartridge; Increase pump run time; Test and adjust pool chemistry. |
| Pump or filter incompatible | Incorrect model or parts received. | Verify model numbers of all components against your order. Contact customer service if discrepancies are found. |
Specifications
Key technical specifications for the SWIMLINE HYDROTOOLS Model 76101 Sure-Flo Above-Ground Pool Cartridge Filter System:
| Feature | Specification |
|---|---|
| Model Number | 76101 |
| Filtration Area | 100 Square Feet |
| Recommended Max. Pool Size | Up to 21,000 Gallons |
| Gallons Per Hour (GPH) | 4,980 GPH |
| Horsepower (THP) | 1.2 THP (1.5 HP pump) |
| Voltage | 110V/60Hz |
| Pump Style | Single Speed Pump |
| Material | Durable, non-corrosive, UV-resistant plastic |
| Replacement Element # | 77100 (50 Microns) |

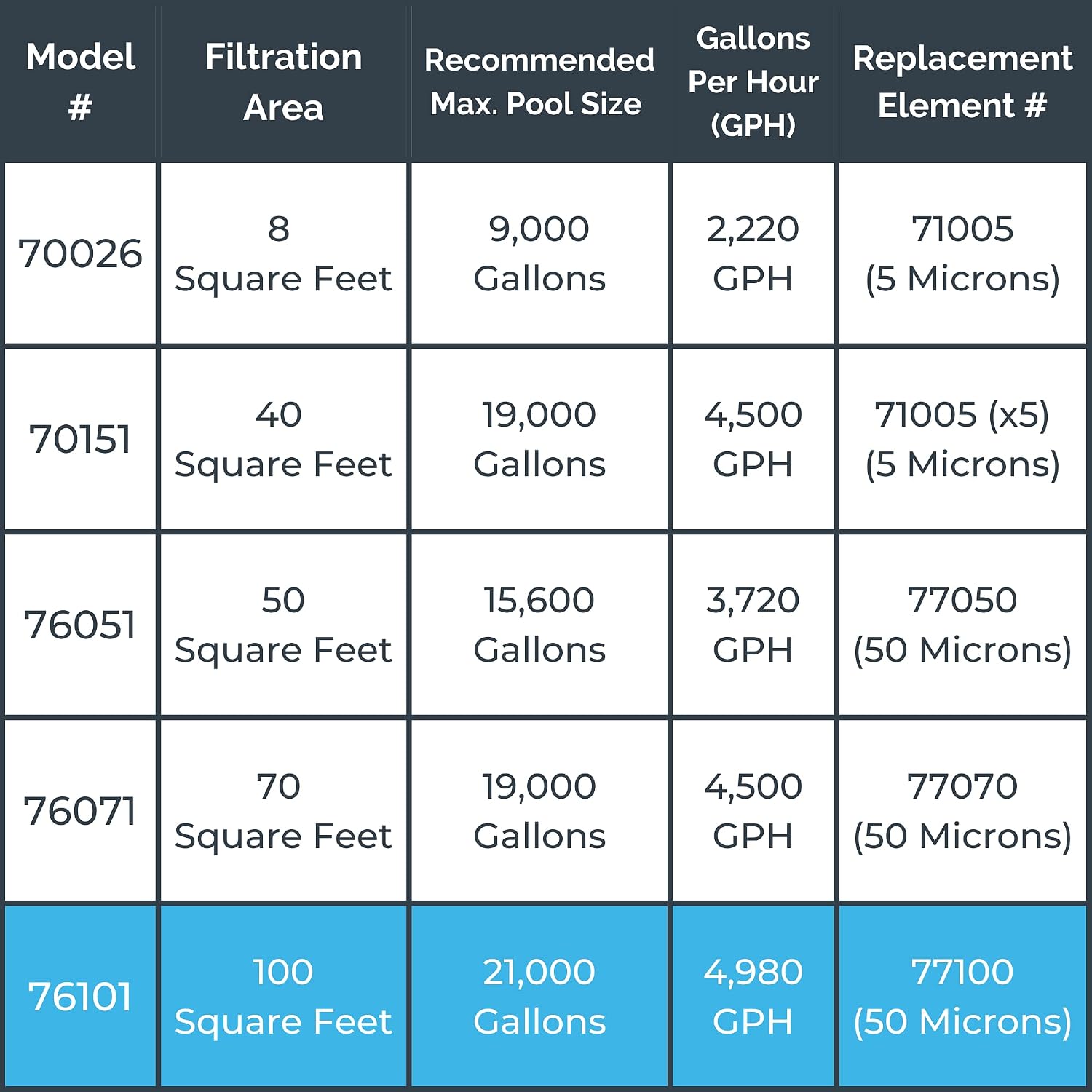

Figure 6: Model specifications comparison.
Warranty and Support
Manufacturer's Warranty: This product comes with a 1-year warranty against manufacturer's defects. This warranty applies only to new goods sold by approved sellers. Please retain your proof of purchase for warranty claims.
Customer Support: For technical assistance, troubleshooting, or warranty inquiries, please contact Swimline customer service. Refer to the product packaging or the official Swimline website for the most current contact information.
