1. Introduction
This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Delixike WH08X10050 Washer Driving Belt. This replacement part is designed for specific GE washer models. Please read these instructions carefully before attempting any installation or repair to ensure safety and proper function.
2. Safety Information
- Disconnect Power: Always unplug the washing machine from the power outlet before attempting any service or repair. Failure to do so can result in electric shock or serious injury.
- Wear Protective Gear: Wear appropriate safety gloves and eye protection during installation to prevent injury from sharp edges or moving parts.
- Professional Assistance: If you are unsure about any step of the installation process, it is recommended to consult a qualified appliance repair technician.
- Handle with Care: The belt should be handled carefully to avoid damage before installation.
3. Product Overview
The Delixike WH08X10050 is a replacement driving belt for compatible GE washing machines. This belt is crucial for transmitting power from the washer's motor to the drum, enabling the spin and agitation cycles. It is designed for durability and reliable performance.

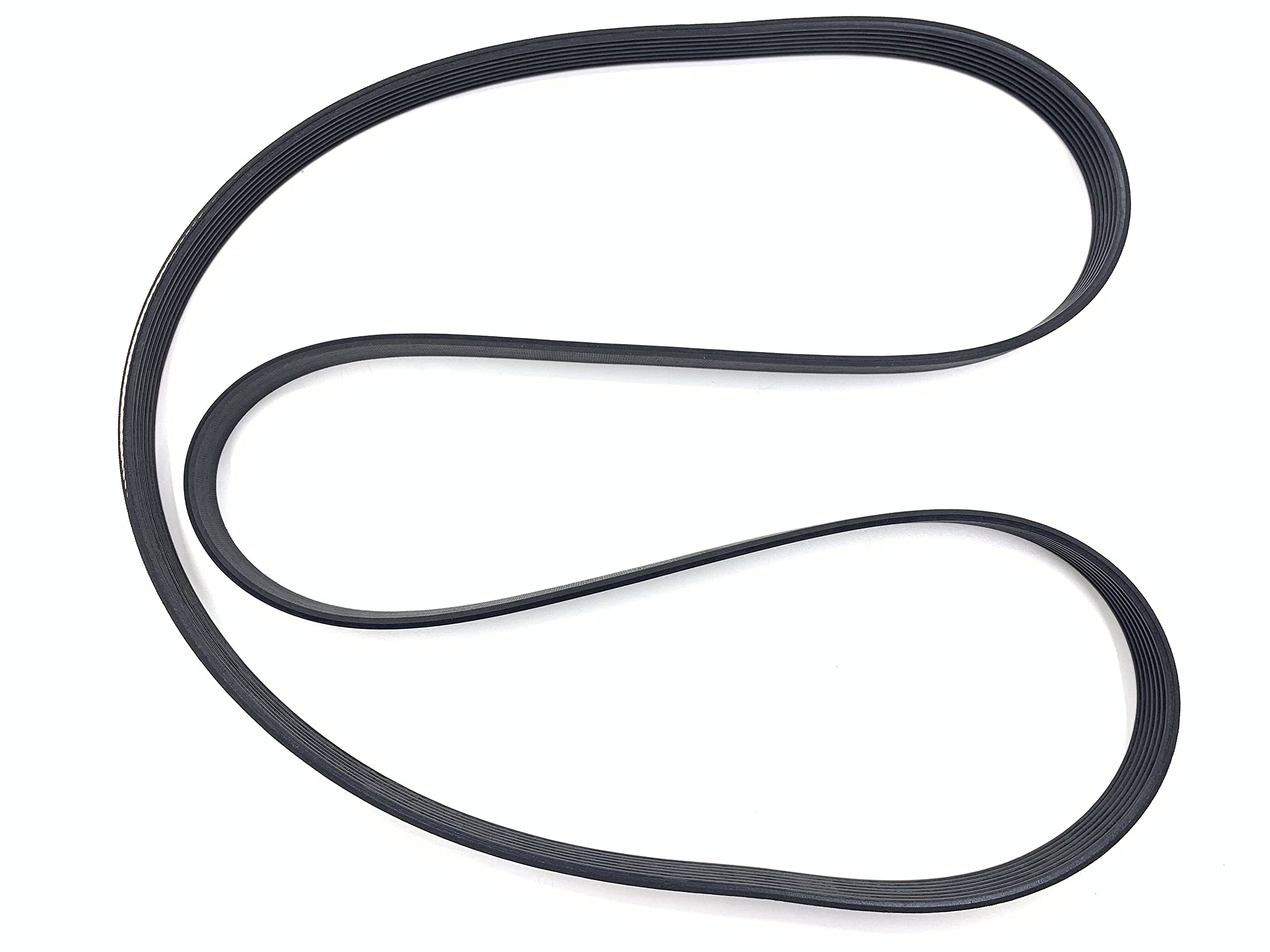

Image: A close-up view of the Delixike WH08X10050 Washer Driving Belt. The belt is black, made of a durable rubber-like material, and features multiple parallel ribs on its inner surface, designed to grip pulleys effectively. The belt is curved, indicating its flexible nature.
4. Compatibility
This WH08X10050 Washer Driving Belt replaces part numbers 1811465, AH3487272, EA3487272, and PS3487272. It is compatible with various GE washer models. Please verify your washer's model number before purchasing and installing.
Compatible GE Washer Models (Partial List):
- GFW400SCM0WW, GFW400SCM1WW, GFW430SSM0WW, GFW430SSM1WW, GFW450SPM0DG, GFW450SPM1DG, GFW450SSM0WW, GFW450SSM1WW
- GFWH1200D0WW, GFWH1300D0WW, GFWH1400D0WW, GFWH1405D0MS
- GFWH2400L0WW, GFWH2405L0BB, GFWH2405L0MG, GFWH2405L0MS, GFWH2405L0MV, GFWH3400L0WW, GFWH3405L0BB, GFWH3405L0MG, GFWH3405L0MS, GFWH3405L0MV
- GFWN1100D0WW, GFWN1200D0WW, GFWN1300D0WW, GFWN1300J0WW, GFWN1600J0WW, GFWN1600J1WW
- GFWS1500D0WW, GFWS1500D1WW, GFWS1505D0MS, GFWS1700H0WW, GFWS1700H1WW, GFWS1705H0DG, GFWS1705H1DG
- GFWS3500L0WW, GFWS3505L0BB, GFWS3505L0MG, GFWS3505L0MS, GFWS3505L0MV
This list is not exhaustive. Always refer to your appliance's service manual or manufacturer's specifications to confirm compatibility.
5. Installation (Setup)
Replacing a washer driving belt typically involves accessing the motor and drum pulleys. The exact steps may vary depending on your specific GE washer model. Always refer to your washer's service manual for detailed, model-specific instructions.
General Installation Steps:
- Prepare the Washer: Disconnect the washer from its power source and water supply. Move the washer to an open area for easier access.
- Access the Belt: Depending on your model, you may need to remove the back panel, front panel, or tilt the washer to access the motor and drum pulleys.
- Remove the Old Belt: Carefully remove the old, worn, or broken belt from the pulleys. Note its routing for reference.
- Install the New Belt: Place the new Delixike WH08X10050 belt onto the smaller motor pulley first. Then, stretch it over the larger drum pulley. This often requires significant force and careful manipulation. Rotate the drum by hand to help the belt seat properly.
- Check Tension: Ensure the belt is properly seated on both pulleys and has appropriate tension. It should be snug but not overly tight.
- Reassemble: Reattach any panels or components removed during access.
- Test: Reconnect power and water, then run a short cycle to ensure the washer operates correctly and the drum spins as expected. Listen for unusual noises.
Caution: Improper installation can lead to further damage to the appliance or personal injury.
6. Operation
The washer driving belt is a passive component that facilitates the mechanical operation of your washing machine. Once correctly installed, it works in conjunction with the motor and pulleys to rotate the wash drum during agitation and spin cycles. A properly functioning belt ensures smooth and efficient power transfer, leading to effective washing and drying of clothes.
Signs of a properly operating belt include consistent drum rotation during cycles and the absence of unusual noises like squealing or grinding.
7. Maintenance
The WH08X10050 driving belt is designed for long-term durability. Regular maintenance primarily involves periodic inspection:
- Visual Inspection: Approximately once a year, or if you notice any performance issues, inspect the belt for signs of wear, cracking, fraying, or glazing.
- Tension Check: Ensure the belt maintains proper tension. A loose belt can slip, while an overly tight belt can strain the motor and pulleys.
- Cleanliness: Keep the area around the belt and pulleys free from lint, debris, or detergent residue, which can cause premature wear.
Replace the belt if any significant signs of wear or damage are observed to prevent further appliance issues.
8. Troubleshooting
If your washing machine is experiencing issues related to drum movement, the driving belt may be a contributing factor. Here are common symptoms and troubleshooting steps:
| Symptom | Possible Cause (Belt Related) | Solution |
|---|---|---|
| Washer drum does not spin or agitate | Broken, stretched, or slipped belt | Inspect and replace the belt if broken or severely stretched. Re-seat if slipped. |
| Loud squealing or grinding noise during operation | Worn, glazed, or misaligned belt | Inspect the belt for wear. Replace if glazed or cracked. Ensure proper alignment on pulleys. |
| Burning rubber smell | Slipping belt due to wear or overload | Check for excessive load. Inspect belt for wear and replace if necessary. |
| Slow or weak drum rotation | Stretched or loose belt | Replace the belt to restore proper tension and power transfer. |
If troubleshooting these belt-related issues does not resolve the problem, further diagnosis by a qualified technician may be required, as other components could be at fault.
9. Specifications
- Part Number: WH08X10050
- Replaces: 1811465, AH3487272, EA3487272, PS3487272
- Manufacturer: Delixike
- Item Weight: Approximately 2.39 ounces
- Package Dimensions: Approximately 4.41 x 3.7 x 0.79 inches
- Color: Black
- Belt Style: Solid, ribbed
- Compatible Devices: Washing Machine (Specific GE models)
10. Warranty and Support
For warranty information regarding your Delixike WH08X10050 Washer Driving Belt, please refer to the terms and conditions provided by your retailer or contact Delixike directly. Keep your proof of purchase for any warranty claims.
For technical support or further assistance, please contact the seller or manufacturer through their official channels. When contacting support, have your product model number (WH08X10050) and details of your washing machine model readily available.
