Introduction
The Holmes 1-Gallon Top-Fill Ultrasonic Cool-Mist Humidifier is designed to provide comfortable moisture in medium-sized rooms. This unit features a top-fill design for easy refilling, filter-less operation, and disinfectant protective material within the tank to inhibit mold and bacterial growth. It also includes 7-color LED lights and adjustable mist settings for personalized comfort.
Figure 1: Holmes 1-Gallon Top-Fill Ultrasonic Cool-Mist Humidifier
Important Safety Information
Please read and save these important safety instructions before using this humidifier. Failure to follow these instructions may result in electric shock, fire, or injury.
- Always place the humidifier on a firm, flat, level surface.
- Do not place the humidifier near heat sources such as stoves, radiators, or heaters.
- Do not operate the humidifier without water in the tank.
- Do not use essential oils directly in the water tank. Use the designated aromatherapy tray if available.
- Unplug the humidifier before filling, cleaning, or moving.
- Keep out of reach of children and pets.
Package Contents
Verify that all components are present:
- Humidifier Unit (Base and Water Tank)
- Mist Nozzle/Cover
- Power Cord (integrated)
Product Diagram and Features

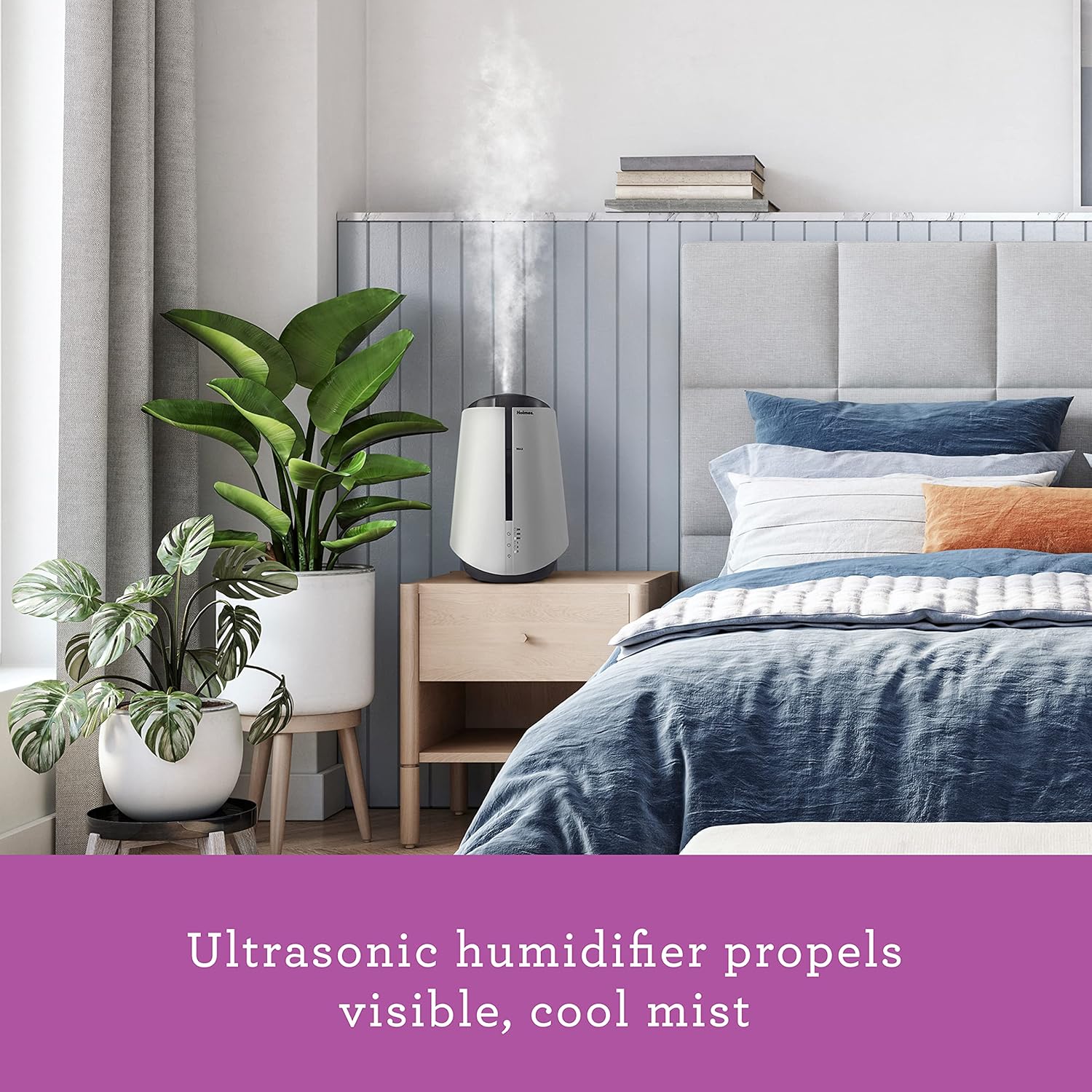

Figure 2: Humidifier in use, showing visible cool mist.
Figure 3: Humidifier in a living room, demonstrating suitability for medium rooms and long run time.
The humidifier features a sleek design with an integrated control panel and a clear water level indicator. The top-fill design allows for convenient water replenishment.
- Top-Fill Design: Easy access for filling water directly into the tank.
- Water Level Indicator: A transparent strip on the front shows the current water level.
- Control Panel: Touch-sensitive buttons for power, mist settings, timer, and night light.
- Mist Nozzle: Directs the cool mist output.
Setup
- Unpack: Carefully remove all packaging materials from the humidifier.
- Placement: Place the humidifier on a flat, water-resistant surface at least 12 inches (30 cm) away from walls and furniture. Ensure the mist output is not directed at walls or electronics.
- Fill Water Tank:
- Remove the top cover.
- Pour clean, cool tap water directly into the water tank opening. Do not exceed the 'MAX' fill line indicated on the unit.
- Replace the top cover securely.
- Connect Power: Plug the power cord into a 120V AC electrical outlet.
Operating Instructions
Figure 4: Control Panel with Mist and Timer Settings.

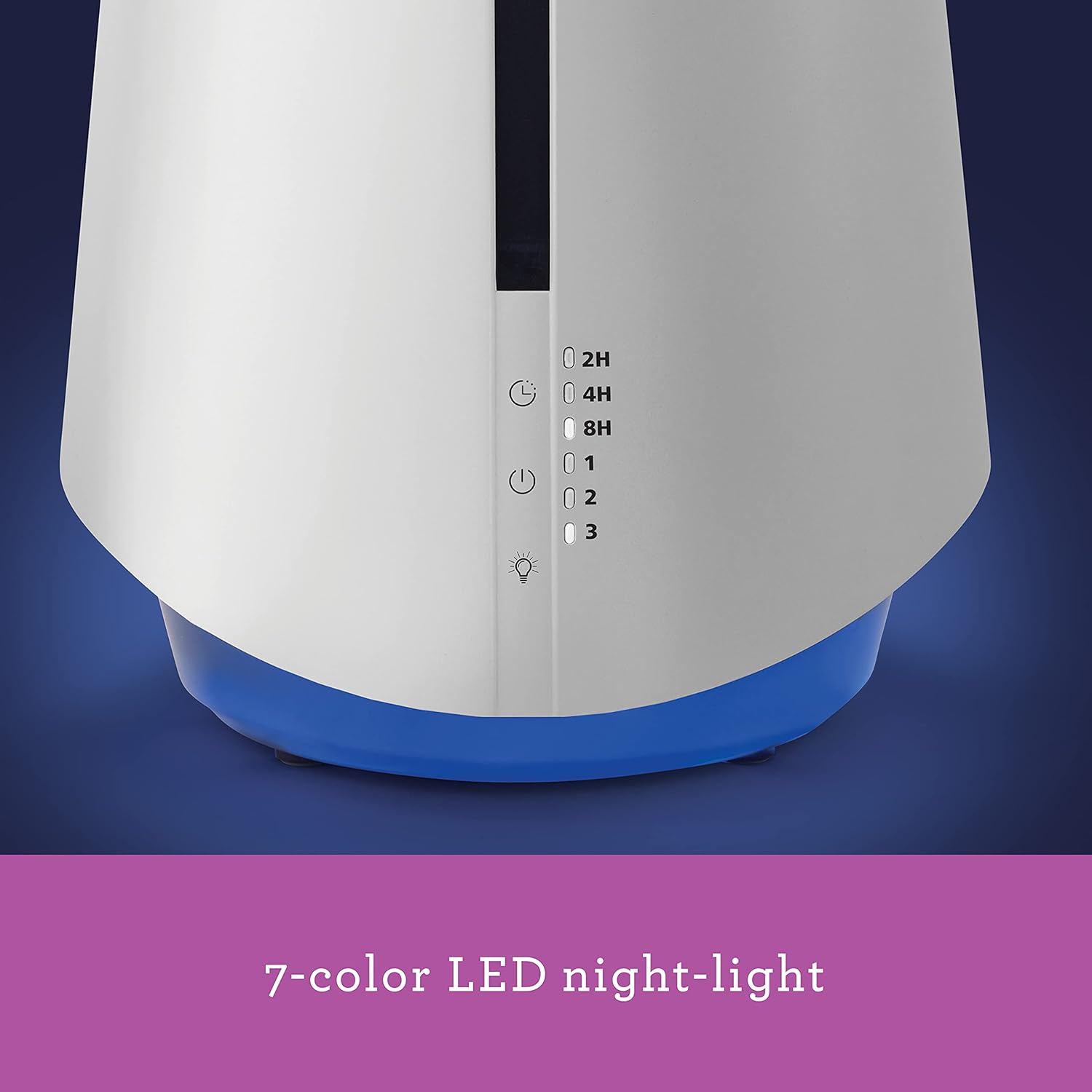

Figure 5: Humidifier base with 7-color LED night light activated.
- Power On/Off: Press the Power Button (⏻) once to turn the humidifier on. Press again to turn it off.
- Adjust Mist Output: Press the Mist Button (labeled 1, 2, 3) to cycle through three adjustable mist output settings (Low, Medium, High).
- Set Timer: Press the Timer Button (⏱) to select a desired operating time: 2 hours, 4 hours, or 8 hours. The humidifier will automatically shut off after the selected time. To disable the timer, cycle through the options until no timer indicator is lit.
- Activate Night Light: Press the Light Button (💡) to turn on the 7-color LED night light. Press again to cycle through colors or turn off the light.
Maintenance
Regular cleaning is essential to prevent mineral buildup and maintain optimal performance. This humidifier features disinfectant protective material in the tank to help inhibit mold and bacillus growth, but manual cleaning is still required.
Daily Maintenance:
- Empty any remaining water from the tank.
- Rinse the water tank and mist nozzle with fresh water.
- Wipe down the exterior surfaces with a soft, damp cloth.
Weekly Cleaning:
- Unplug: Ensure the humidifier is unplugged from the power outlet.
- Disassemble: Remove the top cover and mist nozzle.
- Clean Water Tank: Fill the water tank with a mixture of 1 teaspoon of white vinegar per gallon of water. Let it soak for 20 minutes. Use a soft brush or sponge to clean the inside surfaces, paying attention to any mineral deposits. Rinse thoroughly with clean water until the vinegar smell is gone.
- Clean Mist Nozzle: Wash the mist nozzle with warm, soapy water and rinse thoroughly.
- Clean Base: Gently wipe the base and ultrasonic transducer with a soft, damp cloth. Do not immerse the base in water.
- Reassemble: Allow all parts to air dry completely before reassembling the humidifier.
Note: This humidifier is filter-less, eliminating the need for filter replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No mist or low mist output. | Low water level; mineral buildup on transducer; unit not powered on. | Refill water tank; clean transducer as per maintenance instructions; ensure unit is plugged in and powered on. |
| Water leaking or spilling. | Overfilling the tank; unit not on a level surface; mist nozzle not properly seated. | Do not overfill past the MAX line; ensure unit is on a level surface; check that the mist nozzle is correctly installed. |
| Unusual odor. | New unit odor; dirty water tank. | Run for a few hours with fresh water; clean water tank thoroughly. |
| Unit shuts off unexpectedly. | Water tank empty; timer setting reached; internal safety mechanism. | Refill water tank; check timer settings; ensure proper ventilation and water levels. |
Specifications
- Model Number: 2142259
- Brand: HOLMES
- Capacity: 1 Gallon
- Operation Mode: Ultrasonic Cool Mist
- Run Time: Up to 60 hours (on low setting)
- Special Features: Top-Fill, Filter-less, Disinfectant Protection, 7-Color LED Night Light, 3 Adjustable Speed Settings
- Recommended Room Size: Medium rooms (approx. 300 sq ft)
- Voltage: 120 Volts
- Wattage: 22 watts
- Control Method: Touch
- Dimensions: 11.97 x 10.55 x 16.06 inches
- Item Weight: 6.75 pounds
Warranty and Support
For warranty information or product support, please refer to the warranty card included with your purchase or visit the official Holmes website. You may also contact customer service for assistance with any issues not covered in this manual.
Online Support: Visit the HOLMES Store on Amazon
