Introduction
Thank you for choosing the Yaheetech Garden Umbrella. This manual provides essential information for the proper assembly, operation, maintenance, and troubleshooting of your new umbrella. Please read these instructions carefully before use and retain them for future reference. This umbrella is designed to provide shade and UV protection for outdoor spaces such as gardens, patios, beaches, and balconies.
Product Overview
The Yaheetech Garden Umbrella features a durable polyester canopy and a sturdy metal pole, designed for ease of use and longevity.
Key Features:
- Selected Materials: Made from durable polyester fabric for sun and rain protection, with a water-resistant and rust-proof coated metal pole.
- Adjustable Tilt: The umbrella pole can be tilted and adjusted by pressing a button, allowing flexible adjustment to the sun's angle.
- Ample Shade: With a 270 cm diameter, it provides significant shade, accommodating a table with 4-6 chairs or two sun loungers.
- Crank Control: An easy-to-use crank system allows for effortless opening and closing.
- Multi-purpose: Ideal for gardens, patios, beaches, and commercial settings.
Components Included:
- Umbrella canopy and pole assembly
- Instruction manual
Setup
- Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the 'Components Included' section are present.
- Assemble the Pole: Connect the two sections of the umbrella pole. The design features a spring-loaded locking pin for easy, screw-free assembly. Ensure the sections click securely into place.
- Insert into Base (Not Included): Place the assembled umbrella pole into a suitable, weighted umbrella base (sold separately). Ensure the base is heavy enough to provide stability for the umbrella, especially in windy conditions.
- Secure the Umbrella: Tighten any securing screws or knobs on your umbrella base to firmly hold the pole in place.
Operating Instructions
Opening the Umbrella:
- Ensure the umbrella is securely placed in its base.
- Locate the crank handle on the umbrella pole.
- Rotate the crank handle clockwise to extend the canopy. Continue rotating until the canopy is fully open and taut. Do not overtighten.
Closing the Umbrella:
- Rotate the crank handle counter-clockwise to retract the canopy.
- Continue rotating until the canopy is fully closed and compact against the pole.
- Use the integrated fastening strap to secure the closed canopy neatly.

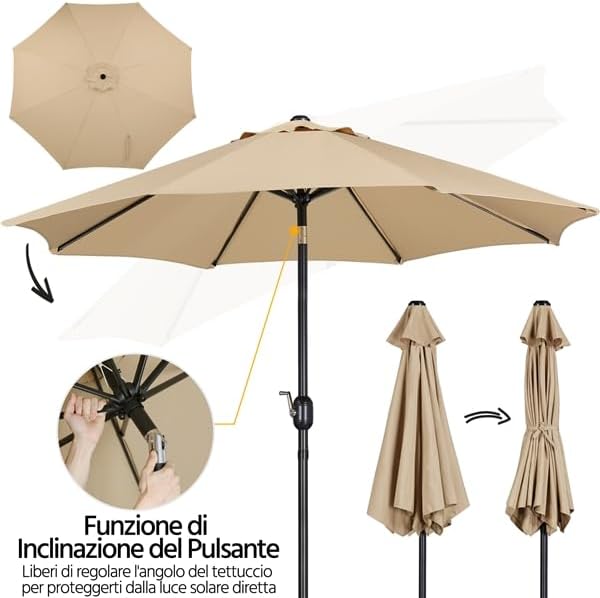

Adjusting the Tilt:
- With the umbrella open, locate the tilt button on the upper part of the pole, just below the canopy.
- Press and hold the tilt button.
- Gently push the canopy in the desired direction to adjust its angle.
- Release the button once the desired tilt angle is achieved. The umbrella will lock into position.
Maintenance
- Cleaning: Clean the canopy regularly with mild soap and water. Use a soft brush or cloth to remove dirt and debris. Rinse thoroughly and allow to air dry completely before closing or storing.
- Pole Care: Inspect the metal pole periodically for any signs of rust or damage. Clean with a damp cloth and dry thoroughly. If scratches occur, touch up with rust-resistant paint to prevent corrosion.
- Storage: When not in use for extended periods or during inclement weather, close the umbrella and secure it with the fastening strap. Store in a dry, protected area to prolong its lifespan.
- Wind Conditions: Always close the umbrella in strong winds or storms to prevent damage to the umbrella and potential injury.
Troubleshooting
- Difficulty Opening/Closing: Ensure the crank mechanism is free of obstructions. Check if the canopy fabric is caught in the ribs or pole. Apply a silicone-based lubricant to moving parts if necessary.
- Umbrella Instability: Verify that the umbrella pole is fully inserted into a sufficiently weighted base. Ensure the base is placed on a flat, stable surface. Tighten any securing screws on the base.
- Canopy Not Taut: Ensure the umbrella is fully cranked open. Check for any bent ribs or damaged fabric that might prevent proper tension.
- Tilt Mechanism Not Working: Ensure the tilt button is fully depressed. Check for any debris or damage preventing the mechanism from engaging.

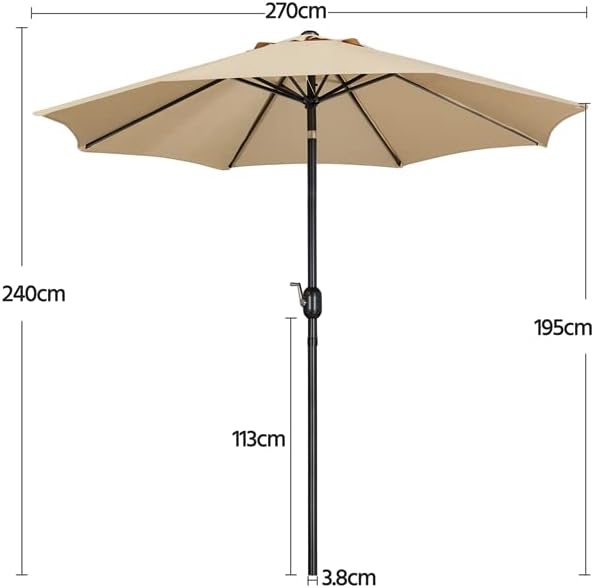

Specifications
| Material | Polyester (180g), Iron |
| Number of Ribs | 8 |
| Diameter | 270 cm |
| Height | 240 cm |
| Pole Diameter | 3.8 cm |
| Net Weight | 5.35 kg |
| Gross Weight | 5.8 kg |
| Color | Ecrù |
| UV Protection | Yes |
Warranty and Support
For information regarding product warranty, please refer to the documentation provided at the time of purchase or contact Yaheetech customer service directly. Keep your proof of purchase for any warranty claims.
If you encounter any issues not covered in this manual or require further assistance, please contact Yaheetech customer support through their official website or the retailer where the product was purchased. Provide your model number (611249) and a detailed description of the issue for prompt service.
