1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Mintu Dryer Heating Element Replacement. This component is designed to restore heating functionality to compatible Samsung dryer models. Please read this manual thoroughly before attempting any installation or repair to ensure proper procedure and safety.
2. Safety Information
WARNING: Risk of Electric Shock, Fire, or Injury.
- Disconnect Power: Always disconnect the dryer from its power source (unplug or turn off circuit breaker) before performing any service or maintenance. Failure to do so can result in serious injury or death.
- Professional Installation Recommended: Appliance repair can be complex and dangerous. If you are not comfortable with electrical work or appliance disassembly, it is highly recommended to seek assistance from a qualified technician.
- Wear Protective Gear: Wear appropriate personal protective equipment, such as work gloves, to prevent cuts and scrapes from sharp edges.
- Inspect Components: Before installation, carefully inspect all components for any signs of damage. Do not install damaged parts.
- Proper Tools: Use only the correct tools for the job to avoid damaging the appliance or yourself.
- Ventilation: Ensure the work area is well-ventilated.
3. Compatibility
This Mintu heating element replacement is compatible with various Samsung dryer models. Please verify your dryer's model number before purchasing and installing this part. Compatible models include, but are not limited to:
- Samsung DV5451AEW
- Samsung DV5451AEW/XAA
- Samsung DV5471AEP/XAA
- Samsung DV5471AEW/XAA
- Samsung DVE45M5500P/A3
- Samsung DVE45M5500W/A3
- Samsung DVE45M5500Z/A3
If your model is not listed, please consult your dryer's service manual or contact the manufacturer to confirm compatibility.
4. Package Contents
Your package should contain the following item:
- 1 x Mintu Dryer Heating Element Assembly (as pictured below)
Image 1: The Mintu Dryer Heating Element Assembly. This image shows the complete heating element unit, including the metal housing, heating coils, and integrated thermostats/sensors.

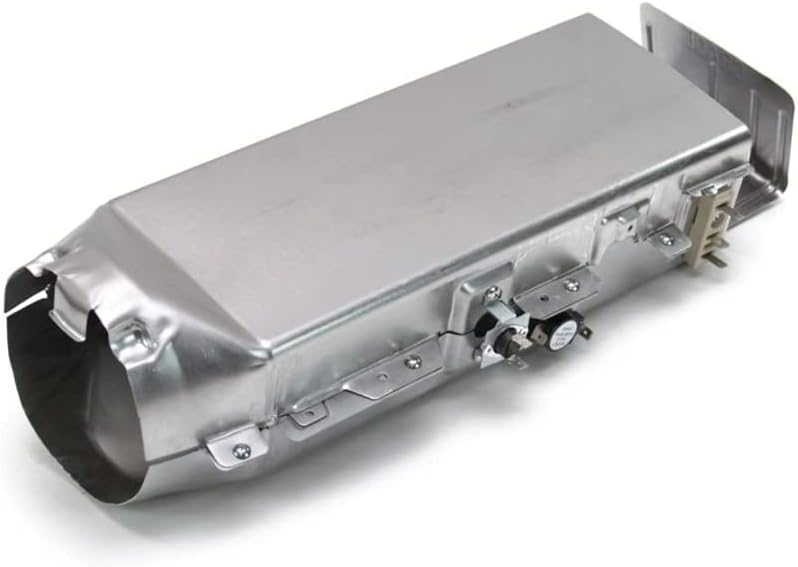

Image 2: Side view of the Mintu Dryer Heating Element. This perspective highlights the electrical terminals and mounting points on the side of the heating element housing.
5. Installation Instructions (Setup)
Important: Refer to the "Safety Information" section before proceeding. These instructions assume you have already accessed the heating element compartment of your dryer. Consult your specific dryer model's service manual for detailed disassembly and reassembly procedures.
Tools You May Need:
- Screwdrivers (Phillips and Flathead)
- Nut Drivers or Socket Set
- Pliers
- Work Gloves
- Multimeter (for testing, optional but recommended)
Procedure:
- Disconnect Power: Ensure the dryer is completely disconnected from its power source.
- Access Heating Element: Follow your dryer's service manual to safely access the heating element housing. This typically involves removing the back panel and potentially the dryer drum.
- Disconnect Wires: Carefully label and disconnect all electrical wires connected to the old heating element. Take a photo for reference if needed.
- Remove Old Element: Unscrew or unclip the old heating element assembly from its mounting brackets. Carefully remove it from the dryer.
- Inspect Area: Clean any lint or debris from the heating element compartment and surrounding areas.
- Install New Element: Position the new Mintu heating element assembly into the dryer, ensuring it aligns correctly with the mounting points. Secure it with the screws or clips removed earlier.
- Reconnect Wires: Reconnect the electrical wires to the new heating element, matching them to their original positions based on your labels or photo. Ensure all connections are secure.
- Reassemble Dryer: Carefully reassemble the dryer, ensuring all panels, screws, and components are correctly put back in place. Double-check that no wires are pinched.
- Test Operation: Once fully reassembled, reconnect the dryer to its power source. Run a short cycle with no load and check for proper heating. Listen for any unusual noises.
6. Operation
The Mintu Dryer Heating Element is a functional component designed to restore the heating capability of your dryer. Once correctly installed, the dryer should operate according to its original manufacturer specifications. Refer to your dryer's user manual for instructions on selecting cycles, temperatures, and other operational features.
7. Maintenance
Proper maintenance of your dryer is crucial for its longevity and efficient operation, especially after replacing a heating element. While the heating element itself requires no specific user maintenance, adhering to general dryer maintenance practices will help prevent future issues:
- Clean Lint Filter: Clean the lint filter before or after every load to ensure optimal airflow and prevent lint buildup, which can be a fire hazard and reduce heating efficiency.
- Inspect and Clean Dryer Vent: Periodically inspect and clean the dryer vent ductwork. Blocked vents restrict airflow, causing the dryer to overheat and potentially damaging components, including the heating element.
- Check for Obstructions: Ensure the dryer's exhaust vent is not obstructed by debris, snow, or other items.
8. Troubleshooting
If your dryer is not functioning correctly after replacing the heating element, consider the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dryer runs but produces no heat. |
|
|
| Dryer takes too long to dry clothes. |
|
|
| Dryer overheats. |
|
|
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.
9. Specifications
- Product Type: Dryer Heating Element Replacement
- Brand: Mintu
- Compatibility: Samsung DV5451AEW, DV5471AEP, DVE45M5500 series dryers (and others as listed in Section 3)
- ASIN: B098WMRYVY
- Date First Available: July 8, 2021
- Material: Metal housing with heating coils and integrated safety components.
10. Warranty and Support
For information regarding the warranty of your Mintu Dryer Heating Element Replacement, please refer to the product packaging or contact the seller directly. If you require technical assistance or have questions not covered in this manual, please reach out to Mintu customer support through the retailer's platform or their official website, if available.
