1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Endless Summer The Marc Propane Gas Fire Table. Please read all instructions carefully before assembly or operation to ensure proper use and to prevent personal injury or property damage. Keep this manual for future reference.
The Endless Summer The Marc Propane Gas Fire Table is designed for outdoor use only, providing warmth and ambiance with a 40,000 BTU stainless steel burner and electronic ignition.
2. Important Safety Information
WARNING: For outdoor use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- An LP-cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
- Always maintain proper clearances from combustible materials as specified in the assembly instructions.
- Ensure the fire table is placed on a level, non-combustible surface.
- Keep children and pets away from the fire table during operation.
- Never leave the fire table unattended when in use.
- All gas fire pits are tested and certified to CSA standards, ensuring safety and quality.
- Includes a built-in automatic shut-off safety device for added protection.
Image: Overview of the fire table's safety features, highlighting the automatic shut-off, CSA certification, pre-assembled burner, and the hidden control panel designed to keep controls out of sight from children.
3. Product Overview and Components
The Endless Summer The Marc Propane Gas Fire Table features a durable construction and elegant design, perfect for enhancing your outdoor living space.
- Burner: 40,000 BTU Stainless Steel Burner for powerful heat output.
- Ignition: Electronic Ignition for easy starting.
- Mantel: Hand Painted Cement Resin Mantel in a Rustic Brown Wood Look.
- Fire Media: Includes White Glass (or black glass as shown in some images) for aesthetic appeal.
- Cover: Comes with a Protective Cover to shield the unit when not in use.
- Dimensions: 40" L x 28" W x 24" H.
- Materials: Constructed from Alloy Steel, Resin, and Stainless Steel.
Image: The Endless Summer The Marc Propane Gas Fire Table in operation, showcasing the flames and the rustic brown wood-look mantel.

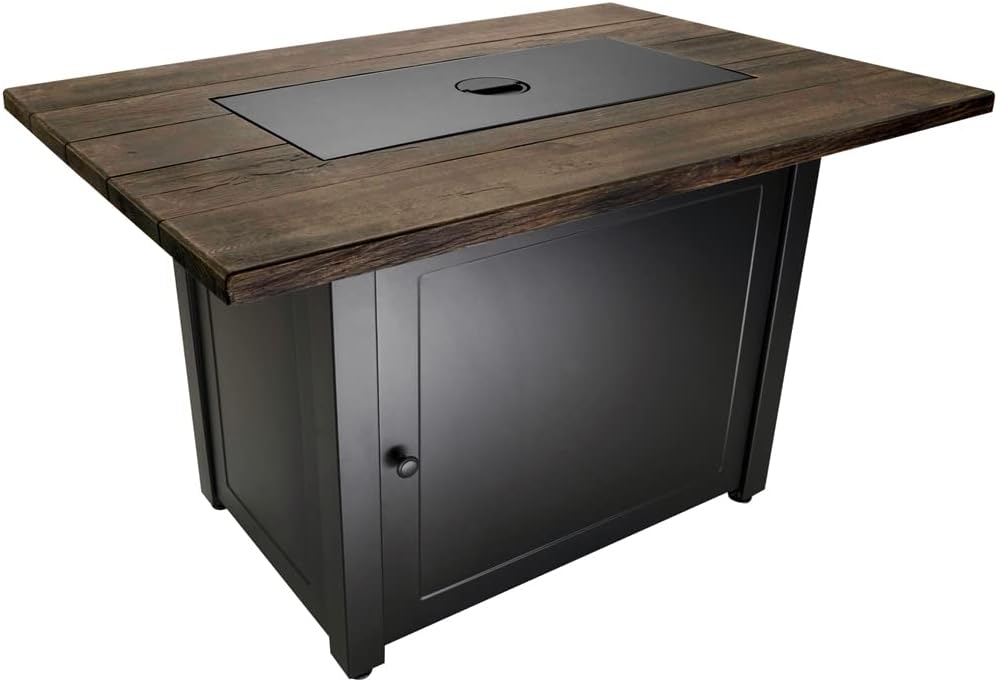

Image: The fire table with the burner covered, allowing it to function as a regular table surface.
Image: A detailed view of the stainless steel burner pan filled with black glass media, ready for ignition.
4. Setup and Assembly
The Endless Summer The Marc Fire Table is designed for easy setup. The mantel and burner assembly come fully assembled, simplifying the process.
- Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
- Placement: Position the fire table on a firm, level, non-combustible surface outdoors. Ensure adequate clearance from walls and other combustible materials as per local codes and safety guidelines.
- Adjustable Feet: The fire table is equipped with adjustable feet to prevent wobbling on uneven surfaces. Adjust each foot as necessary to ensure stability.
Image: Visual representation of key features including adjustable feet for stability, the high-quality glass media, the protective cover, and the hidden control panel for the propane tank.
- LP Gas Tank Connection:
- Open the door to the hidden control panel compartment.
- Place a standard 20 lb LP gas cylinder (not included) into the designated area.
- Connect the regulator hose from the fire table to the LP gas cylinder valve. Hand-tighten firmly.
- Check all connections for leaks using a soapy water solution before first use and after any tank change.
- Fire Media Placement: Carefully place the provided white glass (or black glass) media into the burner pan. Do not obstruct the igniter or burner ports.
5. Operating Instructions
Follow these steps to safely operate your Endless Summer The Marc Propane Gas Fire Table.
- Before Lighting:
- Ensure the area around the fire table is clear of any flammable materials.
- Verify that the LP gas cylinder valve is fully closed.
- Open the LP gas cylinder valve slowly.
- Lighting the Burner:
- Locate the hidden control panel, typically behind a small door on the side of the fire table.
- Push and turn the control knob to the "LOW" position.
- Immediately press and hold the electronic igniter button until the burner ignites. You should hear a clicking sound.
- Once ignited, continue to hold the control knob for 10-15 seconds to allow the thermocouple to heat up and engage the safety shut-off device.
- Release the control knob. If the flame extinguishes, repeat the lighting procedure.
- Adjusting Flame:
- Rotate the control knob to adjust the flame height from "LOW" to "HIGH" as desired.
- Shutting Down:
- Turn the control knob to the "OFF" position.
- Close the LP gas cylinder valve completely.
- Allow the fire table to cool completely before covering or moving.
Image: The fire table providing warmth and ambiance in an outdoor patio setting, with two individuals seated nearby.
Image: The fire table illuminated at night, demonstrating its ability to create a cozy atmosphere.
6. Maintenance
Regular maintenance will ensure the longevity and safe operation of your fire table.
- Cleaning:
- Ensure the fire table is completely cool before cleaning.
- Wipe exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
- Clean the burner and igniter area periodically to remove any debris that may obstruct gas flow or ignition.
- Protective Cover: Always use the included protective cover when the fire table is not in use and completely cool. This will protect it from weather elements and prolong its lifespan.
- Storage: If storing the fire table for extended periods, disconnect the LP gas cylinder and store it in a well-ventilated area outdoors, away from direct sunlight and heat sources. Store the fire table in a dry, sheltered location.
- Inspections: Periodically inspect the hose and connections for any signs of wear, cuts, or leaks. Replace damaged parts immediately.
7. Troubleshooting
If you encounter issues with your fire table, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not light with igniter. | No gas flow; Igniter electrode is dirty or damaged; Low battery in igniter. | Check LP tank connection and ensure valve is open; Clean electrode with a dry cloth; Replace igniter battery (if applicable). |
| Low flame or inconsistent flame. | Low gas pressure; Obstruction in burner ports; LP tank nearly empty. | Ensure LP tank valve is fully open; Clean burner ports; Replace or refill LP tank. |
| Flame extinguishes after lighting. | Thermocouple not heating sufficiently; Control knob not held long enough. | Ensure thermocouple is in flame path; Hold control knob for 10-15 seconds after ignition. |
| Gas odor detected. | Gas leak. | Immediately turn off gas supply. Do not operate. Check all connections for leaks with soapy water. If odor persists, contact a qualified service technician or your gas supplier. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | GAD17107ES |
| Product Dimensions | 28"D x 40"W x 24"H |
| Item Weight | 68.34 Pounds |
| Material | Alloy Steel, Resin, Stainless Steel |
| Fuel Type | Liquefied Petroleum Gas (LP) |
| Heat Output | 40,000 BTU |
| Ignition Type | Electronic Ignition |
| Color | Brown (Rustic Brown Wood Look Mantel) |
| UPC | 728649806783 |
| Manufacturer | Mr. Bar-B-Q |
9. Warranty and Support
For any questions regarding your Endless Summer The Marc Propane Gas Fire Table, or for assistance with parts and service, please contact customer support.
While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims. For the most up-to-date warranty information and customer service contact details, please refer to the manufacturer's website or the original product packaging.
Customer Support is available to assist with product inquiries, troubleshooting, and parts replacement.
