1. Important Safety Instructions
Please read all instructions carefully before using this appliance to ensure safe operation and prevent injury or damage. Keep this manual for future reference.
- Always connect the washing machine to a properly grounded outlet.
- Do not operate the machine if the power cord is damaged. Contact qualified service personnel for repair.
- Ensure the water inlet and drain hoses are securely connected to prevent leaks.
- Do not wash items that are soiled with flammable or explosive substances.
- Keep children and pets away from the washing machine during operation.
- Unplug the appliance from the power supply before cleaning or performing any maintenance.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- This appliance is for household use only.
2. Product Overview
The ZOKOP XQB45-ZK4 is a full-automatic portable washing machine designed for compact spaces, offering convenience and efficiency for your laundry needs.
Figure 2.1: Front and side view of the ZOKOP XQB45-ZK4 Portable Washing Machine.
2.1 Components
Figure 2.2: Diagram showing key components of the ZOKOP XQB45-ZK4 washing machine, including top cover, inlet valve, filter, frame, inner tub, operation panel, body, and base.
- Top Cover: Provides access to the inner tub.
- Inlet Valve: Connects to the water supply hose.
- Filter: Collects lint and debris during washing.
- Inner Tub: Where clothes are washed and spun.
- Operation Panel: Contains controls for programs, water levels, and power.
- Body: The main housing of the washing machine.
- Base: Provides stability for the unit.
2.2 Key Features
- Full-automatic operation: Simplifies laundry with pre-set programs.
- Compact and portable design: Ideal for small living spaces.
- 10 lbs load capacity: Suitable for light to medium laundry loads.
- 10 wash programs: Offers versatility for different fabric types and soil levels.
- 8 water level selections: Allows for efficient water usage based on load size.
- LED display: Provides clear information on cycle status and settings.
- Clear lid: Allows monitoring of the washing process.
2.3 Dimensions
Figure 2.3: Dimensions of the ZOKOP XQB45-ZK4 washing machine: approximately 15.4 inches wide, 15.4 inches deep, and 28.3 inches high.
3. Setup and Installation
3.1 Unpacking
Carefully remove the washing machine from its packaging. Inspect the unit for any signs of damage. Retain packaging materials for future transport or storage.
3.2 Placement
- Place the washing machine on a firm, level surface to minimize vibration and noise during operation.
- Ensure there is adequate space around the machine for ventilation and access to connections.
- Avoid placing the machine in direct sunlight or in areas with extreme temperatures.
3.3 Water Connection
Figure 3.1: Rear view of the ZOKOP XQB45-ZK4 washing machine showing power cord and drain hose connection points.
- Connect the water inlet hose to the inlet valve on the back of the washing machine and to a cold water faucet.
- Tighten all connections securely to prevent leaks. Do not overtighten.
- Turn on the water supply and check for any leaks.
3.4 Drain Hose Connection
- Position the drain hose into a sink or a standpipe. Ensure the hose is securely fastened to prevent it from dislodging during the drain cycle.
- The drain hose should be positioned at a height between 24 and 40 inches (60-100 cm) from the floor.
3.5 Power Connection
- Plug the power cord into a grounded electrical outlet.
- Ensure the voltage and frequency of your power supply match the specifications of the washing machine.
4. Operating Instructions
4.1 Control Panel Overview

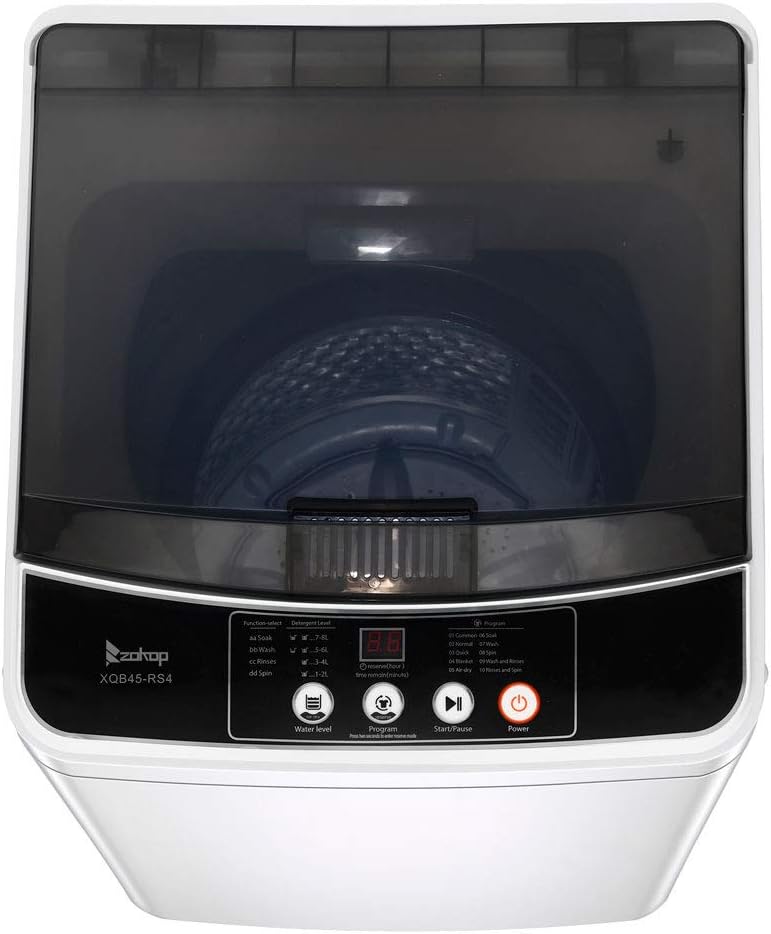

Figure 4.1: Top-down view of the ZOKOP XQB45-ZK4 control panel with LED display, water level, program, and start/pause buttons.
- Power Button: Turns the machine on or off.
- Start/Pause Button: Starts or pauses the selected wash cycle.
- Program Button: Selects one of the 10 available wash programs.
- Water Level Button: Adjusts the water level (8 selections).
- LED Display: Shows remaining time, selected program, and water level.
4.2 Basic Operation
- Load Laundry: Open the top cover and place clothes loosely into the inner tub. Do not overload the machine.
- Add Detergent: Add the appropriate amount of detergent to the detergent dispenser.
- Power On: Press the 'Power' button to turn on the washing machine.
4.3 Selecting a Program
Press the 'Program' button repeatedly to cycle through the 10 available wash programs. The selected program will be indicated on the LED display. Choose a program suitable for your laundry type and soil level.
4.4 Adjusting Water Level
After selecting a program, press the 'Water Level' button to choose from 8 different water level settings. Select a water level that matches the size of your laundry load to conserve water and energy.
4.5 Starting a Wash Cycle
Once the program and water level are selected, press the 'Start/Pause' button to begin the wash cycle. The machine will automatically proceed through the wash, rinse, and spin phases.
To pause a cycle, press the 'Start/Pause' button again. Press it once more to resume.
5. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your washing machine.
5.1 Cleaning the Lint Filter
- Locate the lint filter inside the inner tub.
- Remove the filter and clean any accumulated lint or debris under running water.
- Reinsert the clean filter securely into its position. Clean the filter after every few washes.
5.2 Cleaning the Exterior
- Wipe the exterior surfaces of the washing machine with a soft, damp cloth.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
5.3 Winter Storage (If applicable)
- If storing the machine in an area where temperatures may drop below freezing, drain all water from the hoses and pump to prevent damage.
- Disconnect water hoses and store them properly.
6. Troubleshooting
Refer to the table below for common issues and their solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power supply; Lid not closed properly; 'Start/Pause' button not pressed. | Check power connection; Ensure lid is fully closed; Press 'Start/Pause' button. |
| Water does not fill | Water supply turned off; Water inlet hose kinked or blocked; Inlet filter clogged. | Turn on water supply; Straighten hose; Clean inlet filter. |
| Water does not drain | Drain hose kinked or blocked; Drain pump filter clogged; Drain hose positioned too high. | Straighten hose; Clean drain pump filter; Adjust drain hose height. |
| Excessive vibration/noise | Machine not level; Load unbalanced; Shipping bolts not removed (if applicable). | Adjust leveling feet; Redistribute laundry evenly; Remove any shipping bolts. |
| Leaks from machine | Hose connections loose; Drain hose improperly installed; Excessive detergent causing suds. | Tighten hose connections; Ensure drain hose is secure; Use less detergent. |
7. Specifications
Technical specifications for the ZOKOP XQB45-ZK4 Full-Automatic Portable Washing Machine.
| Feature | Specification |
|---|---|
| Brand | ZOKOP |
| Model Number | XQB45-ZK4 |
| Capacity | 10 Pounds (4.5 kg) |
| Operation Mode | Fully Automatic |
| Standard Cycles | 10 Programs |
| Water Level Selections | 8 Levels |
| Max Spin Speed | 1300 RPM |
| Control Type | Push Button |
| Access Location | Top Load |
| Color | Gray |
| Item Weight | 35 Pounds (15.9 kg) |
| Finish Type | Stainless Steel Plastic |
8. Warranty and Customer Support
For warranty information or technical assistance, please refer to the documentation provided at the time of purchase or contact ZOKOP customer support directly. Ensure you have your model number (XQB45-ZK4) and purchase details available when contacting support.
For further inquiries, please visit the official ZOKOP website or contact their customer service department.
