1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new Mintu Washer Door Lock Switch Assembly. This replacement part is designed to restore the proper door locking function to your washing machine, ensuring safety and correct cycle operation. Please read these instructions thoroughly before beginning any work.
2. Safety Information
WARNING: Before attempting any repair or installation, always disconnect the washing machine from its power source by unplugging it or turning off the circuit breaker. Failure to do so can result in electric shock, serious injury, or death.
- Wear appropriate personal protective equipment, such as gloves and safety glasses.
- Ensure the work area is well-lit and clear of obstructions.
- If you are unsure about any step, consult a qualified appliance technician.
- Keep children and pets away from the work area.
3. Product Overview
The Mintu Washer Door Lock Switch Assembly is a critical component that ensures the washer door remains securely locked during operation, preventing water leaks and allowing the wash cycle to proceed. It typically consists of a locking mechanism and electrical contacts that signal the washer's control board when the door is closed and locked.

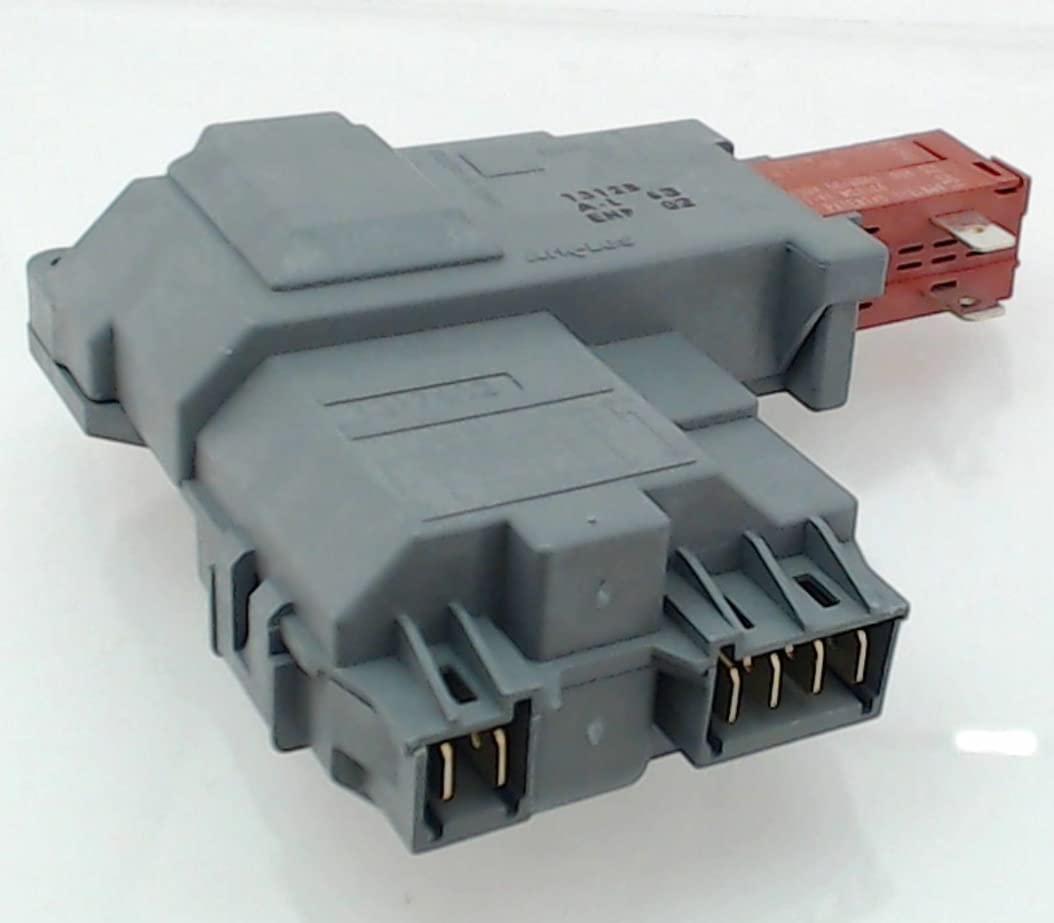

Figure 1: Mintu Washer Door Lock Switch Assembly. This image displays the grey plastic housing of the door lock switch, featuring a red component on the left side which is part of the locking mechanism, and electrical connectors on the right and bottom for wiring.
Compatibility: This part is a replacement for various Kenmore, Frigidaire, Crosley, and Electrolux washing machine models. Refer to the product listing or your appliance's service manual to confirm compatibility with your specific model number.
4. Setup and Installation
This section outlines the general steps for replacing a washer door lock switch. Specific procedures may vary slightly depending on your washer model.
Tools Required:
- Screwdrivers (Phillips and/or flathead)
- Nut driver or socket set (if applicable)
- Pliers
- Work gloves
Installation Steps:
- Disconnect Power: Unplug the washer from the electrical outlet or turn off the circuit breaker supplying power to the appliance.
- Access the Door Lock Switch: Depending on your washer model, you may need to remove the top panel, front panel, or the door boot gasket to access the door lock switch. Consult your washer's service manual for specific instructions on accessing the component.
- Disconnect Wiring: Carefully disconnect the electrical connectors from the old door lock switch. Note the position of each wire or take a photograph for reference if necessary.
- Remove Old Switch: Unscrew any mounting screws or release any clips holding the old door lock switch in place. Carefully remove the old switch from its housing.
- Install New Switch: Position the new Mintu Washer Door Lock Switch Assembly in the same location as the old one. Secure it with the mounting screws or clips.
- Reconnect Wiring: Reconnect the electrical connectors to the new switch, ensuring they are firmly seated. Refer to your notes or photograph if you documented the original wiring configuration.
- Reassemble Washer: Reattach any panels or the door boot gasket that were removed during the process. Ensure all components are securely fastened.
- Test Operation: Plug the washer back into the electrical outlet or restore power at the circuit breaker. Close the washer door and initiate a short wash cycle to verify that the door locks correctly and the washer operates as expected.
5. Operating Instructions
The door lock switch operates automatically as part of the washing machine's safety and operational sequence.
- When a wash cycle is selected and started, the control board sends a signal to the door lock switch.
- The switch engages, physically locking the washer door to prevent it from being opened during high-speed spinning or when water is present.
- Once the door is locked, the switch sends a signal back to the control board, indicating that it is safe to proceed with the wash cycle.
- At the end of the cycle, or if the cycle is paused or cancelled, the control board will signal the door lock switch to disengage, allowing the door to be opened.
Ensure the washer door is fully closed before starting a cycle for the door lock switch to engage properly.
6. Maintenance
The Mintu Washer Door Lock Switch Assembly is designed for durability and typically requires minimal maintenance. However, regular inspection can help prolong its lifespan and ensure continued safe operation.
- Periodic Inspection: Occasionally inspect the area around the door lock switch for any signs of wear, damage, or debris accumulation.
- Cleaning: If accessible, gently clean any lint or residue that may accumulate around the door lock mechanism using a soft cloth. Ensure the washer is unplugged before cleaning.
- Door Alignment: Ensure the washer door closes and latches properly. A misaligned door can put undue stress on the door lock switch.
7. Troubleshooting
If your washer is experiencing issues related to the door lock, the replacement switch may resolve common problems. Here are some troubleshooting tips:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Washer door not locking | Faulty door lock switch, door not fully closed, wiring issue | Ensure door is closed firmly. Inspect wiring connections. If issue persists, the new switch may be faulty or incorrectly installed. |
| Washer not starting cycle | Door lock switch not signaling 'locked' status, control board issue | Verify the door locks. If not, check switch installation. If locked but not starting, consult a technician for control board diagnosis. |
| Error code related to door lock | Door lock switch malfunction, wiring problem | Refer to your washer's user manual for specific error code meanings. Recheck switch installation and wiring. |
| Door remains locked after cycle | Door lock switch failure, control board issue | Disconnect power for 5 minutes, then restore. If still locked, the switch may be stuck or faulty. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician.
8. Specifications
- Brand: Mintu
- Operation Mode: Automatic
- Contact Type: Normally Open
- Connector Type: Plug In
- Terminal: Screw
- Circuit Type: 1-way
- Actuator Type: Push Button
- Contact Material: Metal
- Mounting Type: Door Mount
- Color: Grey
- Unit Count: 1.0 Count
- UPC: 824252602184
9. Warranty Information
For specific warranty details regarding your Mintu Washer Door Lock Switch Assembly, please refer to the product packaging or contact the seller directly. Warranty coverage typically addresses manufacturing defects and may vary by retailer and purchase date.
10. Support
If you require further assistance with the installation, operation, or troubleshooting of your Mintu Washer Door Lock Switch Assembly, please contact the retailer from whom you purchased the product. For complex issues or if you are uncomfortable performing the repair yourself, it is always recommended to consult a certified appliance technician.
