Glem Injector 0.65 Butane Propane for Cooktop Instruction Manual

1. Introduction

This manual provides essential information for the safe and correct installation, operation, and maintenance of your Glem 0.65 Butane Propane Injector. Please read these instructions carefully before use and keep them for future reference. This injector is a critical component for your gas cooktop's proper function.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always ensure the main gas supply is turned off before attempting any installation or maintenance.
• Installation must be performed by a qualified gas technician in accordance with all local codes and regulations.
• Use only genuine Glem replacement parts to ensure compatibility and safety.
• After installation, always check for gas leaks using a soapy water solution. Never use an open flame to detect leaks.
• Ensure adequate ventilation in the work area during and after installation.

3. Product Overview

The Glem 0.65 Butane Propane Injector is a precision-engineered component designed for use with Glem and compatible Airlux cooktops. It regulates the flow of butane or propane gas to the burner, ensuring efficient and safe operation.

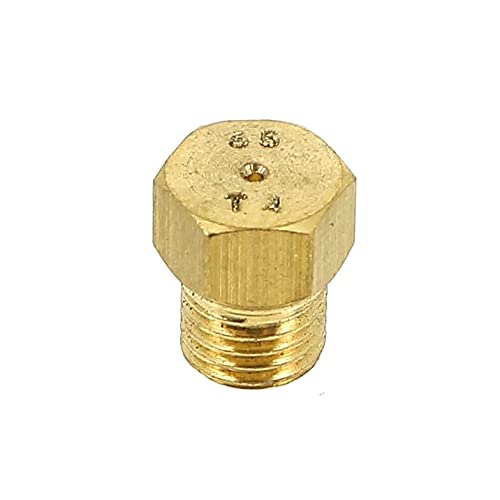

Image of the Glem 0.65 Butane Propane Injector, showing its metallic construction and compact size.

Key Features

• Material: Metal
• Injector Orifice Size: 0.65 mm
• Compatible Gas Type: Butane/Propane
• Inlet Connection Type: Compression
• Outlet Connection Type: Barbed
• Number of Ports: 2
• Outlet Connection Size: 6.35 Millimeters

4. Setup and Installation

Important: Installation should only be carried out by a certified gas technician.

1. Preparation:
   • Turn off the main gas supply to the appliance.
   • Disconnect the appliance from the electrical supply if applicable.
   • Ensure the work area is well-ventilated.
2. Accessing the Burner:
   • Remove the cooktop grates and burner caps/crowns.
   • Depending on the cooktop model, you may need to lift the cooktop surface or access from underneath to reach the burner assembly.
3. Removing the Old Injector:
   • Carefully unscrew the old injector from its housing using an appropriate wrench.
   • Note the orientation and position of the old injector for correct replacement.
4. Installing the New Injector:
   • Gently screw the new Glem 0.65 Butane Propane Injector into the burner housing.
   • Tighten securely but do not overtighten to avoid damaging the threads.
5. Leak Test:
   • Reconnect the gas supply.
   • Apply a soapy water solution to all gas connections, including the new injector.
   • Turn on the gas supply. If bubbles appear, there is a leak. Turn off the gas immediately and re-tighten the connection. Repeat until no bubbles are observed.
6. Reassembly:
   • Reassemble the cooktop components (burner caps, grates, etc.).
   • Reconnect the electrical supply if applicable.

5. Operating Instructions

This injector is a component part of your cooktop's gas system. Its operation is integral to the cooktop's function.

• Ensure the injector is correctly installed and leak-tested before operating the appliance.
• Refer to your cooktop's main instruction manual for specific operating procedures, including ignition and flame adjustment.
• The 0.65 mm orifice is designed for specific gas pressures and burner types. Using the incorrect injector size can lead to improper flame characteristics or unsafe operation.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your gas appliance.

• Cleaning: Periodically inspect the injector for any blockages or debris. Clean gently with a soft brush if necessary. Do not use abrasive cleaners or sharp objects that could damage the orifice.
• Inspection: Annually, or if you suspect a problem, have a qualified technician inspect the injector and all gas connections for wear, corrosion, or leaks.
• Replacement: If the injector becomes damaged, blocked, or shows signs of wear that affect its performance, it must be replaced with an identical Glem 0.65 Butane Propane Injector (Model: 3665392075349).

7. Troubleshooting

If you experience issues with your cooktop's gas burners, the injector may be a contributing factor. Always ensure the main gas supply is on and the appliance is correctly connected.

• Weak or Irregular Flame:
  • Check for partial blockage in the injector orifice.
  • Ensure the gas supply pressure is correct for butane/propane.
• No Gas Flow:
  • Verify the main gas supply is on.
  • Check for complete blockage of the injector.
  • Ensure all connections are secure and there are no leaks.
• Gas Odor:
  • Immediately turn off the gas supply.
  • Ventilate the area thoroughly.
  • Do not operate any electrical switches or appliances.
  • Perform a leak test as described in the "Setup and Installation" section. If the odor persists, contact a qualified gas technician immediately.

For complex issues or if you are unsure, always consult a qualified gas appliance technician.

8. Specifications

9. Warranty and Support

For warranty information and technical support regarding your Glem 0.65 Butane Propane Injector, please refer to the documentation provided with your original Glem appliance or visit the official Glem website. Keep your purchase receipt as proof of purchase.

Manufacturer: Glem

ASIN: B097LMJX8R
