Introduction
Thank you for purchasing the Sharp 70L 2400W Electric Oven, model EO-RT70N-K3. This manual provides essential information for the safe and efficient operation of your new appliance. Please read these instructions thoroughly before use and retain them for future reference.
This electric oven features a 70-liter capacity, 2400W power, double glass door, convection, and rotisserie functions, adjustable temperature control up to 230°C, and a 120-minute timer. It is designed for countertop use and includes various accessories to enhance your cooking experience.
Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:
- Read all instructions before operating the oven.
- Do not touch hot surfaces. Use handles or knobs.
- Always use oven mitts or pot holders when handling hot items.
- To protect against electric shock, do not immerse the cord, plug, or oven in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause hazards.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- To disconnect, turn any control to 'OFF', then remove the plug from the wall outlet.
- Do not use the appliance for other than intended use.
- Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
- A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
- Do not place any materials other than manufacturer-recommended accessories in the oven.
- Do not place cardboard, plastic, paper, or similar materials in the oven.
- Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
- Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
Product Overview
Oven Components
Figure 1: Front view of the Sharp 70L Electric Oven, showing the double glass door, control panel, and interior racks.

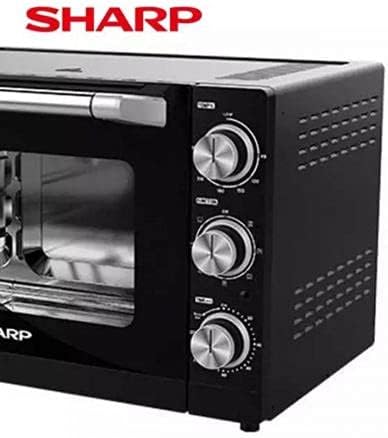

Figure 2: Side view of the oven, highlighting the Sharp brand logo and ventilation.
Figure 3: Close-up of the control panel with knobs for function, temperature, and timer settings.
Figure 4: Interior view of the oven, showing the upper and lower heating elements and rack positions.
Included Accessories
- Enamel Baking Tray: For baking and roasting.
- Grill Rack: For grilling and placing dishes.
- Crumb Tray: Collects crumbs for easy cleaning.
- Tray Handle: For safely removing hot trays and racks.
- Rotisserie Spit: For roasting whole chickens or other meats.
- Rotisserie Handle: For safely inserting and removing the rotisserie spit.

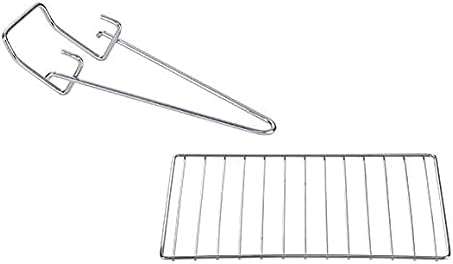

Figure 5: Grill rack and tray handle accessory.
Figure 6: Enamel baking tray and crumb tray accessories.

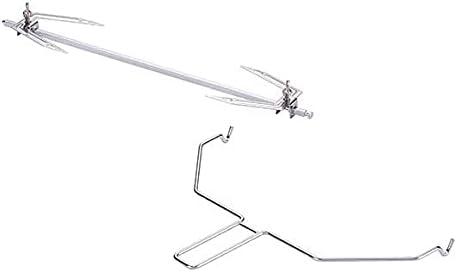

Figure 7: Rotisserie spit and rotisserie handle accessories.
Setup and First Use
Unpacking
- Carefully remove the oven and all accessories from the packaging.
- Remove any packing materials, stickers, or labels from the oven and accessories.
- Wipe the exterior of the oven with a damp cloth. Wash all accessories (baking tray, grill rack, rotisserie parts) in warm, soapy water, rinse, and dry thoroughly.
Placement
- Place the oven on a stable, heat-resistant, and level surface.
- Ensure there is adequate ventilation around the oven (at least 10-15 cm clearance on all sides and top).
- Do not place the oven near flammable materials such as curtains or walls.
- Ensure the power cord is not trapped or touching hot surfaces.
First Use (Burn-in)
Before cooking food, it is recommended to run the oven empty to burn off any manufacturing residues and odors:
- Insert the baking tray and grill rack into the oven.
- Plug the oven into a grounded electrical outlet.
- Turn the temperature knob to 230°C.
- Turn the function knob to the 'Top and Bottom Heat' setting.
- Set the timer knob to 15-20 minutes.
- Allow the oven to operate for the set time. A slight odor or smoke may be present; this is normal. Ensure the area is well-ventilated.
- Once the timer rings, turn all knobs to the 'OFF' position and unplug the oven. Allow it to cool completely.
Operating Instructions
The Sharp Electric Oven features three control knobs:
- Function Knob: Selects the heating mode.
- Temperature Knob: Sets the desired cooking temperature.
- Timer Knob: Sets the cooking duration.
Function Settings
Rotate the top knob to select the desired cooking function:
- OFF: Oven is off.
- Upper Heating Element: Ideal for grilling or browning the top of dishes.
- Lower Heating Element: Suitable for baking items that require more heat from the bottom.
- Upper and Lower Heating Elements: Standard baking and roasting.
- Convection (Fan): Circulates hot air for even cooking and faster results. Can be combined with heating elements.
- Rotisserie: Activates the rotisserie motor for rotating food. Can be combined with heating elements.
- Convection + Rotisserie: Combines hot air circulation with rotisserie rotation for thorough and even roasting.
Temperature Control
Rotate the middle knob to set the desired temperature from 90°C to 230°C. The oven will preheat to this temperature.
Timer Operation
Rotate the bottom knob to set the cooking time from 0 to 120 minutes. The oven will automatically turn off and chime when the set time expires. For continuous operation, turn the timer knob to the 'Stay On' position.
General Cooking Steps
- Place food in the appropriate accessory (baking tray, grill rack, or rotisserie spit).
- Insert the accessory into the desired rack position inside the oven.
- Close the oven door securely.
- Select the desired Function (e.g., Top and Bottom Heat, Convection).
- Set the desired Temperature.
- Set the Timer for the required cooking duration. The power indicator light will illuminate.
- When cooking is complete, the timer will chime, and the oven will turn off.
- Carefully remove the cooked food using the tray handle or oven mitts.
- Unplug the oven from the power outlet after use.
Cooking Guide
This section provides general guidance. Cooking times and temperatures may vary based on food type, quantity, and personal preference.
Baking
- Use the 'Upper and Lower Heating Elements' or 'Convection' function.
- Preheat the oven to the recommended temperature before placing food inside.
- Place baking trays on the middle or lower rack for even cooking.
Grilling
- Use the 'Upper Heating Element' function.
- Place food on the grill rack, positioned on the upper rack level for best results.
- Always use the baking tray on the bottom rack to catch drips.
Rotisserie Cooking
- Secure the food (e.g., whole chicken) onto the rotisserie spit using the forks. Ensure it is balanced.
- Insert the pointed end of the spit into the rotisserie drive socket on the right side of the oven.
- Rest the square end of the spit onto the rotisserie support on the left side.
- Select the 'Rotisserie' function, optionally combined with 'Upper and Lower Heating Elements' or 'Convection'.
- Set the temperature and timer.
- Place the baking tray on the bottom rack to collect drippings.
- Use the rotisserie handle to safely remove the hot spit after cooking.
Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the life of your oven.
Before Cleaning
- Always unplug the oven from the power outlet.
- Allow the oven to cool completely before cleaning any part.
Cleaning the Interior
- Wipe the interior walls, bottom, and glass door with a damp cloth and mild detergent.
- For stubborn stains, a non-abrasive cleaner designed for ovens can be used. Follow product instructions carefully.
- Do not use abrasive cleaners, scouring pads, or sharp objects as they can damage the interior surfaces.
- Ensure the interior is completely dry before plugging the oven back in.
Cleaning Accessories
- Wash the baking tray, grill rack, crumb tray, and rotisserie parts in warm, soapy water.
- Rinse thoroughly and dry completely before storing or reusing.
- These accessories may also be dishwasher safe; refer to their specific care instructions if available.
Cleaning the Exterior
- Wipe the exterior surfaces with a soft, damp cloth.
- Do not use harsh chemicals or abrasive cleaners.
Troubleshooting
If you encounter issues with your oven, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not turn on. | Not plugged in; power outage; timer not set. | Ensure the oven is securely plugged into a working outlet. Check household circuit breaker. Set the timer knob to a desired cooking time or 'Stay On'. |
| Food not cooking evenly. | Incorrect rack position; oven overloaded; door opened too frequently. | Adjust rack position. Avoid overloading the oven. Minimize opening the door during cooking. Consider using the convection function. |
| Excessive smoke or odor during cooking. | Food spills; residues from previous cooking; first use burn-in. | Clean the oven interior and accessories thoroughly. Ensure the crumb tray is clean. If it's the first use, this is normal (see 'First Use' section). |
| Rotisserie spit not rotating. | Spit not correctly inserted; rotisserie function not selected; food too heavy/unbalanced. | Ensure the spit is properly seated in both the drive socket and support. Select the 'Rotisserie' function. Ensure food is balanced and within weight limits. |
| Timer not working. | Knob not turned past 20 minutes initially (for mechanical timers). | For mechanical timers, turn the knob past the 20-minute mark first, then back to the desired time. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | Sharp |
| Model Number | EO-RT70N-K3 |
| Capacity | 70 Liters |
| Wattage | 2400 watts |
| Installation Type | Countertop |
| Special Features | Double Glass Door, Convection Function, Rotisserie Function, Adjustable Temperature Control, 120-Minute Timer |
| Temperature Range | Up to 230°C |
| Timer | 120 Minutes with Chime, 'Stay On' option |
| Control Type | Knob |
| Material | Stainless Steel (exterior), Tempered Glass (door) |
| Color | Black |
| Product Dimensions (L x W x H) | 51 x 72 x 57 cm (approximate, based on product data) |
| Item Weight | 15.9 Kilograms |
| Included Components | Electric Oven, Enamel Baking Tray, Grill Rack, Crumb Tray, Tray Handle, Rotisserie Spit, Rotisserie Handle |

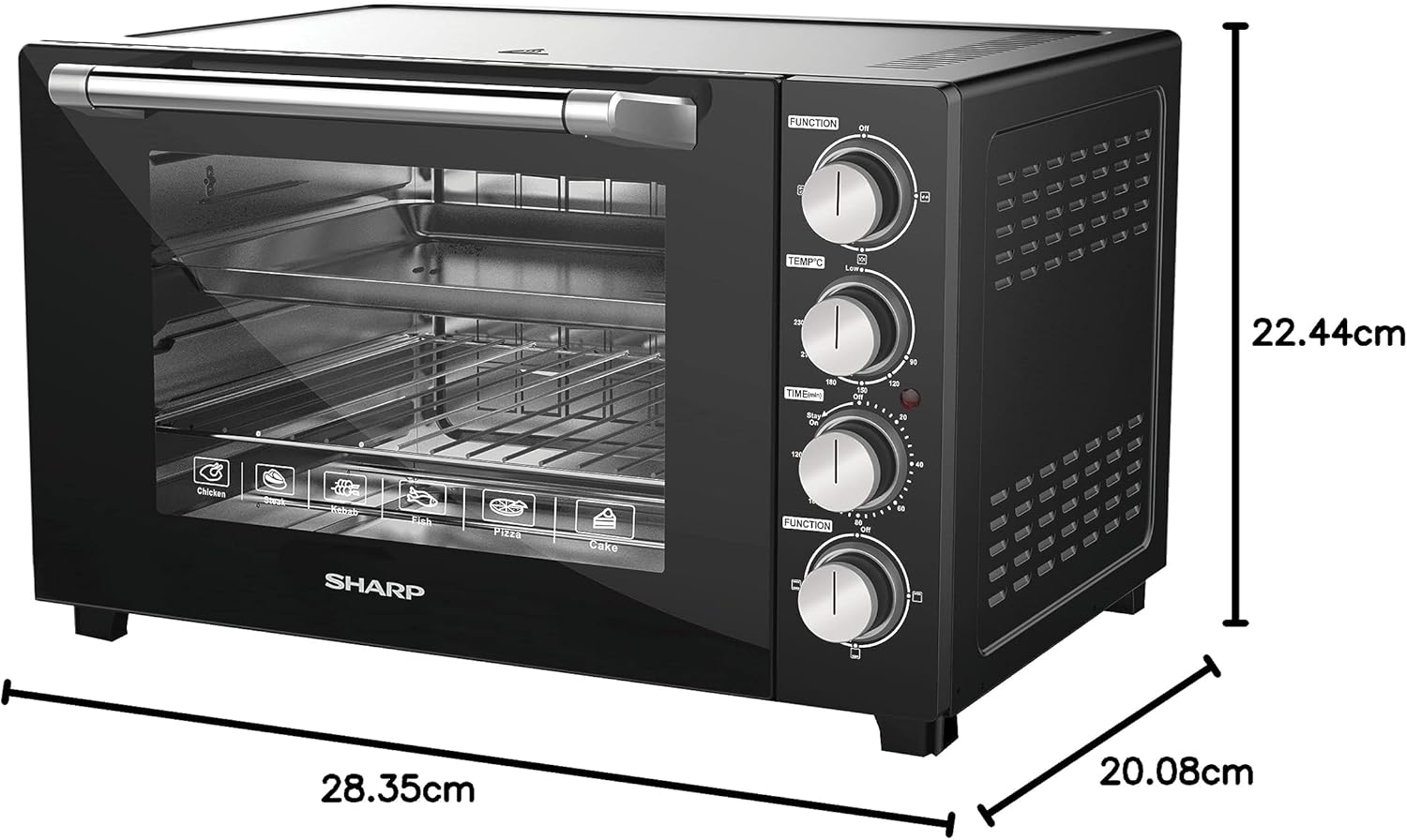

Figure 8: Approximate dimensions of the Sharp 70L Electric Oven.
Warranty and Customer Support
Warranty Information
This Sharp Electric Oven is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, service, or to inquire about replacement parts, please contact Sharp customer support. Contact details can typically be found on the Sharp official website or on your warranty documentation.
When contacting support, please have your oven's model number (EO-RT70N-K3) and serial number ready.
