Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your HD Switch 12V 30A Waterproof Relay. This aftermarket relay is designed for durability and performance in demanding environments, specifically for Cub Cadet 725-04397 Volunteer Series UTV and GTX2154 models.
The HD Switch Relay features an IP68 certification, indicating it is 100% sealed, dustproof, and waterproof. This design ensures reliable operation even when exposed to water and dust. Each relay includes a packet of dielectric grease to protect terminals against corrosion and improve electrical connections.

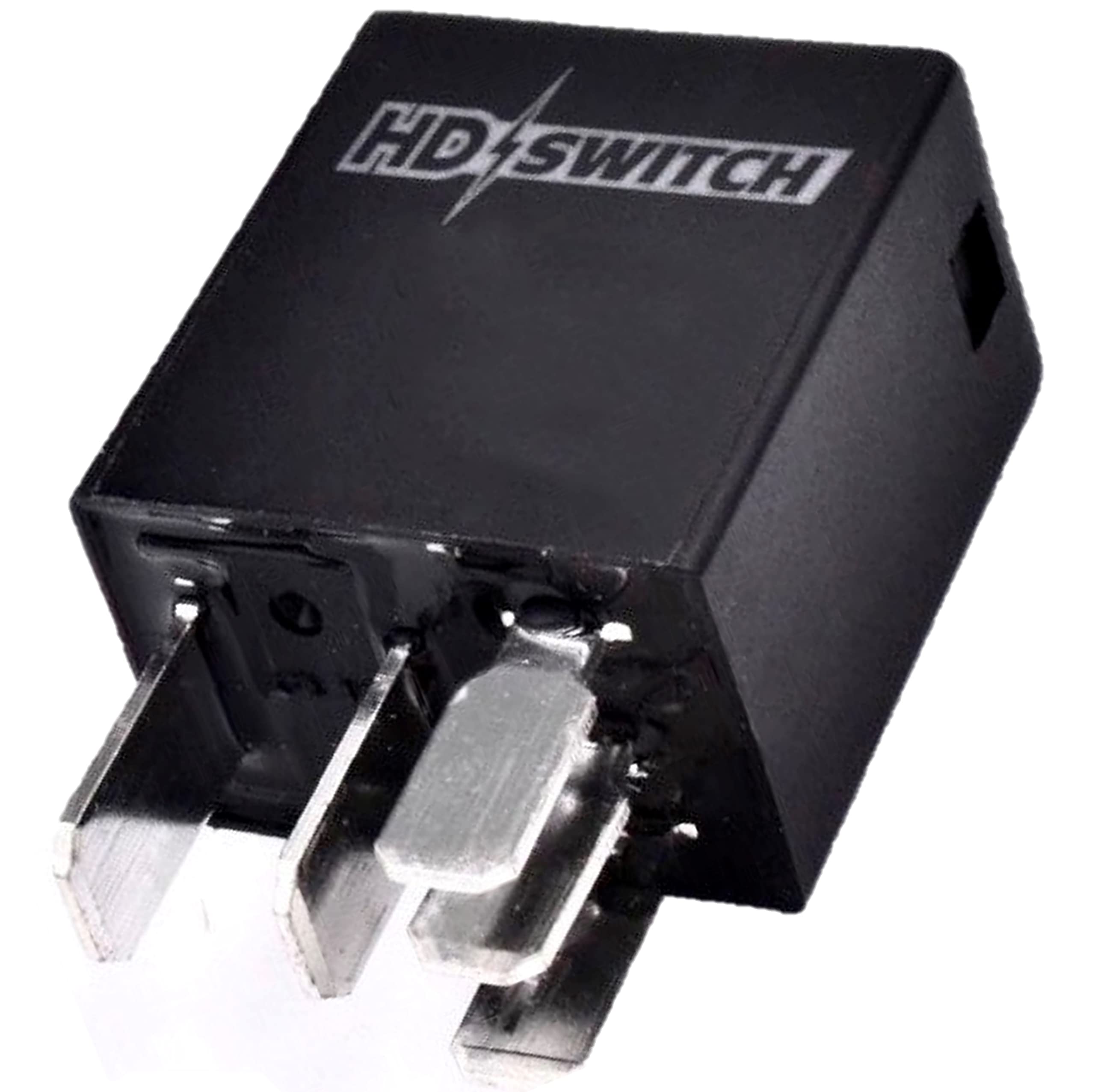

Image: The HD Switch 12V 30A Waterproof Relay, highlighting its IP68 certification for complete sealing against dust and water.
Installation and Setup
Safety First: Before beginning any electrical work, ensure the vehicle's battery is disconnected to prevent electrical shock or damage to components. Consult your vehicle's service manual for specific wiring diagrams and safety precautions.
- Identify the Existing Relay: Locate the relay to be replaced in your Cub Cadet vehicle. Ensure it matches the form factor and pin configuration of the HD Switch relay.
- Disconnect Wiring: Carefully disconnect the electrical wires from the old relay. Note the position of each wire for correct re-connection.
- Prepare Terminals: Apply the provided dielectric grease to the terminals of the new HD Switch relay. This helps prevent corrosion and ensures a secure electrical connection.
- Connect New Relay: Connect the wires to the corresponding terminals on the new HD Switch relay. Refer to the wiring diagram often printed on the relay itself or your vehicle's manual for correct pin assignments.
Image: The HD Switch relay showing a typical wiring diagram (pins 30, 85, 86, 87, 87a) on its casing, crucial for correct installation.
Note: The HD Switch relay is designed for a 12V system with a 30 Amp current rating. Ensure your application's electrical specifications are compatible.
Operating Instructions
The HD Switch 12V 30A Waterproof Relay operates automatically as part of your vehicle's electrical system. Once correctly installed, it functions to control the flow of electrical current to a specific component (e.g., starter motor, lights, PTO clutch) based on a trigger signal.
- The relay will engage or disengage automatically when the appropriate electrical signal is received from the vehicle's control system.
- Its waterproof and dustproof design ensures consistent performance in various weather conditions and dusty environments.
Image: Water splashing on an electrical component, illustrating the relay's waterproof design and suitability for outdoor or wet conditions.
Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your HD Switch relay.
- Inspect Connections: Periodically check the electrical connections to the relay for tightness and signs of corrosion. Loose connections can lead to intermittent operation or overheating.
- Reapply Dielectric Grease: If connections are disturbed or if you notice signs of moisture or corrosion, clean the terminals and reapply dielectric grease to maintain protection.
- Clean Exterior: While the relay is waterproof, keeping its exterior clean from excessive dirt and debris can help prevent buildup around connections.
Image: A packet of HD Switch dielectric grease, provided with the relay to protect electrical terminals from corrosion and enhance conductivity.
Troubleshooting
If the component controlled by the relay is not functioning correctly, consider the following troubleshooting steps:
- Check Power Supply: Verify that the relay is receiving proper 12V power from the vehicle's electrical system. Use a multimeter to test voltage at the appropriate terminals.
- Inspect Connections: Ensure all wires are securely connected to the relay terminals and that there are no loose or corroded connections.
- Test Trigger Signal: Confirm that the relay is receiving the correct trigger signal to activate.
- Check Fuses: Examine any fuses in the circuit connected to the relay or the component it controls. A blown fuse will prevent operation.
- Relay Functionality: If all other checks pass, the relay itself might be faulty. A clicking sound when activated usually indicates the coil is working, but internal contacts might be damaged.
If issues persist, it is recommended to consult a qualified technician or refer to your vehicle's specific service manual.
Specifications
| Brand | HD Switch |
| Compatible Model Number | 725-04397 |
| Current Rating | 30 Amps |
| Coil Voltage | 12 Volts |
| Maximum Switching Current | 30 Amps |
| Maximum Switching Voltage | 12 Volts |
| Operation Mode | Automatic |
| Environmental Protection | IP68 Certified (100% Sealed, Dustproof, Waterproof) |
| Unit Count | 1 Count |
Warranty Information
For specific warranty details regarding your HD Switch 12V 30A Waterproof Relay, please refer to the product packaging or contact HD Switch customer support directly. Warranty terms typically cover manufacturing defects under normal use conditions.
Customer Support
If you have any questions, require technical assistance, or need to report an issue with your HD Switch product, please contact the manufacturer directly. Contact information can usually be found on the product packaging or the official HD Switch website.
When contacting support, please have your product model number (725-04397 compatible) and purchase details readily available.
