Introduction
Welcome to your GGMM ES5 Battery Base. This manual provides essential instructions for the safe and efficient use of your new device. The ES5 is designed to enhance the portability of your Amazon Echo Show 5 (1st and 2nd Generation), allowing you to use it wirelessly in various locations.
Key features include a high-capacity 10000mAh battery, a secure magnetic attachment system, and an adjustable viewing angle for optimal user experience.
Important: This battery base is compatible only with Amazon Echo Show 5 (1st and 2nd Gen). It is not compatible with Show 8, Show 10, or the 3rd Gen Show 5.
Image showing the GGMM ES5 Battery Base compatibility, indicating it works with Show 5 (1st & 2nd Gen) but not Show 8.
Setup
- Unpack the Device: Carefully remove the GGMM ES5 Battery Base from its packaging.
- Attach Echo Show 5: Align your Echo Show 5 (1st or 2nd Gen) with the magnetic top of the ES5 battery base. The magnetic connection will securely hold the device in place.
Image showing a hand holding an Echo Show 5 being magnetically attached to the GGMM ES5 battery base. The base is white and the Echo Show 5 is grey.
- Connect Power: Use the original power adapter and cable that came with your Echo Show 5. Connect the cable to the Echo Show 5, and then connect the short cable from the Echo Show 5 to the power input port on the ES5 battery base.
- Power On: Press the power button on the front of the ES5 battery base to turn it on. The LED indicators will illuminate to show the current battery level.
A collage of four images demonstrating the setup process: showing the Echo Show 5 bottom, connecting the power cable, holding the battery base, and pressing the power button.
An official product video demonstrating the features and setup of the GGMM ES5 Battery Base, including its portability and adjustable angle.
Operating
- Power On/Off: Press the power button on the front of the base to turn it on or off.
- Battery Level Indicators: Four LED lights on the front indicate the remaining battery charge. Each light represents approximately 25% of the battery capacity.
- Adjusting Viewing Angle: The ES5 battery base features an adjustable design. Gently tilt your Echo Show 5 forward or backward to achieve your desired viewing angle.

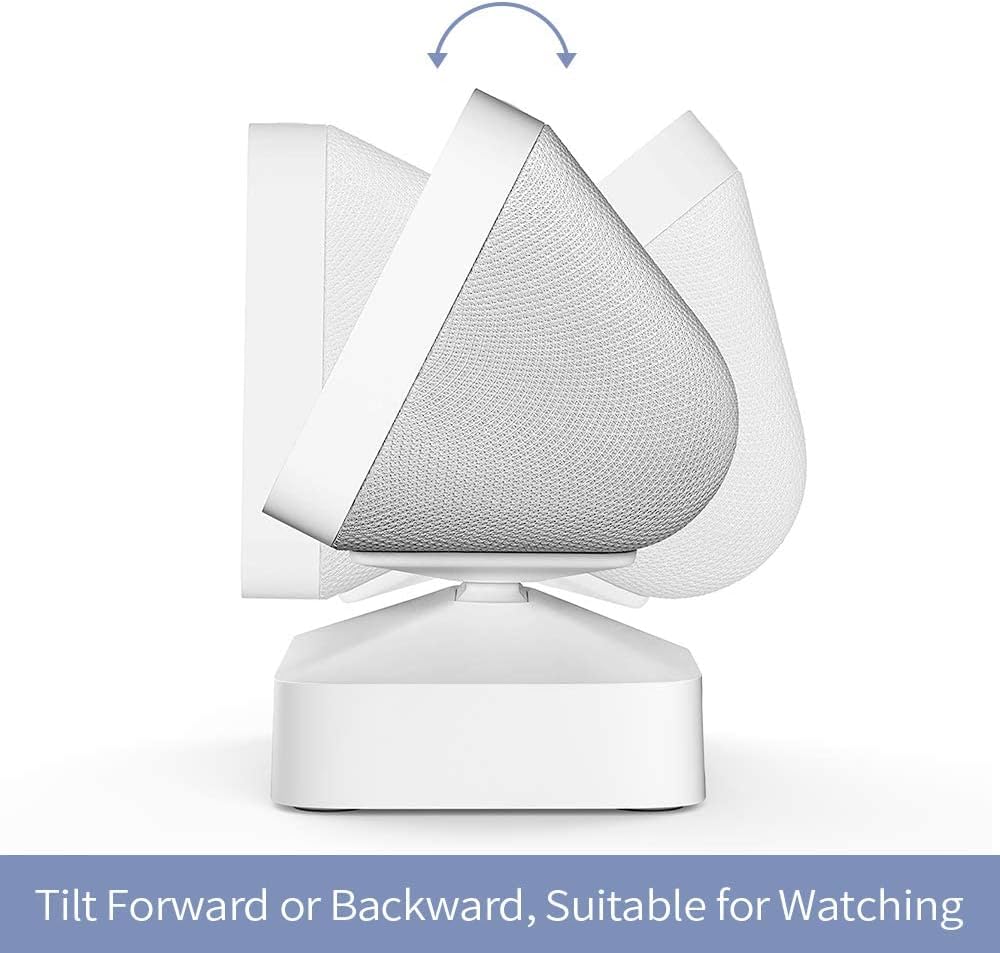

Image illustrating the adjustable tilt feature of the GGMM ES5 battery base. The Echo Show 5 is shown tilting forward and backward on the white base.
- Portability: Once charged, the Echo Show 5 can be moved freely within your Wi-Fi range or mobile hotspot coverage without needing to be plugged into a wall outlet.
A woman performing yoga on a mat outdoors, with the GGMM ES5 battery base and Echo Show 5 positioned nearby, demonstrating its portability.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the surface of the battery base. Avoid using liquid cleaners or abrasive materials.
- Storage: When not in use for extended periods, store the battery base in a cool, dry place. Ensure it is partially charged to maintain battery health.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge when the battery level is low.
Troubleshooting
- Device Not Powering On:
- Ensure the battery base is charged. Press the power button to check LED indicators.
- Verify that the Echo Show 5 is correctly seated on the magnetic base and the power cable is securely connected between the Show 5 and the base.
- Battery Not Charging:
- Confirm that the original Echo Show 5 power adapter and cable are used and properly connected to a working power outlet.
- Check for any damage to the charging cable or ports.
- Short Battery Life:
- Battery life can vary based on usage (e.g., volume level, screen brightness, continuous video playback).
- Ensure the battery is fully charged before use. A full charge provides up to 9.5 hours at 50% volume.
- Echo Show 5 Not Responding:
- Ensure the battery base is powered on.
- Try detaching and reattaching the Echo Show 5 to the base.
- If issues persist, restart your Echo Show 5.
Specifications
| Brand | GGMM |
| Model | ES5 |
| Compatible Devices | Show 5 (1st & 2nd Gen) |
| Battery Capacity | 10000mAh |
| Battery Life | Up to 9.5 hours (at 50% volume) |
| Mounting Type | Portable, Plug, Magnetic |
| Special Feature | Adjustable viewing angle |
| Item Dimensions | 0.79 x 1.18 x 0.59 inches |
| UPC | 889086026339 |
Warranty Information
Specific warranty details for the GGMM ES5 Battery Base are not provided in this manual. Please refer to the product packaging or the official GGMM website for the most current warranty policy and registration information.
Customer Support
For further assistance, technical support, or inquiries regarding your GGMM ES5 Battery Base, please visit the official GGMM website or contact their customer service department. Contact details can typically be found on the product packaging or the GGMM brand store on Amazon.
