Mienta Microwave with Grill User Manual

1. Introduction

Thank you for choosing the Mienta Microwave with Grill. This manual provides important information for the safe and efficient operation of your appliance. Please read it thoroughly before use and keep it for future reference.

Important Safety Instructions

• Read all instructions before using the appliance.
• Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
• Ensure the appliance is properly grounded.
• Do not heat liquids or other foods in sealed containers since they are liable to explode.
• Always use oven mitts when handling hot items from the microwave.

2. Setup

Unpacking

Carefully remove the microwave oven and all packing materials from the carton. Check the oven for any damage, such as dents or a misaligned door. If any damage is observed, do not operate the oven and contact customer service.

Placement

• Place the oven on a flat, stable surface that can support its weight and the heaviest food likely to be cooked in the oven.
• Ensure adequate ventilation. Leave a minimum of 20 cm (8 inches) of space above the oven, 10 cm (4 inches) at the rear, and 5 cm (2 inches) on both sides.
• Do not block air vents.
• Keep the oven away from heat sources and strong magnetic fields.

Electrical Connection

Plug the power cord into a standard 220-240V, 50Hz AC outlet. Ensure the outlet is properly grounded. Do not use extension cords or adapters.

3. Operating Instructions

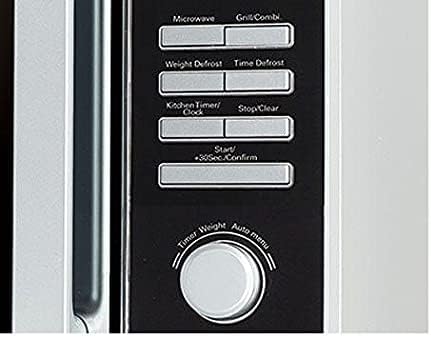

Control Panel Overview

The control panel consists of a digital display, function buttons, and a rotary dial for setting time and weight.

Setting the Clock

1. In standby mode, press the Kitchen Timer/Clock button once.
2. Turn the rotary dial to set the hour.
3. Press the Kitchen Timer/Clock button again.
4. Turn the rotary dial to set the minutes.
5. Press the Kitchen Timer/Clock button to confirm.

Microwave Cooking

1. Place food in a microwave-safe container inside the oven.
2. Press the Microwave button repeatedly to select the desired power level (e.g., P100 for 100% power, P80 for 80% power).
3. Turn the rotary dial to set the cooking time.
4. Press the Start/+30Sec/Confirm button to begin cooking.

Grill Cooking

1. Place food on the grill rack (if provided) in the oven.
2. Press the Grill/Combi button once for grill mode.
3. Turn the rotary dial to set the grilling time.
4. Press the Start/+30Sec/Confirm button to begin grilling.

Combination Cooking

1. Place food in a suitable container inside the oven.
2. Press the Grill/Combi button repeatedly to select the desired combination mode (e.g., C-1 for 55% microwave + 45% grill, C-2 for 36% microwave + 64% grill).
3. Turn the rotary dial to set the cooking time.
4. Press the Start/+30Sec/Confirm button to begin combination cooking.

Defrosting

The microwave offers two defrosting methods: Weight Defrost and Time Defrost.

Weight Defrost

1. Press the Weight Defrost button.
2. Turn the rotary dial to select the food weight (e.g., 200g to 2000g).
3. Press the Start/+30Sec/Confirm button to start defrosting.

Time Defrost

1. Press the Time Defrost button.
2. Turn the rotary dial to set the defrosting time.
3. Press the Start/+30Sec/Confirm button to start defrosting.

Kitchen Timer

1. Press the Kitchen Timer/Clock button twice.
2. Turn the rotary dial to set the desired time.
3. Press the Start/+30Sec/Confirm button. The timer will count down without cooking.

Quick Start (+30 Seconds)

In standby mode, press the Start/+30Sec/Confirm button to immediately start cooking at 100% microwave power for 30 seconds. Each subsequent press adds 30 seconds to the cooking time.

4. Maintenance and Cleaning

Regular cleaning of your microwave oven is essential for optimal performance and longevity.

General Cleaning

• Always unplug the oven before cleaning.
• Do not use abrasive cleaners, steel wool, or harsh chemicals.

Interior Cleaning

Wipe the interior cavity after each use with a damp cloth and mild detergent. For stubborn food splatters, place a bowl of water with lemon slices inside and microwave for 2-3 minutes to loosen residue, then wipe clean.

Exterior Cleaning

Clean the exterior surface with a soft, damp cloth. Avoid getting water into the ventilation openings.

Turntable Care

The glass turntable and roller ring can be washed in warm soapy water or in a dishwasher.

5. Troubleshooting

If you encounter problems with your microwave oven, refer to the following table for common issues and solutions.

6. Specifications

Technical details for the Mienta Microwave with Grill MW32617A.

7. Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or contact your retailer. For technical support or service inquiries, please contact Mienta customer service through their official channels.
