Bagtecs QP48 Aluminum Side Case Instruction Manual

1. Introduction

Thank you for choosing the Bagtecs QP48 Aluminum Side Case. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new side case. Please read this manual thoroughly before attempting installation or use, and retain it for future reference. This side case is designed to offer secure and spacious storage for your motorcycle adventures.

2. Safety Information

• Always ensure the side case is securely mounted to the motorcycle before riding. Loose cases can cause instability and accidents.
• Do not exceed the maximum load capacity recommended by your motorcycle manufacturer or the side case specifications. Overloading can affect handling and stability.
• Distribute weight evenly within the case to maintain motorcycle balance.
• Regularly check all mounting bolts and fasteners for tightness, especially after the first few rides and before long journeys.
• Be aware that adding side cases can change the motorcycle's aerodynamics and handling characteristics. Practice riding with the cases installed in a safe environment.
• The dimensions of the motorcycle will increase with the side cases installed. Exercise caution when maneuvering in tight spaces or filtering through traffic.

3. Package Contents

Please verify that all items listed below are present in your package:

• 1x Bagtecs QP48 Aluminum Side Case (can be mounted on the right or left side)
• 2x Keys for the case lock

Note: Mounting brackets and additional mounting hardware are not included and must be purchased separately. This is a universal item; please check dimensions and images to confirm compatibility with your specific motorcycle model.

4. Setup and Installation

The Bagtecs QP48 Aluminum Side Case requires a compatible side case carrier system for installation, which is sold separately. Ensure your motorcycle has a suitable carrier system installed before proceeding.

4.1 Compatibility Check

Before installation, it is crucial to verify the dimensions of the side case against your motorcycle and existing carrier system. The listed motorcycle models are examples only, and adjustments may be required for proper fitment.

Image 4.1: Dimensions of the Bagtecs QP48 Aluminum Side Case. The case measures 50 cm in width, 42 cm in height, and 31 cm in depth, with a volume of 48 liters.

4.2 Mounting the Side Case

Follow the instructions provided with your specific side case carrier system for proper attachment. The Bagtecs QP48 case is designed for secure attachment to most standard aluminum case carrier systems.

• Align the mounting points on the side case with the corresponding points on your motorcycle's side carrier.
• Secure the case using the locking mechanism of your carrier system. Ensure an audible click or visual confirmation of secure engagement.
• Use the provided keys to lock the case to prevent theft and accidental opening.
• After initial installation, gently tug on the case to confirm it is firmly attached and does not wobble.

Image 4.2: View of the Bagtecs QP48 Aluminum Side Case securely mounted on the left side of a motorcycle, showcasing its robust design and integration.

Image 4.3: Rear perspective of the Bagtecs QP48 Aluminum Side Case installed on a motorcycle, highlighting its profile and secure attachment.

Image 4.4: A motorcycle equipped with the Bagtecs QP48 Aluminum Side Case, demonstrating the overall aesthetic and functional fit.

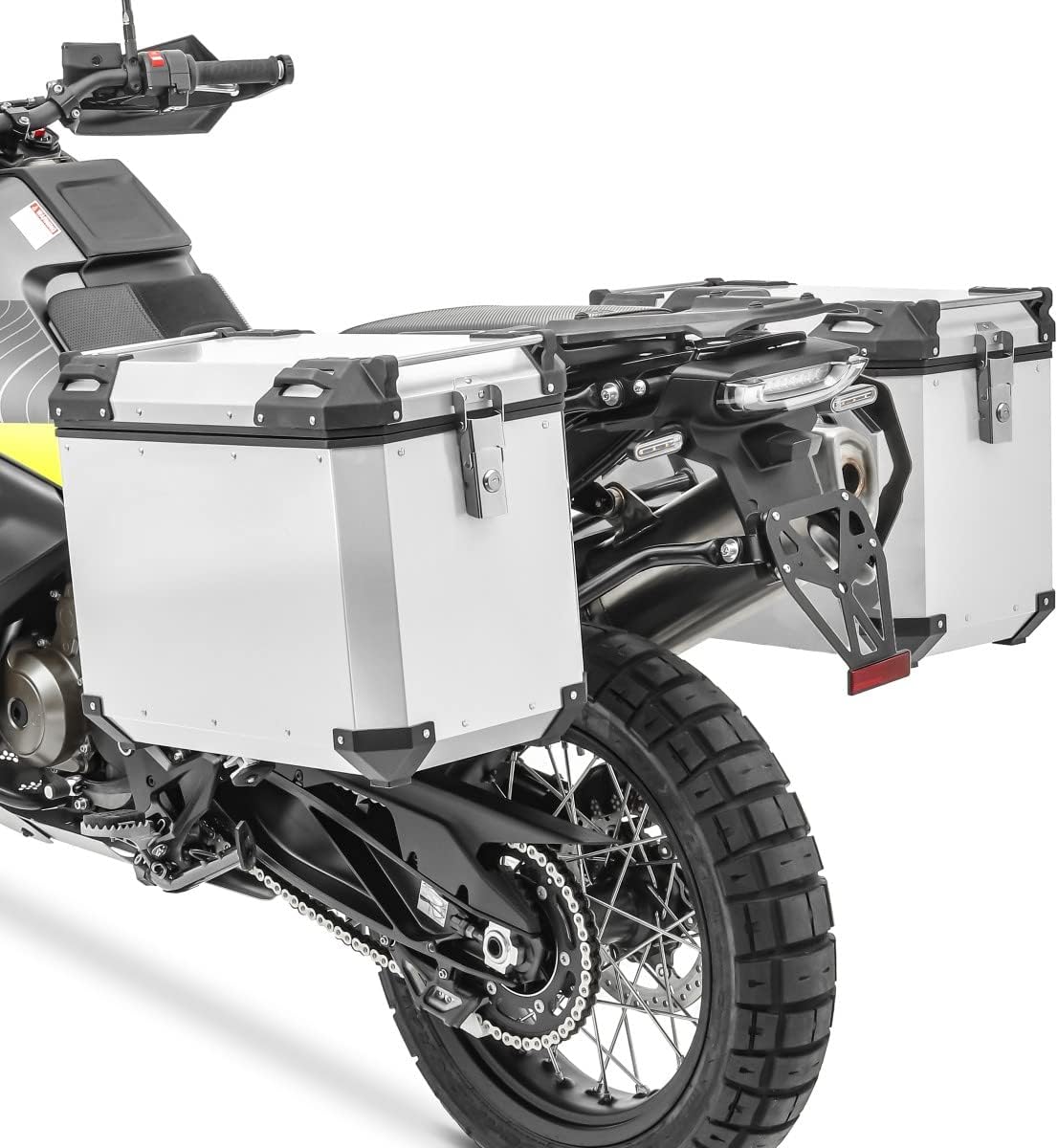

Image 4.5: Rear view of a motorcycle with two Bagtecs QP48 Aluminum Side Cases, illustrating a dual-case setup for maximum storage capacity.

5. Operation

5.1 Opening and Closing the Case

• To Open: Insert the key into the lock and turn it to the unlock position. Release the latch mechanism and lift the lid. The lid is designed with internal straps to prevent it from falling completely open.
• To Close: Lower the lid, ensuring the sealing gasket is properly seated. Press down firmly until the latch engages. Insert the key and turn it to the lock position to secure the contents.

Image 5.1: The Bagtecs QP48 Aluminum Side Case with its lid open, revealing the spacious interior and the robust sealing gasket designed for water and dust resistance.

5.2 Securing Additional Luggage

The case lid features integrated tie-down eyes. These can be used to secure additional luggage, such as dry bags or tents, on top of the side case using bungee cords or straps (not included).

6. Maintenance

• Cleaning: Clean the aluminum surfaces with a mild soap and water solution. Avoid abrasive cleaners or solvents that could damage the finish or seals. Rinse thoroughly and dry with a soft cloth.
• Seals: Periodically inspect the rubber seals around the lid and at the folds for any signs of wear, cracks, or damage. Damaged seals can compromise the case's water and dust resistance. Replace seals if necessary.
• Locks: Lubricate the lock mechanisms occasionally with a graphite-based lubricant to ensure smooth operation and prevent corrosion.
• Fasteners: Regularly check all screws, bolts, and rivets for tightness. Tighten any loose fasteners to prevent rattling or structural issues.
• Plastic Protectors: Inspect the plastic corner protectors for damage. These protect the case from impacts.

7. Troubleshooting

• Water/Dust Ingress: If water or dust enters the case, first check the lid's rubber seal for proper seating and damage. Ensure the lid is fully closed and latched. Inspect the seals at the case folds.
• Case Rattling/Loose: This usually indicates loose mounting hardware. Re-check all attachment points to the side carrier system and tighten any loose bolts or fasteners.
• Difficulty Locking/Unlocking: Ensure the key is fully inserted and the lock mechanism is clean. Apply a small amount of lubricant to the lock cylinder if it feels stiff.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the terms and conditions provided by your retailer or contact Bagtecs customer service directly. Keep your proof of purchase for any warranty claims.
