ZKTOOL 10022 Gearbox Mainshaft Nut Tool Instruction Manual

1. Introduction

This instruction manual provides detailed guidance for the ZKTOOL 10022 Gearbox Mainshaft Nut Tool. This specialized tool is designed for the precise tightening of the mainshaft nut on the gearbox output shaft of Land Rover Series vehicles with factory-fitted gearboxes. It is engineered to accept a 1/2" drive wrench or a 30mm AF socket/spanner, allowing for accurate torque application of 85 lbf.

The ZKTOOL 10022 ensures proper engagement with the spindle lock nut, preventing damage often associated with improper tightening methods.

2. Safety Information

Always prioritize safety when working with automotive tools. Failure to follow safety precautions can result in injury or damage to the vehicle.

• Always wear appropriate personal protective equipment, including safety glasses and gloves.
• Ensure the vehicle is securely supported on a level surface using jack stands before beginning any work.
• Refer to the vehicle's official service manual for specific procedures, torque specifications, and additional safety warnings.
• Keep the work area clean and well-lit.
• Do not use damaged or modified tools.
• Keep children and bystanders away from the work area.

3. Product Overview

The ZKTOOL 10022 Gearbox Mainshaft Nut Tool is constructed from toughened EN24T Alloy Steel and zinc plated for durability and resistance to wear. Its design ensures a secure fit for the mainshaft lock nut, facilitating correct torque application.

Image 1: The ZKTOOL 10022 Gearbox Mainshaft Nut Tool, designed for precise tightening of gearbox mainshaft nuts.

Image 2: The ZKTOOL 10022 Gearbox Mainshaft Nut Tool showing its dimensions, including a length of 8.0 cm and a diameter of 4.5 cm.

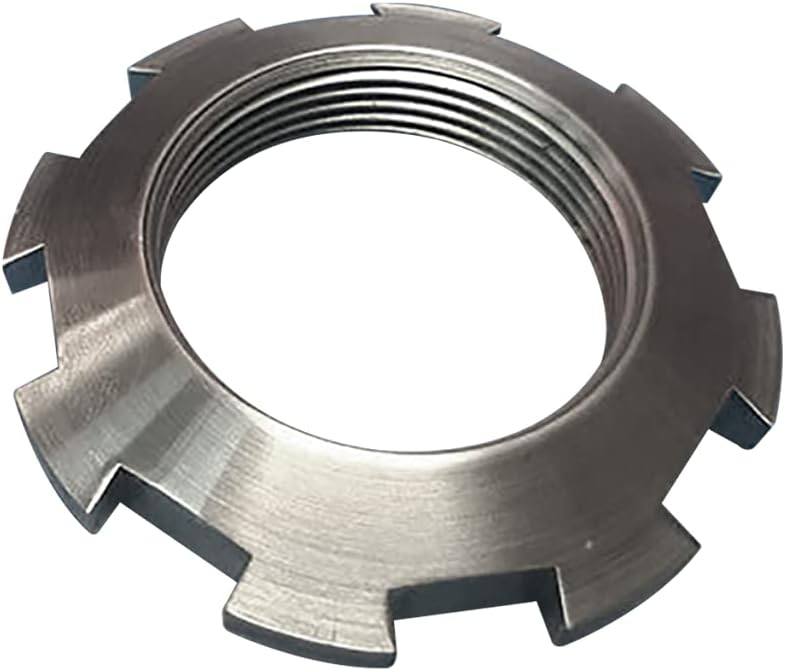

Image 3: A compatible mainshaft lock nut, which the ZKTOOL 10022 is designed to engage and tighten.

Image 4: The ZKTOOL 10022 Gearbox Mainshaft Nut Tool shown alongside the mainshaft lock nut it is designed to secure.

4. Specifications

5. Setup

Before using the ZKTOOL 10022, ensure the following preparatory steps are completed:

1. Vehicle Preparation: Safely lift and support the Land Rover vehicle according to its service manual. Ensure the gearbox area is accessible.
2. Tool Inspection: Visually inspect the ZKTOOL 10022 for any signs of damage or wear. Do not use if the tool appears compromised.
3. Required Accessories: Have a 1/2" drive wrench or a 30mm AF socket/spanner readily available. A torque wrench capable of 85 lbf (or equivalent Nm) is essential for accurate tightening.
4. Cleanliness: Ensure the mainshaft nut and surrounding area are clean and free from debris or old thread locker.

6. Operating Instructions

Follow these steps for the correct operation of the ZKTOOL 10022 Gearbox Mainshaft Nut Tool:

1. Position the Nut: Ensure the mainshaft lock nut is hand-tightened onto the gearbox output shaft.
2. Engage the Tool: Carefully place the ZKTOOL 10022 over the mainshaft lock nut. Rotate the tool slightly to ensure the teeth of the tool fully engage with the corresponding slots on the lock nut. Proper engagement is crucial for effective and safe operation.
3. Attach Drive Tool: Insert your 1/2" drive wrench or 30mm AF socket/spanner into the drive opening of the ZKTOOL 10022.
4. Apply Torque: Using a calibrated torque wrench, tighten the mainshaft nut to the specified torque of 85 lbf (pound-feet). Apply steady, controlled force until the torque wrench indicates the correct setting.
5. Verify Tightness: After reaching the specified torque, double-check the nut's tightness.
6. Remove Tool: Carefully remove the drive tool and then the ZKTOOL 10022 from the mainshaft nut.

Important: Avoid using methods such as a hammer and chisel to tighten the spindle lock nut, as this can cause damage to the nut and the gearbox components. The ZKTOOL 10022 is designed to provide the correct and safe method for this task.

7. Maintenance

Proper maintenance will extend the life and ensure the continued performance of your ZKTOOL 10022:

• Cleaning: After each use, clean the tool to remove any grease, dirt, or debris. A clean cloth is usually sufficient.
• Storage: Store the tool in a dry environment to prevent corrosion. Keep it away from excessive moisture and corrosive chemicals.
• Inspection: Periodically inspect the tool for any signs of wear, cracks, or deformation, especially on the engagement teeth. If significant wear is observed, replace the tool to ensure proper function and safety.

8. Troubleshooting

If you encounter issues while using the ZKTOOL 10022, consider the following:

• Tool Does Not Fit:
  • Ensure you are working on a compatible Land Rover Series gearbox with a factory-fitted mainshaft nut.
  • Verify that the nut is not damaged or deformed, which might prevent proper tool engagement.
• Difficulty Engaging:
  • Ensure the tool's teeth are perfectly aligned with the slots on the mainshaft nut. Slight rotation may be needed for full engagement.
  • Check for any obstructions or debris preventing full seating of the tool.
• Nut Not Tightening to Torque:
  • Confirm your torque wrench is calibrated and set to the correct value (85 lbf).
  • Ensure the drive tool (wrench/socket) is securely seated in the ZKTOOL 10022.
  • Inspect the mainshaft nut and shaft threads for damage.

If problems persist, consult a qualified automotive technician or refer to the specific Land Rover service manual for further guidance.
