Mienta Garment Steamer GS42509A User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the Mienta Garment Steamer GS42509A. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Always ensure the appliance is connected to a grounded power outlet with the correct voltage (220 Volts).
• Do not immerse the steamer base, cord, or plug in water or other liquids.
• Keep the steamer out of reach of children and pets.
• Use caution when handling the steam head, as hot steam can cause burns. Always direct steam away from yourself and others.
• Never attempt to steam garments while wearing them.
• Unplug the steamer from the power outlet before filling or emptying the water tank, and before cleaning or maintenance.
• Do not operate the steamer with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
• Use only distilled or demineralized water to prevent mineral buildup and extend the life of the appliance.
• Ensure the water tank is securely in place before operating.

2. Product Overview and Components

Familiarize yourself with the parts of your Mienta Garment Steamer GS42509A for optimal use.

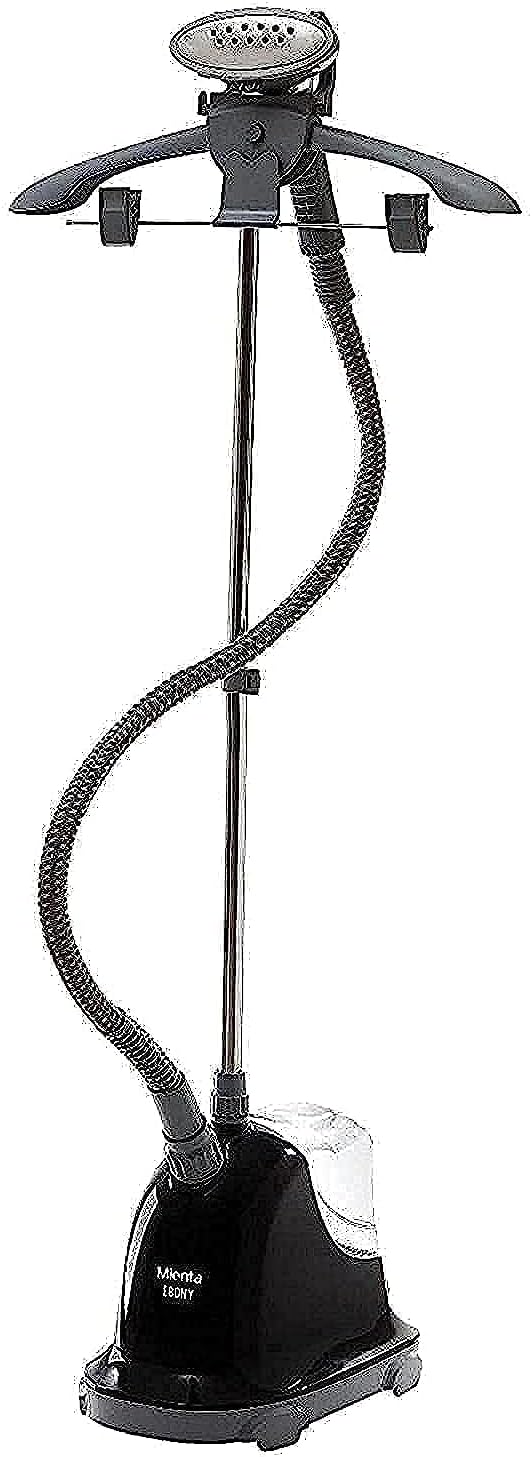

Figure 2.1: Full view of the Mienta Garment Steamer GS42509A, showcasing the base, telescopic pole, flexible hose, and steam head with integrated hanger.

• Steam Head: Emits steam for wrinkle removal.
• Flexible Hose: Connects the steam head to the base, allowing for easy maneuverability. (1.5 m length)
• Telescopic Pole: Adjustable height for comfortable steaming.
• Integrated Garment Hanger: Provides a convenient place to hang clothes during steaming.
• Water Tank: Removable tank for water storage. (2.1-liter capacity)
• Base Unit: Contains the heating element and water pump.
• Power Switch: On/Off control.
• Wheels: 360° rotating wheels for easy movement of the unit.

Figure 2.2: Close-up of the garment hanger assembly, including clips for securing various types of clothing.

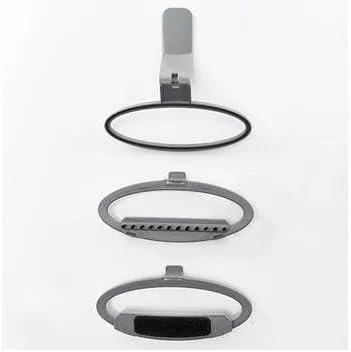

Figure 2.3: Various steaming accessories, such as a fabric brush and crease attachment, designed to enhance steaming performance on different materials.

Figure 2.4: Detailed view of the steamer head, showing the multiple steam vents for even steam distribution.

Figure 2.5: The steamer head equipped with a fabric brush attachment, useful for removing lint and opening fabric weaves for deeper steam penetration.

3. Setup Instructions

Follow these steps to set up your garment steamer before first use.

1. Unpack: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Assemble Pole: Insert the telescopic pole into the designated slot on the base unit. Extend the pole to your desired height and secure it.
3. Attach Hanger: Place the garment hanger assembly onto the top of the telescopic pole. Ensure it is stable.
4. Connect Hose: Securely attach the flexible steam hose to the steam outlet on the base unit and the steam head. Ensure a tight connection to prevent steam leakage.
5. Fill Water Tank: Remove the 2.1-liter water tank from the base. Open the cap and fill it with distilled or demineralized water. Do not overfill. Close the cap securely and place the tank back into the base unit, ensuring it clicks into place.
6. Attach Accessories (Optional): If desired, attach any steaming accessories (e.g., fabric brush, crease attachment) to the steam head.

4. Operating Instructions

Learn how to effectively use your Mienta Garment Steamer to remove wrinkles.

1. Power On: Plug the power cord into a suitable 220V grounded electrical outlet. Turn on the power switch located on the base unit.
2. Heat Up: The steamer will begin to heat up. This process takes approximately 45 seconds. The indicator light will change or turn off when ready for use.
3. Prepare Garment: Hang the garment on the integrated hanger. Gently pull the fabric taut with one hand.
4. Begin Steaming: Hold the steam head a few centimeters away from the fabric. Move the steam head slowly up and down the garment, allowing the steam to penetrate the fibers. For stubborn wrinkles, you may press the steam head lightly against the fabric.
5. Continuous Steam: The steamer provides up to 70 minutes of continuous steam on a full tank, allowing for extended steaming sessions.
6. Steaming Tips:
   • Always steam from top to bottom.
   • For delicate fabrics, use a lower steam setting if available, or hold the steam head further away.
   • For heavier fabrics, use the fabric brush attachment to help open the weave and allow steam to penetrate deeper.
7. Finish Steaming: Once steaming is complete, turn off the power switch and unplug the unit. Allow the garment to cool and dry completely before wearing or storing.

5. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the life of your steamer.

1. Empty Water Tank: After each use, or when storing the steamer, always empty any remaining water from the tank. This prevents stagnant water and mineral buildup.
2. Clean Exterior: Wipe the exterior of the steamer with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3. Descaling: Over time, mineral deposits can build up inside the steamer, especially if tap water is used. To descale, mix a solution of equal parts white vinegar and water. Pour into the water tank and run the steamer until half the solution is used. Turn off, unplug, and let it sit for 30 minutes. Then, run the remaining solution through. Finish by running two full tanks of clean, distilled water to rinse thoroughly. Perform descaling every few months, or more frequently with heavy use.
4. Store: Ensure the steamer is completely cool and dry before disassembling (if desired) and storing in a cool, dry place.

6. Troubleshooting

Refer to this section for solutions to common issues you might encounter.

7. Specifications

Key technical specifications for the Mienta Garment Steamer GS42509A.

• Model Number: GS42509A
• Power / Wattage: 1650 Watts
• Voltage: 220 Volts
• Water Tank Capacity: 2.1 Liters
• Heat-up Time: Approximately 45 seconds
• Continuous Steam Time: Up to 70 minutes
• Hose Length: 1.5 meters
• Product Dimensions: 30 x 30 x 35 cm
• Item Weight: 5.7 Kilograms
• Color: Black

8. Warranty and Support

Mienta products are manufactured to high-quality standards. For warranty information, product support, or service inquiries, please refer to the warranty card included with your purchase or contact Mienta customer service directly. Keep your proof of purchase for warranty claims.
