CLIVIA Commercial 5.5L Stainless Steel Meat Bowl Cutter Food Processor HLQ-8 User Manual

1. Important Safety Instructions

WARNING: Read and understand the operator's manual before using this machine. Failure to follow operating instructions could result in serious injury.

• Always ensure the machine is unplugged before cleaning, assembling, or disassembling parts.
• Keep hands and utensils out of the bowl during operation.
• The On/Off power switch is designed to work only when the bowl cover is locked in place to prevent injury. Do not bypass this safety feature.
• Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or has been dropped or damaged in any manner.
• Use only manufacturer-recommended attachments.
• Do not use outdoors.
• Avoid contact with moving parts.
• Ensure the machine is placed on a stable, level surface during operation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

2. Product Overview

The CLIVIA Commercial Meat Bowl Cutter (Model HLQ-8) is a high-efficiency food processor designed for commercial use, capable of rapidly chopping meat, vegetables, and other ingredients into fine stuffing or paste. Its robust stainless steel construction ensures durability and hygiene.

Key Features:

• High Efficiency: Utilizes a high-speed whirling chopping knife to quickly process ingredients.
• Durable Construction: Made entirely of food-grade stainless steel for longevity and easy cleaning.
• Specialized Blades: Features an "S" shape blade design for high speed, efficiency, and reduced processing time. Blade set made of stainless steel with high hardness (up to 52 degrees).
• Safety Interlock: Power switch operates only when the bowl cover is securely locked.
• Low Noise Operation: Engineered for quiet and efficient performance.
• Versatile Use: Suitable for various types of food, including meat, vegetables, and for creating emulsions.
• Waterproof Electrical Components: Electrical parts are designed for water resistance, ensuring safety and ease of cleaning.

Components:

Figure 2.1: Overall view of the CLIVIA Meat Bowl Cutter with the cover closed.

Figure 2.2: Side view with the bowl cover open, revealing the chopping blade and bowl.

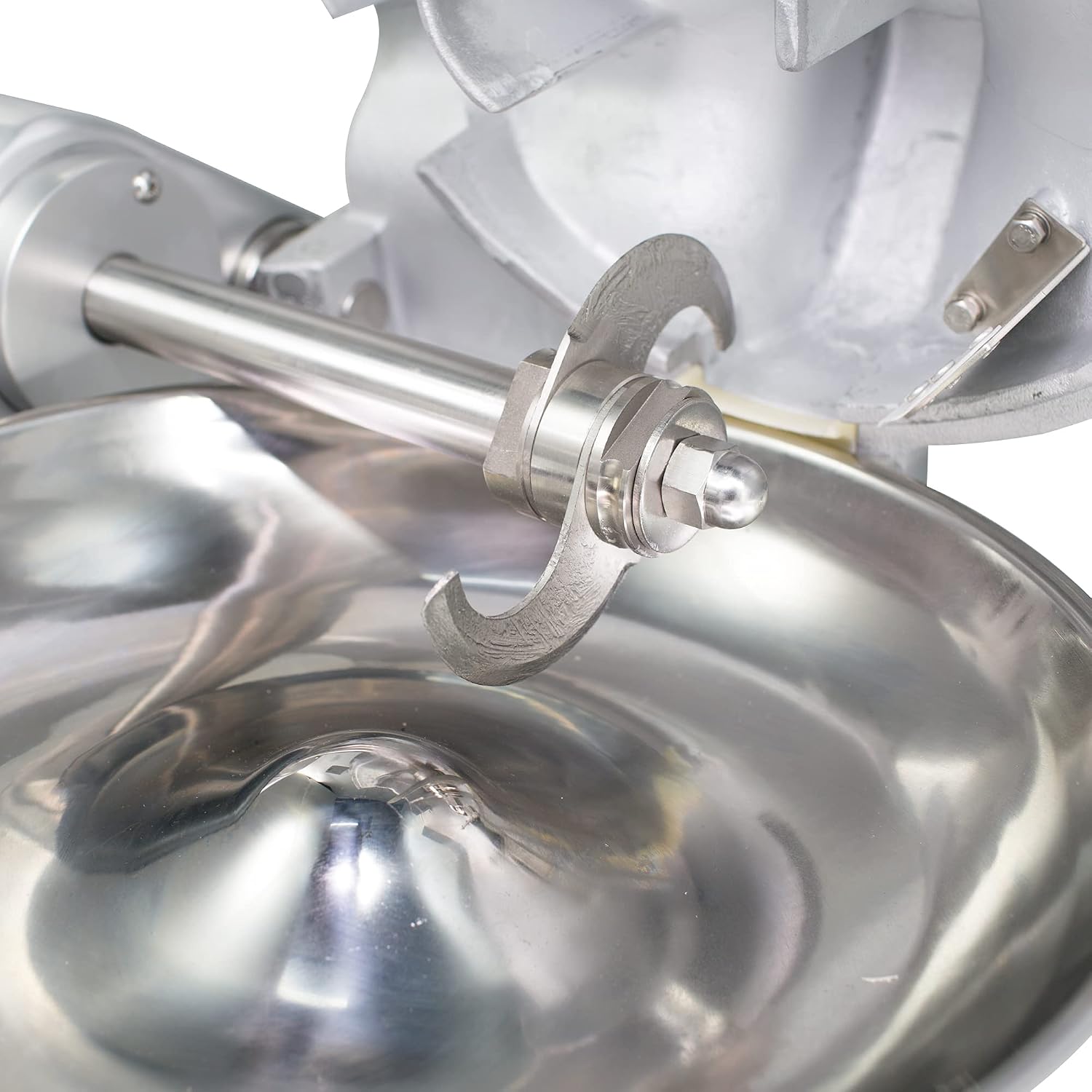

Figure 2.3: Close-up of the "S" shaped chopping blade assembly.

Figure 2.4: Power ON/OFF buttons located on the side of the unit.

3. Setup Instructions

1. Unpacking: Carefully remove the unit from its packaging. Retain all packaging materials for future transport or storage.
2. Placement: Place the meat bowl cutter on a stable, level, and dry surface capable of supporting its weight (approximately 86 lbs). Ensure adequate ventilation around the machine.
3. Power Connection: Verify that the power supply matches the machine's requirements (110V/60Hz). Plug the power cord into a grounded electrical outlet.
4. Initial Cleaning: Before first use, clean all parts that will come into contact with food. Refer to the "Maintenance and Cleaning" section for detailed instructions.
5. Inspect Components: Ensure the chopping blade is securely installed and the bowl is properly seated.
6. Safety Check: Confirm that the bowl cover can be securely locked in place. The machine will not operate if the cover is not properly closed and locked.

4. Operating Instructions

This section outlines the steps for safely operating your CLIVIA Meat Bowl Cutter.

General Operation:

1. Prepare Ingredients: Cut meat, vegetables, or other ingredients into manageable pieces suitable for the bowl size. Avoid overloading the bowl.
2. Load Ingredients: With the machine unplugged and the bowl cover open, carefully place the ingredients into the stainless steel bowl.
3. Secure Cover: Close the bowl cover and ensure it is firmly locked into position. The machine's safety interlock prevents operation if the cover is not properly secured.
4. Power On: Plug in the machine. Press the green "ON" button to start the chopping process. The blade will begin to rotate at high speed, processing the ingredients.
5. Monitor Process: Observe the ingredients through the cover (if transparent) or by briefly stopping the machine and opening the cover (after the blade has completely stopped) to check consistency.
6. Power Off: Once the desired consistency is achieved, press the red "OFF" button to stop the machine. Wait for the blade to come to a complete stop before attempting to open the cover.
7. Unload Ingredients: Open the bowl cover and carefully remove the processed ingredients from the bowl.

Operational Demonstration:

5. Maintenance and Cleaning

Regular cleaning and maintenance are crucial for the longevity and hygienic operation of your meat bowl cutter.

Cleaning Instructions:

1. Disconnect Power: Always unplug the machine from the power outlet before cleaning.
2. Disassemble: Carefully remove the bowl cover and the chopping blade assembly.
3. Hand Wash Components: The stainless steel bowl, cover, and blade assembly should be hand washed with warm, soapy water. Use a soft brush or sponge to remove food residues.
4. Rinse Thoroughly: Rinse all components with clean water to remove soap residue.
5. Dry Completely: Dry all parts thoroughly with a clean cloth before reassembly or storage. Do not allow water to sit on components for extended periods.
6. Clean Main Unit: Wipe down the main unit (motor housing) with a damp cloth. Avoid direct water spray on electrical components. The electrical parts are designed to be waterproof, but direct submersion or excessive water can still cause damage.
7. Do NOT Dishwash: The product is NOT dishwasher safe. Hand washing is required for all components.

Maintenance Tips:

• Regularly inspect the power cord for any signs of damage. If damaged, contact qualified service personnel for replacement.
• Check the blade for sharpness and any signs of wear. A dull blade can reduce efficiency and put strain on the motor.
• Ensure all moving parts are free from obstructions.

6. Troubleshooting

This section provides solutions to common issues you might encounter.

If the problem persists after attempting these solutions, please contact customer support.

7. Product Specifications

8. Warranty and Support

This product is offered with a 30-day easy return policy. For any questions, technical assistance, or warranty claims, please contact CLIVIA customer support.

• Returns: 30-day easy returns.
• Customer Support: For assistance, please refer to the contact information provided at the point of purchase or on the CLIVIA official website.
