1. Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Imou 2.5K(4MP) Indoor WiFi Surveillance Camera (Model: IPC-K2ECP-4H1W). Please read this manual thoroughly before using the product to ensure proper and safe operation.
2. Product Overview
The Imou 2.5K(4MP) Indoor WiFi Surveillance Camera is designed for indoor security, offering high-resolution video, 360-degree pan and tilt capabilities, two-way audio, and advanced AI detection features.
Figure 2.1: Imou 2.5K(4MP) Indoor WiFi Surveillance Camera. This image shows the camera alongside a smartphone screen displaying a live feed of a cat, highlighting its use for pet monitoring and its 2.5K resolution capability.
Figure 2.2: 360-Degree Coverage. This image illustrates the camera's ability to provide a full 360-degree panoramic view of an indoor space, ensuring comprehensive monitoring.
Figure 2.3: AI Human Detection and Smart Tracking. The image depicts the camera's AI capabilities, highlighting its ability to detect and track human movement, as shown by the orange box around a child.
3. Key Features
- 4MP Super HD & 10M Night Vision: This 4MP indoor security camera delivers superior video quality, capturing more video details for better identification of intruders or other security threats. Superior night vision provides clarity with rich details even in total darkness, up to 10m distance.
Image: Detail comparison between 1080P and 4MP UHD resolution, showing the enhanced clarity of 4MP.
Image: Night vision capabilities, showing a clear image of a dog in a dimly lit room, with indicators for 8x digital zoom, 2K resolution, and 10m night vision distance.
- 360° Pan & Tilt & Two-Way Audio: This indoor camera features a horizontal rotation of 0 to 355° and a vertical rotation of -5 to 80°. View every corner of your home with easy pan and tilt control via the Imou Life app while you're away. The integrated speaker and microphone allow you to interact with your family and pets.
Image: Illustrates the camera's 360-degree pan and tilt functionality, showing a child on a tricycle within the camera's wide field of view.
Image: Demonstrates the two-way audio feature, with a child speaking through the camera and a parent responding via the Imou Life app, emphasizing communication.
- AI Human and Sound Detection: This indoor surveillance camera can quickly distinguish between human and animal movements to avoid false alarms. An instant notification will be sent to you when the connected camera detects baby crying, dog barking, or other abnormal sounds. You can adjust the detection region and sensitivity, and set the alarm schedule.
Image: Shows a crying baby and an Imou Life app notification indicating sound detection, highlighting the camera's ability to alert users to abnormal sounds.
Image: Illustrates abnormal sound detection, showing a dog creating a mess and an Imou Life app notification for "Abnormal Sound" in the living room.
- Smart Tracking: With one click to activate smart tracking, the wireless indoor WiFi camera will focus on and follow moving people or objects, record real-time videos, and send you instant alerts if human detection is activated. You can check videos with a Micro SD card or Imou Cloud, keeping you informed of what's happening at home/office/store from anywhere.
Image: Demonstrates smart tracking, with the camera following a cat climbing a scratching post, and an Imou Life app notification for "Smart Tracking" event.
- Secure Storage and Privacy Mode: Only you and your authorized user have access to images and videos stored on the Micro SD card (up to 256GB, which can store approximately 14 days), Imou Cloud (30-day free trial with 7-day recording cycle) or NVR. You can activate PRIVACY MODE to hide the camera lens when you are home or whenever you don't want it to record.

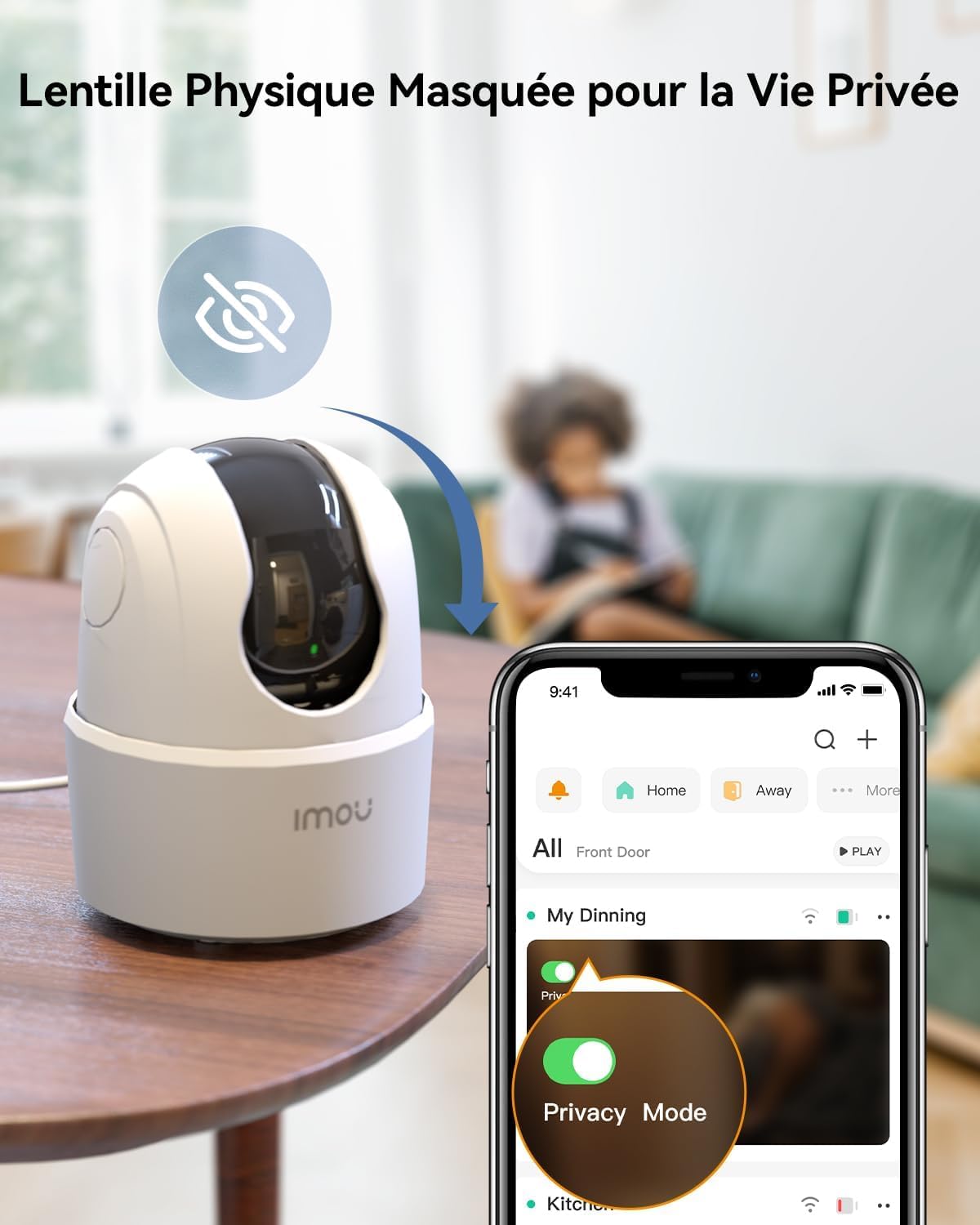

Image: Shows the camera's physical lens masking feature for privacy mode, with the lens rotating downwards to block the view.
Image: Illustrates the storage options: local storage via Micro SD card (up to 256GB) and Imou Cloud storage with a 30-day free trial.
- Voice Control with Alexa: Compatible with Amazon Alexa for convenient voice control.
Image: Depicts a woman in a kitchen using an Amazon Echo Show to view the camera feed via voice command, demonstrating Alexa compatibility.
4. Setup
4.1 Package Contents
Before starting, ensure all items are present:
- Imou 2.5K(4MP) Indoor WiFi Surveillance Camera (IPC-K2ECP-4H1W)
- Power Adapter
- Mounting Plate
- Mounting Screws and Wall Plugs
- Quick Start Guide
4.2 Initial Setup and Connection
- Download the Imou Life App: Search for "Imou Life" in your mobile app store (App Store for iOS or Google Play Store for Android) and download the application.
- Create an Account: Open the Imou Life app and register for a new account or log in if you already have one.
- Power On the Camera: Connect the camera to a power outlet using the provided power adapter. The indicator light on the camera will turn green when it's ready for setup.
- Add Device: In the Imou Life app, tap the "+" icon in the top right corner to add a new device. Scan the QR code located on the bottom of the camera.
- Connect to Wi-Fi: Follow the on-screen prompts in the app to connect the camera to your 2.4GHz Wi-Fi network. Note: The camera does not support 5GHz Wi-Fi networks.
- Complete Setup: Once connected, the camera's indicator light will turn solid green. You can now name your camera and begin using it.
4.3 Mounting the Camera
The camera can be placed on a flat surface or mounted to a wall or ceiling.
- Choose a Location: Select a location that provides the desired viewing angle and is within range of your Wi-Fi network and a power outlet.
- Prepare the Surface: For wall or ceiling mounting, use the mounting plate as a template to mark the drill holes. Drill holes and insert wall plugs if necessary.
- Secure the Mounting Plate: Attach the mounting plate to the wall/ceiling using the provided screws.
- Attach the Camera: Align the camera with the mounting plate and twist it to lock it into place.
5. Operating Instructions
5.1 Live View and Pan/Tilt Control
- Open the Imou Life app and select your camera from the device list.
- Use the on-screen joystick or swipe gestures to control the camera's pan (horizontal) and tilt (vertical) movements.
5.2 Two-Way Audio
- While in live view, tap the microphone icon to enable two-way audio.
- Speak into your phone's microphone to transmit your voice through the camera's speaker.
- Tap the microphone icon again to disable two-way audio.
5.3 Recording and Playback
- Manual Recording: Tap the record icon in live view to start/stop manual recording. Recordings are saved to your phone or the inserted Micro SD card.
- Event Recording: The camera automatically records when motion or sound is detected (if enabled).
- Playback: Access recorded footage via the "Playback" or "Event" section in the Imou Life app. You can filter by date and event type.
5.4 Privacy Mode
- To activate Privacy Mode, navigate to the camera settings in the Imou Life app.
- Toggle the "Privacy Mode" option. The camera lens will physically retract, ensuring no video is recorded or streamed.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the camera lens and body. Do not use liquid cleaners or aerosols.
- Firmware Updates: Regularly check for and install firmware updates via the Imou Life app to ensure optimal performance and security.
- Micro SD Card Management: If using a Micro SD card, periodically back up important footage and format the card to maintain performance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera offline | No power; Wi-Fi disconnected; Router issue. | Check power connection; Restart camera and router; Ensure camera is within Wi-Fi range. |
| Cannot connect to Wi-Fi | Incorrect Wi-Fi password; 5GHz network used; Weak signal. | Verify password; Ensure you are connecting to a 2.4GHz network; Move camera closer to router. |
| No motion detection alerts | Detection sensitivity too low; Detection zone not set; Notifications disabled. | Adjust sensitivity in app; Configure detection zones; Enable app notifications. |
| Poor video quality | Insufficient bandwidth; Dirty lens. | Check internet speed; Clean camera lens. |
8. Specifications
- Model: IPC-K2ECP-4H1W
- Resolution: 4MP (2.5K)
- Pan/Tilt Range: Pan 0-355°, Tilt -5-80°
- Night Vision Distance: Up to 10 meters
- Connectivity: Wi-Fi (2.4GHz only)
- Storage: Micro SD Card (up to 256GB, not included), Imou Cloud, NVR
- Audio: Two-way audio (built-in microphone and speaker)
- Special Features: AI Human Detection, Sound Detection, Smart Tracking, Privacy Mode, Alexa Compatibility
- Power: 5V DC, 5.3W
- Dimensions (L x W x H): 10.1 x 7.7 x 7.7 cm
- Weight: 380 grams
9. Warranty and Support
This product comes with a 2-year manufacturer's warranty.
For technical support, troubleshooting, or warranty claims, please contact Imou customer service through the Imou Life app or visit the official Imou website:
- Imou Official Website: www.imoulife.com
- In-App Support: Access the "Help & Feedback" section within the Imou Life application.
Please retain your proof of purchase for warranty purposes.
