1. Safety Information
Please read this manual carefully before operating the device and retain it for future reference. Improper use may result in damage to the product or personal injury.
- Use only the power adapter specified by the manufacturer.
- Ensure the camera is installed securely to prevent it from falling.
- Avoid exposing the camera to extreme temperatures, high humidity, or direct water contact.
- Do not attempt to disassemble or modify the camera. Refer all servicing to qualified personnel.
- Keep the camera away from strong light sources to prevent damage to the image sensor.
2. Package Contents
Verify that all items are present in your package:
- Imou Bullet 2E 2 MP Surveillance Camera
- Power Adapter
- Mounting Template
- Mounting Screws and Wall Plugs
- Quick Start Guide
3. Product Overview
The Imou Bullet 2E is a versatile 2 MP surveillance camera designed for both outdoor and indoor security applications, featuring Wi-Fi connectivity and advanced monitoring capabilities.

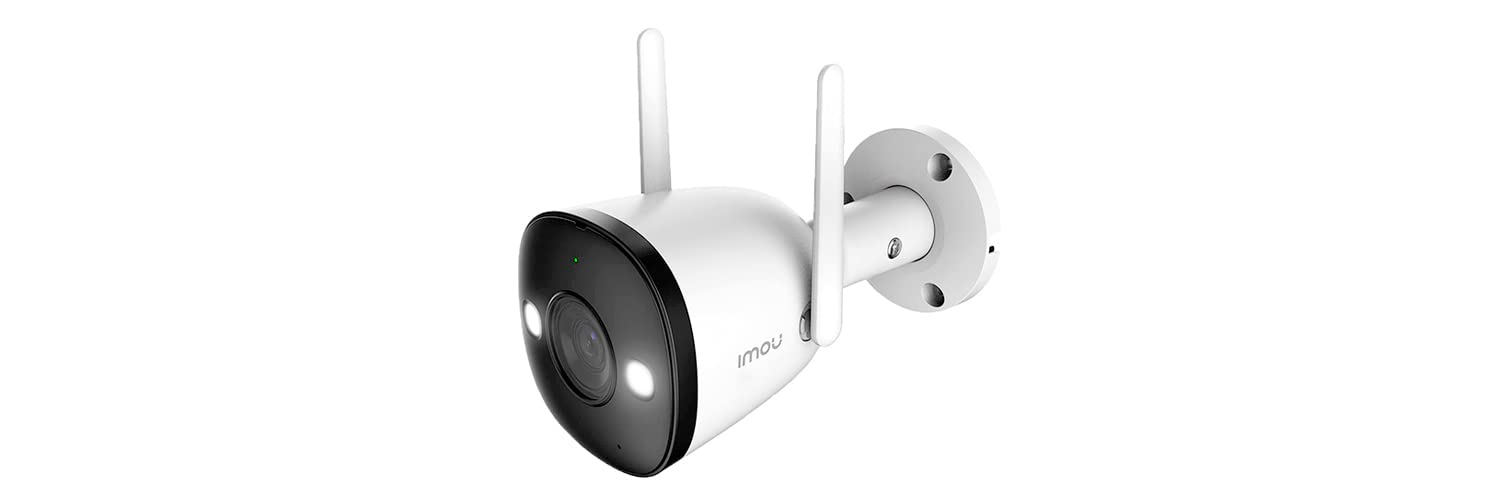

A white Imou Bullet 2E 2 MP surveillance camera with two antennas, mounted on a wall bracket. The front features a black lens area with two bright white lights and a small green indicator light.
Key Features:
- Full HD 2 MP Resolution: Captures clear images and video in 1080p.
- Multiple Night Vision Modes: Includes intelligent night vision with auto-activating headlights, color night vision (up to 30m), and infrared night vision.
- AI Person Recognition: Advanced artificial intelligence for accurate human detection, reducing false alarms.
- Real-time Alarms: Receive instant notifications on your mobile device when motion is detected.
- Two-Way Audio: Built-in microphone and speaker for communication.
- IP67 Weatherproof: Designed for outdoor use, resistant to dust and water.
- Flexible Storage: Supports Micro SD card (up to 256 GB, not included) and Imou Cloud service.
- Smart Home Integration: Compatible with Amazon Alexa and Google Assistant.
4. Setup
4.1 Physical Installation
- Choose a Location: Select a suitable location for your camera, ensuring good Wi-Fi signal strength and a clear view of the area you wish to monitor. The camera is suitable for both indoor and outdoor environments.
- Mount the Camera: Use the provided mounting template to mark and drill holes. Secure the camera to the wall or ceiling using the supplied screws and wall plugs. Adjust the camera angle as needed.
- Connect Power: Plug the power adapter into the camera's power input and then into a power outlet. The camera will power on and its indicator light will begin to flash.
4.2 App Setup
- Download the Imou Life App: Search for 'Imou Life' in your mobile app store (App Store for iOS or Google Play Store for Android) and download the application.
- Create an Account: Open the Imou Life app and follow the on-screen instructions to register a new account or log in if you already have one.
- Add the Camera: Tap the '+' icon in the app to add a new device. Scan the QR code located on the camera or its packaging. Follow the app's prompts to connect the camera to your 2.4 GHz Wi-Fi network.
- Configure Settings: Once connected, you can customize various settings such as motion detection sensitivity, recording schedules, and notification preferences.
A short video demonstrating the Imou Bullet 2E 2 MP surveillance camera. It highlights features such as 4 night vision modes up to 30m, AI alerts with real-time alarms, and two-way audio with Alexa compatibility. The camera is shown being handled and its power adapter is displayed.
5. Operating the Camera
5.1 Live View and Playback
Access the Imou Life app to view live footage from your camera. You can also review recorded events stored on your Micro SD card or Imou Cloud service.
5.2 Night Vision Modes
The camera offers several night vision options:
- Intelligent Night Vision: Automatically activates built-in spotlights upon detection for clear, colored images.
- Color Night Vision: Provides full-color surveillance even in low-light conditions, effective up to 30 meters.
- Infrared Night Vision: Standard black and white night vision, ideal for discreet monitoring without visible light.
- Off: Disables night vision for specific scenarios where no light emission is desired.
5.3 AI Person Recognition & Alarms
The camera's AI technology distinguishes human shapes from other moving objects, minimizing false alarms. When a person is detected, you will receive real-time alerts on your phone. You can also configure the camera to activate its spotlights to deter intruders.
5.4 Two-Way Audio
Utilize the built-in microphone and speaker through the Imou Life app to communicate with individuals near the camera, or to issue audible warnings.
5.5 Storage Options
Your surveillance footage can be stored in two ways:
- Micro SD Card: Insert a Micro SD card (up to 256 GB, not included) into the designated slot on the camera for local storage.
- Imou Cloud Service: Subscribe to the Imou Cloud service for secure, remote storage of your recordings. A 1-month free trial is typically available.
6. Maintenance
- Clean the Lens: Regularly clean the camera lens with a soft, dry cloth to ensure clear image quality. Avoid abrasive cleaners.
- Check Connections: Periodically inspect all cables and connections for wear or damage, especially for outdoor installations.
- Firmware Updates: Keep your camera's firmware updated through the Imou Life app to ensure optimal performance and access to new features.
- Wi-Fi Signal: Ensure your Wi-Fi router is functioning correctly and the camera maintains a strong signal for stable operation.
7. Troubleshooting
This section addresses common issues you might encounter with your Imou Bullet 2E camera.
| Issue | Possible Solution |
|---|---|
| Camera not powering on | Check if the power adapter is securely connected to both the camera and a working power outlet. Ensure the outlet has power. |
| Unable to connect to Wi-Fi | Ensure your Wi-Fi network is 2.4 GHz. Check the Wi-Fi signal strength at the camera's location. Restart your router and the camera. Re-attempt the Wi-Fi setup process in the Imou Life app. |
| Image is blurry or unclear | Gently clean the camera lens with a soft, dry cloth. Ensure there are no obstructions in front of the lens. Check lighting conditions. |
| No recordings or events detected | Verify that a Micro SD card is properly inserted and formatted, or that your Imou Cloud subscription is active. Check motion detection settings in the app to ensure they are enabled and configured correctly. |
| App is not responding or crashing | Ensure your Imou Life app is updated to the latest version. Try restarting the app or your mobile device. If the issue persists, reinstall the app. |
8. Specifications
Detailed technical specifications for the Imou Bullet 2E 2 MP Surveillance Camera.
| Feature | Detail |
|---|---|
| Model Number | IPC-F42FP |
| Video Capture Resolution | 1296p (2 MP) |
| Mounting Type | Wall Mount |
| Color | White |
| Wireless Communication | Wi-Fi (2.4 GHz) |
| Form Factor | Bullet |
| Wattage | 7 watts |
| Dimensions (L x W x H) | 14.8 x 7.42 x 7.42 cm |
| Weight | 610 g |
| Water Resistance Level | IP67 Weatherproof |
| Light Source Type | Infrared |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Compatible Devices | Smartphone, Tablet |
| Power Source | Corded Electric |
| Controller Type | Amazon Alexa, Google Assistant |
9. Warranty and Support
Imou products are designed for reliability and performance. This product comes with a standard manufacturer's warranty, details of which can be found on the official Imou website or within your purchase documentation.
For technical support, troubleshooting assistance, or warranty claims, please visit the official Imou support website or contact their customer service through the Imou Life app. Ensure you have your product model number (IPC-F42FP) and purchase details ready when seeking support.
Online resources, including FAQs and video tutorials, are also available to help you maximize your camera's functionality.
