1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your ELOMILE 12038B3HL Maxair BT380 Axial Flow Fan. Please read this manual thoroughly before using the product and retain it for future reference.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Electrical Hazard: This fan operates on 380 Volts. Ensure all wiring is performed by a qualified electrician in accordance with local electrical codes. Disconnect power before installation or maintenance.
- Moving Parts: Keep hands, hair, and loose clothing away from the fan blades during operation.
- Proper Ventilation: Ensure adequate airflow around the fan to prevent overheating.
- Secure Mounting: Mount the fan securely to a stable surface to prevent vibration and accidental detachment.
- Intended Use: Use this fan only for its intended purpose of air circulation and cooling in appropriate environments.
3. Package Contents
Verify that all items are present upon unpacking:
- 1 x ELOMILE 12038B3HL Maxair BT380 Axial Flow Fan
4. Specifications
| Feature | Specification |
|---|---|
| Model | 12038B3HL Maxair BT380 |
| Brand | ELOMILE |
| Voltage | 380 Volts |
| Wattage | 20 watts |
| Current | 0.06 Amps |
| Product Dimensions | 4.72"L x 1.5"W x 4.72"H (120mm x 38mm x 120mm) |
| Cooling Method | Air |
| Material | Copper (motor windings) |
5. Setup
Follow these steps for proper installation:
- Mounting: Position the fan in the desired location. The fan features four mounting holes, one in each corner of its square frame, for secure attachment. Use appropriate screws or bolts (not included) suitable for your mounting surface. Ensure the fan is firmly secured to prevent movement during operation.
- Wiring: Connect the fan's power leads to a 380V AC power source. Ensure correct polarity and secure connections. It is highly recommended that a qualified electrician performs this step to ensure safety and compliance with electrical standards.

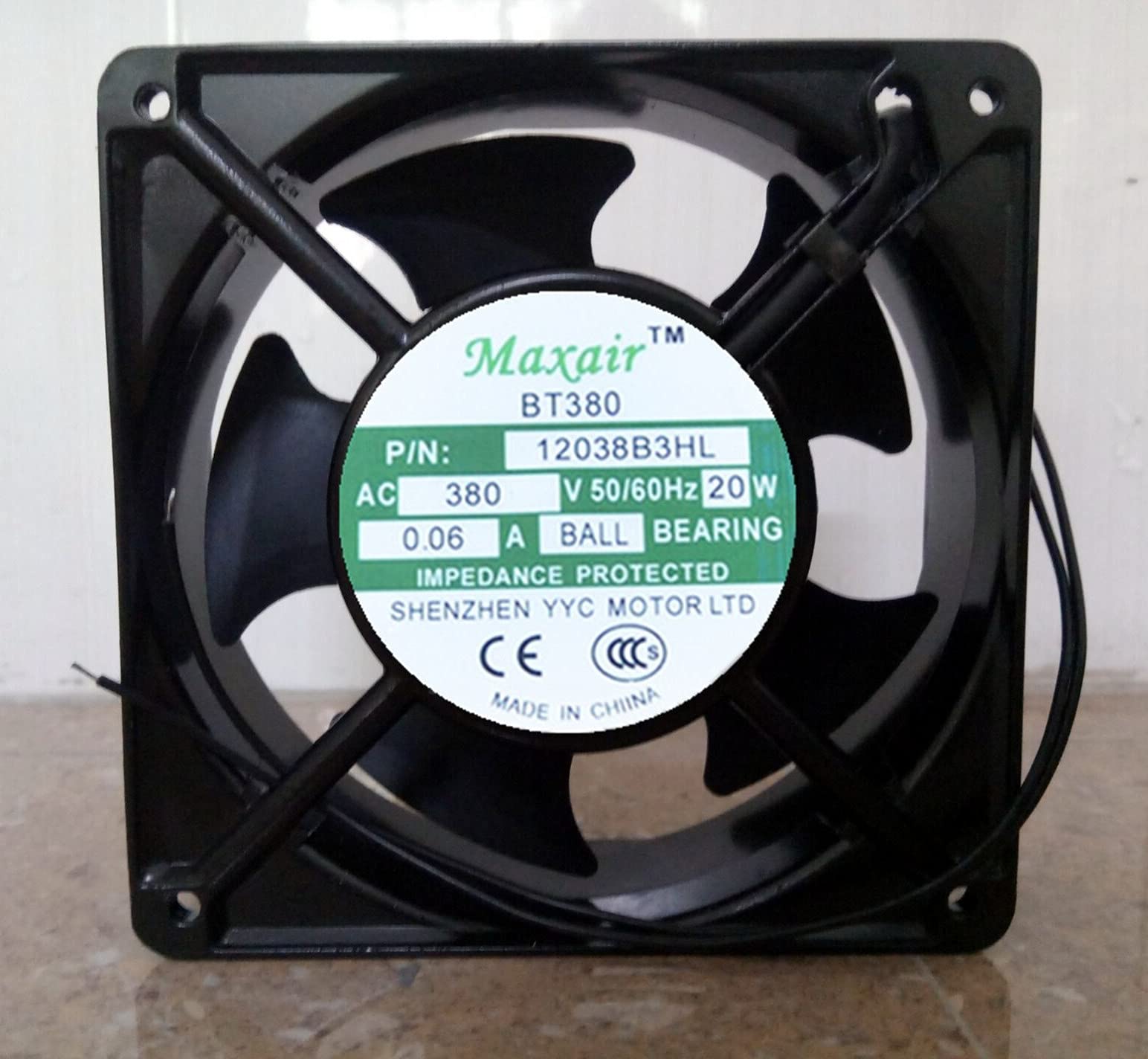

Image 1: Front view of the ELOMILE 12038B3HL Maxair BT380 Axial Flow Fan, showing the four-blade design and mounting holes.
6. Operating Instructions
Once installed and wired correctly:
- Power On: Apply power to the fan's circuit. The fan should begin to rotate, moving air in the intended direction.
- Power Off: Disconnect power from the fan's circuit to stop operation.
- Continuous Operation: This fan is designed for continuous operation within its specified voltage and temperature ranges.
7. Maintenance
Regular maintenance ensures optimal performance and longevity:
- Cleaning: Periodically inspect the fan blades and housing for dust and debris accumulation. Disconnect power before cleaning. Use a soft brush or compressed air to gently remove any buildup. Do not use liquid cleaners directly on electrical components.
- Inspection: Check for any signs of wear, damage, or loose connections. Ensure mounting screws remain tight.
- Lubrication: This fan typically uses sealed bearings that do not require lubrication. Do not attempt to lubricate the motor or bearings unless specifically instructed by the manufacturer.
8. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply Incorrect wiring Motor fault | Check power connection and circuit breaker Verify wiring with a qualified electrician Contact support if motor fault is suspected |
| Fan runs slowly or with reduced airflow | Dust/debris on blades Obstruction in airflow path Incorrect voltage | Clean fan blades and housing Remove any obstructions Ensure correct 380V supply |
| Unusual noise or vibration | Loose mounting Damaged blades Bearing issue | Tighten mounting screws Inspect blades for damage; replace fan if necessary Contact support if bearing issue is suspected |
If the problem persists after attempting these solutions, contact customer support.
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the contact details provided at the point of purchase or visit the ELOMILE official website. Keep your purchase receipt as proof of purchase.
