Mintu Spindle Assembly Replacement Instruction Manual

Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of your Mintu Spindle Assembly Replacement. Please read these instructions thoroughly before beginning any work to ensure proper function and longevity of the part. This spindle assembly is designed as a direct replacement for various Sears Craftsman 46-inch mower models, including 917.287280, 917.287281, 917.287360, 917.288130, 917.288131, 917.288132, 917.288140, 917.288141, 917.288142, 917.288171, 917.288172, and 917.988270.

Safety Information

WARNING: Always disconnect the spark plug wire and remove the ignition key before performing any maintenance or installation on your lawn mower to prevent accidental starting.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
• Ensure the mower is on a flat, stable surface and the parking brake is engaged.
• Allow the engine and all moving parts to cool down before handling.
• Use proper lifting techniques or assistance when handling heavy components like the mower deck.
• Keep children and pets away from the work area.

Package Contents

Verify that all components are present and undamaged before proceeding with installation:

• 1 x Mintu Spindle Assembly
• Blade Bolt and Washer (pre-installed or included separately)
• Mounting Hardware (bolts, nuts, washers for deck attachment)

Setup and Installation

This section outlines the general steps for replacing a spindle assembly. Specific procedures may vary slightly depending on your exact mower model. Refer to your original mower's service manual for detailed deck removal and reinstallation instructions.

Tools Required:

• Socket wrench set
• Torque wrench
• Pry bar or block of wood (for blade removal)
• Grease gun (for lubrication)

Installation Steps:

1. Prepare the Mower: Disconnect the spark plug wire. Engage the parking brake. Lower the mower deck to its lowest position.
2. Remove the Mower Deck: Follow your mower's manual to safely detach and remove the mower deck from the tractor. Place the deck on a stable, elevated surface for easier access.
3. Remove Mower Blades: Carefully remove the blade(s) attached to the spindle(s) you are replacing. Use a block of wood to prevent the blade from turning while loosening the blade bolt. Note the orientation of the blade for correct reinstallation.
4. Remove Old Spindle Assembly: Locate the mounting bolts that secure the old spindle assembly to the mower deck. Loosen and remove these bolts. The old spindle assembly can then be removed from the deck.
5. Clean Mounting Area: Clean any debris, rust, or old gasket material from the spindle mounting area on the mower deck.
6. Install New Spindle Assembly: Position the new Mintu Spindle Assembly onto the mower deck, aligning the mounting holes. Secure it with the provided mounting hardware. Tighten bolts evenly to the manufacturer's specified torque (refer to your mower's manual).
7. Install Mower Blades: Attach the mower blade(s) to the new spindle assembly, ensuring the correct orientation. The Mintu spindle features a 5-point star blade mount. Tighten the blade bolt securely to the manufacturer's specified torque.
8. Lubricate: Locate the grease zerk fitting on the spindle assembly and apply a small amount of appropriate grease using a grease gun.
9. Reinstall Mower Deck: Reattach the mower deck to the tractor, following your mower's manual. Reconnect the spark plug wire.

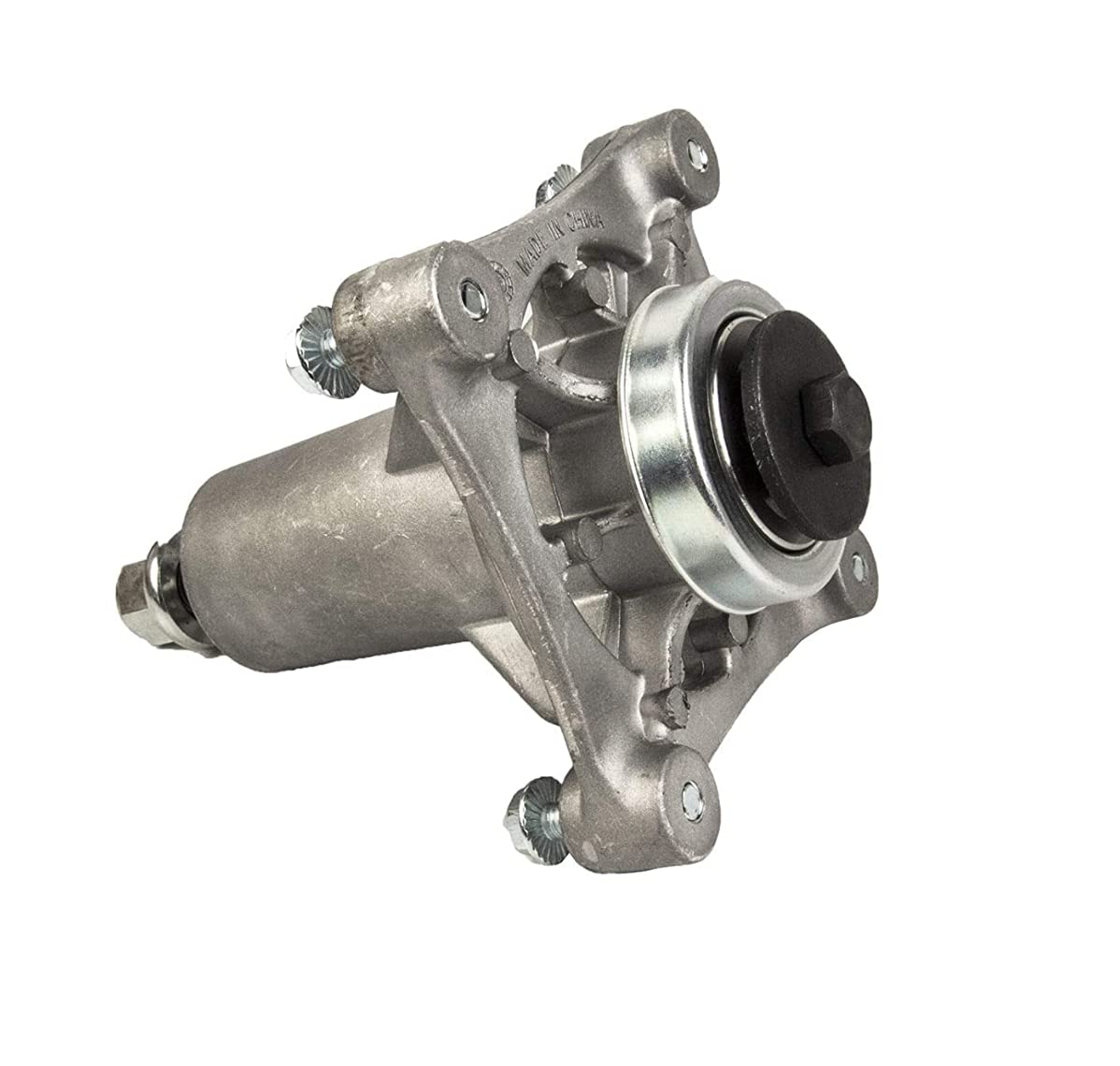

Figure 1: Mintu Spindle Assembly Replacement. This image shows the Mintu Spindle Assembly, a replacement part for Sears Craftsman 46-inch lawn mower decks. The assembly features a robust metal housing, a central shaft with a 5-point star blade mount, and mounting points for attachment to the mower deck. A grease zerk fitting is visible for lubrication.

Operating (Post-Installation)

After installing the new spindle assembly, perform the following checks before operating the mower:

• Visual Inspection: Ensure all bolts are tightened, and there are no loose parts. Check that the blade spins freely without obstruction.
• Initial Test Run: Start the mower in a safe, open area. Listen for any unusual noises or vibrations. If any issues are detected, immediately shut off the mower and investigate.
• Blade Level: Verify that the mower deck and blades are level according to your mower's specifications to ensure an even cut.

Maintenance

Regular maintenance will extend the life of your spindle assembly and ensure optimal mower performance.

• Lubrication: The spindle assembly includes a grease zerk fitting. Lubricate with appropriate grease every 25 hours of operation or annually, whichever comes first. Do not over-grease.
• Inspection: Periodically inspect the spindle assembly for signs of wear, damage, or looseness. Check for excessive play in the shaft.
• Cleaning: Keep the area around the spindle assembly free of grass clippings and debris to prevent buildup and potential overheating.
• Blade Condition: Ensure mower blades are sharp and balanced. Dull or unbalanced blades can put undue stress on the spindle bearings.

Troubleshooting

If you encounter issues after replacing the spindle assembly, consider the following:

• Excessive Vibration:
  • Cause: Unbalanced blade, loose blade bolt, or loose spindle mounting bolts.
  • Solution: Check blade balance, tighten blade bolt, and ensure spindle mounting bolts are torqued correctly.
• Unusual Noise (Grinding/Whining):
  • Cause: Insufficient lubrication, damaged bearings, or debris in the spindle housing.
  • Solution: Apply grease to the zerk fitting. If noise persists, inspect for bearing damage or internal debris.
• Poor Cut Quality:
  • Cause: Dull blade, improperly installed blade, or incorrect deck leveling.
  • Solution: Sharpen or replace blade, verify blade orientation, and adjust deck leveling.

Specifications

• Blade Mount Type: 5 Point Star
• Overall Height: 7-1/2 inches (190mm), includes grease Zerk
• Mounting Hole Distance: 5-5/8 inches (143mm)
• Included Hardware: Blade Bolt and Washer, Mounting Hardware
• Compatible Mower Deck Size: 46 inches
• Compatible Mower Models: Sears Craftsman 917.287280, 917.287281, 917.287360, 917.288130, 917.288131, 917.288132, 917.288140, 917.288141, 917.288142, 917.288171, 917.288172, 917.988270

Warranty and Support

For information regarding warranty coverage or technical support for your Mintu Spindle Assembly, please refer to the seller's return policy or contact the retailer from whom the product was purchased. Keep your purchase receipt as proof of purchase.
