WEIJIA 048-0074 Piston Cylinder Air Compressor Replacement Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of the WEIJIA 048-0074 Piston Cylinder Air Compressor Replacement kit. This kit is designed to replace worn or damaged piston and cylinder components in compatible Coleman Powermate and Sanborn air compressors. Please read these instructions carefully before proceeding with any installation or maintenance.

2. Product Overview

The WEIJIA 048-0074 is a complete piston/cylinder repair kit, including the piston assembly with a ring and connecting rod. It is specifically designed to fit Coleman Powermate and Sanborn Air Compressor Pumps, ensuring a proper and efficient repair.

• Complete piston/cylinder repair kit.
• Includes piston assembly with ring and connecting rod.
• Compatible with Coleman Powermate and Sanborn Air Compressor Pumps.

Figure 2.1: Overview of the WEIJIA 048-0074 Piston Cylinder Air Compressor Replacement Kit, showing the piston, connecting rod, and sealing ring.

3. Specifications

4. Installation Guide

This section provides general guidance for replacing the piston and cylinder components. Due to the complexity of air compressor systems, it is highly recommended that installation be performed by a qualified technician or individuals with experience in air compressor repair. Always refer to your specific air compressor's service manual for detailed disassembly and reassembly procedures.

4.1 Safety Precautions

• Disconnect Power: Always ensure the air compressor is unplugged from its power source and depressurized before beginning any work.
• Release Air Pressure: Fully drain the air tank to zero PSI.
• Wear Protective Gear: Use safety glasses and gloves to protect against injury.
• Work in a Ventilated Area: Ensure adequate ventilation if using cleaning solvents.
• Consult Manual: Refer to your air compressor's original service manual for model-specific instructions and torque specifications.

4.2 Required Tools (Typical)

• Wrenches (various sizes)
• Screwdrivers (Phillips and flathead)
Socket set
• Torque wrench
• Piston ring compressor (if applicable)
• Gasket scraper or cleaning tools
• Clean rags

4.3 Installation Steps (General)

1. Preparation: Ensure the compressor is off, unplugged, and depressurized. Remove any covers or shrouds to access the pump assembly.
2. Drain Oil: If your compressor is oil-lubricated, drain the oil according to the manufacturer's instructions.
3. Remove Cylinder Head: Carefully unbolt and remove the cylinder head. Note the orientation of any gaskets or valves.
4. Remove Old Cylinder and Piston: Disconnect the connecting rod from the crankshaft. Remove the old cylinder and piston assembly. Pay attention to how the piston ring is seated.
5. Clean Surfaces: Thoroughly clean all mating surfaces to ensure a proper seal for the new components. Remove any old gasket material.
6. Install New Piston Assembly: Attach the new connecting rod to the crankshaft. Carefully install the new piston into the cylinder, ensuring the piston ring is correctly seated and not damaged during insertion. Lubricate components with compressor oil if applicable.


   Figure 4.1: The new piston assembly with connecting rod.

7. Install New Cylinder: Place the new cylinder onto the crankcase, ensuring proper alignment. Use new gaskets as required.

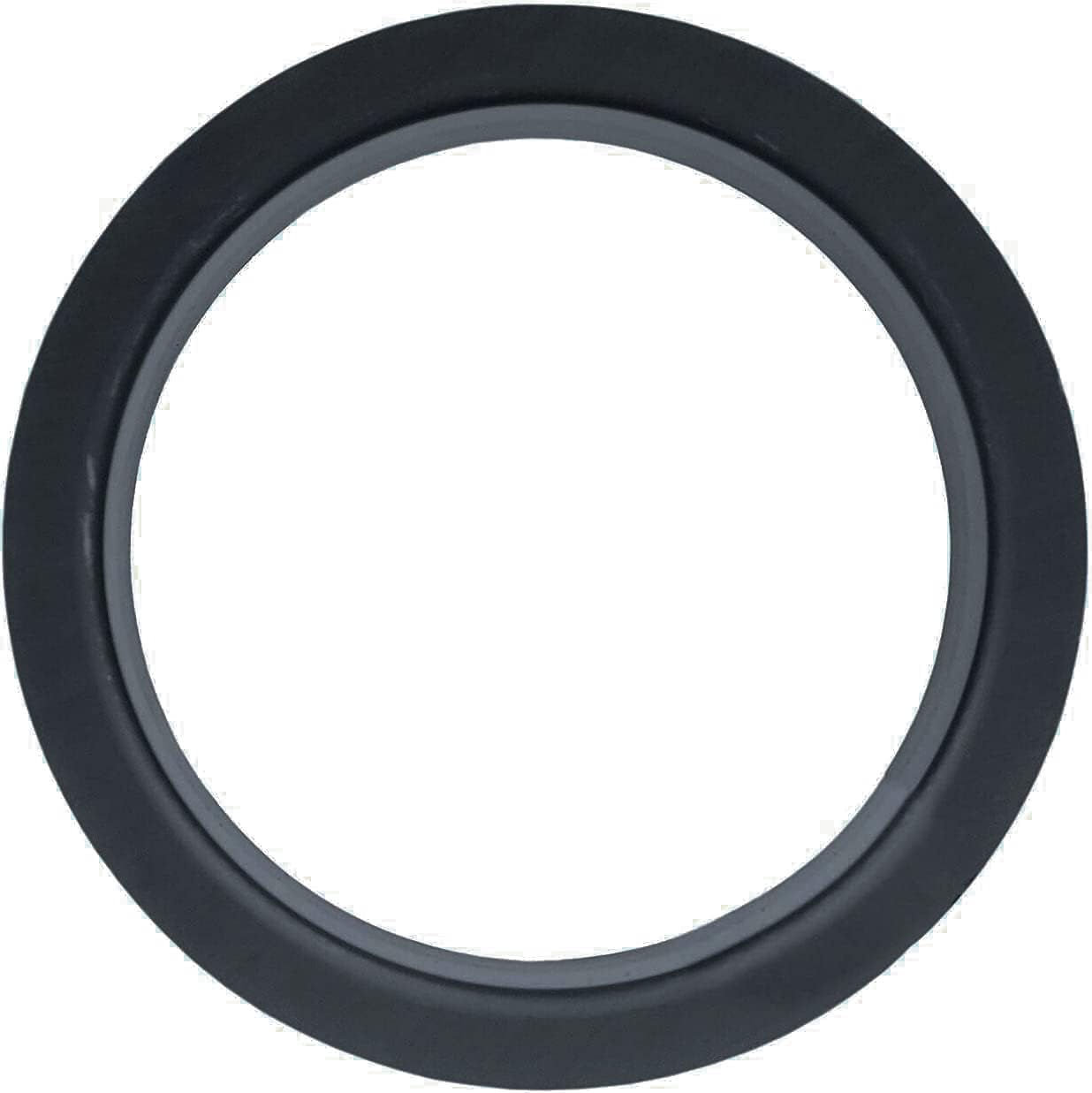

   Figure 4.2: The cylinder ring, part of the replacement kit.

8. Reattach Cylinder Head: Place the cylinder head back on, using new gaskets. Torque the bolts to the manufacturer's specified settings in the correct sequence.
9. Refill Oil (if applicable): If your compressor is oil-lubricated, refill with the recommended type and amount of compressor oil.
10. Reassemble and Test: Reattach any removed covers. Plug in the compressor and perform a test run to check for proper operation, leaks, and unusual noises.

5. Operation

As the WEIJIA 048-0074 is a replacement component for an air compressor pump, its operation is integral to the overall function of the air compressor. Once installed, the air compressor should be operated according to its original manufacturer's instructions. This replacement kit does not alter the operational procedures of your air compressor.

Refer to your air compressor's original user manual for details on:

• Starting and stopping the compressor.
• Setting and adjusting air pressure.
• Connecting air tools and accessories.
• Safety guidelines for compressor use.

6. Maintenance

Proper maintenance of your air compressor, including its internal components like the piston and cylinder, is crucial for longevity and performance. After installing the WEIJIA 048-0074 kit, follow these general maintenance guidelines:

• Regular Inspections: Periodically inspect the compressor pump for any signs of leaks, unusual wear, or loose fasteners.
• Oil Changes (if applicable): If your compressor is oil-lubricated, change the compressor oil at the intervals recommended by the compressor manufacturer. Use only approved compressor oil.
• Air Filter Replacement: Regularly check and replace the air intake filter to prevent contaminants from entering the pump, which can damage the piston and cylinder.
• Drain Moisture: Drain moisture from the air tank daily or after each use to prevent rust and corrosion, which can affect overall compressor health.
• Clean Exterior: Keep the exterior of the compressor and pump clean to ensure proper cooling.

7. Troubleshooting

If you encounter issues after installing the WEIJIA 048-0074 replacement kit, consider the following common troubleshooting steps. Always ensure safety precautions are followed before inspecting the compressor.

• Compressor Not Building Pressure:
  • Check for air leaks around the cylinder head and connections.
  • Ensure all bolts are properly torqued.
  • Inspect the piston ring for proper seating and damage.
  • Verify that the intake and discharge valves are functioning correctly (refer to compressor manual).
• Unusual Noises (Knocking, Grinding):
  • Immediately shut down the compressor.
  • Recheck connecting rod attachment to the crankshaft.
  • Ensure proper lubrication (if oil-lubricated).
  • Verify no foreign objects are inside the pump.
• Oil Leaks (if oil-lubricated):
  • Check all gasket surfaces for proper sealing.
  • Ensure bolts are tightened to specifications.
  • Inspect the oil seals for damage during installation.

If troubleshooting steps do not resolve the issue, contact a qualified air compressor service technician or the manufacturer for further assistance.

8. Warranty and Support

For information regarding the warranty of your WEIJIA 048-0074 Piston Cylinder Air Compressor Replacement kit, please refer to the product packaging or contact WEIJIA customer support directly. Keep your purchase receipt as proof of purchase.

For technical support or inquiries, please reach out to the manufacturer:

• Manufacturer: WEIJIA
• Model Number: 048-0074

When contacting support, please have your product model number and purchase details available.
