Introduction
The TotalFreeze 45L is a versatile dual-zone portable fridge freezer designed for various outdoor and travel applications. Equipped with efficient compressor technology, it can function as both a refrigerator and a freezer, maintaining temperatures as low as -20°C. Its robust design, multi-power flexibility (12V, 24V, AC mains), and smart app control make it an ideal solution for camping, road trips, and off-grid adventures.
Image: The TotalFreeze 45L unit, showcasing its compact design and the accompanying mobile app for temperature control.
What's in the Box
Upon unpacking your TotalFreeze 45L, please ensure all the following components are present:
- Totalfreeze 45 Portable Fridge Freezer Unit
- AC Mains Lead (for 240V household power)
- 12V Lead (for vehicle or portable power sources)
- Instruction Manual (this document)
Setup
Initial Preparation
Before first use, it is recommended to leave the TotalFreeze unit upright for at least 6 hours (preferably overnight) to allow the refrigerant gases to settle. This ensures optimal performance and longevity of the compressor.
Power Connection Options
The TotalFreeze 45L offers flexible power options to suit various environments:
- AC Mains (240V): Use the provided AC Mains Lead to connect the unit to a standard household power outlet.
- 12V/24V DC: Use the provided 12V Lead to connect to a vehicle's cigarette lighter socket or a portable power station. The unit automatically detects 12V or 24V input.
Image: Illustration of the various power input methods for the TotalFreeze unit, including power station, AC mains, and 12V/24V DC.
Mobile App Setup
For enhanced control and monitoring, download the Totalcool app from your smartphone's app store. Follow the in-app instructions to pair your device with the TotalFreeze unit via Bluetooth. The app allows for remote temperature adjustment, mode selection, and voltage monitoring.
Image: A smartphone displaying the TotalFreeze app interface, highlighting features like temperature adjustment, mode selection, lock feature, and power button.
Operating Instructions
Temperature Control
The TotalFreeze 45L can be set to temperatures ranging from -20°C to +20°C. Use the control panel on the unit or the mobile app to adjust the desired temperature. The efficient compressor technology ensures rapid cooling.
Dual Zone Functionality
This model features a dual-zone design, allowing you to set different temperatures for two separate compartments. This enables simultaneous refrigeration and freezing, providing versatility for various food and beverage storage needs.
Image: The interior of the TotalFreeze 45L, illustrating its dual-zone capability for storing both refrigerated and frozen items.
Battery Voltage Protection
The unit includes smart battery protection to prevent excessive discharge of your power source. You can select from Low, Medium, or High protection modes, which dictate the cut-out and cut-in voltage levels.
Image: A table detailing the 12V battery voltage protection settings, including cut-out and cut-in voltages for different modes.
Image: A table detailing the 24V battery voltage protection settings, including cut-out and cut-in voltages for different modes.
Maintenance
Cleaning
Regularly clean the interior and exterior of the unit with a damp cloth and mild detergent. Avoid abrasive cleaners or solvents. Ensure the unit is unplugged before cleaning.
Defrosting
The TotalFreeze 45L features an electric defrost system. If ice buildup occurs, especially in the freezer compartment, unplug the unit and allow the ice to melt naturally. Wipe away any melted water before restarting. Do not use sharp objects to remove ice.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit not cooling | No power, incorrect temperature setting, blocked ventilation. | Check power connection. Verify temperature setting. Ensure vents are clear. |
| Unit is too loud | Unit not level, fan obstruction, normal compressor operation. | Ensure unit is on a flat, stable surface. Check for debris near fan. Some compressor noise is normal. If excessively loud, contact support. |
| Temperature not stable | Lid not sealed, frequent opening, ambient temperature too high. | Check lid seal for obstructions. Minimize opening. Operate in a shaded or cooler area if possible. |
| Condensation on exterior | High humidity, poor lid seal. | This can be normal in high humidity. Check lid seal for proper closure. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Totalcool |
| Model | TOTALFREEZE 45L (TF0045) |
| Capacity | 45 Litres |
| Product Dimensions (L x W x H) | 69 x 34.5 x 46.2 cm |
| Item Weight | 13 kg |
| Noise Level | 42 dB |
| Voltage | 12V / 24V DC, AC Mains (240V) |
| Wattage | 40 watts |
| Temperature Range | -20°C to +20°C |
| Defrost System | Electric |
| Special Features | Portable, Easy to Install, Removable, Quiet, Adjustable, App Controlled, Dual Zone |

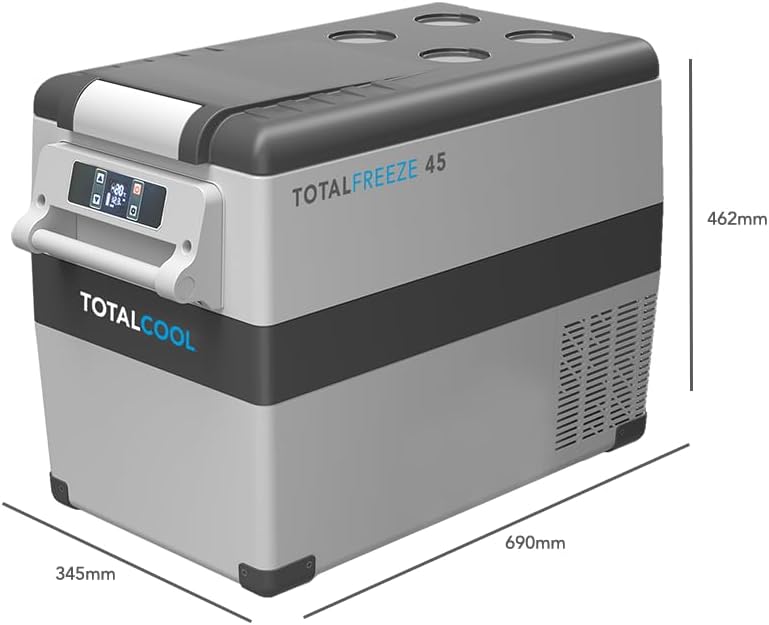

Image: Dimensional overview of the TotalFreeze 45L unit, showing its length, width, and height measurements.
Warranty and Support
Warranty Information
The TotalFreeze 45L comes with a two-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, technical assistance, or warranty claims, please contact Totalcool customer support. Refer to the contact information provided on the Totalcool website or your purchase documentation.
