WORKPRO 16-Inch Chainsaw Chain Instruction Manual

1. Overview

This manual provides instructions for the WORKPRO 16-inch chainsaw chain, designed for wood cutting applications. It is compatible with various chainsaw brands including Craftsman, Husqvarna, Poulan, Echo, DeWalt, Homelite, and Remington, provided the specifications match. The chain features a 3/8-inch pitch, 56 drive links, and a 0.050-inch (1.3mm) gauge.

Image 1.1: WORKPRO 16-inch chainsaw chain, showing the product in its packaging.

Key Features

• Product Specifications: Length: 16 inches (40cm), 56 drive links, 3/8-inch pitch, 0.050-inch (1.3mm) gauge.
• Material Composition: Chainsaw chain made of 68CRNIMO33, with drive links constructed from 50CRV, featuring an industrial chrome-plated outer layer for enhanced hardness and durability.
• Cutting Performance: Equipped with a specially designed cutter for smooth cutting and reduced kickback.
• Versatility: Suitable for general home garden work, felling damaged trees, and use by both arborists and non-professional users.

2. Safety Information

Always prioritize safety when working with chainsaws. Read and understand your chainsaw's owner's manual before operating. Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and protective footwear. Ensure the chain is correctly installed and tensioned before use.

Warning: Chainsaws can be dangerous. Improper use or maintenance can result in serious injury or death. Always follow manufacturer guidelines for both the chainsaw and the chain.

3. Setup and Installation

Proper installation of the chainsaw chain is crucial for safe and efficient operation. Refer to your chainsaw's specific instruction manual for detailed steps on how to remove the old chain and install a new one. The following are general guidelines:

1. Ensure Power is Off: For electric chainsaws, unplug the power cord. For gasoline chainsaws, ensure the engine is off and cooled down. Engage the chain brake.
2. Remove Bar Cover: Loosen the bar nuts and remove the side cover that holds the guide bar in place.
3. Remove Old Chain: Carefully remove the old chain from the guide bar and drive sprocket.
4. Install New Chain: Place the new WORKPRO chain onto the drive sprocket, ensuring the cutting edges are facing the correct direction (usually forward on the top of the bar).
5. Fit onto Guide Bar: Guide the chain around the nose of the guide bar and into the groove along the entire length of the bar.
6. Reattach Bar Cover: Position the guide bar back onto the chainsaw studs and replace the side cover. Hand-tighten the bar nuts.
7. Adjust Chain Tension: Adjust the chain tensioning screw until the chain is snug against the bottom of the guide bar, but can still be pulled freely by hand. There should be no slack on the underside of the bar.
8. Tighten Bar Nuts: Fully tighten the bar nuts to secure the guide bar and maintain proper chain tension.
9. Check Tension Again: After tightening, re-check the chain tension. It may change slightly.

Image 3.1: WORKPRO chainsaw chain set as packaged, ready for installation.

4. Operating Instructions

Once the WORKPRO chainsaw chain is correctly installed and tensioned, you can proceed with operation. Always ensure you are familiar with your chainsaw's operation and safety features.

• Pre-Operation Check: Before each use, inspect the chain for sharpness, damage, and proper tension. Check the oil level in the chain lubrication reservoir.
• Starting the Chainsaw: Follow your chainsaw manufacturer's instructions for starting.
• Cutting Technique: Maintain a firm grip on the chainsaw with both hands. Keep your body balanced and avoid overreaching. Let the chain do the work; do not force the saw.
• Avoid Kickback: Be aware of the kickback zone (the upper quadrant of the guide bar nose). Avoid cutting with this area to prevent sudden upward and backward movement of the saw.
• Lubrication: Ensure the chain is continuously lubricated during operation. Most chainsaws have an automatic oiler.
• Post-Operation: Turn off the chainsaw, engage the chain brake, and allow it to cool before cleaning or storage.

Image 4.1: A person demonstrating the use of a chainsaw to cut a log, highlighting proper handling during operation.

5. Maintenance

Regular maintenance extends the life of your WORKPRO chainsaw chain and ensures optimal cutting performance.

• Sharpening: The chain should be sharpened regularly to maintain its cutting efficiency. Use a round file of the correct diameter (refer to your chainsaw manual or chain specifications for the exact size). File each cutter uniformly.
• Cleaning: After each use, clean the chain to remove sawdust, sap, and debris. A stiff brush and appropriate cleaning solution can be used. Ensure the chain is dry before storage.
• Lubrication: Always use proper chain oil for lubrication. Check the oiler function regularly.
• Inspection: Periodically inspect the chain for damaged or worn links, cracks, or excessive stretch. Replace the chain if any significant damage is found.
• Storage: Store the chain in a dry, clean place. If storing for an extended period, lightly oil the chain to prevent rust.

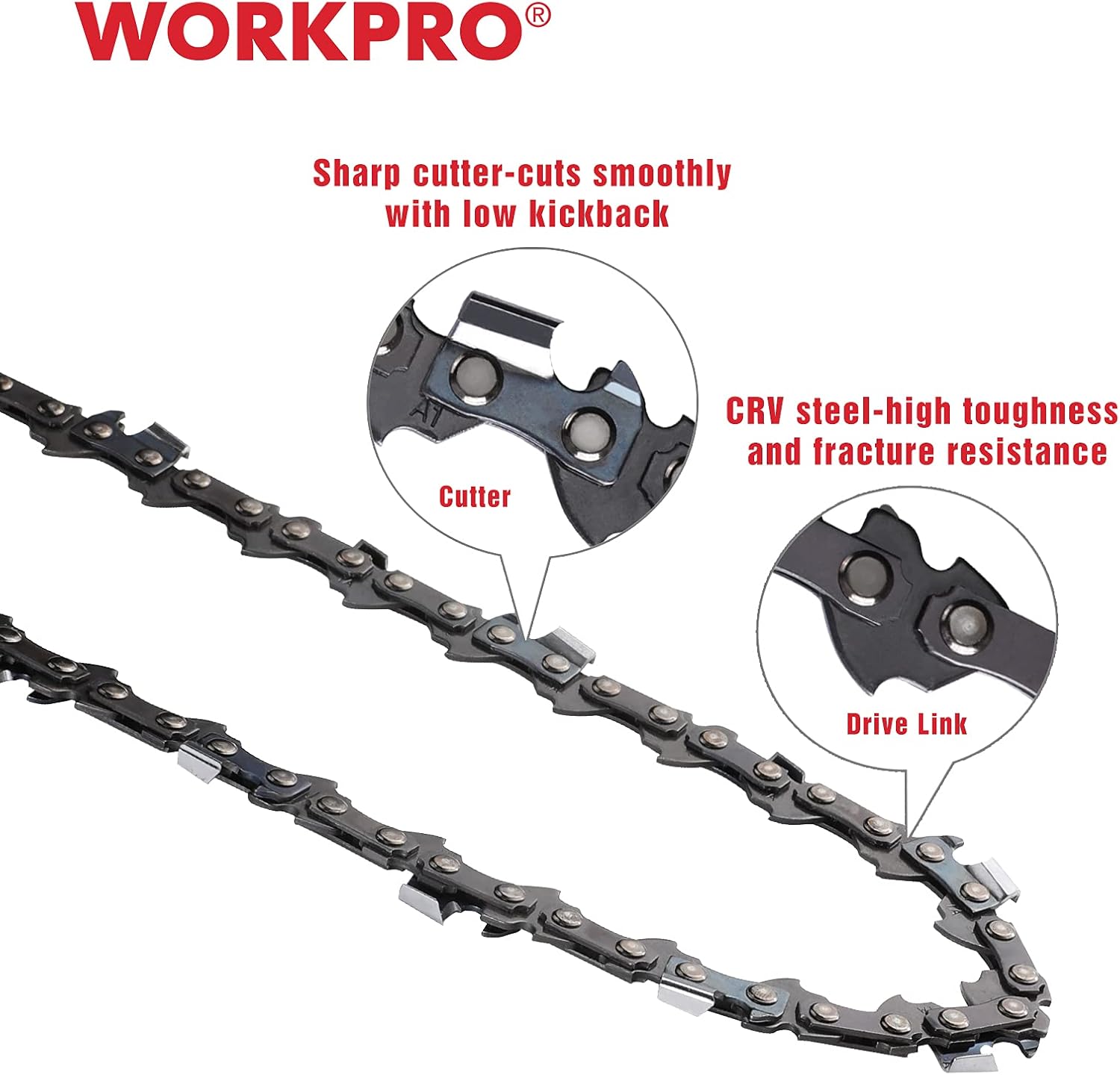

Image 5.1: A close-up view of the WORKPRO chainsaw chain, showing the sharp cutters and durable drive links, important for maintenance and sharpening.

6. Troubleshooting

If you encounter issues with your chainsaw chain, consider the following common troubleshooting steps:

• Chain Not Cutting Effectively:
  • Check if the chain is dull and requires sharpening.
  • Ensure the chain is installed with the cutters facing the correct direction.
  • Verify proper chain tension.
• Chain Smoking or Overheating:
  • Check the chain oil reservoir and ensure the automatic oiler is functioning.
  • Ensure the chain tension is not too tight.
  • Clean the guide bar groove and oil holes.
• Chain Jumping Off Bar:
  • Adjust chain tension; it may be too loose.
  • Inspect the guide bar for wear or damage.
  • Check the drive sprocket for wear.

For persistent issues, consult your chainsaw's service manual or contact a qualified service technician.

7. Specifications

Detailed specifications for the WORKPRO 16-Inch Chainsaw Chain (Model W004586A):

Image 7.1: A visual representation of the key specifications for the WORKPRO chainsaw chain, including length, gauge, drive links, and pitch.

8. Warranty and Support

For information regarding warranty coverage, product support, or replacement parts for your WORKPRO chainsaw chain, please refer to the official WORKPRO website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

Contact Information: Please visit the official WORKPRO website for the most up-to-date contact details and support resources.
