1. Introduction
This manual provides essential instructions for the safe and efficient use of your ELECAENTA S600W Portable Power Station Replacement Battery. This 740Wh capacity battery is designed to extend the runtime of your S600W portable power station and offers versatile charging options. Please read this manual thoroughly before use and retain it for future reference.
Image: ELECAENTA S600W Portable Power Station with its replacement battery unit.
2. Safety Information
Always observe the following safety precautions to prevent injury or damage to the product:
- Do not expose the battery to extreme temperatures (above 60°C/140°F or below -10°C/14°F).
- Avoid dropping, puncturing, or disassembling the battery.
- Keep the battery away from water, fire, and corrosive substances.
- Use only approved charging cables and adapters.
- Store the battery in a cool, dry place when not in use.
- If the battery shows signs of swelling, leakage, or damage, discontinue use immediately and contact support.
3. Product Overview
The ELECAENTA S600W Replacement Battery is a robust and compact unit designed for seamless integration with your S600W Portable Power Station. It features a durable casing and a convenient handle for portability.

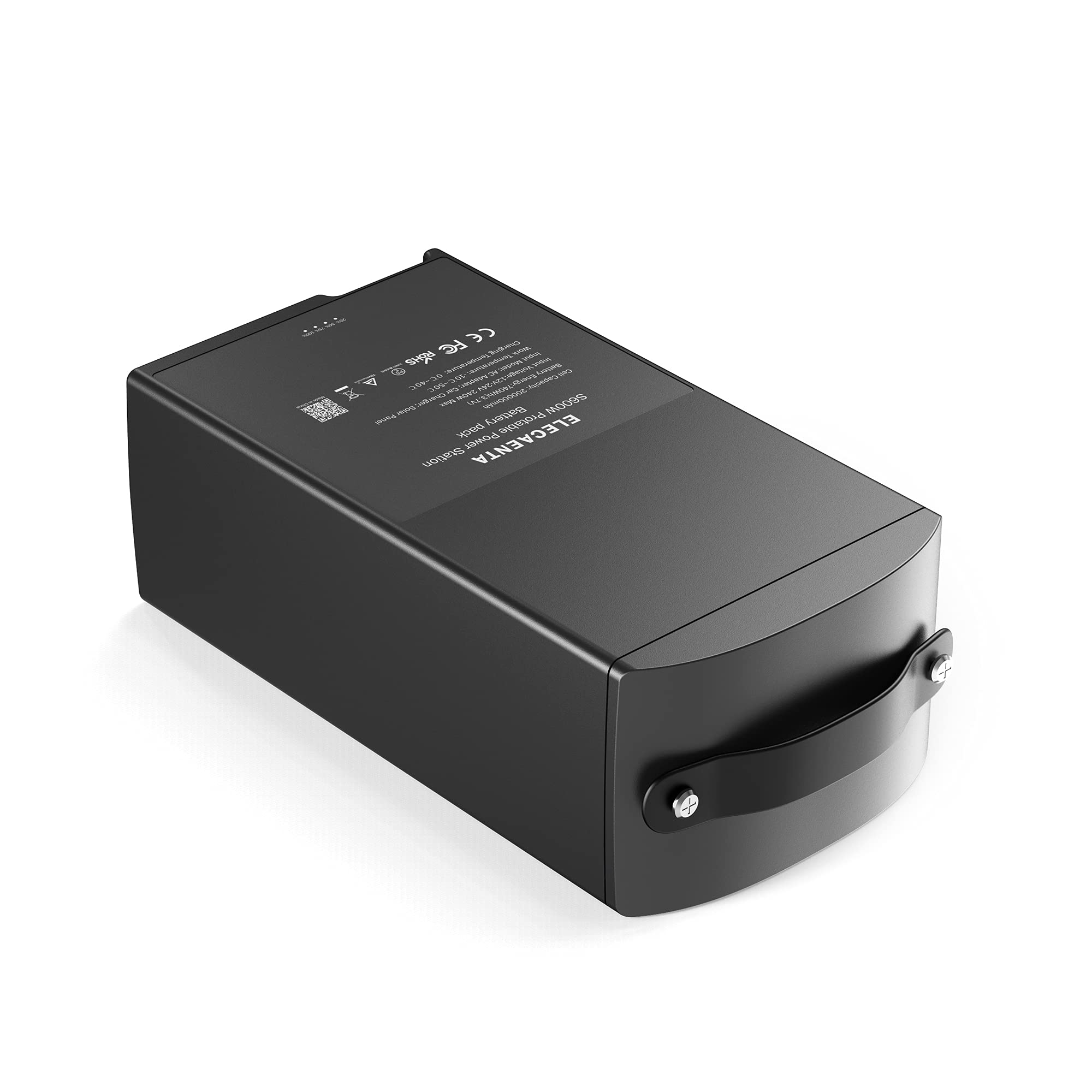

Image: Detailed view of the replacement battery, highlighting its handle, power level indicator, DC input port, and connection port to the main unit.
Components:
- Handle: For easy carrying.
- Power Level Indicator: Displays current battery charge (25%, 50%, 75%, 100%).
- DC Input Port: For charging the battery unit independently.
- Connection Port: Connects to the main S600W power station.
- DC Current Control Button: Manages DC power flow.
4. Charging the Replacement Battery
The replacement battery unit supports 3-way charging independently, allowing you to charge it even when not connected to the main power station.
Charging Methods:
- AC Adapter: Connect the provided AC adapter to the DC input port. A 200W AC adapter can fully charge the battery in approximately 3-4 hours.
- Car Charger (Cigarette Lighter Socket): Use a compatible car charger to charge the battery from your vehicle's 12V outlet.
- Solar Panel: Connect a compatible solar panel (e.g., ELECAENTA 120W solar panel) to the DC input port for eco-friendly charging. Charging time varies based on sunlight intensity.
Image: The replacement battery supports 3-way charging via solar panel, car charger, or AC adapter.
Image: Charging scenarios for the power station and battery, including solar and wall outlet.
5. Battery Replacement Procedure (for S600W Portable Power Station)
The ELECAENTA S600W Portable Power Station is designed for easy battery replacement in just 4 simple steps, allowing for continuous power supply.
Image: Visual guide for the 4-step battery replacement.
Image: Detailed diagram illustrating battery insertion and removal.
Steps for Battery Replacement:
- Loosen the Screw: Locate and loosen the single screw securing the battery compartment cover on the main S600W unit.
- Remove the Battery: Gently pull out the depleted battery pack from the compartment.
- Insert New Battery: Slide the fully charged replacement battery into the compartment until it clicks into place.
- Tighten the Screw: Secure the battery by tightening the screw.
This quick replacement process ensures minimal downtime and extended power availability.
Video: Demonstration of the quick battery replacement and charging process for the ELECAENTA S600W Portable Power Station.
6. Capacity Expansion and Portability
By utilizing replacement batteries, you can effectively expand the total power capacity of your S600W Portable Power Station. One replacement battery adds 740Wh, meaning with the main unit's battery and one spare, you have a total of 1480Wh. With two spare batteries, the total capacity reaches 2220Wh, providing ample power for extended use.
Image: The ELECAENTA S600W power station, solar panel, and replacement battery providing power in an outdoor setting.
Compact and Portable Design:
Despite its high capacity, the replacement battery is designed to be highly portable. Measuring approximately 25 x 12 x 7 cm and weighing only 4 kg, it is easy to carry with one hand, making it ideal for outdoor activities, emergency preparedness, and travel.
Image: A person demonstrating the compact size and portability of the replacement battery.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | ELECAENTA |
| Model Number | S600W |
| Battery Type | Lithium-ion |
| Capacity | 740 Wh |
| Dimensions (L x W x H) | 25 x 12 x 7 cm (approx.) |
| Weight | 4 kg |
| Charging Methods | AC Adapter, Car Charger, Solar Panel |
| AC Voltage | 110 Volts (AC) |
8. Troubleshooting
If you encounter issues with your replacement battery, consider the following:
- Battery Not Charging: Ensure all charging cables are securely connected and the power source (AC outlet, car charger, solar panel) is active. Check the power level indicator on the battery.
- Battery Not Powering S600W: Verify that the battery is correctly inserted and the securing screw is tightened. Ensure the main S600W unit is turned on.
- Reduced Runtime: Battery performance can degrade over time. Ensure the battery is fully charged before use. Extreme temperatures can also affect performance.
- Unusual Behavior: If the battery exhibits unusual heat, smell, or changes in appearance, immediately disconnect it from any power source and the S600W unit, and contact customer support.
9. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the official ELECAENTA website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
You can find more information and contact details on the ELECAENTA Brand Store.
