1. Introduction
Thank you for choosing the BOSS Whipmix Hand Mixer. This appliance is designed to assist you with various baking and cooking tasks, offering powerful and efficient mixing. Please read this manual carefully before using the appliance to ensure safe and optimal performance. Keep this manual for future reference.

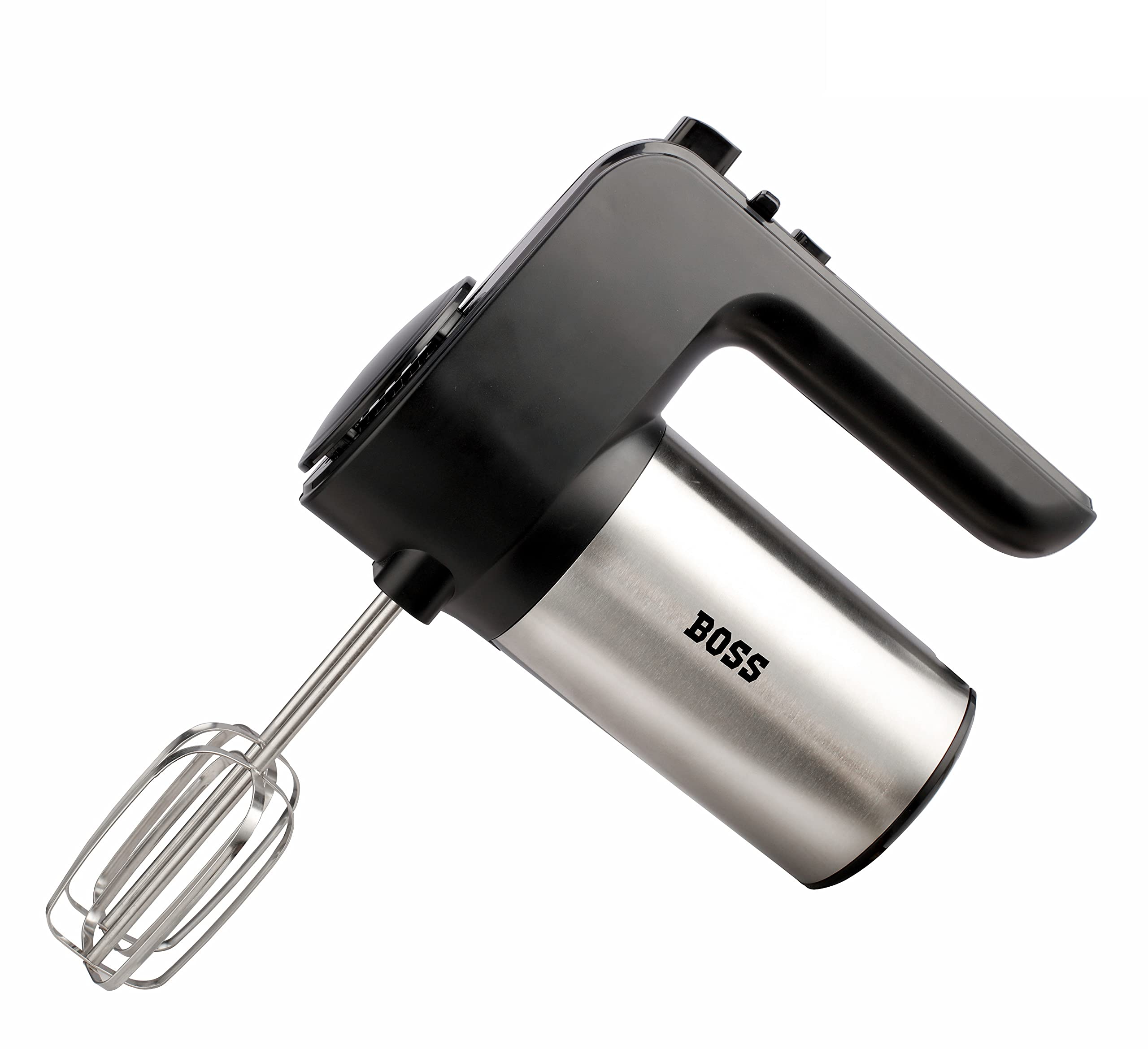

Image 1.1: Overview of the BOSS Whipmix Hand Mixer, highlighting its 300-watt motor, 6-speed settings with turbo function, eject button, and included detachable dough hooks and beater attachment.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed:
- Read all instructions before use.
- Do not immerse the motor unit, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter or touch hot surfaces.
- Keep hands and utensils away from moving beaters during operation to prevent injury to persons and/or damage to the mixer.
- Ensure the eject button is pressed only when the mixer is unplugged and the attachments are stationary.
3. Package Contents
Verify that all items are present in the package:
- BOSS Whipmix Hand Mixer Motor Unit
- Stainless Steel Dough Hooks (2 units)
- Stainless Steel Beater Attachments (2 units)
- Instruction Manual
4. Setup and Assembly
Before first use, ensure the mixer is clean and all packaging materials are removed.
- Select Attachments: Choose either the dough hooks for kneading or the beater attachments for whipping and mixing.
- Insert Attachments: Insert the chosen attachments into the openings on the underside of the mixer unit. Push firmly until they click into place. Ensure both attachments are securely inserted.
- Power Connection: Plug the mixer into a standard 220-volt electrical outlet.
5. Operating Instructions
The BOSS Whipmix Hand Mixer features 6 speed settings and a Turbo function for versatile mixing.
- Preparation: Place ingredients in a suitable mixing bowl.
- Start Mixing: With the attachments immersed in the ingredients, turn the speed control knob to the desired setting (1-6). Start with a lower speed to prevent splashing and gradually increase as needed.
- Turbo Function: For an extra burst of power, press and hold the 'Turbo' button. Release the button to return to the selected speed.
- Mixing Guidelines:
- Dough Hooks: Ideal for kneading bread dough, pizza dough, and mixing tough cookie batter.
- Beater Attachments: Best for making whipped cream, beating eggs, and mixing thin cake batter.
- Finish Mixing: Once mixing is complete, turn the speed control knob to '0' (off) and unplug the mixer from the power outlet.
- Remove Attachments: Press the Eject Button firmly to release the attachments. The attachments cannot be removed without pressing this button.

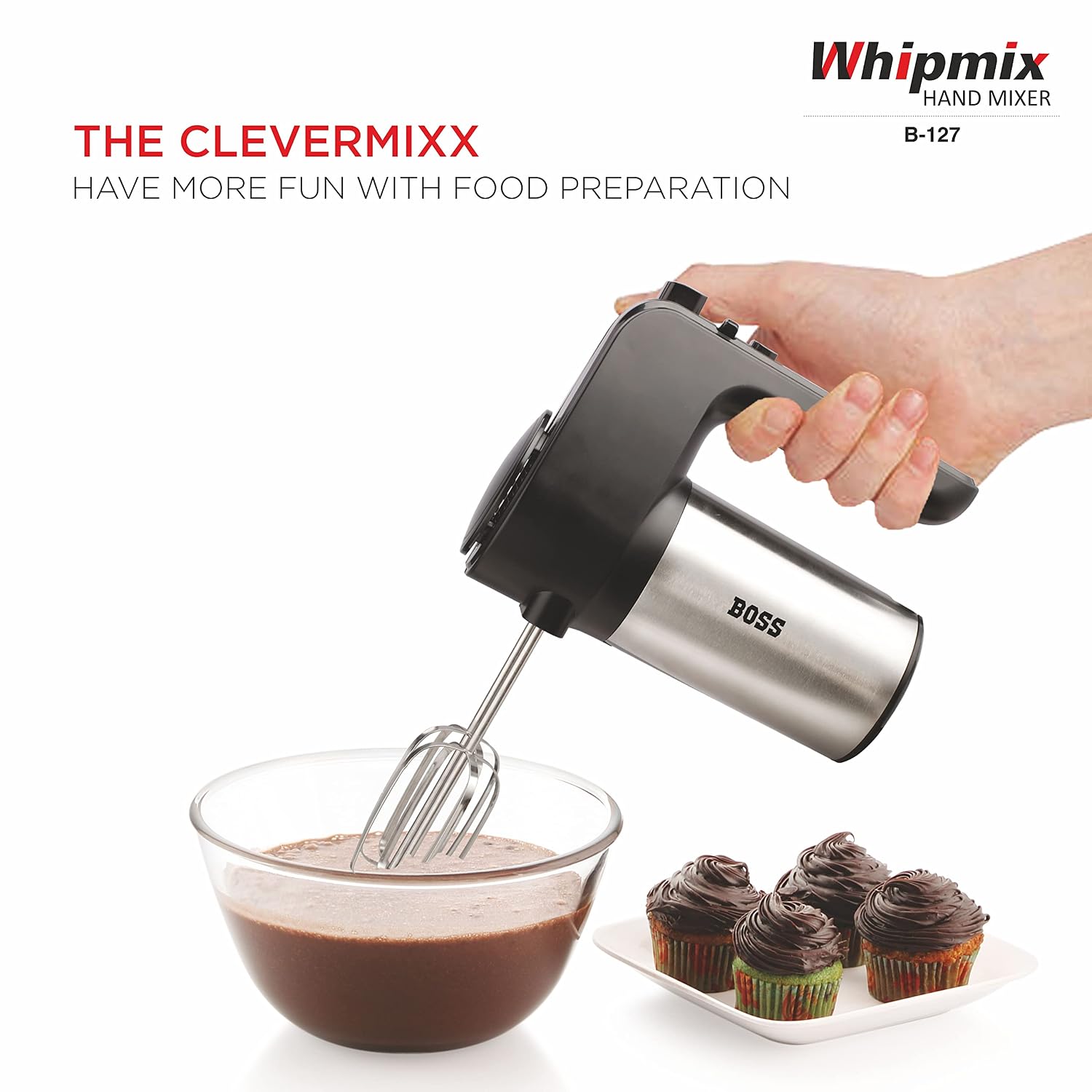

Image 5.1: The BOSS Whipmix Hand Mixer in use, demonstrating its application for mixing various ingredients.
6. Maintenance and Cleaning
Proper cleaning and maintenance will extend the life of your hand mixer.
- Always Unplug: Ensure the appliance is unplugged from the power outlet before cleaning.
- Motor Unit: Wipe the body of the mixer clean with a dry or slightly damp cloth. Do not immerse the motor unit in water or any other liquid.
- Attachments: Wash the beater attachments and dough hooks in hot, soapy water after each use. Rinse thoroughly and dry completely before storing.
- Dishwasher Safety: The mixer unit and its attachments are not dishwasher safe.
- Storage: Store the mixer and its attachments in a cool, dry place. Do not store the mixer in a location exposed to high temperature, high humidity, or direct sunlight.
7. Troubleshooting
If you encounter issues with your BOSS Whipmix Hand Mixer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power outlet malfunction; damaged cord/plug. | Ensure the mixer is securely plugged into a working outlet. Check the power cord for damage. |
| Attachments are difficult to insert or remove. | Attachments not aligned correctly; Eject Button not fully pressed. | Align attachments carefully with the openings. Ensure the Eject Button is fully depressed when removing. |
| Motor sounds strained. | Overloading with too thick ingredients; incorrect speed setting. | Reduce the amount of ingredients or add liquid. Increase speed setting if appropriate for the task. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | BOSS |
| Model | Whipmix (B-127) |
| Wattage | 300 Watts |
| Voltage | 220 Volts |
| Number of Speeds | 6 Speed Settings with Turbo Function |
| Controls Type | Knob Control |
| Material | Stainless Steel (attachments) |
| Special Feature | Lightweight design |
| Dishwasher Safe | No |
9. Warranty and Support
Warranty: The BOSS Whipmix Hand Mixer comes with a 2-year motor warranty from the date of purchase. This warranty covers manufacturing defects in the motor under normal household use. Please retain your purchase receipt as proof of purchase for warranty claims.
Customer Support: For any questions, service, or warranty claims, please contact BOSS customer support through their official channels. Refer to your purchase documentation or the manufacturer's website for contact information.
