BELLA Pro 4.2qt Air Fryer Black Matte User Manual

Introduction

Thank you for purchasing the BELLA Pro 4.2qt Air Fryer. This appliance utilizes High Performance Circular Heat Technology and a powerful 1500-watt heating system to deliver fast, crispy, and evenly cooked food. With its large capacity and user-friendly manual controls, preparing your favorite meals has never been easier. This manual provides important safety information, setup instructions, operating guidelines, and maintenance tips to ensure optimal performance and longevity of your air fryer.

Image: The BELLA Pro 4.2qt Air Fryer in its sleek black matte finish, showcasing its compact design and manual control panel.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the air fryer basket is properly inserted and locked into place before operation.

Parts and Features

Familiarize yourself with the components of your BELLA Pro Air Fryer:

• Main Unit: Houses the heating element and fan.
• Control Panel: Features two manual rotary knobs for time and temperature settings.
• Timer Knob: Located on the left, allows setting cooking time up to 60 minutes with auto shutoff.
• Temperature Knob: Located on the right, allows setting cooking temperature from 175°F to 400°F.
• Power Indicator Light: Illuminates when the unit is powered on.
• Heat On Indicator Light: Illuminates when the heating element is active.
• Removable Basket: The main cooking compartment for food.
• Crisping Tray: A removable, PFOA-free nonstick tray that sits inside the basket, designed for optimal air circulation and easy cleaning.
• Handle: For safely pulling out and inserting the basket.

Image: A close-up view of the air fryer's top control panel, showing the timer and temperature adjustment knobs, along with the power and heat indicator lights.

Image: An overhead view looking into the air fryer basket, highlighting the perforated bottom plate designed for efficient air circulation during cooking.

Image: A hand demonstrating the removal of the crisping tray from the air fryer basket, illustrating its easy-to-handle design for cleaning.

Before First Use

1. Remove all packaging materials, stickers, and labels from the appliance.
2. Clean the basket and crisping tray thoroughly with hot water, dish soap, and a non-abrasive sponge.
3. Wipe the inside and outside of the appliance with a damp cloth.
4. Ensure all parts are completely dry before use.

Setup

1. Place the air fryer on a stable, heat-resistant surface, away from walls or other appliances, ensuring at least 6 inches of clear space on all sides.
2. Insert the crisping tray into the air fryer basket.
3. Slide the assembled basket back into the main unit until it clicks securely into place.
4. Plug the power cord into a grounded wall outlet.

Operating Instructions

The BELLA Pro Air Fryer is designed for simple and efficient cooking. Follow these steps for optimal results:

1. Preheating (Optional but Recommended): Turn the temperature knob to your desired cooking temperature (e.g., 375°F). Turn the timer knob to 3-5 minutes to allow the air fryer to preheat. The 'Heat On' light will illuminate.
2. Loading Food: Carefully pull out the basket using the handle. Place your ingredients into the basket, ensuring not to overfill. The air fryer has a large 3.6LB food capacity.
3. Setting Temperature: Turn the temperature knob to the desired cooking temperature, ranging from 175°F to 400°F.
4. Setting Time: Turn the timer knob to your desired cooking time, up to 60 minutes. The air fryer will automatically shut off when the timer reaches zero, indicated by an audible tone.
5. Cooking Process: The air fryer will begin cooking. For even cooking, especially with larger quantities or certain foods like fries, shake the basket halfway through the cooking time. To do this, carefully pull out the basket, shake, and reinsert. The air fryer will resume cooking.
6. Checking Doneness: Once the timer sounds, carefully pull out the basket and check if the food is cooked to your preference. If more time is needed, simply reinsert the basket and set the timer for additional minutes.
7. Removing Food: Once cooking is complete, carefully remove the basket from the air fryer. You can either remove the crisping tray with the food or invert the basket to pour the food out onto a plate.

Image: The air fryer basket filled with perfectly cooked, golden-brown french fries, ready for serving.

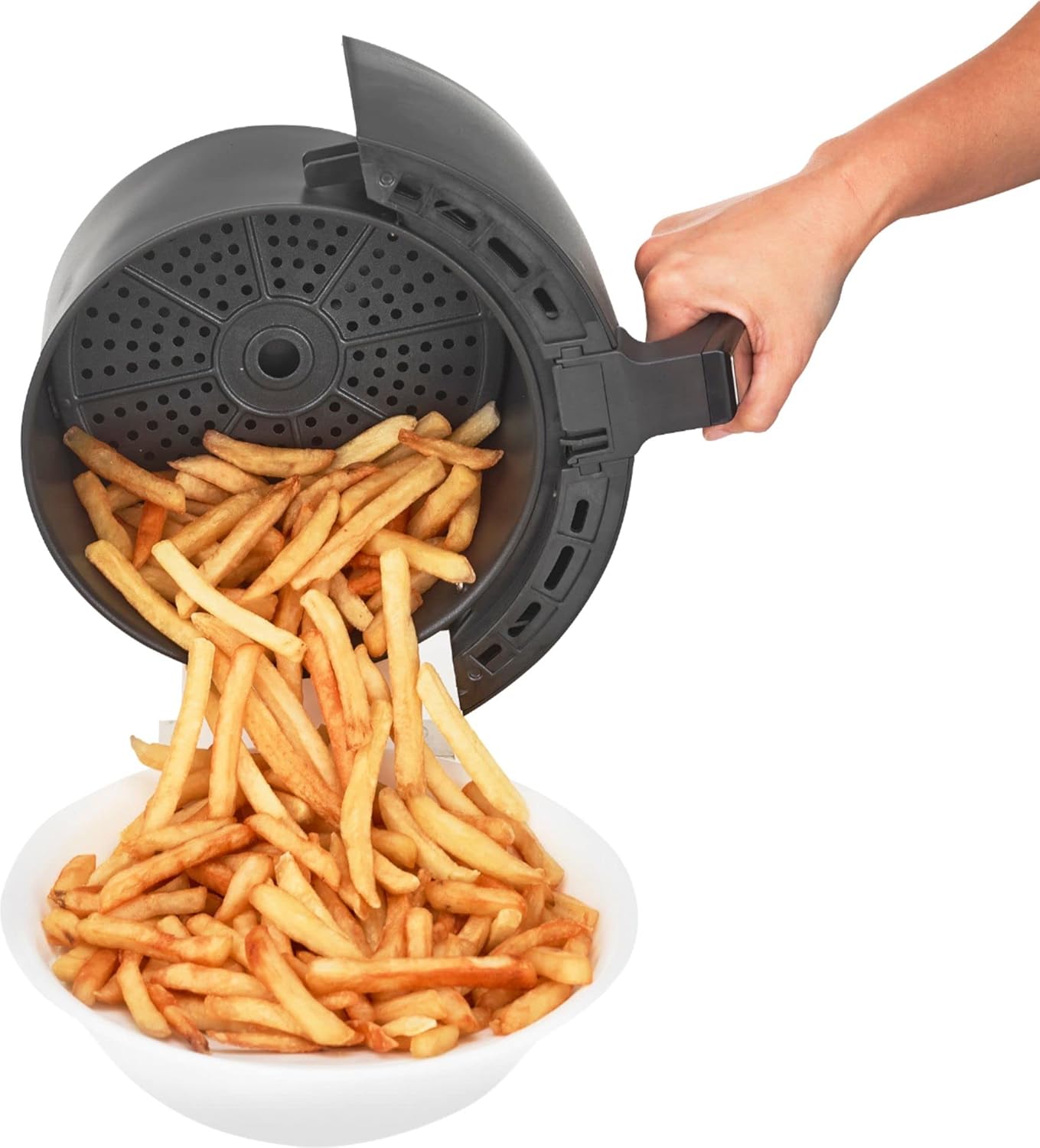

Image: A hand tilting the air fryer basket to pour crispy french fries into a serving bowl, demonstrating easy food removal.

Image: An overhead shot showing four pastries arranged neatly within the air fryer basket, indicating its suitability for baking various items.

Image: The BELLA Pro Air Fryer positioned on a kitchen counter, surrounded by a variety of cooked dishes, illustrating its versatility for different meals.

Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your air fryer.

• Always unplug the air fryer and allow it to cool completely before cleaning.
• The removable basket and crisping tray are dishwasher safe for convenient cleaning. They are also PFOA-free nonstick, making hand washing easy.
• For stubborn food residue, soak the basket and crisping tray in warm, soapy water for about 10 minutes before cleaning.
• Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the surface.
• Never immerse the main unit in water or any other liquid.
• Ensure all parts are dry before storing.

Image: The air fryer basket and crisping tray positioned within a dishwasher rack, demonstrating their dishwasher-safe feature for easy cleanup.

Troubleshooting

Specifications

• Model Name: 90107
• Capacity: 4.2 Quarts
• Color: Black Matte
• Wattage: 1500 Watts
• Control Method: Manual Knobs
• Material: Plastic (Exterior), PFOA-free Nonstick (Interior)
• Air Frying Technology: Circular Heat Technology
• Dishwasher Safe Parts: Yes (Basket and Crisping Tray)
• Item Weight: 10.58 pounds
• Package Dimensions: 14.2 x 13 x 13 inches
• UPC: 829486901072

Warranty and Support

For warranty information or customer support, please refer to the warranty card included with your purchase or visit the official BELLA website. Keep your proof of purchase for any warranty claims.
