Nespresso Atelier S85 Capsule Coffee Machine User Manual

1. Introduction

Welcome to the Nespresso Atelier S85 experience. This machine is designed to allow you to craft a wide range of coffee and milk-based recipes, from classic espresso to creamy cappuccinos, lattes, and even iced beverages. Its innovative automatic in-cup milk frothing technology simplifies preparation, delivering perfect results directly into your cup. Please read this manual carefully to ensure safe and optimal use of your machine.

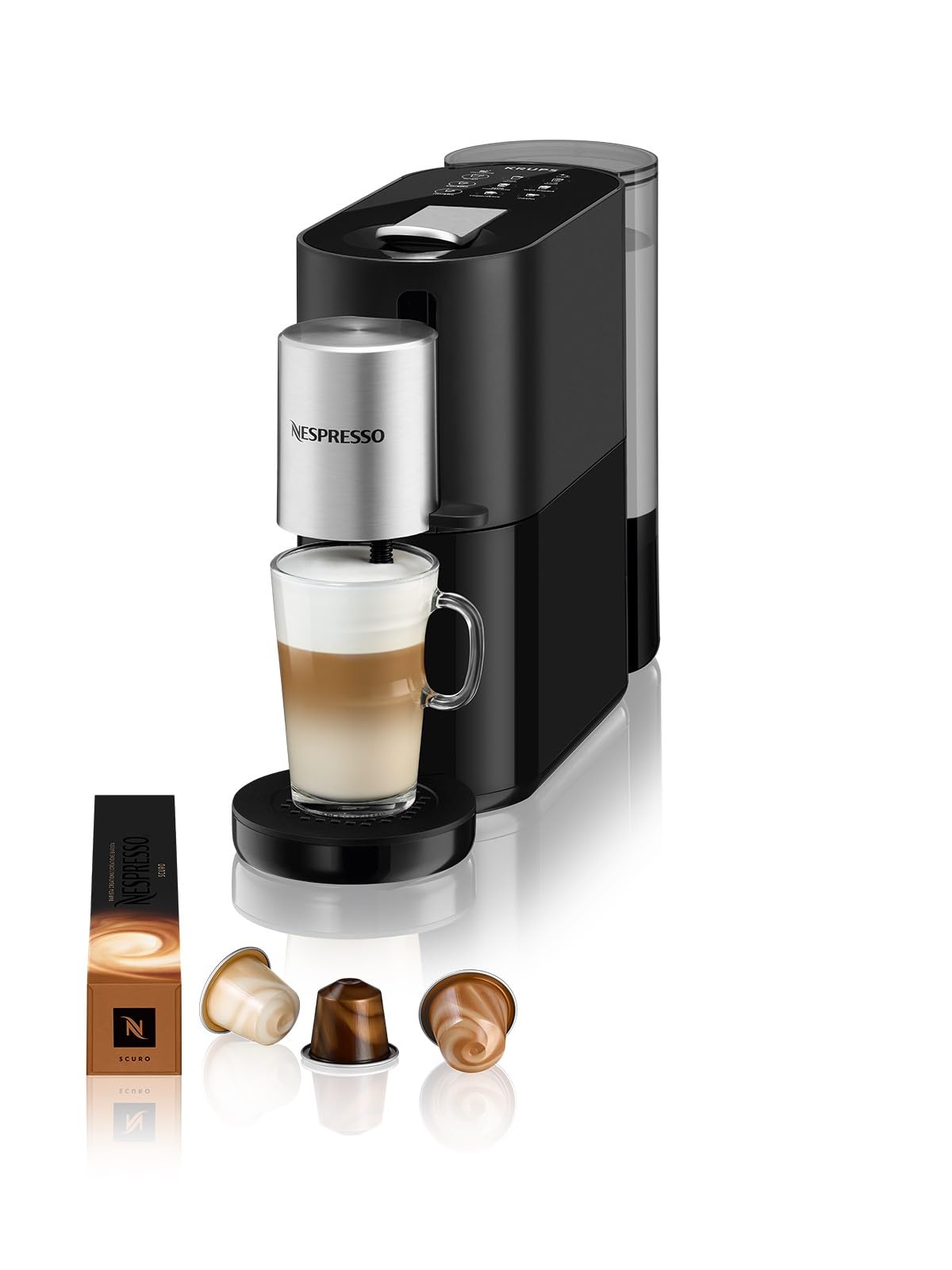

Figure 1: Nespresso Atelier S85 Coffee Machine

2. Safety Instructions

• Read all instructions before using the appliance.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Keep the appliance out of reach of children.
• Do not operate the appliance with a damaged cord or plug.
• Always place the machine on a stable, flat, heat-resistant surface.
• Avoid contact with hot surfaces.
• Unplug the machine when not in use and before cleaning.

3. Package Contents

Your Nespresso Atelier S85 package includes the following items:

• Nespresso Atelier S85 Coffee Machine
• Removable Water Tank (1 Liter capacity)
• Detachable Milk Frother
• Drip Tray and Cup Support
• Used Capsule Container
• Welcome Set of 14 Nespresso OriginalLine Capsules
• Instruction Manual and Quick Start Guide

Figure 2: Included components of the Nespresso Atelier S85

Figure 3: Welcome set of 14 Nespresso capsules

4. Setup

4.1 Initial Cleaning

1. Remove all packaging and protective films.
2. Wash the water tank, drip tray, cup support, and detachable milk frother with warm water and mild detergent. Rinse thoroughly and dry.
3. Place the machine on a clean, stable surface.

4.2 Filling the Water Tank

1. Fill the water tank with fresh drinking water.
2. Place the water tank back onto the machine.

Figure 4: Water tank on the side of the machine

4.3 First Use / Rinsing

1. Plug the machine into a grounded power outlet.
2. Place a container (at least 1 liter) under the coffee outlet.
3. Press any coffee button to start the rinsing cycle. The machine will pump water through the system. Repeat this process 2-3 times.
4. The machine is now ready for use.

4.4 Welcome Gift Registration

To claim your Nespresso welcome gift (20 free coffee capsules when you buy 30 coffee capsules), follow these steps:

1. Purchase your Nespresso coffee machine.
2. Scan the QR code provided in the welcome kit or visit the Nespresso website.
3. Fill out the registration form for your machine.
4. You will receive your coffee voucher via your preferred communication channel within 24 hours.
5. Sign up at SA.BUYNESPRESSO.COM to redeem your voucher.

Figure 5: Nespresso Welcome Gift Registration

5. Operating Instructions

5.1 Brewing Coffee (Espresso & Lungo)

1. Ensure the water tank is filled.
2. Lift the lever and insert a Nespresso OriginalLine capsule. Close the lever.
3. Place a cup under the coffee outlet.
4. Press the desired coffee button (Espresso or Lungo) on the control panel.
5. The machine will automatically stop when the brewing is complete.
6. Lift the lever to eject the used capsule into the container.

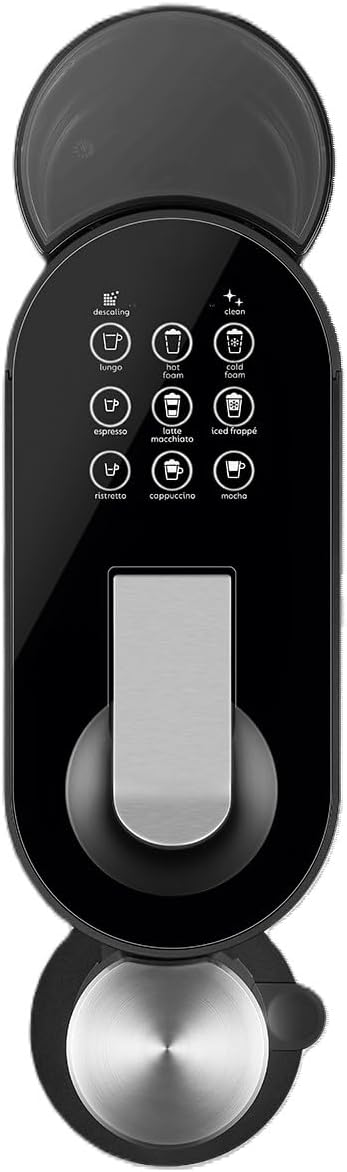

Figure 6: Control Panel Overview

5.2 Preparing Milk-Based Recipes

The Nespresso Atelier S85 features a detachable milk frother for hot and cold milk recipes.

1. Ensure the milk frother is correctly attached to the machine.
2. Pour fresh milk (dairy or plant-based alternatives) directly into your cup.
3. Place the cup with milk under the milk frother outlet.
4. Insert a Nespresso capsule and close the lever.
5. Select your desired milk-based recipe button (e.g., Cappuccino, Latte Macchiato, Iced Frappé, Mocha, Hot Foam, Cold Foam).
6. The machine will automatically froth the milk and then brew the coffee into your cup.

Figure 7: Preparing a milk-based coffee

Figure 8: Examples of coffee recipes

6. Cleaning and Maintenance

6.1 Daily Cleaning

• Milk Frother: The detachable milk frother should be cleaned after each milk preparation. It is dishwasher safe for easy cleaning.
• Drip Tray & Used Capsule Container: Empty and rinse daily.
• Water Tank: Rinse daily and refill with fresh water.
• Machine Exterior: Wipe with a damp cloth.

6.2 Descaling

Descaling is crucial for maintaining machine performance and coffee quality. The machine will indicate when descaling is needed (refer to the descaling alert on the control panel).

1. Refer to the detailed descaling instructions in the full user manual or on the Nespresso website.
2. Use only Nespresso descaling solution.

7. Troubleshooting

8. Specifications

• Brand: Nespresso
• Model Name: Atelier
• Model Number: S85-GB-BK-NE
• Capacity: 1 Liter (water tank)
• Color: Black
• Product Dimensions (Depth x Width x Height): 27.9 cm x 12 cm x 43.4 cm
• Special Features: Automatic shut-off, Removable tank, Automatic in-cup milk frothing
• Coffee Maker Type: Espresso Machine
• Material: Plastic
• Style: Modern
• Recommended Uses: Home, Espresso, Cappuccino, Latte
• Operating Mode: Semi-automatic
• Power: 1400 Watts
• Voltage: 230V
• Input Interface: Buttons, Keypad
• Coffee Input Type: Reusable Capsules
• Power Source: Electrical
• Filter Type: Reusable
• Item Weight: 3.9 Kilograms
• Dishwasher Safe: Yes (for removable parts)

Figure 9: Product Dimensions

9. Warranty and Support

Your Nespresso Atelier S85 coffee machine comes with a two-year warranty from the date of purchase. Please retain your proof of purchase (receipt/invoice) for warranty claims.

For further assistance, troubleshooting, or to register your machine, please visit the official Nespresso website or contact Nespresso customer service. You can find contact details on the Nespresso website or in the quick start guide included with your machine.

Figure 10: Nespresso Customer Service

Nespresso is committed to sustainability. Remember to recycle your used Nespresso capsules. Visit the Nespresso website for information on recycling programs in your area.

Figure 11: Nespresso Capsule Recycling
