1. Introduction and Overview
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Yaheetech Metal Double Platform Bed. Please read this manual thoroughly before beginning assembly to ensure proper setup and safe use of the product. Retain this manual for future reference.
Image 1.1: The Yaheetech Metal Double Platform Bed, fully assembled, featuring a scroll design headboard and footboard, in a bedroom environment.
The Yaheetech 4ft6 Metal Double Bed Frame is designed for durability and stability, featuring a matte black finish and elegant scroll design elements. It offers a robust sleeping solution with ample under-bed storage space.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing injury and ensuring the longevity of your bed frame.
- Assembly Personnel: It is recommended that 1 or more people assemble this product.
- Assembly Time: The estimated assembly time is approximately 1 hour.
- Children: This product is not intended for use by children. Keep children away during assembly.
- Heat Sources: Keep away from fire or other heat sources.
- Protective Gear: Always wear protective gloves during assembly.
- Surface Protection: Please follow the instruction manuals and use a pad or blanket to avoid damage to the product or floor during assembly.
- Weight Capacity: Do not exceed the maximum weight capacity of 272 kg (600 lb).
Image 2.1: Visual representation of key safety warnings and recommendations for assembly, including the need for multiple people, estimated time, child safety, heat avoidance, and wearing gloves.
Image 2.2: Illustration demonstrating the importance of using a protective surface during assembly and proper handling of packaging materials.
3. Package Contents
Before beginning assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.
The package typically includes:
- Headboard components
- Footboard components
- Side rails
- Metal slats
- Support legs (including middle support legs)
- Hardware pack (screws, bolts, nuts, Allen key)
- Assembly instructions
Note: Mattress, box spring, and bedding (comforter, sheets, pillows, etc.) are NOT included.
4. Setup and Assembly
Follow these steps carefully for proper assembly. It is recommended to assemble the bed frame on a soft, clean surface to prevent scratches.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the parts list in your included instruction manual to identify each piece.
- Assemble Headboard and Footboard: Connect the various sections of the headboard and footboard using the provided hardware. Ensure all connections are secure but do not fully tighten bolts until instructed.
- Attach Side Rails: Connect the side rails to the assembled headboard and footboard. Ensure the rails are correctly oriented.
- Install Slats: Insert the metal slats into the designated slots on the side rails.
Image 4.1: Detailed view of slat installation, illustrating the alignment and securing process.
- Secure Joints with T-shaped Brackets: Utilize the T-shaped brackets to reinforce joints, providing extra stability to the frame.
Image 4.2: Illustration of T-shaped brackets being used to enhance joint stability during assembly.
- Install Support Legs: Attach all support legs, including the central ones, ensuring they are firmly in place and provide adequate support. The bed frame features bottom rubber caps on the legs to protect your floor from damage.
- Final Tightening: Once all components are assembled, systematically tighten all bolts and screws. Do not overtighten.
Image 4.3: Technical drawing with key dimensions of the bed frame, including height, length, width, and under-bed clearance.
5. Operating and Usage
Once assembled, the Yaheetech Metal Double Platform Bed is ready for use. Place your standard UK 4'6 double mattress directly onto the slats. No box spring is required.
- Mattress Placement: Ensure the mattress is centered and sits securely on the bed frame. The frame includes anti-slip baffles to reduce mattress movement.

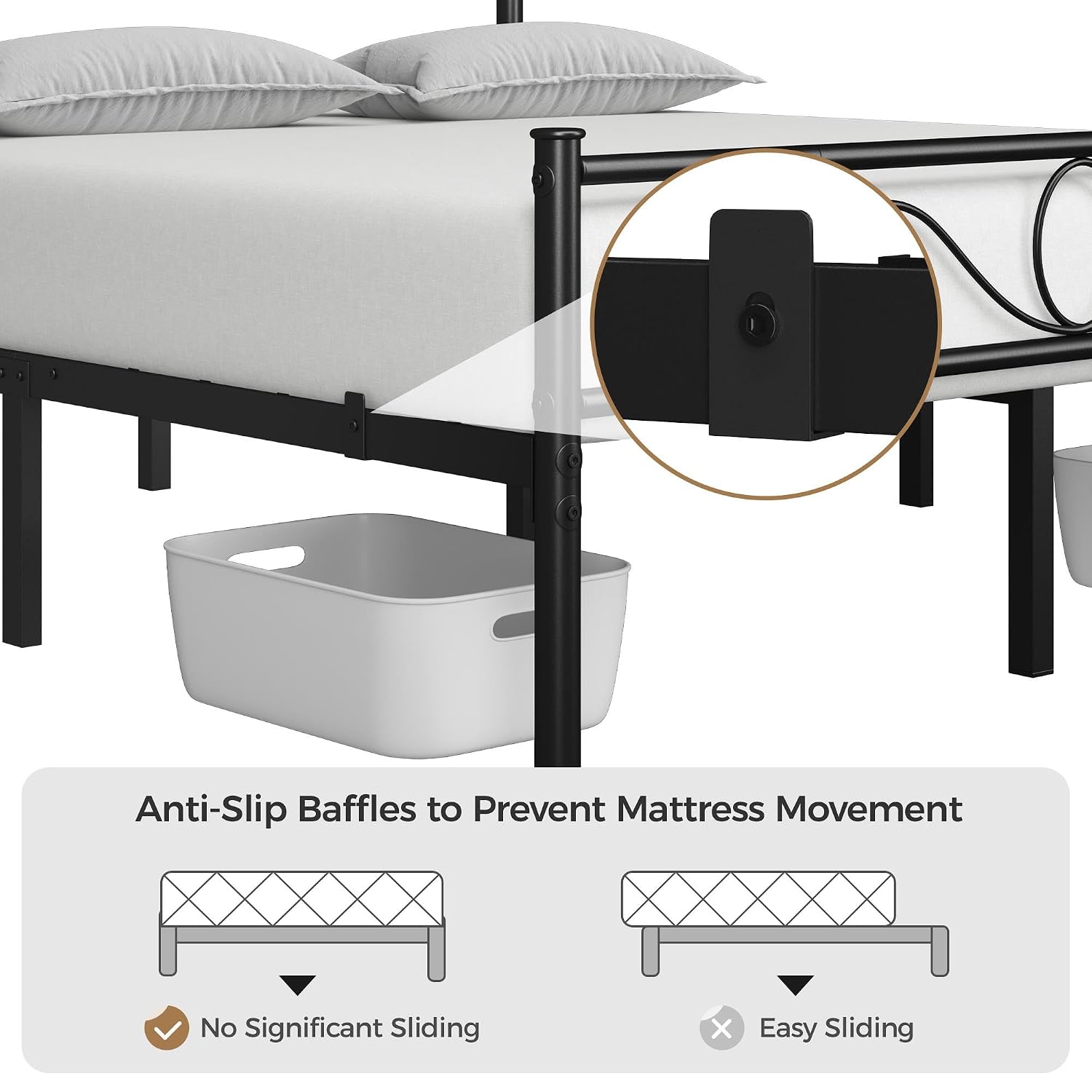

Image 5.1: Demonstration of the anti-slip baffles feature, which prevents mattress sliding.
- Under-Bed Storage: Utilize the 32 cm (12.5 inches) of ground clearance for convenient under-bed storage. This space is ideal for storing clothes, shoes, bags, suitcases, and other items in storage bins or boxes.
Image 5.2: Visual representation of the ample under-bed storage space provided by the 32 cm ground clearance.
Image 5.3: Overview of key design and functional features, including the decorative scrollwork, anti-slip mattress support, floor protection, and storage capacity.
6. Maintenance
Regular maintenance will help preserve the appearance and structural integrity of your bed frame.
- Cleaning: Wipe clean with a dry cloth. For more stubborn marks, use mild cleaners. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Bolt Tightening: Periodically check all bolts and screws for tightness. Over time, normal use may cause them to loosen. Tighten them as needed to maintain stability and prevent squeaking.
- Inspection: Regularly inspect the frame for any signs of wear, damage, or rust. Address any issues promptly.
7. Troubleshooting
This section addresses common issues you might encounter with your bed frame.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame squeaks | Loose bolts or connections. | Tighten all bolts and screws on the frame. Ensure all connections are secure. |
| Mattress slides on frame | Mattress not properly aligned or anti-slip baffles not effective. | Ensure mattress is centered. Verify anti-slip baffles are correctly positioned and not damaged. |
| Frame feels wobbly | Incomplete assembly or loose connections. | Re-check all assembly steps. Ensure all bolts are fully tightened and T-shaped brackets are installed correctly. |
8. Specifications
Key specifications for the Yaheetech Metal Double Platform Bed:
- Material: Iron Metal
- Color: Black
- Finish Type: Black
- Overall Dimensions (LxWxH): 196.5 x 137.5 x 88.5 cm (77.4 x 54.1 x 34.8 inches)
- Max. Weight Capacity: 272 kg (600 lb)
- Ground Clearance: 32 cm (12.5 inches)
- Compatible Mattress Size: Standard UK 4'6 Double (approx. 190 cm L x 135 cm W)
- Included Components: Headboard, Slats
- Assembly Required: Yes
- Product Care Instructions: Wipe with Dry Cloth
- Item Weight: 17.4 kg (38.36 lb)
9. Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact Yaheetech customer service directly. Keep your purchase receipt as proof of purchase.
For further assistance, please visit the official Yaheetech website or contact their customer support channels.
