Introduction
Thank you for choosing the AVERA EV33 33-Bottle Dual Zone Wine Cooler. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.

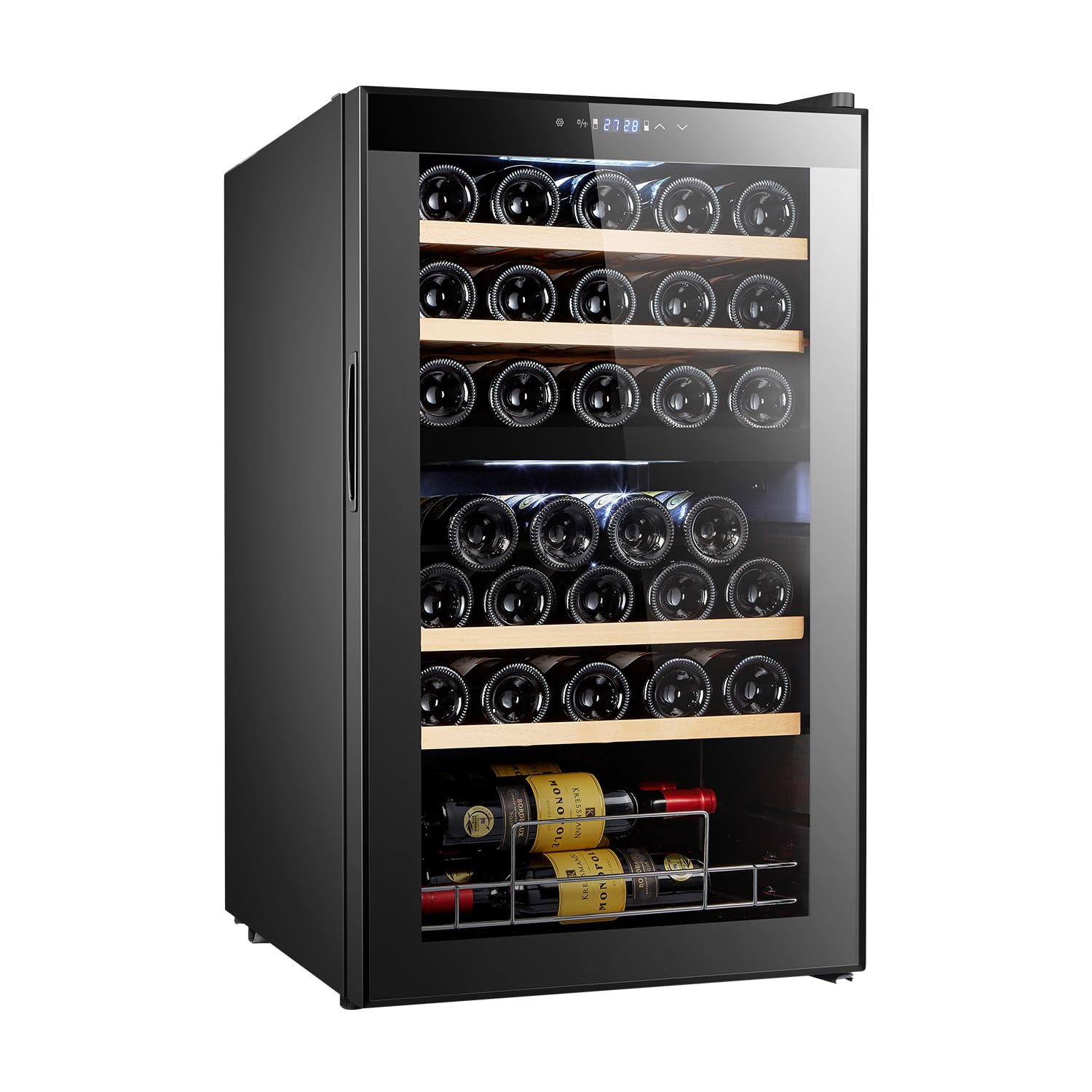

Figure 1: AVERA EV33 33-Bottle Dual Zone Wine Cooler
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using the appliance.
- Do not touch cold surfaces immediately after operation.
- Ensure the appliance is properly grounded.
- Do not use the appliance if the power cord is damaged.
- Keep ventilation openings clear of obstructions.
- Unplug the appliance before cleaning or maintenance.
Setup and Installation
- Unpacking: Carefully remove all packaging materials. Keep packaging for future transport if needed.
- Initial Placement: Before plugging in, allow the wine cooler to stand upright for 12 to 24 hours. This allows the compressor lubricants to settle, ensuring optimal performance.
Figure 2: Allow the unit to stand upright for 12-24 hours before use.
- Location: Place the wine cooler on a firm, stable, and level surface. Ensure there is adequate space around the unit for proper ventilation.
- Leave at least 10 cm (4 inches) of free space around the back and sides for good ventilation and efficient compressor operation.
- Avoid direct sunlight or heat sources.
Figure 3: Ensure stable placement and adequate ventilation.
- Power Connection: Connect the appliance to a dedicated 127V, 60Hz power outlet.
Operating Instructions
Dual Zone Cooling System

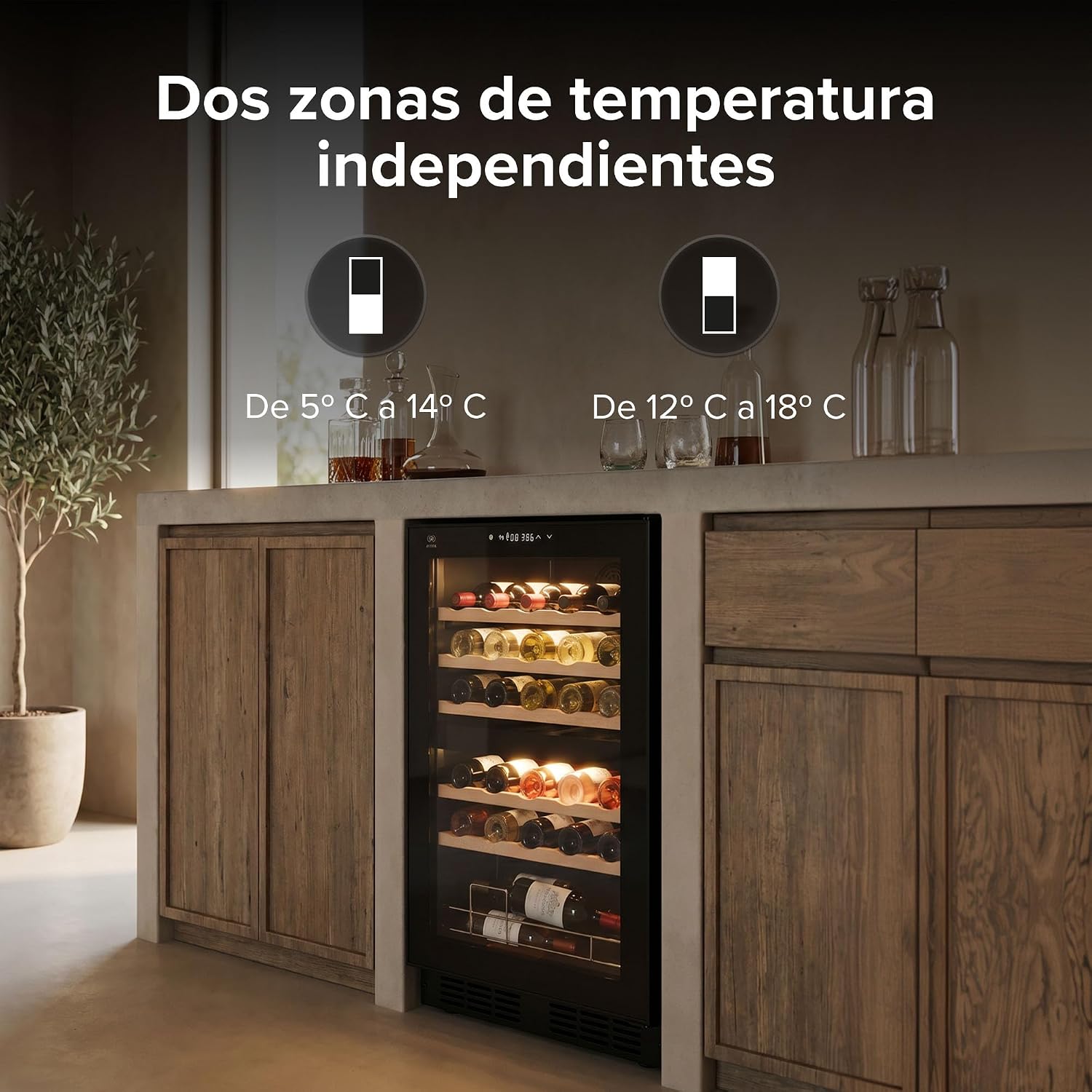

The AVERA EV33 features a dual-zone cooling system, allowing you to maintain two independent temperature climates for different types of wine. The upper zone typically ranges from 5°C to 14°C (41°F to 57°F), ideal for white and sparkling wines. The lower zone ranges from 12°C to 18°C (54°F to 64°F), perfect for red wines.
Figure 4: Dual temperature zones for optimal wine storage.
Control Panel
The digital touch control panel located on the front allows for easy temperature adjustment and LED interior light control. You can switch between Celsius and Fahrenheit for convenience.
- Temperature Adjustment: Use the up and down arrows on the touch panel to set the desired temperature for each zone.
- LED Light Control: Press the light icon to turn the interior LED illumination on or off. This allows you to view your wine collection without opening the door, preventing temperature fluctuations.
- Temperature Unit Change: Press the F°/C° button to toggle between Celsius and Fahrenheit display.
Figure 5: Digital touch control panel and interior features.
Compressor Cooling System
The AVERA EV33 utilizes a professional compressor cooling system, ensuring stable temperatures regardless of external conditions. This technology provides superior and reliable cooling power, while also being designed for low-noise operation, minimizing vibrations and disruptive sounds for a quiet home environment.
Figure 6: Benefits of the Compressor Pro cooling system.
Recommended Wine Temperatures
Refer to the table below for general recommended serving temperatures for various wine types:
Figure 7: Recommended wine serving temperatures.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your wine cooler.
- Before Cleaning: Always unplug the appliance from the power outlet before cleaning.
- Interior Cleaning: Clean the interior with a soft cloth, warm water, and a mild detergent. Avoid abrasive cleaners or solvents.
- Exterior Cleaning: Wipe the exterior surfaces, including the stainless steel and glass door, with a soft, damp cloth. For the glass door, use a glass cleaner. The reinforced glass door acts as a thermal barrier, so keeping it clean ensures its effectiveness.
- Shelves: The wooden shelves can be removed for cleaning. Wipe them with a damp cloth and dry thoroughly before returning them to the unit.
- Ventilation Grille: Periodically clean the ventilation grille at the back of the unit to ensure proper airflow and efficient compressor operation.
- Door Seal: Check the door seal regularly for any damage or gaps. A tight seal is crucial for maintaining internal temperature.
Troubleshooting Guide
If you experience issues with your wine cooler, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not operate |
|
|
| Temperature is not cold enough |
|
|
| Excessive noise |
|
|
| Bottles do not fit on shelves |
|
|
Product Specifications
| Feature | Detail |
|---|---|
| Model | EV33 |
| Capacity | 33 Bottles / 88 Liters |
| Cooling System | Compressor Pro Technology |
| Temperature Zones | Dual Zone |
| Upper Zone Temperature Range | 5°C to 14°C (41°F to 57°F) |
| Lower Zone Temperature Range | 12°C to 18°C (54°F to 64°F) |
| Control Type | Digital Touch Panel |
| Lighting | Interior LED Light |
| Material | Stainless Steel, Reinforced Glass Door, Wooden Shelves |
| Color | Black/Silver |
| Dimensions (W x H x D) | 50 cm x 85 cm x 43 cm (19.7 in x 33.5 in x 16.9 in) |
| Weight | 26 kg (57.3 lbs) |
| Power Supply | 127 V, 60 Hz, 0.6 A |
| Country of Origin | China |
Figure 8: Product dimensions and weight.
Figure 9: Capacity and electrical specifications.
Warranty Information
The AVERA EV33 Wine Cooler comes with a two-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty card included with your product or contact AVERA customer support.
Customer Support
If you have any questions, require technical assistance, or need to make a warranty claim, please contact AVERA customer support. Visit the official AVERA website for contact details or refer to the support information provided with your purchase.
You can also visit the AVERA Brand Store on Amazon for more product information and support resources.
