SCHÜTTE MIAMI Kitchen Faucet Instruction Manual

1. Introduction

Thank you for choosing the SCHÜTTE MIAMI Kitchen Faucet. This single-lever mixer is designed for modern kitchens, offering exceptional flexibility and convenience. It features a pull-out spray with two functions (normal and shower stream) and a magnetic docking system for secure storage. The faucet's 360-degree swivel range and soft-touch hose enhance usability, making daily kitchen tasks easier. This manual provides essential information for safe installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your faucet.

Image: The SCHÜTTE MIAMI Kitchen Faucet, showcasing its sleek matte black design and the product packaging.

2. Safety Instructions

• Always turn off the main water supply before beginning any installation or maintenance work.
• Ensure all connections are secure and watertight to prevent leaks.
• If you are unsure about any step of the installation process, it is recommended to consult a qualified plumber.
• Do not use abrasive cleaners or harsh chemicals on the faucet's surface, as this may damage the finish.
• Keep small parts out of reach of children to prevent choking hazards.

3. Package Contents

Please verify that all components are present before starting the installation:

• 1 x SCHÜTTE MIAMI Kitchen Faucet (Matte Black)
• 2 x DVGW certified, flexible connection hoses (500 mm)
• 1 x Mounting triangle for the sink
• Complete mounting material (washers, nuts, etc.)
• 1 x Multilingual installation manual

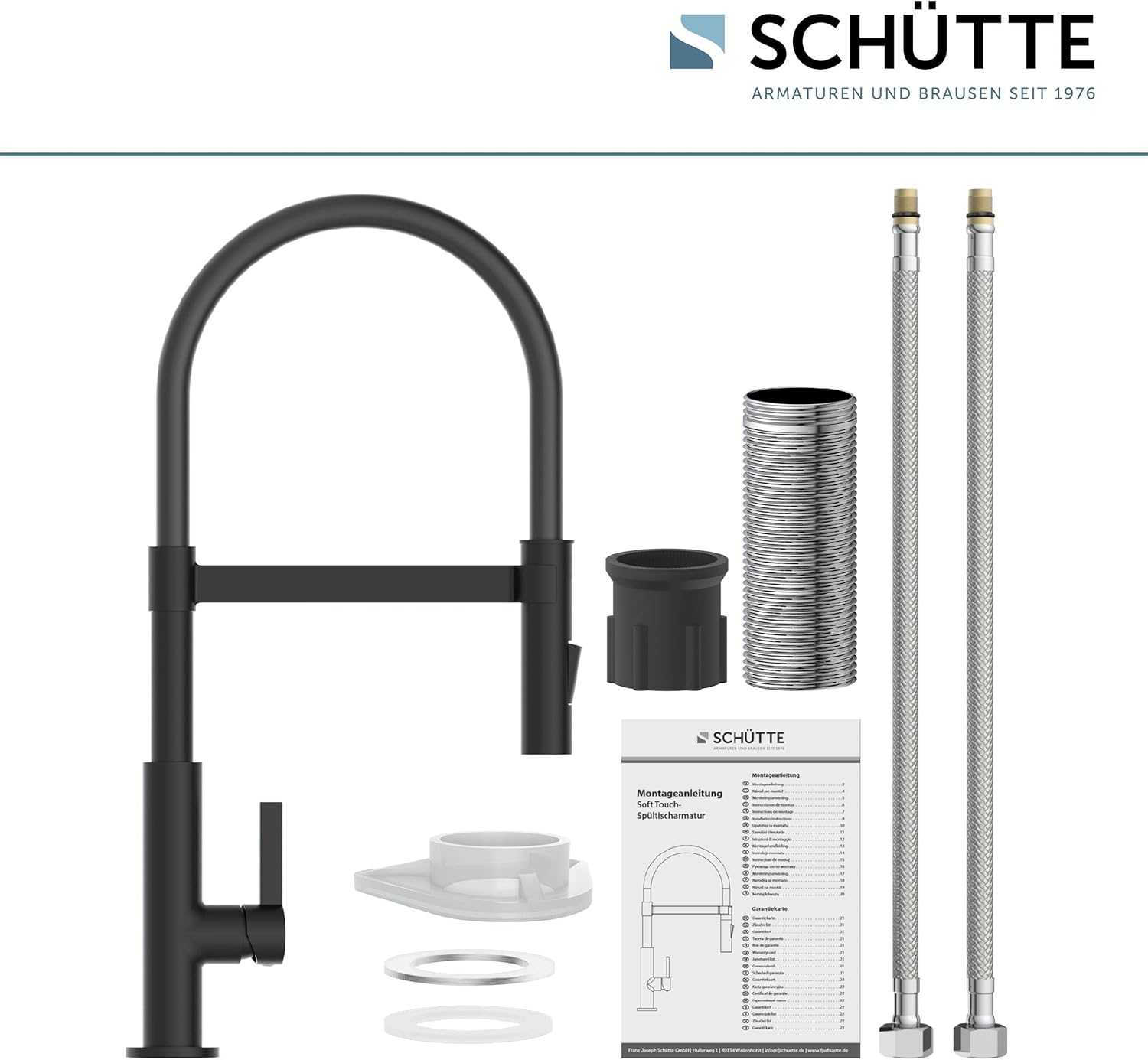

Image: All components included in the SCHÜTTE MIAMI Kitchen Faucet package, laid out for inspection.

4. Specifications

Image: Detailed dimensions of the SCHÜTTE MIAMI Kitchen Faucet, including height, width, and base diameter.

5. Setup and Installation

The SCHÜTTE MIAMI Kitchen Faucet is designed for easy installation. Follow these steps carefully:

1. Prepare the Sink Hole: Ensure your sink has a single mounting hole with a diameter between 35-50 mm.
2. Insert the Faucet: Place the faucet body into the prepared hole, ensuring the base gasket is correctly positioned.
3. Secure the Faucet: From underneath the sink, slide the mounting triangle and then the fastening nut onto the threaded rod of the faucet. Tighten the nut firmly using the provided tool to secure the faucet to the sink.
4. Connect Water Hoses: Attach the flexible hot and cold water supply hoses (500 mm) to the corresponding inlets on the faucet body. Connect the other ends of the hoses to your hot and cold water supply lines. Ensure all connections are hand-tightened first, then use a wrench for a final snug fit, being careful not to overtighten.
5. Install Pull-Out Hose: Connect the pull-out spray hose to the designated connection point on the faucet. Ensure the weight (if included) is properly attached to the pull-out hose underneath the sink to allow for smooth retraction.
6. Test for Leaks: Slowly turn on the main water supply. Check all connections for any signs of leaks. If leaks are detected, tighten the connections slightly until they stop.

Image: An illustration demonstrating the straightforward installation process for the faucet, highlighting the mounting mechanism.

6. Operating Instructions

6.1. Water Flow and Temperature Control

The faucet features a single lever for controlling both water flow and temperature:

• Flow Control: Lift the lever upwards to increase water flow. Push it downwards to decrease or stop the flow.
• Temperature Control: Move the lever to the left for hot water and to the right for cold water. The faucet incorporates a cold-start function, meaning when the lever is in the central position, only cold water flows, saving energy.

Image: A visual representation of the energy-saving cold-start function, showing cold water flow when the lever is centered.

6.2. Using the Pull-Out Spray

The pull-out spray offers enhanced flexibility for various kitchen tasks:

• Extend the Spray: Gently pull the spray head downwards from its magnetic docking position to extend the hose. The soft-touch hose allows for movement in all directions.
• Switch Spray Functions: The spray head features a button or switch to toggle between two spray modes: a concentrated normal stream and a wider shower stream.
• Magnetic Docking: When finished, guide the spray head back towards the faucet body. The integrated magnet will securely pull and hold the spray head back into its original position.

Image: The magnetic docking system of the pull-out spray, illustrating how it securely holds the spray head in place.

Image: A close-up showing the two distinct spray patterns available from the pull-out head: normal stream and shower stream.

6.3. 360-Degree Swivel

The entire faucet body can swivel 360 degrees, providing maximum reach and flexibility for single or double sinks.

7. Maintenance and Care

7.1. Cleaning the Faucet

To maintain the finish and functionality of your faucet:

• Clean regularly with a soft cloth and mild soap or a non-abrasive liquid cleaner.
• Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
• Avoid using abrasive sponges, scouring pads, or cleaners containing alcohol, ammonia, bleach, or phosphoric acid, as these can damage the surface.

7.2. Cartridge Replacement

The faucet is equipped with a durable ceramic sealing disc cartridge. In case of issues like persistent dripping or difficulty controlling water flow/temperature, the cartridge can be replaced. Refer to the detailed instructions in the multilingual installation manual provided with your product for specific steps on cartridge replacement.

8. Troubleshooting

If you encounter any issues with your SCHÜTTE MIAMI Kitchen Faucet, refer to the common problems and solutions below:

9. Warranty and Support

SCHÜTTE stands behind the quality of its products. The SCHÜTTE MIAMI Kitchen Faucet comes with a five-year manufacturer's warranty, covering defects in materials and workmanship under normal use.

For technical support, warranty claims, or any other inquiries, please contact SCHÜTTE directly:

SCHÜTTE Customer Service:
Phone: +49 5407 / 8152903
Operating hours: Please check the official SCHÜTTE website for current operating hours.

Please have your model number (79147) and proof of purchase ready when contacting support.
