Ingco AG220018 Angle Grinder 2200W User Manual

1. Introduction

This manual provides essential instructions for the safe operation, maintenance, and troubleshooting of your Ingco AG220018 Angle Grinder. Please read this manual thoroughly before operating the tool to ensure proper use and to prevent injury or damage.

2. General Safety Instructions

Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Do not abuse the cord. Keep cord away from heat, oil, sharp edges, or moving parts.
• Personal Safety: Always wear eye protection. Use hearing protection when operating for extended periods. Dress properly; avoid loose clothing or jewelry. Secure long hair.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.

3. Product Components

Familiarize yourself with the parts of your Ingco AG220018 Angle Grinder.

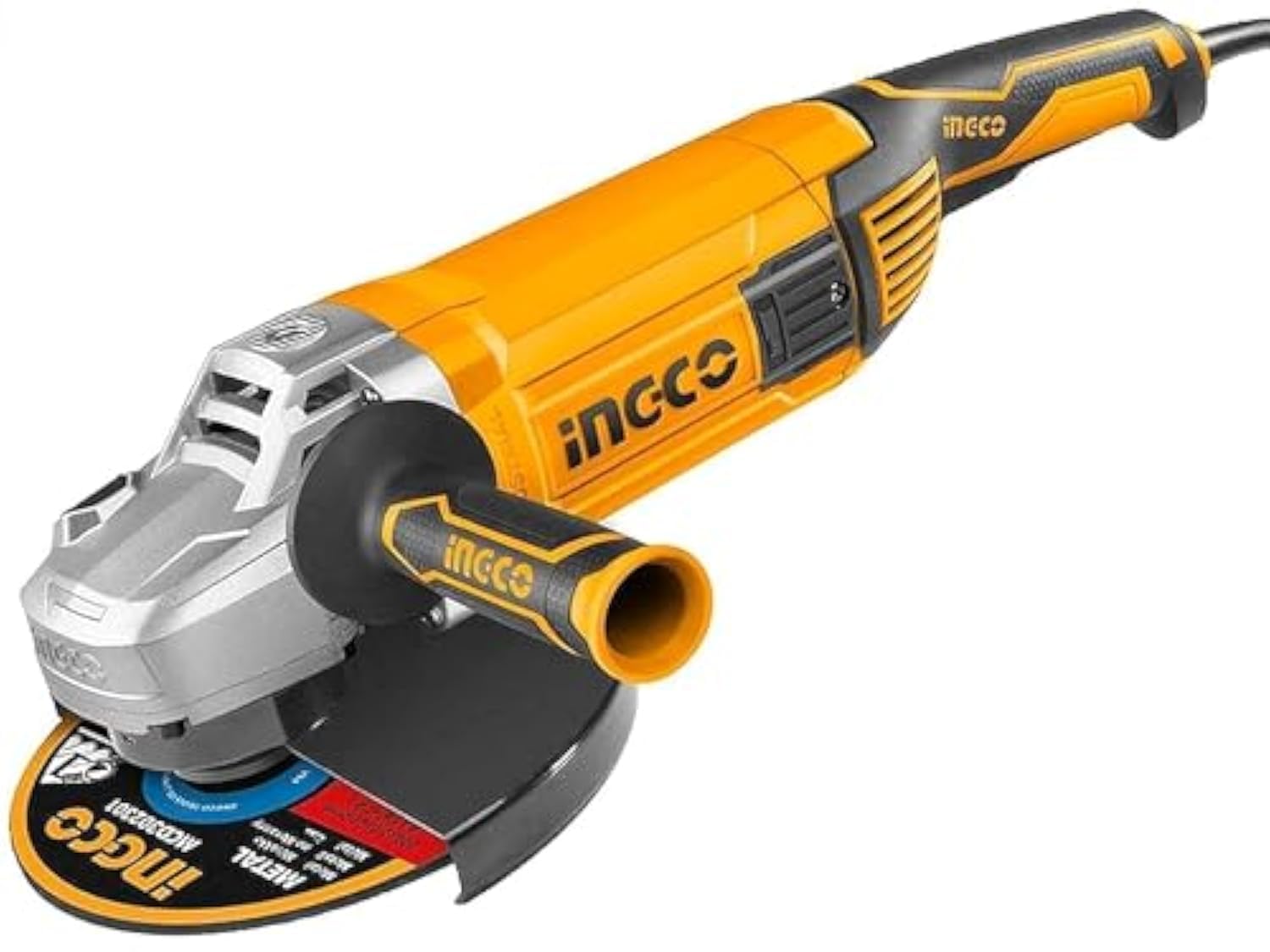

Figure 1: Ingco AG220018 Angle Grinder. This image shows the complete angle grinder assembly, including the main body, auxiliary handle, and a grinding disc attached to the spindle. The tool features a yellow and black housing with a silver gear head.

1. Main Handle
2. Power Switch
3. Motor Housing
4. Gear Head
5. Spindle Lock Button
6. Auxiliary Handle
7. Wheel Guard
8. Grinding Disc (Accessory, not included with all models)

4. Setup and Assembly

4.1 Attaching the Auxiliary Handle

The auxiliary handle can be screwed into either side of the gear head for left or right-handed operation. Ensure it is tightened securely before use.

4.2 Installing the Wheel Guard

The wheel guard protects against sparks and debris. Position the guard so it covers the maximum possible area of the disc, facing away from the operator. Tighten the guard securely using the provided fasteners.

4.3 Mounting the Grinding/Cutting Disc

1. Ensure the tool is unplugged from the power source.
2. Press and hold the spindle lock button.
3. Place the inner flange onto the spindle.
4. Position the grinding or cutting disc onto the inner flange, ensuring it is centered.
5. Screw the outer flange (nut) onto the spindle.
6. Use the spanner wrench to tighten the outer flange securely. Release the spindle lock.
7. Always use discs with the correct diameter (9 inches) and bore size for this model.

5. Operating Instructions

5.1 Powering On/Off

• To turn on: Slide the power switch forward. For continuous operation, press the front of the switch down.
• To turn off: For continuous operation, press the rear of the switch to release it. For momentary operation, release the switch.

5.2 Grinding and Cutting Techniques

• Always hold the grinder firmly with both hands.
• Allow the disc to reach full speed before contacting the workpiece.
• Apply moderate pressure. Excessive pressure can reduce disc life and motor efficiency.
• For grinding, maintain an angle of approximately 15-30 degrees between the disc and the workpiece surface.
• For cutting, hold the grinder perpendicular to the workpiece, ensuring the cutting line is straight.
• Avoid sudden impacts or twisting the disc in the cut, which can cause kickback.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your tool.

• Cleaning: Keep the ventilation openings clean to prevent motor overheating. Use a soft brush or compressed air to remove dust and debris.
• Carbon Brushes: The carbon brushes may need replacement after extended use. This should be performed by a qualified service technician.
• Power Cord: Regularly inspect the power cord for damage. If damaged, have it replaced by a qualified professional.
• Storage: Store the tool in a dry, secure place out of reach of children.

7. Troubleshooting

8. Technical Specifications

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or contact Ingco customer service. Keep your purchase receipt as proof of purchase.

For technical support or service inquiries, please contact your local Ingco authorized service center or visit the official Ingco website for contact details.
