COSIEST Outdoor Propane Concrete Fire Pit Table (Model C5404004)

Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your COSIEST 32-inch Round Outdoor Propane Fire Pit Table. Please read all instructions carefully before use and retain this manual for future reference.

Important Safety Information

WARNING:

• For outdoor use only. Do not use in enclosed areas.
• Keep away from flammable materials.
• Follow all local codes and regulations for installation and use.
• Do not move while in operation or until completely cooled.
• Ensure proper ventilation when in use.
• Children and pets must be kept away from the fire pit.
• Never leave the fire pit unattended when in use.
• Use only propane gas. Do not use other fuels.
• Ensure all connections are tight and leak-free before operation.

Product Overview

The COSIEST Outdoor Propane Fire Pit Table features a durable Magnesium Oxide (MgO) construction with an imitation stone surface, designed for outdoor use. It includes a stainless steel burner and is CSA certified for safety.

• Imitation Stone Surface: Provides an aesthetic appeal and can serve as an extended tabletop.
• Stainless Steel Burner: Durable and resistant to heat.
• Control Panel: Features a push-button ignition and a knob for flame intensity adjustment.
• Propane Tank Storage: Designed to conceal a standard 20lb propane tank (not included) within the base.
• Lava Rocks: Included to enhance heat radiation and visual effect.
• Waterproof Cover: Provided for protection when not in use.

Image: The COSIEST 32-inch Round Fire Pit Table with its imitation stone surface and active flames.

Setup Instructions

1. Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
2. Placement: Position the fire pit on a flat, stable, non-combustible surface outdoors, away from any overhead obstructions or flammable materials.
3. Lava Rock Placement: Distribute the provided lava rocks evenly around the burner ring. Ensure the ignition electrode and burner holes are not covered to allow for proper ignition and flame distribution.


   Image: Close-up view of the fire pit burner with lava rocks in place, showing the CSA certification logo.

4. Propane Tank Installation:
   • Open the access door on the side of the fire pit.
   • Place a standard 20lb propane tank (not included) inside the designated compartment.
   • Connect the regulator hose from the fire pit to the propane tank valve. Hand-tighten the connection securely.
   • Ensure all connections are tight before opening the tank valve. Perform a leak test using soapy water on all connections. If bubbles appear, there is a leak. Tighten connections or replace parts as necessary.

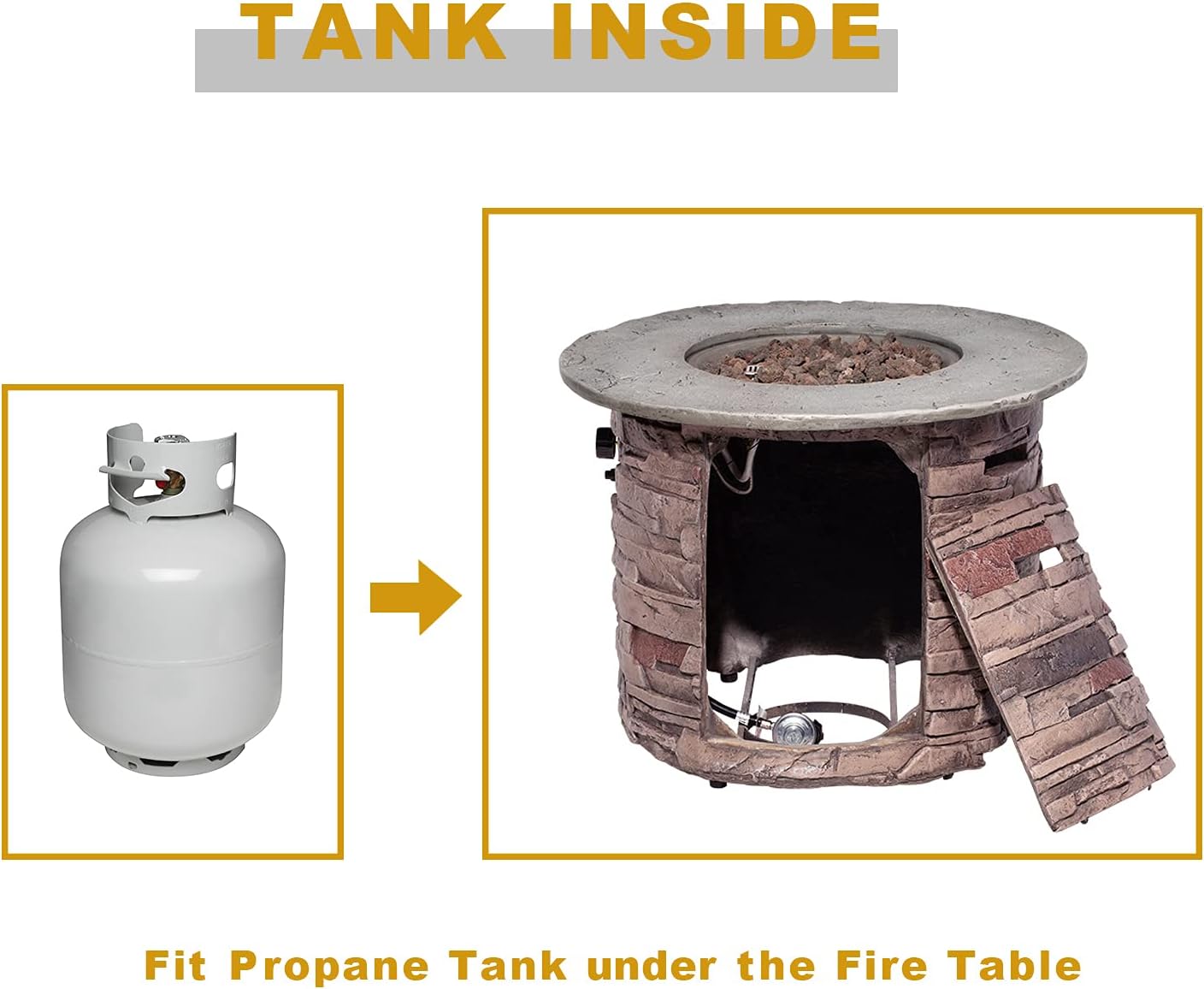

   Image: Illustration demonstrating the placement of a 20lb propane tank inside the fire pit's base.

Operating Instructions

1. Before Lighting:
   • Ensure the area around the fire pit is clear of debris and flammable materials.
   • Confirm the propane tank valve is fully closed.
   • Turn the control knob on the fire pit to the "OFF" position.
2. Lighting the Fire Pit:
   • Slowly open the main valve on the propane tank counter-clockwise.
   • Press and hold the ignition button while simultaneously turning the control knob counter-clockwise to the "LOW" position.
   • Continue to hold the ignition button for 15-20 seconds after the flame ignites to allow the thermocouple to heat up.
   • If the flame does not ignite, release the ignition button, turn the control knob to "OFF", wait 5 minutes for gas to dissipate, and repeat the lighting procedure.


   Image: Detail of the control panel, showing the ignition button and the flame intensity adjustment knob.

3. Adjusting Flame: Once lit, rotate the control knob to adjust the flame height and heat output from "LOW" to "HIGH".
4. Turning Off:
   • Turn the control knob on the fire pit clockwise to the "OFF" position.
   • Close the main valve on the propane tank clockwise.
   • Allow the fire pit to cool completely before covering or moving.

Maintenance

• Cleaning:
  • Ensure the fire pit is completely cool before cleaning.
  • Wipe exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
  • Clean the burner and lava rocks periodically to remove any debris.
• Storage:
  • When not in use, especially during inclement weather or extended periods, cover the fire pit with the provided waterproof cover.
  • Store the propane tank in a well-ventilated area, away from direct sunlight and heat sources.


  Image: Close-up of the waterproof cover, showing its water-resistant properties.

• Inspections: Regularly inspect the hose and connections for any signs of wear, cuts, or leaks. Replace damaged parts immediately.

Troubleshooting

Specifications

Image: Diagram illustrating the dimensions of the 32-inch round fire pit table.

Warranty and Support

COSIEST offers a one-year warranty for replacement of parts or accessories. For any questions, setup guidance, or warranty claims, please contact COSIEST customer support. Refer to your purchase documentation for specific contact details.

You can also visit the official COSIEST store for more information: COSIEST Store on Amazon
