Total Tools 12V Automatic Air Compressor

1. Introduction

Thank you for choosing the Total Tools 12V Automatic Air Compressor, Model TTAC1406. This portable and electric air compressor is designed for general-purpose use, primarily for inflating vehicle tires and other inflatable items. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new air compressor. Please read it thoroughly before first use and retain it for future reference.

2. Safety Information

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.

• Read all instructions: Familiarize yourself with the product's operation and safety guidelines.
• Proper Voltage: Ensure the power source matches the compressor's voltage requirements (12V DC).
• Avoid Over-inflation: Do not exceed the recommended pressure for any item being inflated. Over-inflation can cause items to burst, leading to injury.
• Supervise Operation: Never leave the compressor unattended while it is running.
• Keep Away from Children: This appliance is not intended for use by children. Store it out of their reach.
• Ventilation: Operate the compressor in a well-ventilated area.
• Avoid Moisture: Do not expose the compressor to rain or wet conditions.
• Disconnect Power: Always disconnect the power cord from the vehicle's 12V socket when not in use or before performing any maintenance.
• Hot Surfaces: The compressor may become hot during prolonged use. Allow it to cool before handling or storing.

3. Package Contents

Verify that all items are present in the package:

• Total Tools 12V Automatic Air Compressor (Model TTAC1406)
• Various inflation nozzles/adapters (Car accessories)
• User Manual (this document)

4. Product Overview

Familiarize yourself with the components of your air compressor:

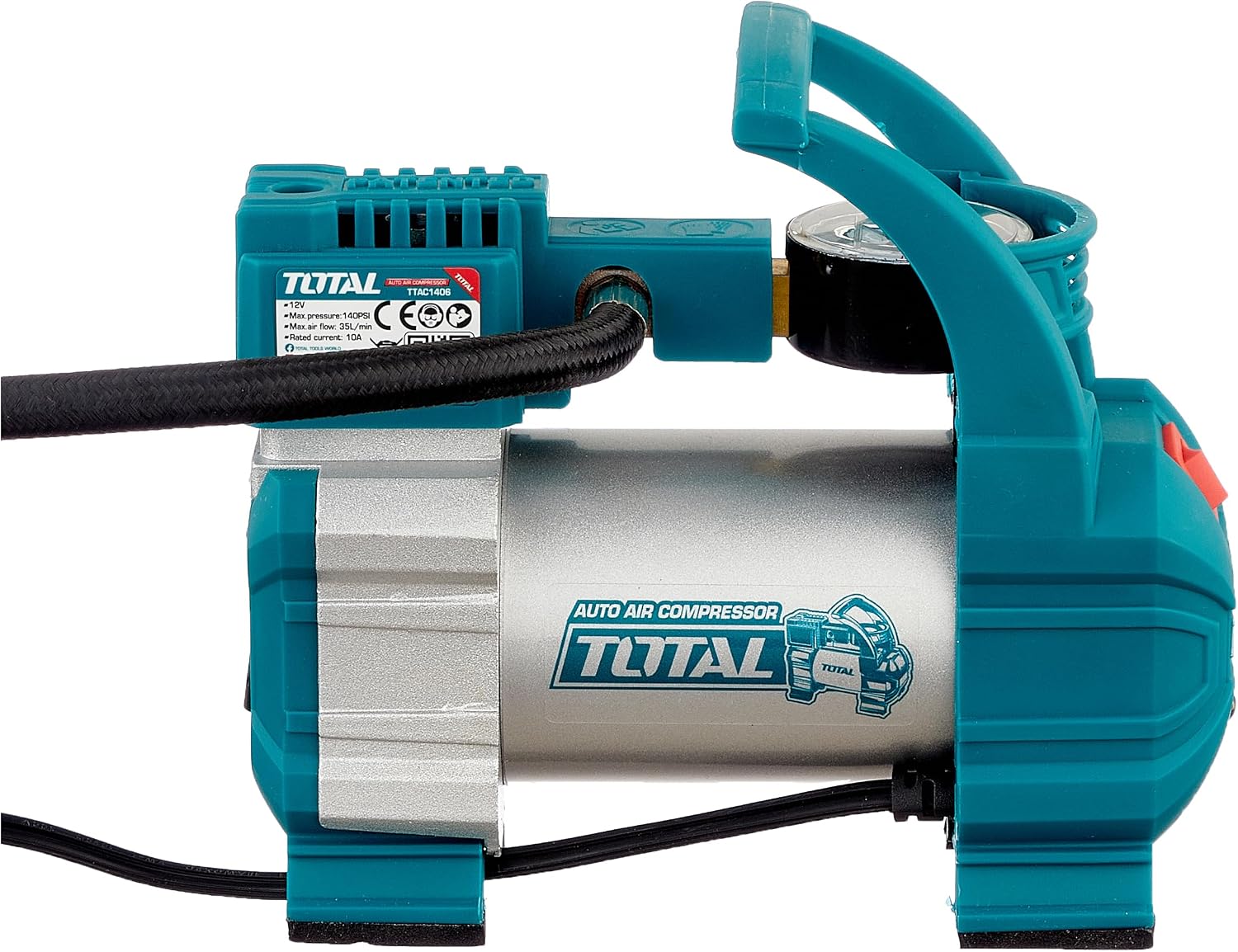

Figure 4.1: Side view of the Total Tools 12V Automatic Air Compressor, showing the main unit, power cord, and air hose connection.

Figure 4.2: Angled view of the compressor, highlighting the integrated pressure gauge and carrying handle.

Figure 4.3: Close-up of the integrated storage compartment for various inflation nozzles/adapters.

Figure 4.4: Detail of the power switch and the analog pressure gauge for monitoring inflation.

Figure 4.5: Illustrative image showing the approximate dimensions of the compressor, indicating a height of approximately 6.2 inches (15 cm).

5. Setup

Before operating the air compressor, follow these steps:

1. Vehicle Placement: Park your vehicle on a level surface and engage the parking brake.
2. Access Power Outlet: Locate your vehicle's 12V DC power outlet (cigarette lighter socket).
3. Connect Power: Insert the compressor's 12V power plug firmly into the vehicle's 12V DC outlet. Ensure a secure connection.
4. Select Nozzle: Choose the appropriate inflation nozzle for the item you intend to inflate. The nozzles are typically stored on the compressor unit.
5. Attach Nozzle: Securely attach the selected nozzle to the air hose.

6. Operating Instructions

To inflate an item:

1. Connect to Item: Attach the air hose with the selected nozzle to the valve stem of the item you wish to inflate. For tires, ensure the connection is tight to prevent air leakage.
2. Start Vehicle (Optional but Recommended): For optimal performance and to prevent draining your vehicle's battery, it is recommended to start your vehicle's engine before turning on the compressor.
3. Turn On Compressor: Flip the power switch on the compressor to the 'ON' position. The compressor will begin to operate.
4. Monitor Pressure: Continuously monitor the pressure gauge on the compressor. Inflate the item to its recommended pressure. Refer to your vehicle's owner's manual or the tire's sidewall for correct tire pressure.
5. Turn Off Compressor: Once the desired pressure is reached, immediately flip the power switch to the 'OFF' position.
6. Disconnect: Carefully disconnect the air hose from the item's valve stem. Some air may escape during disconnection.
7. Disconnect Power: Unplug the 12V power cord from your vehicle's outlet.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your air compressor:

• Cleaning: Wipe the exterior of the compressor with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the unit is dry before storage.
• Storage: Store the compressor in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the power cord and air hose are neatly coiled and secured.
• Check Connections: Periodically inspect the power cord, air hose, and nozzles for any signs of wear, damage, or loose connections. Replace any damaged parts immediately.
• Air Filter: This model typically does not require user-serviceable air filter maintenance. Refer to the manufacturer for specific guidance if you suspect an issue.

8. Troubleshooting

If you encounter issues with your air compressor, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

According to the product information, this item is provided without a specific warranty. For any operational issues, troubleshooting assistance beyond this manual, or inquiries about replacement parts, please contact the retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.
