Diamond Antenna SRJ770SA Dual Band Antenna User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Diamond Antenna SRJ770SA Dual Band Antenna. The SRJ770SA is designed to enhance the performance of handheld amateur radios by providing reliable communication on both VHF (144MHz) and UHF (440MHz) frequency bands. Please read this manual thoroughly before using the antenna to ensure optimal performance and safety.

2. Safety Information

Observe the following safety precautions to prevent damage to the antenna, your radio, or personal injury:

• Do not attempt to disassemble or modify the antenna. Unauthorized modifications can void the warranty and may cause damage.
• Keep the antenna away from strong electromagnetic fields, high voltage lines, and other electrical hazards.
• Ensure the antenna is securely attached to your radio to prevent it from falling and causing injury or damage.
• Avoid bending the antenna excessively beyond its natural flexibility, as this may damage internal components.
• Do not operate the radio with a damaged antenna.

3. Product Features

The Diamond Antenna SRJ770SA offers several key features designed for amateur radio enthusiasts:

• Dual Band Operation: Optimized for VHF (144MHz) and UHF (440MHz) frequencies.
• Enhanced Performance: Improves reception and transmission efficiency compared to standard stock antennas.
• Flexible Whip Construction: Designed to withstand bending and movement, reducing breakage.
• SMA Male Connector: Ensures easy and secure installation on compatible handheld amateur radios.
• Portable Design: Slim and lightweight profile maintains radio balance for comfortable extended use.
• Durable Construction: Reinforced internal elements for longevity in various operating environments.

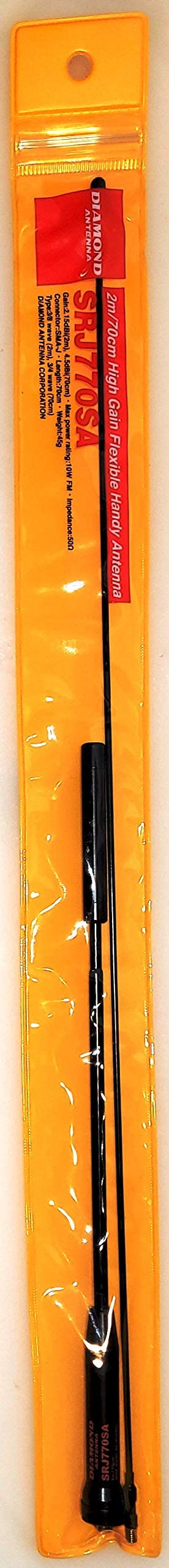

Image showing the Diamond Antenna SRJ770SA Dual Band Antenna, a flexible black whip antenna with an SMA male connector.

4. Setup and Installation

Follow these steps to properly install your SRJ770SA antenna:

1. Identify Connector Type: Ensure your handheld radio has an SMA female connector to match the antenna's SMA male connector.
2. Remove Existing Antenna: If applicable, carefully unscrew and remove any existing antenna from your radio.
3. Attach SRJ770SA Antenna: Align the SMA male connector of the SRJ770SA antenna with the SMA female port on your radio. Gently screw the antenna clockwise until it is finger-tight. Do not overtighten, as this can damage the connector.
4. Verify Secure Connection: Ensure the antenna is firmly seated and does not wobble. A secure connection is crucial for optimal performance and to prevent signal loss.

Your Diamond Antenna SRJ770SA is now ready for operation.

5. Operating Instructions

The SRJ770SA antenna is designed for use with handheld amateur radios operating on VHF (144-148 MHz) and UHF (430-450 MHz) bands. For best performance:

• Frequency Range: Confirm your radio is set to frequencies within the antenna's specified operating bands.
• Antenna Orientation: For optimal signal reception and transmission, hold your radio vertically.
• Environmental Factors: Performance may vary based on terrain, obstructions (buildings, trees), and atmospheric conditions.
• Power Output: Ensure your radio's power output is within safe limits for the antenna. The SRJ770SA is designed for typical handheld radio power levels.

6. Maintenance and Care

Proper care will extend the life and maintain the performance of your antenna:

• Cleaning: Wipe the antenna with a soft, damp cloth to remove dust and dirt. Do not use harsh chemicals or abrasive cleaners.
• Storage: When not in use, store the antenna in a clean, dry place away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect the antenna for any signs of damage, such as cracks in the flexible whip or corrosion on the connector.
• Connector Care: Keep the SMA connector clean and free of debris to ensure a good electrical connection.

7. Troubleshooting

If you experience issues with your SRJ770SA antenna, consider the following:

• Poor Reception/Transmission:
  • Ensure the antenna is securely attached to the radio.
  • Check if your radio is set to the correct frequency band (VHF or UHF).
  • Verify that the radio's battery is adequately charged.
  • Move to an open area to reduce signal obstructions.
  • Test with another known-good antenna if available to isolate the issue.
• Antenna Not Fitting:
  • Confirm your radio has an SMA female connector. This antenna uses an SMA male connector.
  • Do not force the connection; improper mating can damage both the antenna and the radio.

If problems persist, contact Diamond Antenna customer support or your authorized dealer.

8. Specifications

9. Warranty and Support

The Diamond Antenna SRJ770SA comes with a 1-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

For technical support, warranty claims, or further assistance, please contact your authorized Diamond Antenna dealer or visit the official Diamond Antenna website for contact information.
