1. Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the GOWE ALTERNATOR JFZ168. Please read this manual thoroughly before attempting any procedures to ensure safe and efficient use of the product.
2. Product Overview
The GOWE ALTERNATOR JFZ168 is designed to provide reliable electrical power for compatible engine units. It features a 12V 70A output, tested at 13.8V, and operates with a clockwise rotation. This alternator is suitable for engines such as the DA465Q WULING.

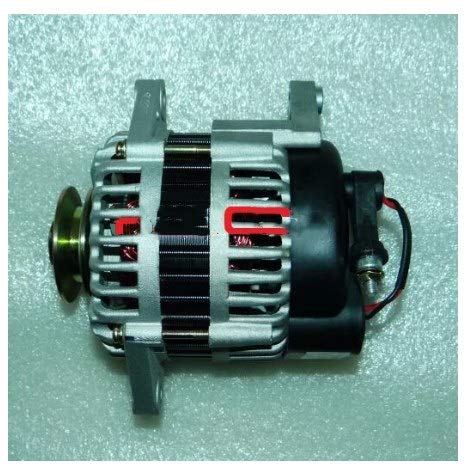

Figure 1: GOWE ALTERNATOR JFZ168. An image showing the GOWE ALTERNATOR JFZ168, a 12V 70A unit, from a top-down perspective. The alternator features a silver-colored housing with cooling fins and a black end cap, with a pulley visible on one end.
3. Safety Information
Always prioritize safety when working with automotive electrical components. Failure to follow safety precautions can result in serious injury or damage to the product or vehicle.
- Disconnect the vehicle's battery before beginning any installation or maintenance work.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the work area is well-ventilated and free from flammable materials.
- Avoid contact with hot engine components.
- If you are unsure about any procedure, consult a qualified automotive technician.
4. Setup and Installation
Proper installation is crucial for the optimal performance and longevity of the alternator. It is recommended that installation be performed by a qualified professional.
- Preparation: Ensure the engine is off and cool. Disconnect the negative terminal of the vehicle's battery.
- Removal of Old Alternator: Carefully disconnect all wiring from the old alternator. Loosen and remove the mounting bolts and the drive belt. Remove the old alternator.
- Installation of New Alternator: Position the GOWE ALTERNATOR JFZ168 into the mounting brackets. Secure it with the appropriate mounting bolts, but do not fully tighten yet.
- Belt Installation: Install the drive belt onto the alternator pulley. Adjust the belt tension according to the engine manufacturer's specifications.
- Wiring Connections: Reconnect all electrical wiring to the new alternator. Ensure all connections are clean, secure, and free from corrosion.
- Final Tightening: Fully tighten all mounting bolts.
- Battery Reconnection: Reconnect the negative terminal of the vehicle's battery.
- Initial Test: Start the engine and check for proper charging system operation, indicated by the battery warning light turning off. Monitor the voltage output.
5. Operating Instructions
Once installed, the alternator operates automatically as part of the vehicle's charging system. It converts mechanical energy from the engine into electrical energy to power the vehicle's electrical systems and recharge the battery.
- Ensure the battery warning light on your dashboard turns off shortly after starting the engine. If it remains on, it indicates a charging system issue.
- Avoid running the engine with a severely discharged battery for extended periods, as this can overwork the alternator.
- Do not disconnect the battery while the engine is running, as this can damage the alternator and other electrical components.
6. Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your alternator.
- Belt Inspection: Periodically check the drive belt for cracks, fraying, or excessive wear. Ensure it has the correct tension. A loose belt can cause insufficient charging, while an overly tight belt can damage bearings.
- Wiring Connections: Inspect all electrical connections to the alternator for corrosion, looseness, or damage. Clean and tighten as necessary.
- Battery Condition: Ensure the vehicle's battery is in good condition. A failing battery can put undue strain on the alternator.
- Cleanliness: Keep the alternator free from excessive dirt, oil, and debris, which can impede cooling and affect performance.
7. Troubleshooting
If you experience issues with your vehicle's charging system, consider the following common problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Battery warning light stays on | Loose or worn drive belt, faulty wiring, alternator failure | Check belt tension and condition. Inspect wiring connections. Test alternator output. |
| Dim headlights or interior lights | Insufficient charging, weak battery | Check alternator output and battery condition. |
| Battery drains quickly | Alternator not charging, parasitic drain, faulty battery | Test charging system. Check for electrical shorts. Test battery. |
| Squealing noise from engine | Loose or worn drive belt | Inspect and adjust or replace the drive belt. |
If troubleshooting steps do not resolve the issue, consult a qualified automotive technician.
8. Specifications
- Model: JFZ168
- Manufacturer: Gowegroup
- Brand: GOWE
- Manufacturer Part Number: GWE-39006480
- OEM Part Number: FOR ENGINE, Unit output power: 12V 70A
- Unit Output Power: 12V 70A
- Output Tested: 13.8V
- Rotation: CW (Clockwise)
- Net Weight: 8 KG
- Compatible Engine: DA465Q WULING
9. Warranty and Support
For specific warranty information, please refer to the documentation provided with your purchase or contact the seller directly. GOWE products are typically supported by the manufacturer for defects in materials and workmanship.
For further assistance or technical support, please contact your point of purchase or visit the official GOWE store: GOWE Store on Amazon.
