1. Important Safety Information
Please read this instruction manual carefully before installing, operating, or performing maintenance on your NEFF S125ITS04E dishwasher. Keep this manual for future reference.
- Electrical Safety: Ensure the appliance is properly grounded. Do not use extension cords. Disconnect power before any maintenance.
- Water Safety: The AquaStop system prevents water damage. However, always ensure water connections are secure.
- Child Safety: Keep children away from the dishwasher when it is operating. Detergents are corrosive.
- Proper Use: Only use the dishwasher for its intended purpose of washing household dishes.
2. Product Overview
Familiarize yourself with the components and control panel of your NEFF S125ITS04E dishwasher.

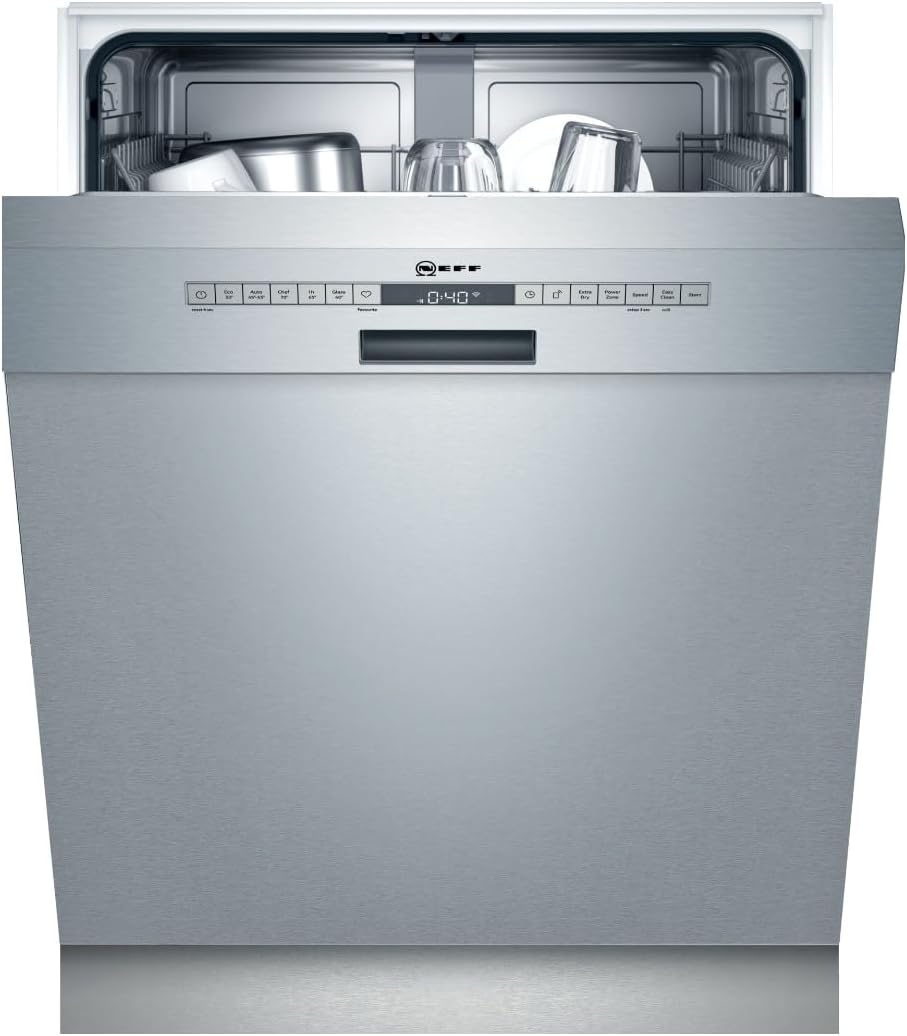

Figure 2.1: Front view of the NEFF S125ITS04E Built-in Dishwasher with the door slightly ajar, revealing the interior racks and some dishes.
Figure 2.2: Detailed view of the control panel, showing program buttons, function buttons, and the digital display.
2.1 Control Panel Features
- Power Button: Turns the dishwasher on/off.
- Program Selection Buttons: Includes Eco 50°, Auto 45-65°, Chef 70°, Classic 60°, Glass 40°, and Favourite programs.
- Favourite Button: Allows saving a custom program or setting for quick access.
- Digital Display: Shows remaining time, program status, and error codes.
- Home Connect Indicator: Shows Wi-Fi connection status.
3. Setup and Installation
The NEFF S125ITS04E is designed for built-in installation under a kitchen counter. Professional installation is recommended.
Figure 3.1: The dishwasher integrated into kitchen cabinetry, demonstrating its built-in design.
Figure 3.2: Dimensional drawing for installation planning, showing height, width, and depth requirements. All measurements are in millimeters.
3.1 Pre-Installation Checks
- Verify water supply and drainage connections are accessible.
- Ensure electrical outlet meets voltage requirements (240 Volts).
- Confirm cabinet opening dimensions match the dishwasher specifications (81.5 x 59.8 x 57.3 cm).
3.2 First Use
- Fill the rinse aid dispenser and salt reservoir (if applicable for your water hardness).
- Run an empty wash cycle with a small amount of detergent to clean the interior.
- Connect to Home Connect via the app for smart control and features.
4. Operating Instructions
This section details how to load dishes, select programs, and use special functions.
4.1 Loading the Dishwasher
Figure 4.1: Example of loading the lower rack with various dishes, including glasses and plates.
Figure 4.2: Example of loading the lower rack with larger items like pots and pans, alongside the removable cutlery basket.
- Scrape off large food particles before loading.
- Place glasses, cups, and smaller bowls in the upper rack.
- Place plates, larger bowls, and pots/pans in the lower rack.
- Ensure items do not block spray arms.
4.2 Program Selection
The dishwasher offers 6 programs to suit different washing needs:
- Eco 50°: Energy-efficient program for normally soiled dishes.
- Auto 45-65°: Automatically adjusts temperature and water usage based on soil level.
- Chef 70°: Ideal for heavily soiled pots and pans, removing stubborn, dried-on food residues with increased temperature and water pressure.
- Classic 60°: Standard program for daily use.
- Glass 40°: Gentle program for delicate glassware.
- Favourite: Customizable program. Save your preferred settings for quick access.
4.3 Special Functions
- Home Connect: Control your dishwasher remotely via smartphone or tablet. Access additional features and diagnostics.
- AquaStop: An integrated safety system that prevents water damage by automatically shutting off the water supply in case of a leak.
5. Maintenance and Care
Regular maintenance ensures optimal performance and longevity of your dishwasher.
- Cleaning Filters: Regularly check and clean the filter system to prevent blockages and ensure efficient washing.
- Cleaning Spray Arms: Ensure spray arm nozzles are clear of debris.
- Exterior Cleaning: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners.
- Salt and Rinse Aid: Monitor levels and refill as needed based on your water hardness and usage.
6. Troubleshooting
Before contacting service, refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start. | Door not closed properly; Power supply issue; Program not selected. | Ensure door is latched; Check power cord and circuit breaker; Select a program and press Start. |
| Dishes are not clean. | Improper loading; Clogged spray arms/filters; Insufficient detergent; Incorrect program. | Reload dishes correctly; Clean filters and spray arms; Use appropriate detergent quantity; Select a suitable program (e.g., Chef 70° for heavy soil). |
| Water remains in the bottom. | Clogged drain filter or hose; Drain pump issue. | Clean drain filter; Check drain hose for kinks; Consult service if pump is faulty. |
| Dishwasher is noisy. | Items hitting spray arms; Foreign object in pump; Improper installation. | Rearrange dishes; Check for foreign objects; Ensure dishwasher is level. |
7. Specifications
Key technical specifications for the NEFF S125ITS04E Built-in Dishwasher.
| Feature | Value |
|---|---|
| Model Name | S125ITS04E |
| Product Weight | 32.69 Kilograms |
| Voltage | 240 Volts |
| Cycle Options | Automatic Dishwashing |
| Recommended Uses | Daily dishes and heavily soiled pots and pans |
| Style | With HomeConnect |
| Display Type | LCD |
| Number of Place Settings | 10 |
| Number of Cycles | 6 |
| Product Dimensions (LxWxH) | 81.5 x 59.8 x 57.3 cm |
| Annual Energy Consumption | 290 Kilowatt-hours |
| Material Type | Stainless Steel |
| Manufacturer | Neff |
| Installation Type | Built-in |
| Capacity | 12 Liters |
| Noise Level | 48 dB |
8. Warranty and Support
For detailed warranty information and customer support, please refer to the documentation included with your appliance or visit the official Neff website. You can also contact Neff customer service directly for assistance with product registration, service requests, or technical inquiries.
Manufacturer: Neff
Model: S125ITS04E
For online support, visit: www.neff-home.com
