Portable Compact Twin Tub Washing Machine User Manual

Introduction

Thank you for purchasing the Direct Portable Compact Twin Tub Washing Machine. This semi-automatic washing machine is designed for convenience and efficiency, ideal for small living spaces such as apartments, dorms, and for camping. Please read this manual thoroughly before operation to ensure proper use, maintenance, and safety.

Image: The Direct Portable Compact Twin Tub Washing Machine, shown from a top-front angle, highlighting its compact design and dual tubs.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before using the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Supervise children closely when the appliance is in use.
• Unplug from outlet when not in use and before cleaning.
• Ensure the machine is placed on a stable, level surface.
• Do not wash waterproof materials or clothing that may float, as this may cause imbalance and damage.

Product Overview

Familiarize yourself with the components of your washing machine.

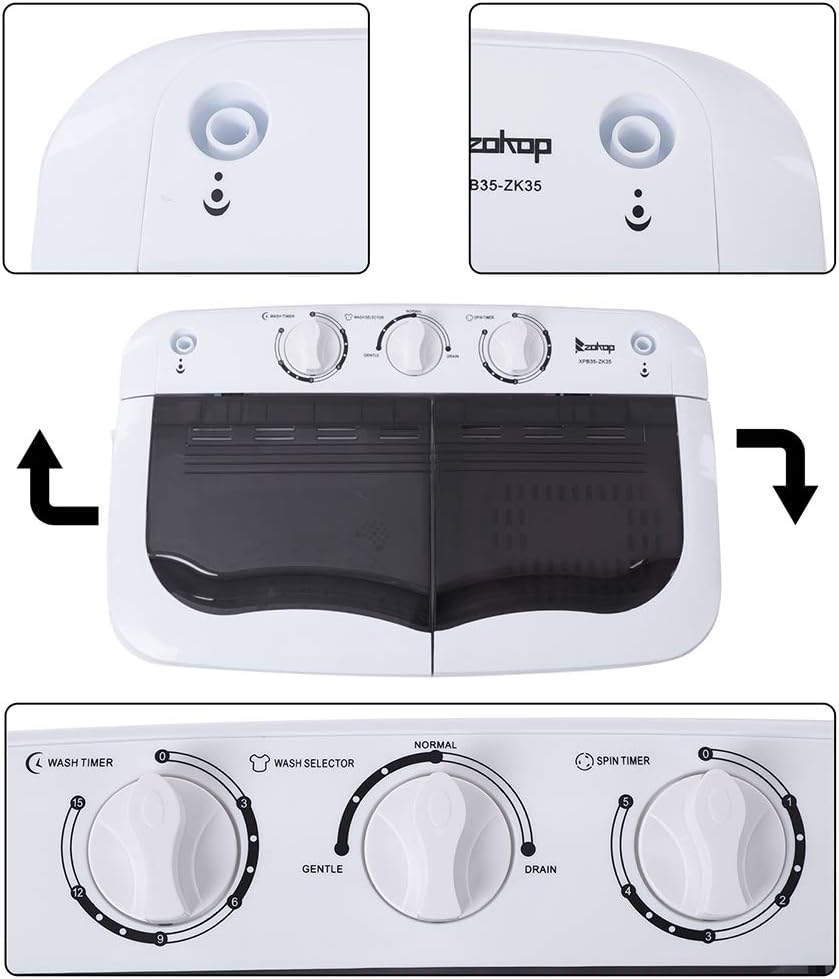

Image: A close-up view of the top panel of the washing machine, showing the three control knobs: Wash Timer, Wash Selector (Gentle/Normal/Drain), and Spin Timer. The ZOKOP brand logo is visible.

The machine features a dual-tub design: one for washing and one for spinning. The control panel includes three rotary knobs for easy operation:

• Wash Timer: Sets the washing duration (up to 15 minutes).
• Wash Selector: Allows selection between Gentle, Normal wash cycles, or Drain function.
• Spin Timer: Sets the spinning duration (up to 3 minutes).

Image: A composite image showing four different views of the washing machine: front, side, top, and rear, providing a comprehensive look at its exterior design and connections.

The machine is equipped with a water inlet for filling the wash tub and a built-in drain pump with an extended drain pipe (1 meter) for convenient water discharge.

Setup

1. Unpacking: Carefully remove the washing machine from its packaging. Check for any damage during transit.
2. Placement: Place the machine on a firm, level surface to prevent vibration and noise during operation. Ensure there is enough space around the machine for ventilation and access.
3. Water Inlet Connection: Connect the provided water inlet hose to the water inlet on the machine and to a water faucet. Ensure connections are secure to prevent leaks.
4. Drain Pipe Placement: Position the drain pipe to discharge water into a sink, bucket, or drain. Ensure the drain pipe is not kinked or blocked.
5. Power Connection: Plug the power cord into a grounded 110V 60Hz electrical outlet.

Image: A diagram illustrating the dimensions of the washing machine: approximately 21.26 inches (length), 13.78 inches (width), and 25.20 inches (height).

Consider the machine's dimensions (22.83 x 14.72 x 26.38 inches or 58 x 37.4 x 67 cm) when choosing a suitable location.

Operating Instructions

Washing Cycle

1. Load Laundry: Open the wash tub lid and place clothes loosely into the wash tub. Do not overload (maximum 7.7 lbs capacity).
2. Add Water and Detergent: Fill the wash tub with water to the desired level. Add appropriate amount of detergent.
3. Select Wash Mode: Turn the Wash Selector knob to "Gentle" for delicate items or "Normal" for regular laundry.
4. Set Wash Timer: Turn the Wash Timer knob to the desired washing duration (up to 15 minutes). The machine will start washing.
5. Drain Water: Once the wash cycle is complete, turn the Wash Selector knob to "Drain" to empty the water from the wash tub.

Image: An illustration showing the two separate tubs: one for washing with soapy water and clothes, and the other for dewatering (spinning) with clothes being spun dry. This highlights the ability to perform both functions simultaneously.

Spin Cycle (Dewatering)

1. Transfer Laundry: Carefully transfer the washed clothes from the wash tub to the spin tub. Distribute clothes evenly to prevent imbalance. Do not overload (maximum 6.6 lbs capacity).
2. Secure Spin Cap: Place the spin cap (if provided) on top of the clothes in the spin tub.
3. Set Spin Timer: Close the spin tub lid and turn the Spin Timer knob to the desired spinning duration (up to 3 minutes). The machine will start spinning.
4. Remove Laundry: Once the spin cycle is complete, the machine will stop. Open the lid and carefully remove the spun clothes.

Image: A detailed view inside the spin tub, showing the perforated basket designed for efficient water extraction during the spin cycle.

The machine is equipped with powerful dual motors (wash motor and spin motor) for efficient operation, reaching up to 1300 RPM for spinning.

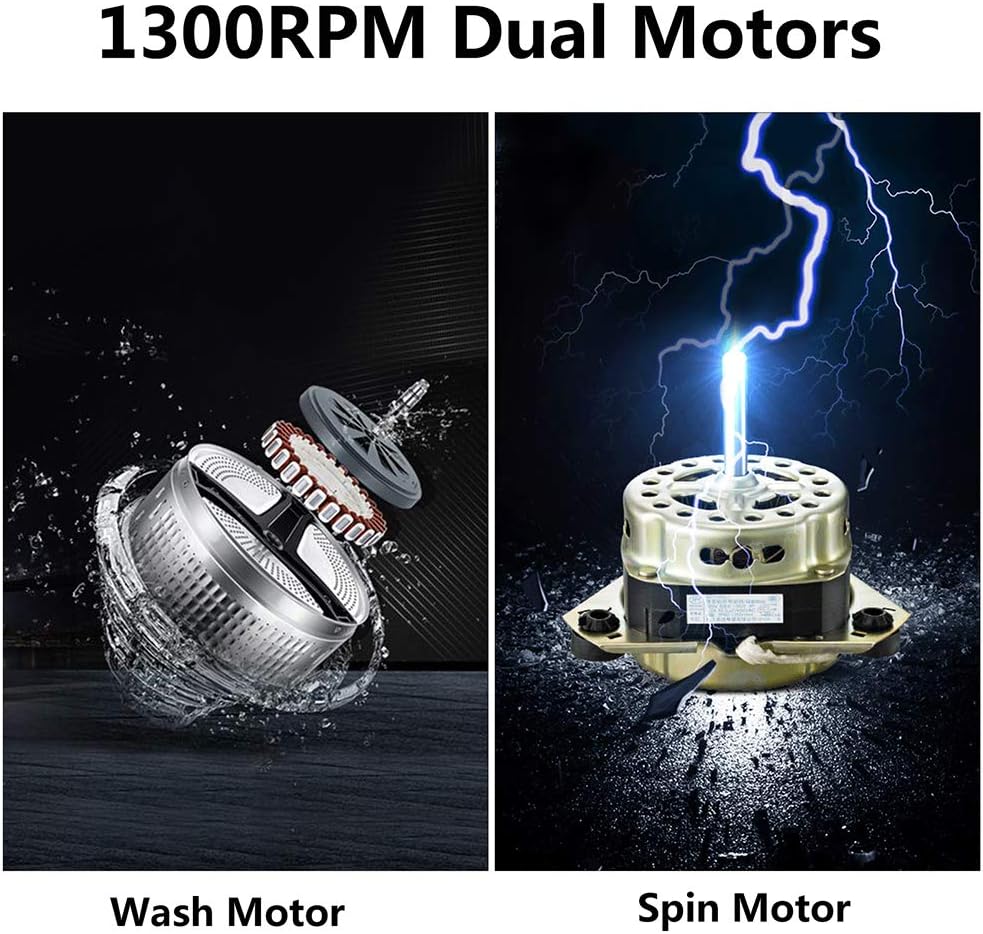

Image: A visual representation of the internal wash motor and spin motor, highlighting their robust design and 1300 RPM capability.

Maintenance

• Cleaning the Exterior: Wipe the exterior of the machine with a soft, damp cloth after each use. Do not use abrasive cleaners or solvents.
• Cleaning the Tubs: Periodically clean the inside of the wash and spin tubs to prevent residue buildup. You can run a short wash cycle with just water and a small amount of vinegar or washing machine cleaner.
• Drain Pipe: Ensure the drain pipe is clear of lint and debris.
• Storage: If storing the machine for an extended period, ensure it is completely dry. Store in a cool, dry place.
• Filter (if applicable): Some models may have a lint filter. Check and clean it regularly if present.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact the retailer. Specific warranty terms and conditions may vary.

For further assistance, please contact Direct customer service through the retailer's platform or their official website.
