NPET P4F 1000A Peak 10000mAh Car Battery Jump Starter User Manual

1. Introduction

Thank you for choosing the NPET P4F Car Battery Jump Starter. This portable and powerful device is designed to jump-start vehicles with up to 6.0L gasoline or 3.0L diesel engines. It also functions as a portable power bank with USB Quick Charge 3.0, providing convenience and reliability for your automotive and charging needs. Please read this manual carefully before use to ensure safe and optimal performance.

For more information and support, please visit the official NPET website.

2. Important Safety Information

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Do not expose the jump starter to rain or wet conditions.
• Do not operate the jump starter if it has been dropped or damaged.
• Keep out of reach of children.
• Ensure proper polarity connection to avoid short circuits.
• Do not attempt to jump-start a frozen battery.
• Always disconnect the clamps in the reverse order of connection.
• Use the jump starter only for its intended purpose.

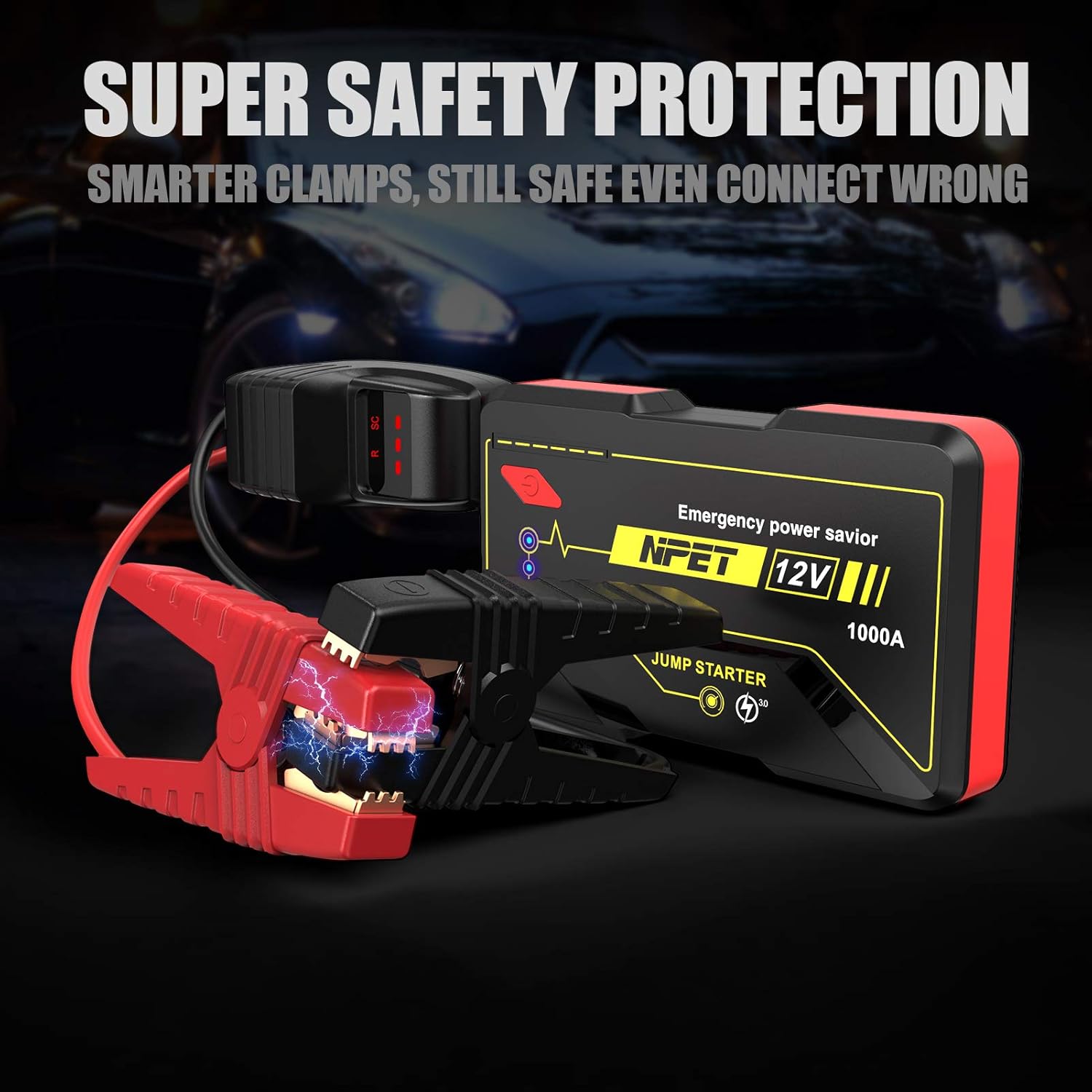

Image: The NPET P4F Jump Starter with its smart clamps, highlighting the super safety protection features. The clamps are designed to prevent incorrect connections and ensure safe operation.

3. Package Contents

Verify that all items are present and in good condition:

• NPET P4F Jump Starter Unit
• Smart Jumper Clamps (Red and Black)
• USB-A to USB-C Charging Cable
• Storage Case
• User Manual

Image: All components included in the NPET P4F Jump Starter package: the main unit, smart jumper clamps, a USB charging cable, and a protective storage case.

4. Product Overview

Familiarize yourself with the different parts of your NPET P4F Jump Starter:

Image: A detailed diagram of the NPET P4F Jump Starter, indicating the power button, power indicator lights, jump port, USB output ports (Output 1, Output 2), Type-C input/output port, and the ON/OFF switch. It also highlights the LED torch light with SOS/warning light functions.

• Power Button: Activates the device and checks battery level.
• Power Indicator: LED lights indicating the remaining battery charge.
• Jump Port: Connects to the smart jumper clamps.
• Output 1 (USB-A): 5V/3A, 9V/2A, 12V/1.5A (Quick Charge 3.0).
• Output 2 (USB-A): 5V/2.1A.
• Type-C Input/Output: 3A for charging the unit or other devices.
• ON/OFF Switch: Main power switch for the unit.
• LED Torch Light: Provides illumination, SOS, and strobe functions.

5. Charging the Jump Starter

Before first use, fully charge the jump starter. It is recommended to recharge the unit every 3-6 months to maintain battery health, especially during long-term storage.

1. Ensure the ON/OFF switch is in the 'ON' position before charging.
2. Connect the provided USB-A to USB-C cable to the Type-C input/output port on the jump starter.
3. Connect the other end of the USB cable to a 5V/2A or higher USB wall adapter (not included).
4. The power indicator LEDs will illuminate and flash during charging, indicating the charge level. All four LEDs will be solid when fully charged.

Image: The NPET P4F Jump Starter with its ON/OFF switch clearly visible, emphasizing the need to turn it 'ON' before charging for long-term storage.

Image: The NPET P4F Jump Starter acting as a compact power bank, charging a smartphone via its USB ports, demonstrating its quick charging capability.

6. Operating Instructions: Jump Starting a Vehicle

Follow these steps carefully to safely jump-start your vehicle:

1. Prepare the Jump Starter: Ensure the jump starter is at least 50% charged. Turn on the jump starter using the ON/OFF switch.
2. Connect Clamps to Jump Starter: Insert the blue plug of the smart jumper clamps into the jump port on the jump starter. Ensure a firm connection.
3. Connect Clamps to Car Battery:
   • Connect the RED positive (+) clamp to the positive (+) terminal of the car battery.
   • Connect the BLACK negative (-) clamp to the negative (-) terminal of the car battery.

   The smart clamps have built-in protection against incorrect connections.
4. Start the Vehicle: Once the clamps are correctly connected, start your vehicle's engine. If the vehicle does not start on the first attempt, wait at least 30 seconds before trying again. Do not crank the engine for more than 3 seconds per attempt.
5. Remove Clamps: Once the vehicle starts, immediately remove the BLACK negative (-) clamp from the car battery, followed by the RED positive (+) clamp. Then, disconnect the smart jumper clamps from the jump starter.

Image: The NPET P4F Jump Starter connected to a car battery, illustrating the process of jump-starting a vehicle quickly and efficiently.

7. Operating Instructions: Using as a Power Bank

The NPET P4F can also charge your electronic devices:

1. Ensure the ON/OFF switch is in the 'ON' position.
2. Connect your device's USB charging cable to either the USB-A Output 1 (Quick Charge 3.0 compatible) or USB-A Output 2 port on the jump starter.
3. Alternatively, use the Type-C port for charging compatible devices.
4. The jump starter will automatically begin charging your device.

Image: The NPET P4F Jump Starter connected to a smartphone, demonstrating its function as a portable power bank with quick charging capabilities.

8. Operating Instructions: LED Light Functions

The built-in LED light offers multiple modes for emergency situations:

• To turn on the light: Press and hold the LED light button (usually integrated with the power button or a dedicated button).
• To cycle modes: Short press the LED light button to switch between modes (e.g., solid light, SOS signal, strobe light).
• To turn off the light: Press and hold the LED light button again.

Image: The NPET P4F Jump Starter with its integrated LED flashlight activated, demonstrating its utility as an emergency light source with flashlight, SOS, and strobe functions.

9. Maintenance and Storage

• Charging: Recharge the unit every 3-6 months, even if not used, to prolong battery life.
• Cleaning: Wipe the unit with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the jump starter in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the ON/OFF switch is in the 'OFF' position for long-term storage.
• Water Resistance: The device is designed to be waterproof, dustproof, and drop-proof, but avoid submerging it in water.

Image: The NPET P4F Jump Starter, illustrating its robust design with waterproof, dustproof, and drop-proof capabilities, ensuring durability in various conditions.

10. Troubleshooting

11. Specifications

Image: The NPET P4F Jump Starter shown operating effectively in both hot (140°F/60°C) and cold (-4°F/-20°C) environments, highlighting its wide operating temperature range.

12. Warranty and Support

NPET provides a standard warranty for its products. Please refer to the warranty card included in your package or visit the official NPET website for detailed warranty terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact NPET customer service through their official website or the contact information provided in your product packaging.

Website: www.npet.com
