1. Introduction
Thank you for choosing the Mabe RMB400IAMRE0 Automatic Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read these instructions thoroughly before using the refrigerator and keep them for future reference.
2. Safety Information
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Ensure the refrigerator is properly grounded.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Unplug the refrigerator before cleaning or performing any maintenance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Product Overview
The Mabe RMB400IAMRE0 is a 400-liter automatic refrigerator featuring a top freezer configuration and a sleek black stainless steel finish. It includes an integrated water dispenser and an intuitive control panel for temperature management.
Figure 3.1: Exterior view of the Mabe RMB400IAMRE0 refrigerator.
Key features include:
- Top Freezer Configuration: Provides convenient access to frozen items.
- Automatic Defrost System: Eliminates the need for manual defrosting.
- 400 Liter Capacity: Ample storage space for groceries.
- Black Stainless Steel Finish: Durable and aesthetically pleasing.
- Integrated Water Dispenser: For easy access to chilled water.
Figure 3.2: Interior layout of the refrigerator compartment.
Figure 3.3: Refrigerator interior with food items, demonstrating storage capacity.
Figure 3.4: Detail of the humidity-controlled drawers.

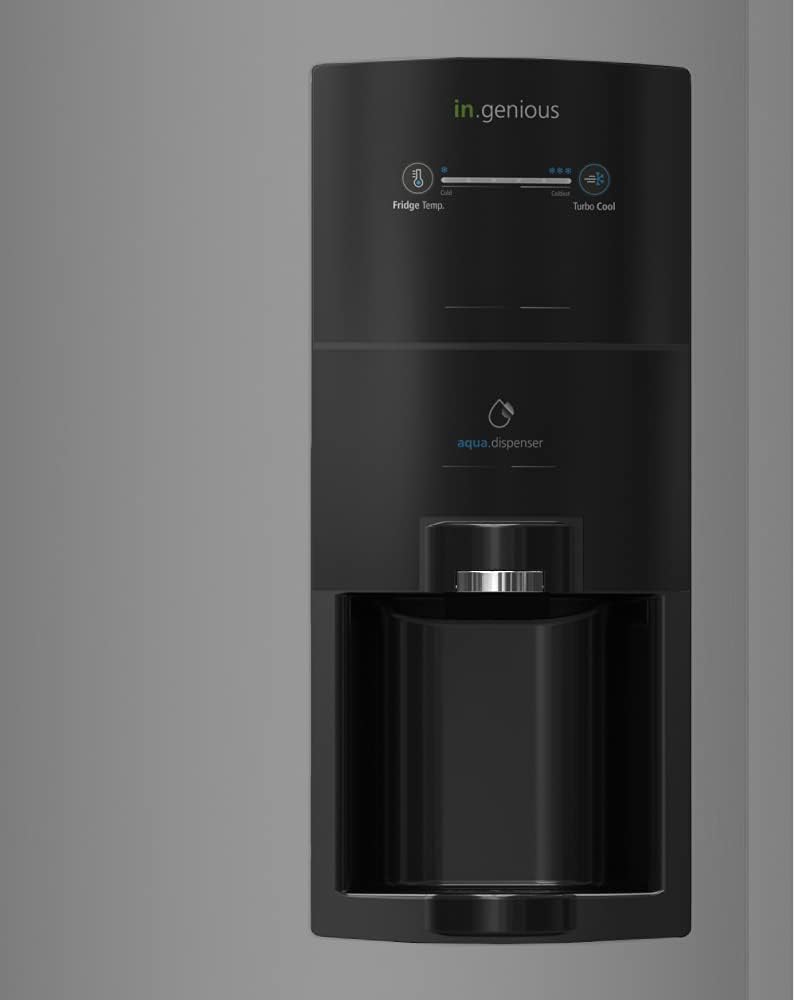

Figure 3.5: Control panel and water dispenser.
Video 3.1: This video showcases the Mabe RMB400IAMRE0 refrigerator, highlighting its exterior design, interior organization with adjustable shelves, and the convenient water dispenser. It demonstrates the spaciousness and practical features for food storage.
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator.
4.1 Unpacking
- Remove all packaging materials, including tape and protective films.
- Clean the interior of the refrigerator with a soft cloth and mild detergent.
4.2 Placement
- Place the refrigerator on a flat, stable surface away from direct sunlight and heat sources (e.g., stove, radiator).
- Allow adequate space around the refrigerator for proper ventilation (at least 10 cm on sides and back, 30 cm on top).
- Ensure the ambient temperature is suitable for the appliance's climate class.
4.3 Leveling
- Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This helps prevent vibrations and ensures proper door sealing.
4.4 Electrical Connection
- Plug the refrigerator into an exclusive, grounded electrical outlet. Do not use extension cords or adapters.
- Allow the refrigerator to stand for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Figure 4.1: Refrigerator dimensions for proper placement.
5. Operating Instructions
Familiarize yourself with the controls and features for optimal performance.
5.1 Initial Startup
- After plugging in, allow the refrigerator to run for several hours (at least 4-6 hours) to reach its operating temperature before storing food.
5.2 Temperature Control
- Use the electronic control panel (refer to Figure 3.5) to adjust the temperature settings for both the refrigerator and freezer compartments.
- The recommended temperature for the refrigerator compartment is typically between 2°C and 4°C (35°F and 40°F).
- The recommended temperature for the freezer compartment is -18°C (0°F).
- Adjust settings gradually and allow several hours for the temperature to stabilize.
5.3 Water Dispenser
- To use the water dispenser, place a glass or container under the dispenser nozzle and press the lever.
- Ensure the internal water tank is filled for the dispenser to operate.
5.4 Food Storage Tips
- Store fresh produce in the humidity-controlled drawers.
- Keep dairy products and meats on shelves where temperatures are most consistent.
- Ensure all food is properly sealed to prevent odor transfer and maintain freshness.
6. Maintenance and Cleaning
Regular cleaning and maintenance will help keep your refrigerator operating efficiently.
6.1 Cleaning the Interior
- Unplug the refrigerator before cleaning.
- Wash interior surfaces with a solution of warm water and mild soap. Do not use abrasive cleaners or harsh chemicals.
- Rinse thoroughly and dry with a soft cloth.
- Removable shelves and drawers can be washed in warm soapy water.
6.2 Cleaning the Exterior
- Wipe the exterior surfaces with a soft cloth dampened with warm soapy water. For black stainless steel, use a specialized stainless steel cleaner if necessary, following product instructions.
- Clean the door gaskets regularly to ensure a tight seal.
6.3 Automatic Defrost
Your Mabe RMB400IAMRE0 refrigerator features an automatic defrost system, eliminating the need for manual defrosting of the freezer compartment. If you notice excessive ice buildup, ensure the door seals are intact and not obstructed.
6.4 Condenser Coils
- Periodically clean the condenser coils located at the back or bottom of the refrigerator. Dust and debris can reduce cooling efficiency. Use a vacuum cleaner with a brush attachment.
7. Troubleshooting
Before contacting customer service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate | No power; power cord unplugged; circuit breaker tripped. | Check power supply; ensure cord is securely plugged in; reset circuit breaker. |
| Refrigerator is not cold enough | Temperature setting too high; door left open; excessive food load; poor ventilation. | Adjust temperature setting; ensure door is closed; reduce food load; clear ventilation. |
| Unusual noises | Refrigerator not level; items vibrating inside; normal operating sounds. | Level the refrigerator; reposition items; some sounds (e.g., refrigerant flow) are normal. |
| Water dispenser not working | Water tank empty; water line kinked or blocked. | Refill water tank; check water line for obstructions. |
| Excessive ice in freezer | Door not sealing properly; door left open too long. | Check door gasket for damage or obstruction; ensure door is fully closed. |
8. Specifications
Detailed technical specifications for the Mabe RMB400IAMRE0 refrigerator.
| Feature | Specification |
|---|---|
| Brand | mabe |
| Model Name | RMB400IAMRE0 |
| Capacity | 400 Liters |
| Configuration | Top Freezer |
| Color | Black Stainless Steel (Gris) |
| Dimensions (D x W x H) | 77.8 cm x 74.3 cm x 187.7 cm |
| Defrost System | Automatic |
| Refrigerant | R-134A |
| Material | Stainless Steel |
| Number of Doors | 1 |
| Cooling Method | Compressor |
| Installation Type | Freestanding |
| UPC | 757638368483 |
Figure 8.1: Energy efficiency information for the refrigerator.
9. Warranty and Support
For warranty information, please refer to the warranty card included with your purchase. This document outlines the terms and conditions of your product's warranty coverage.
If you require technical assistance, spare parts, or have any questions not covered in this manual, please contact Mabe customer service. Contact details can typically be found on the warranty card or the official Mabe website.
For additional resources and product information, you may visit the official Mabe YouTube channel: Mabe Official YouTube Channel
