Product Overview
This document provides instructions for the installation, operation, maintenance, and troubleshooting of the EverNice Rotary Hook and Cap Set. This set is a high-quality replacement part designed for specific PFAFF industrial sewing machine models. It includes the outer hook set (Part #91-010 895-91), inner hook (Part #91-010 157-01), and cap (Part #91-010 159-91), forming the complete rotary hook assembly (Part # HPF-144 / 91-010 896-91).
Compatibility: This rotary hook and cap set is compatible with PFAFF sewing machine models 141, 142, 143, 144, 145, 146, 175-196, and 871-893. If your original hook is marked with '10894', this replacement set is suitable.

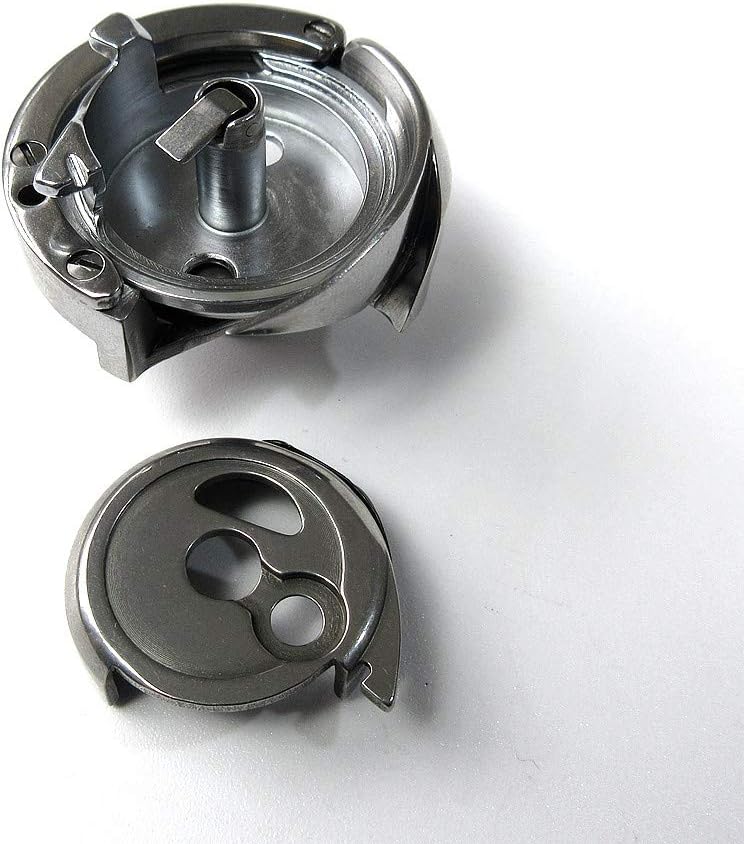

Image: The complete EverNice Rotary Hook and Cap Set, showing both the hook assembly and the separate cap component.
Installation Guide
Before beginning installation, ensure your sewing machine is turned off and unplugged from the power source to prevent accidental operation or injury. Refer to your sewing machine's specific service manual for detailed instructions on accessing the hook area.
- Preparation: Carefully open the bobbin case area of your sewing machine. Remove the needle plate and any other components obstructing access to the rotary hook.
- Old Hook Removal: Identify the existing rotary hook. Depending on your machine model, there may be screws or clips holding it in place. Loosen or remove these fasteners to carefully extract the old hook assembly. Note the orientation of the old hook for reference.
- New Hook Installation: Position the new EverNice Rotary Hook assembly (Part # HPF-144 / 91-010 896-91) into the machine. Ensure it seats correctly within its designated housing. The inner hook (Part #91-010 157-01) and outer hook set (Part #91-010 895-91) should fit together precisely.
- Cap Placement: Place the cap (Part #91-010 159-91) over the inner hook. Ensure it aligns properly and can rotate freely if designed to do so.
- Securing Components: Re-fasten any screws or clips that secure the rotary hook assembly. Do not overtighten. Gently rotate the handwheel of your sewing machine to ensure smooth movement of the hook.
- Reassembly: Replace the needle plate and any other removed components. Ensure all parts are securely in place before proceeding.
Image: A close-up view of the rotary hook component, showing its intricate design and spindle.
Image: A detailed view of the rotary hook cap, highlighting its shape and attachment points.
Operation
The EverNice Rotary Hook and Cap Set is a critical mechanical component within your sewing machine. It does not have independent operational controls. Its function is to catch the needle thread loop and carry it around the bobbin case to form a stitch. Proper installation ensures the smooth and efficient operation of your sewing machine.
After installation, perform a test stitch on a scrap piece of fabric to verify correct thread tension and stitch formation. Adjust your machine's settings as needed.
Maintenance
Regular maintenance of the rotary hook assembly is essential for prolonging the life of your sewing machine and ensuring consistent stitch quality.
- Cleaning: Periodically remove the needle plate and bobbin case to clean the rotary hook area. Use a small brush or lint remover to clear any lint, dust, or thread fragments that may accumulate. Accumulated debris can interfere with hook rotation and stitch formation.
- Lubrication: Consult your sewing machine's manual for specific lubrication requirements for the rotary hook. Typically, a small drop of high-quality sewing machine oil is applied to the hook race where the bobbin case rotates. Do not over-lubricate, as excess oil can attract more lint.
- Inspection: Regularly inspect the hook and cap for signs of wear, burrs, or damage. A damaged hook can cause skipped stitches, thread breakage, or damage to the needle. Replace the set if significant wear or damage is observed.
Troubleshooting Common Issues
If you encounter problems after installing the new rotary hook and cap set, consider the following common issues and solutions:
- Skipped Stitches:
- Ensure the needle is inserted correctly and is not bent or dull.
- Verify the rotary hook is installed correctly and is not loose.
- Check for proper timing between the needle and the hook. This may require professional adjustment.
- Thread Jamming/Breakage:
- Clean any lint or thread fragments from the hook area.
- Ensure the bobbin is wound correctly and inserted properly into the bobbin case.
- Check for burrs or rough spots on the hook or cap that could snag the thread.
- Unusual Noise:
- Lubricate the hook area as per your machine's manual.
- Ensure all components are securely fastened and not loose.
- Check for any foreign objects in the hook area.
If these steps do not resolve the issue, it is recommended to consult a qualified sewing machine technician.
Product Specifications
| Feature | Detail |
|---|---|
| Brand | EverNice |
| Part Number (Complete Set) | HPF-144 / 91-010 896-91 |
| Included Components | Cap (#91-010 159-91), Inner Hook (#91-010 157-01), Outer Hook Set (#91-010 895-91) |
| Compatibility | PFAFF 141, 142, 143, 144, 145, 146, 175-196, 871-893 (Also suitable if old hook marked '10894') |
| Material | High-quality metal (as per product description) |
| Finish Type | High Gloss |
Warranty Information
Specific warranty details for the EverNice Rotary Hook and Cap Set are provided by the seller at the time of purchase. Please retain your proof of purchase for any warranty claims. For detailed information regarding returns or replacements, refer to the seller's return policy or contact them directly.
Customer Support
For further assistance, technical support, or inquiries regarding this product, please contact the EverNice seller directly through the platform where the purchase was made. You may also visit the EverNice Store on Amazon for additional product information or to contact the brand.
