1. Product Overview
The Momcozy Retractable Baby Gate is designed to provide a safe and secure barrier for children and pets in various areas of your home. Its innovative retractable design allows for space-saving convenience when not in use, making it an ideal solution for doorways, stairs, and hallways. This gate extends up to 55 inches wide and stands 33 inches tall, offering versatile application for both indoor and outdoor environments.
Figure 1: Momcozy Retractable Baby Gate in use, demonstrating its sleek design.
2. Safety Information
Your child's safety is our top priority. This retractable baby gate features a double locking mechanism to ensure maximum security. All Momcozy baby gates are tested to meet or exceed both ASTM and EN safety standards.
IMPORTANT SAFETY WARNING:
- DO NOT install on drywall without proper stud support. The gate must be securely mounted into wall studs to ensure stability and prevent accidental dislodgement.
- Always ensure the gate is properly locked after extending it. An unlocked gate may retract unexpectedly.
- Regularly check all mounting hardware and components for wear or damage. Replace any worn or damaged parts immediately.
3. Package Contents
Please verify that all components are present before beginning installation:
- Installation template x1
- Safety gate x1
- Upper mounting brackets x2
- Lower mounting brackets x2
- Mount hook x4
- 10mm spacers x2
- 5mm spacers x2
- Short screws x16
- Long screws x16
- Wall anchors x20
- Instructions x1
4. Setup and Installation
The Momcozy Retractable Baby Gate is designed for hardware mounting into wall studs for maximum security. Installation can typically be completed in minutes with the provided tools.
- Mark Holes: Use the provided installation template to accurately mark the drilling locations for the upper and lower mounting brackets on your wall studs.
- Drill Holes: Carefully drill pilot holes at the marked locations. Ensure the drill bit size is appropriate for the screws and wall anchors (if applicable for non-stud mounting, though stud mounting is highly recommended).
- Install Brackets: Securely attach the upper and lower mounting brackets to the wall using the provided screws. Ensure they are firmly in place.
- Install Gate: Attach the main gate unit to the installed brackets. The gate should slide smoothly into place.
- Install Mount Hooks: Install the mount hooks on the opposite side of the opening, ensuring they align with the gate's handle when fully extended.

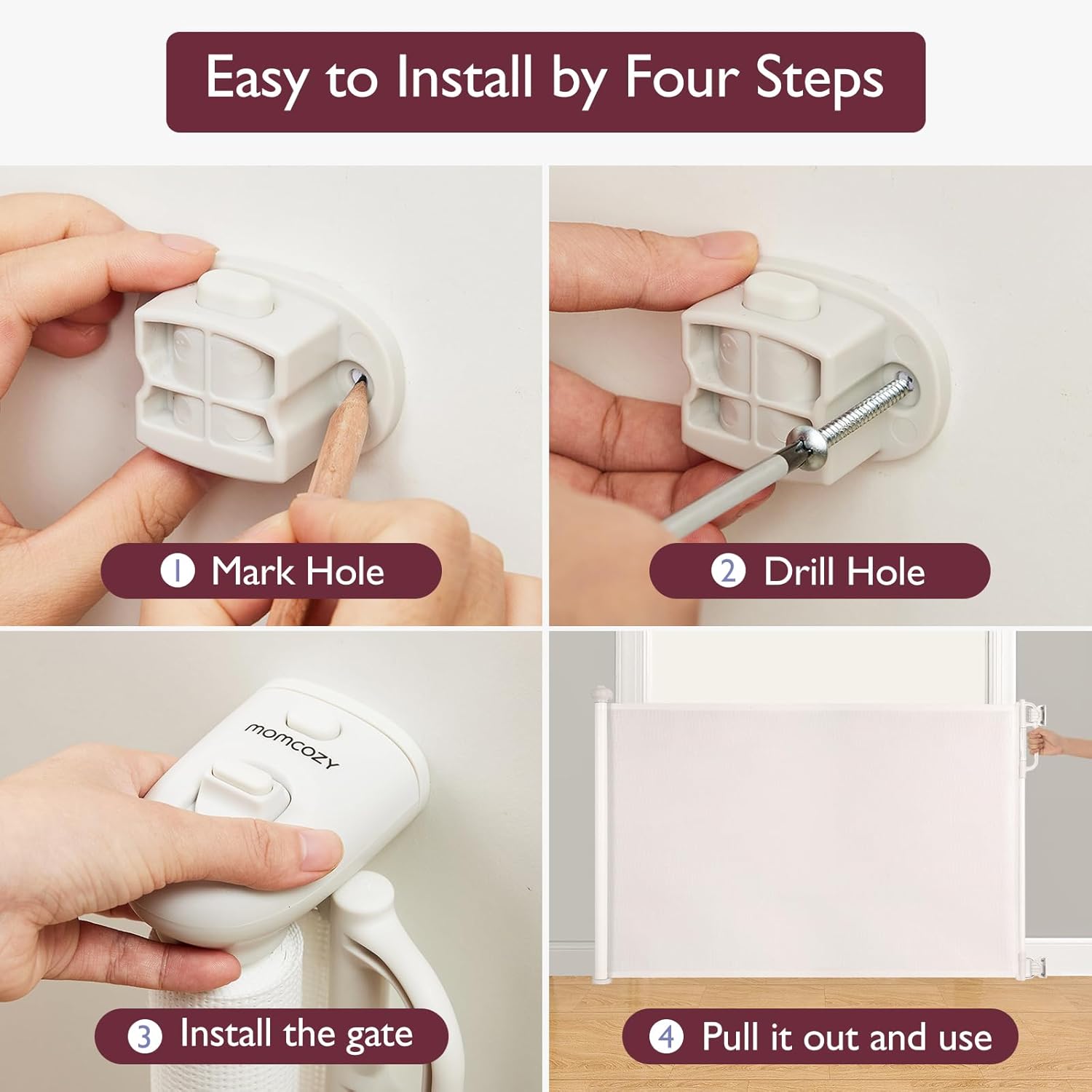

Figure 2: Visual guide for the four-step installation process.
For a visual demonstration of the installation process, please refer to the 'Product Overview Video' in the Operating Instructions section.
5. Operating Instructions
The Momcozy Retractable Baby Gate is designed for convenient one-handed operation.
- To Extend and Latch: Gently pull the gate's handle across the opening. Align the handle with the mount hooks on the opposite side and secure it.
- To Lock: Once extended and latched, gently push and twist the button on the top of the gate's main unit. This activates the double locking mechanism, preventing the gate from retracting or extending further. Ensure the gate is firmly locked for safety.
- To Unlock and Retract: To open the gate, first push and twist the button to unlock it. Then, unlatch the handle from the mount hooks. The mesh will smoothly retract into the main unit, clearing the opening.
Figure 3: The gate fully extended, showcasing its wide coverage.
Figure 4: Detail of the easy-to-use push and twist locking button.
Official Product Video: Product Overview
Video 1: This video provides a comprehensive overview of the Momcozy Retractable Baby Gate, including its features and operation.
6. Maintenance
To ensure the longevity and continued safe operation of your Momcozy Retractable Baby Gate, follow these simple maintenance guidelines:
- Cleaning: Wipe the mesh and plastic components with a damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals.
- Inspection: Periodically inspect all parts, especially the mesh, locking mechanism, and mounting points, for any signs of wear, tear, or damage.
- Lubrication: If the retraction mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to the moving parts, avoiding contact with the mesh.
7. Troubleshooting
If you encounter issues with your Momcozy Retractable Baby Gate, consider the following:
- Gate not retracting/extending smoothly: Check for any obstructions in the track or if the mesh is twisted. Ensure the locking mechanism is fully disengaged.
- Gate feels loose after installation: Re-check that all screws are tightened and that the mounting brackets are securely fastened into wall studs. If installed on drywall without studs, consider relocating to a stud or using heavy-duty drywall anchors designed for significant weight.
- Screws stripping or breaking during installation: Ensure you are using the correct drill bit size for pilot holes. If issues persist, consider using higher quality screws from a local hardware store.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Momcozy |
| Model Number | USVC-AM02-W |
| Product Dimensions | 55"W x 33"H (55 x 55 x 33 inches) |
| Item Weight | 10 pounds |
| Material | Mesh, Plastic, Metal |
| Mounting Type | Hardware Mount |
| Closure Type | Retractable |
| Target Species | Dog, Baby |
| UPC | 795632402826 |
9. Warranty and Support
For warranty information, product support, or to inquire about replacement parts, please contact Momcozy customer service directly. Refer to the product packaging or the official Momcozy website for the most current contact details.
