Coleshome L-Shaped Desk Assembly Parts Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, safe use, and maintenance of your Coleshome L-Shaped Desk assembly parts. Please read all instructions carefully before beginning assembly and retain this manual for future reference. The Coleshome brand focuses on providing high-quality home and office desks designed for a stylish and comfortable work environment.

Image 1.1: An assembled Coleshome L-Shaped Desk, showcasing its design and functionality in a home office environment.

2. Safety Information

Important: Ensure proper assembly by following all instructions provided in this manual. Failure to do so may result in instability or damage to the product. Be cautious when moving the freestanding desk to avoid injury or damage to the desk or surrounding property. Always lift the desk with assistance rather than dragging it. Keep small parts away from children during assembly.

3. Parts List

Before starting assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Desk Frame Components (Metal Legs, Support Beams)
• Desktop Panels (L-shaped sections)

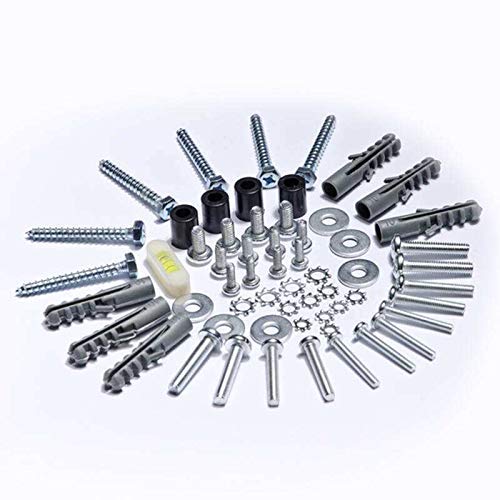

• Hardware (Screws, Spring Washers, Nuts, Allen Wrench)
• Adjustable Leveling Feet
• CPU Stand / Storage Shelves (if included with your specific model)

Note: The specific number and type of screws, springs, and nuts are included in the packaging.

4. Assembly Instructions

Follow these steps carefully to assemble your L-shaped desk. It is recommended that two people assemble the desk for ease and safety.

1. Step 1: Prepare the Workspace and Unpack Components

   Clear a spacious area for assembly. Lay out all frame components, desktop panels, and hardware on a soft, clean surface to prevent scratches and ensure easy access.

2. Step 2: Assemble the Main Frame Sections

   Begin by connecting the metal leg frames. Utilize the M-style buckle design for easy interlocking of the frame sections. Secure these connections using the provided screws and the Allen wrench. Do not fully tighten screws until all frame components are in place.

3. Step 3: Attach Crossbars and Supports

   Install the crossbars between the frame sections. These provide additional stability. Insert the screws through the designated holes and tighten them securely with the Allen wrench. Ensure all frame connections are now fully tightened.

4. Step 4: Place the Desktop Panels

   Carefully place the L-shaped desktop panels onto the assembled frame. Align the pre-drilled holes on the underside of the desktop with the holes on the top of the frame. Secure the desktop to the frame using the shorter screws provided. Tip: Do not tighten the screws fully until all desktop sections are aligned and in place. Once aligned, tighten all screws firmly.

5. Step 5: Install Adjustable Leveling Feet

   Screw the adjustable leveling feet into the bottom of each leg. These feet allow you to stabilize the desk on uneven floors. Adjust the height of each foot by rotating it until the desk is level and stable.

6. Step 6: Assemble and Place Storage Shelves/CPU Stand (Optional)

   If your model includes storage shelves or a CPU stand, assemble them according to their specific instructions and place them in the designated areas under the desk. Ensure they are securely attached or positioned to prevent items from slipping.

Image 4.1: The completed L-shaped desk, highlighting the rounded corner design for safety and ample workspace.

5. Usage and Care

5.1. Proper Usage

• Do not overload the desk. Distribute weight evenly across the desktop.
• Avoid placing hot items directly on the desktop surface without protection.
• The desk features a rounded corner design for safety; however, exercise caution to prevent bumps or injuries.
• Ensure the adjustable feet are properly set to prevent wobbling.

5.2. Maintenance

• Clean the desktop surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Keep the desk away from direct sunlight and excessive moisture to prolong its lifespan.

6. Troubleshooting

6.1. Desk is Wobbly

• Check if all screws are tightened securely.
• Adjust the leveling feet at the bottom of the legs to compensate for uneven floor surfaces.

6.2. Parts Do Not Align During Assembly

• Ensure you are following the assembly steps in the correct order.
• Loosen all screws slightly, adjust the parts into alignment, then retighten.
• Verify that you are using the correct parts for each step as per the parts list.

7. Specifications

8. Warranty and Support

8.1. Warranty Information

This product comes with a Limited Warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included in your product packaging or contact Coleshome customer service.

8.2. Protection Plans

Extended protection plans may be available for purchase separately. These plans typically offer additional coverage beyond the manufacturer's limited warranty. Examples include:

• 2-Year Protection Plan
• 3-Year Protection Plan
• Complete Protect: One plan covers all eligible past and future purchases (monthly billing option available)

Please check with your retailer or the protection plan provider for full terms and conditions.

8.3. Customer Support

For any questions, missing parts, or assistance with assembly, please contact Coleshome customer support. Refer to your product packaging or the Coleshome official website for contact details.
