tectake® Mini Portable 2-in-1 Washing Machine with Spin Dryer

1. Introduction and Overview

The tectake Mini Portable 2-in-1 Washing Machine with Spin Dryer is designed for efficient and convenient laundry care in various settings, including small living spaces, dormitories, RVs, and during travel or camping. This compact appliance offers both washing and spinning functions in a single unit, saving time, water, and energy.

Its robust construction from polypropylene and aluminum ensures durability, while its quiet operation provides a comfortable user experience. With a wash capacity of 4.5 kg and a spin capacity of 3.5 kg, it is suitable for small to medium loads.

Figure 1: The tectake Mini Portable 2-in-1 Washing Machine with Spin Dryer, showcasing its compact design and included accessories like the drain hose and spin basket cover.

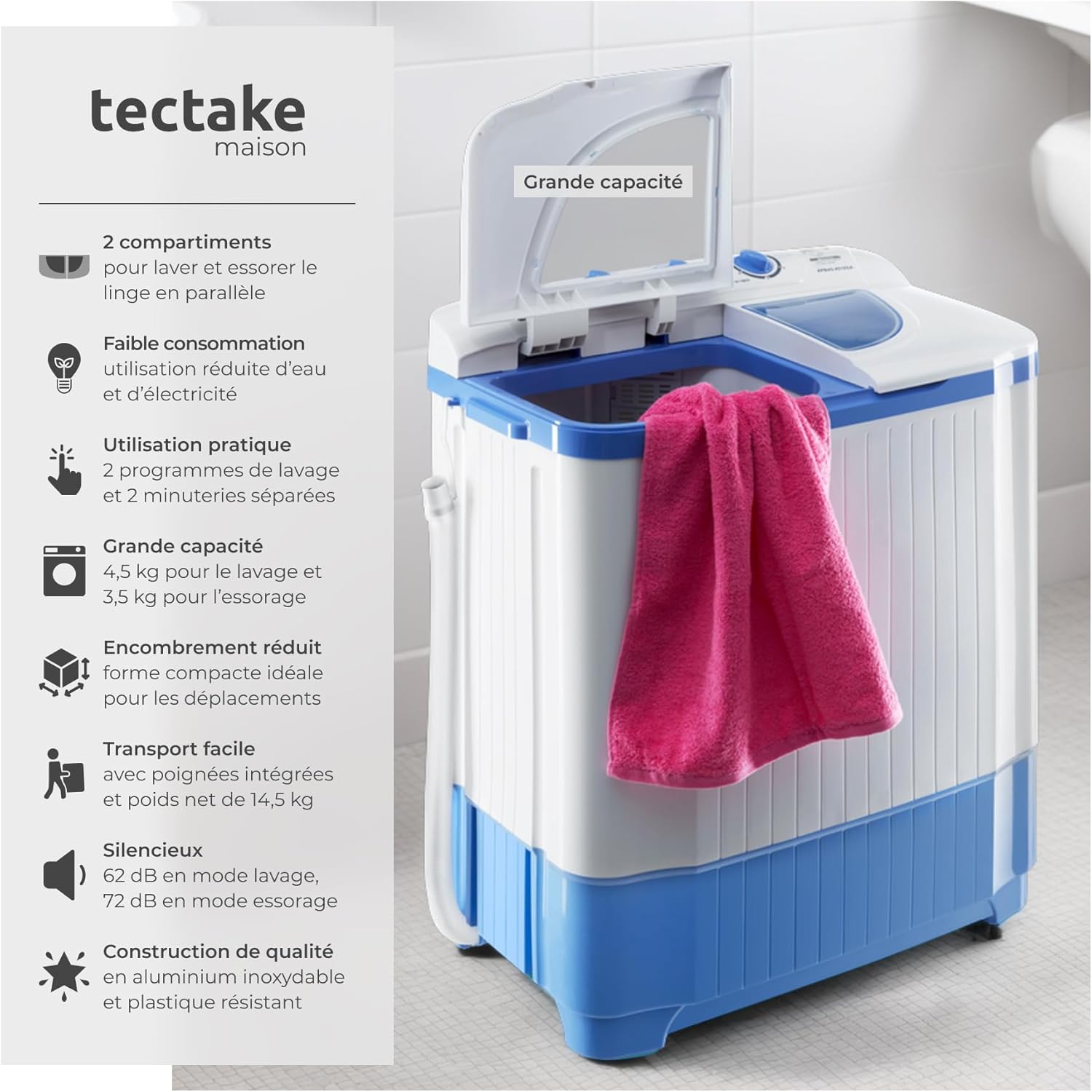

Figure 2: Key features of the washing machine, including its two compartments for simultaneous washing and spinning, low water and electricity consumption, two wash programs, 4.5 kg wash capacity, 3.5 kg spin capacity, compact design for travel, easy transport with integrated handles, quiet operation (62 dB wash, 72 dB spin), and quality construction from stainless aluminum and resistant plastic.

2. Safety Instructions

Please read all safety instructions carefully before operating the appliance to prevent injury or damage. Keep this manual for future reference.

• Ensure the appliance is connected to a grounded power outlet with the correct voltage (220-240V / 50 Hz).
• Do not operate the machine with a damaged power cord or plug.
• Keep children and pets away from the appliance during operation.
• Do not immerse the appliance in water or other liquids.
• Always unplug the machine before cleaning or performing any maintenance.
• Ensure the spin drum cover is securely in place during the spin cycle to prevent items from flying out.
• The machine is equipped with an automatic overheat interruption function and a secured electrical circuit for enhanced safety.
• Do not overload the machine beyond its specified capacities (4.5 kg wash, 3.5 kg spin).

3. Components and Controls

Familiarize yourself with the different parts and controls of your washing machine.

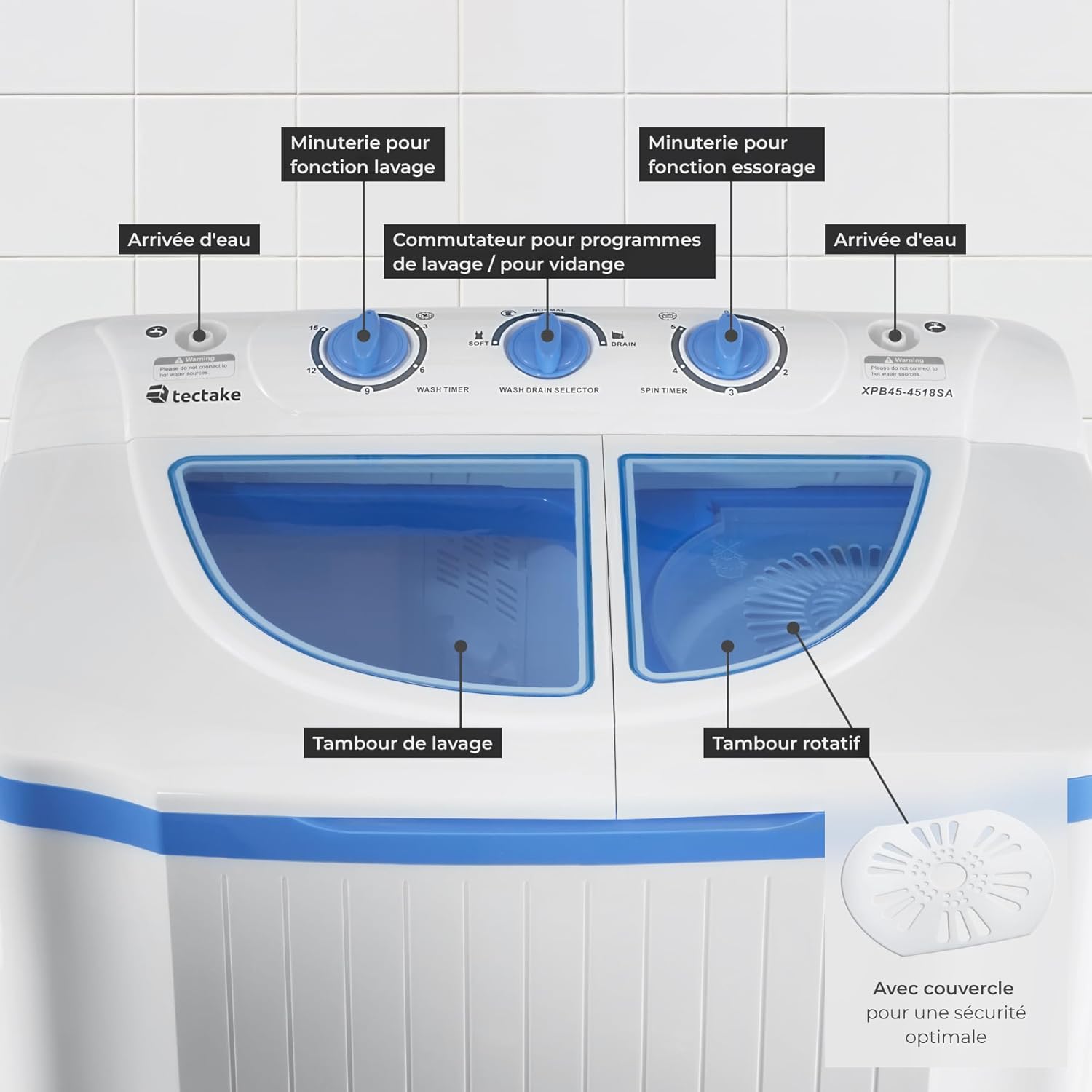

Figure 3: Top view of the washing machine showing the control panel and internal compartments. Key elements include the Wash Timer, Wash/Drain Selector, Spin Timer, Water Inlets, Wash Drum, Spin Drum, and the safety cover for the spin drum.

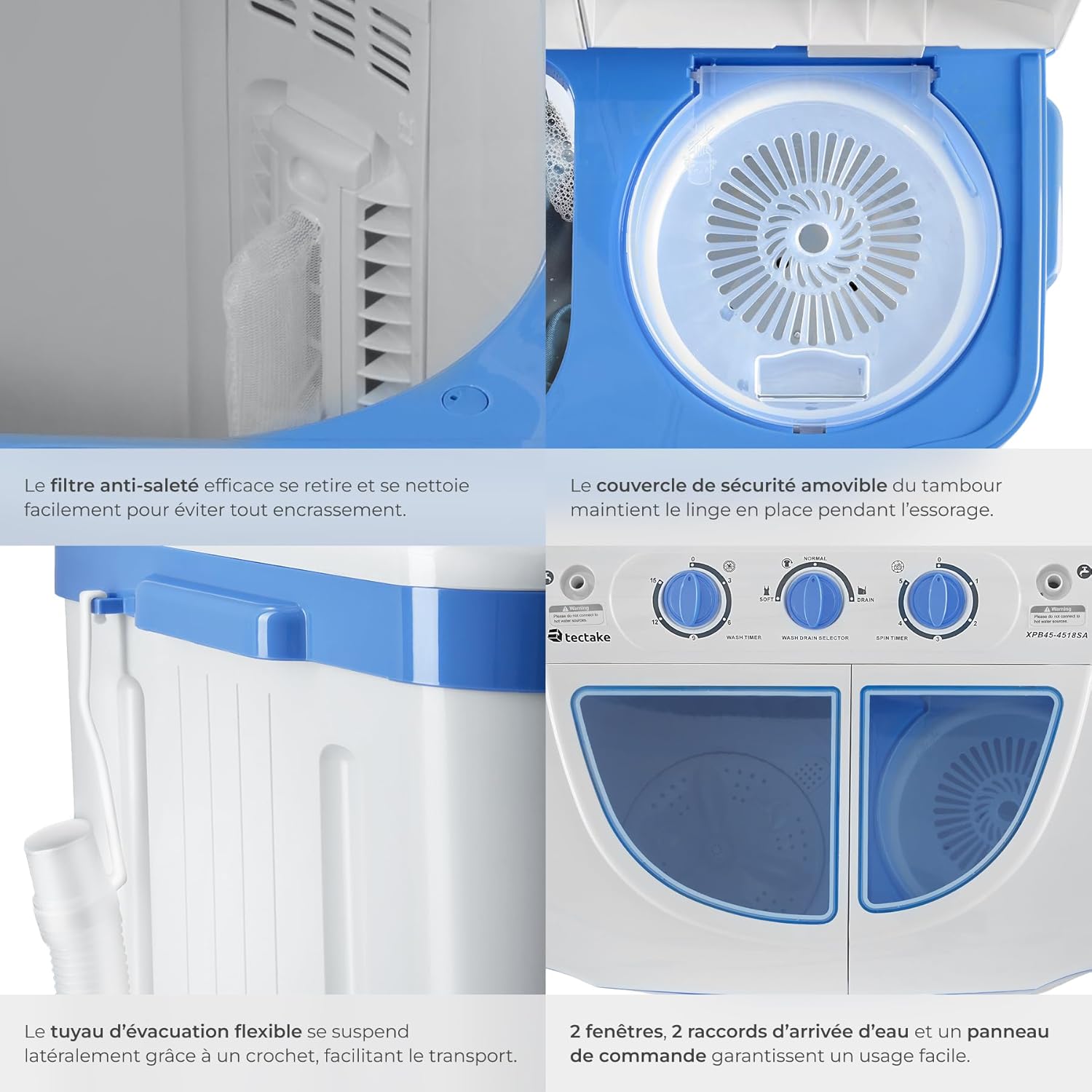

Figure 4: Close-up views highlighting the removable anti-dirt filter for easy cleaning, the removable safety cover for the spin drum, the flexible drain hose with a side hook for transport, and the control panel with two water inlet connections for easy use.

Main Components:

• Wash Drum: For washing clothes (left compartment).
• Spin Drum: For spinning clothes (right compartment).
• Safety Cover: Placed over the spin drum during operation.
• Water Inlet: Connections for filling water into the wash drum.
• Drain Hose: Flexible hose for draining water.
• Anti-dirt Filter: Located inside the wash drum to collect lint and debris.

Control Panel:

• Wash Timer: Sets the duration of the wash cycle (up to 15 minutes).
• Wash/Drain Selector: Switches between wash mode and drain mode.
• Spin Timer: Sets the duration of the spin cycle (up to 5 minutes).

4. Setup

1. Unpacking: Carefully remove the washing machine from its packaging. Retain packaging materials for future transport or storage.
2. Placement: Place the machine on a firm, level surface. Ensure there is enough space around it for ventilation and access. It should be near a drain or a suitable container for water discharge.
3. Water Inlet Connection: Connect the water inlet hose to a water source. The machine has two water inlet connections.
4. Drain Hose Positioning: Position the drain hose to direct wastewater into a sink, bucket, or drain. Ensure the hose is not kinked or blocked. The flexible drain hose can be hung laterally using its integrated hook for convenience.
5. Power Connection: Plug the power cable into a suitable grounded electrical outlet.

5. Operating Instructions

Washing Cycle:

1. Load Laundry: Open the lid of the wash drum (left compartment) and place your laundry inside. Do not exceed the 4.5 kg wash capacity.
2. Add Water: Manually fill the wash drum with water to the desired level. You can use the water inlet connections or pour water directly. Ensure the water temperature is appropriate for your laundry.
3. Add Detergent: Add the appropriate amount of laundry detergent directly into the wash drum.
4. Select Program: Turn the Wash/Drain Selector to the desired wash program (Normal or Delicate). The machine offers 2 wash programs.
5. Set Wash Timer: Turn the Wash Timer knob to set the desired wash duration (e.g., 5-15 minutes). The machine will start washing.
6. Drain Water: Once the wash cycle is complete, turn the Wash/Drain Selector to the 'Drain' position to empty the water from the wash drum. Ensure the drain hose is properly positioned.

Spin Cycle:

1. Transfer Laundry: Carefully transfer the washed laundry from the wash drum to the spin drum (right compartment). Do not exceed the 3.5 kg spin capacity.
2. Balance Load: Distribute the laundry evenly inside the spin drum to ensure a balanced load. An unbalanced load can cause excessive vibration and noise.
3. Place Safety Cover: Place the safety cover securely over the laundry in the spin drum.
4. Set Spin Timer: Turn the Spin Timer knob to set the desired spin duration (e.g., 1-5 minutes). The spin cycle will begin.
5. Remove Laundry: Once the spin cycle is complete, remove the safety cover and take out the spun laundry.

6. Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the life of your washing machine.

• Cleaning the Anti-dirt Filter: The effective anti-dirt filter should be removed and cleaned regularly to prevent clogging and ensure efficient operation. Simply pull it out, remove accumulated lint and debris, rinse under water, and reinsert.
• Cleaning the Drums: After each use, wipe down the inside of both the wash and spin drums with a damp cloth to remove any residue.
• Exterior Cleaning: Clean the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Drain Hose: Periodically check the drain hose for any blockages or damage. Ensure it is clear for proper water drainage.
• Storage: If storing the machine for an extended period, ensure it is completely dry. Store in a cool, dry place away from direct sunlight.

7. Troubleshooting

This section addresses common issues you might encounter with your tectake Mini Portable Washing Machine.

8. Technical Specifications

Detailed specifications for the tectake Mini Portable 2-in-1 Washing Machine.

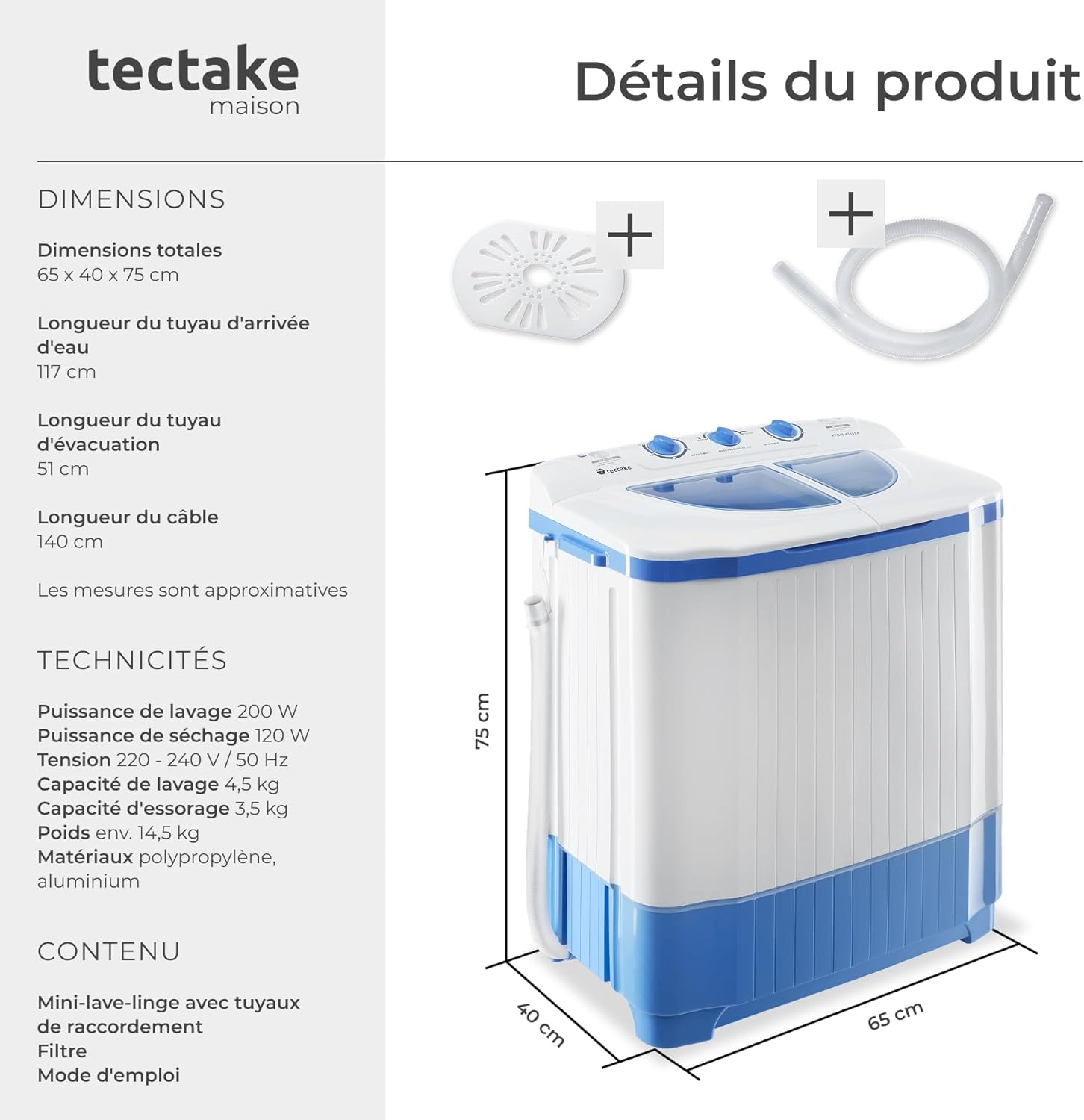

Figure 5: Visual representation of the product's dimensions and a summary of its technical specifications and contents. Dimensions are approximate.

9. What's in the Box

Upon unpacking, ensure all the following components are present:

• 1 x tectake Mini Washing Machine
• 1 x Filter (for wash drum)
• 1 x Instruction Manual

10. Warranty and Support

For warranty information, returns, or technical support, please refer to the purchase documentation or contact the seller directly. Standard return policies typically allow for returns within 30 days of purchase. For any operational issues not covered in the troubleshooting section, please reach out to TecTake customer service or the retailer from whom you purchased the product.
