1. Introduction
The KingHe Solar Street Light (Model KH-200-2) is an advanced outdoor lighting solution designed for efficiency and convenience. Featuring a high-capacity 6V/20W monocrystalline silicon solar panel, it converts 26% of solar energy into electricity, providing 12-15 hours of continuous lighting after just 4-5 hours of direct sunlight. Equipped with 336 high-quality SMD 2835 LED chips, this light delivers 12000 lumens of super bright illumination, covering an area of up to 1900 sq. ft. It's an ideal, electricity-free replacement for traditional halogen lamps, perfect for yards, garages, barns, driveways, and other outdoor spaces.
Overview of the KingHe Solar Street Light.
2. Package Contents
Verify that all items listed below are included in your package:
- Solar Light Unit
- Solar Panel (integrated)
- Light Arm
- Light Connecting Piece
- Remote Control
- Mounting Accessories (bolts, screws, etc.)
- User Manual

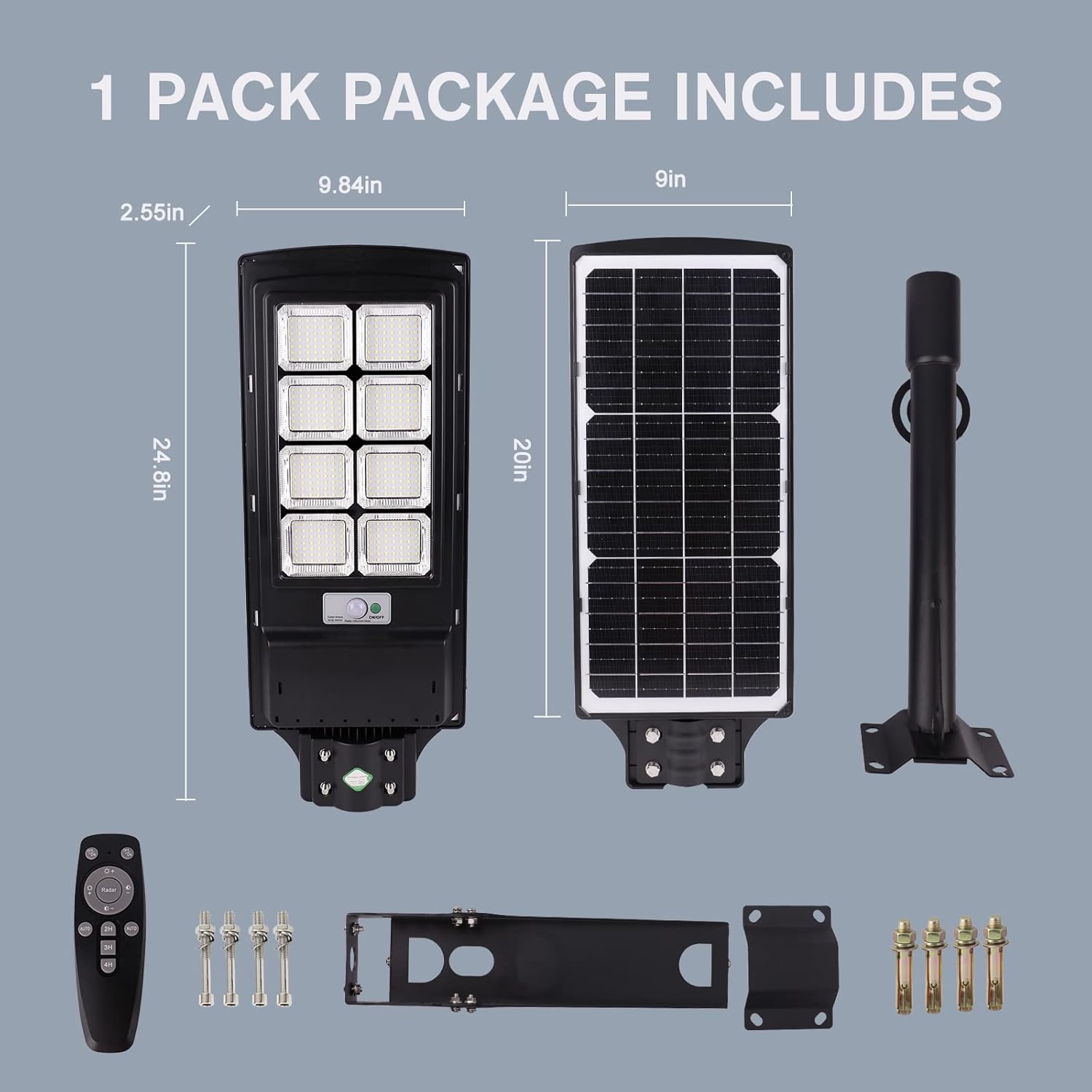

All components included in the KingHe Solar Street Light package.
3. Setup Instructions
The KingHe Solar Street Light offers flexible installation options, allowing for mounting on a pole (not included) or directly on a wall. A detailed installation manual and all necessary tools are included in the package for a straightforward setup process. Ensure the solar panel is positioned to receive maximum direct sunlight throughout the day for optimal charging performance.
Diagram illustrating wall mount and pole mount installation options.
Demonstration of the KingHe Solar Street Light's motion detection feature in an outdoor setting.
4. Operating Instructions
This commercial solar street light features intelligent dual sensor modes and remote control functionality.
- Dusk to Dawn Mode: The built-in light sensor automatically activates the light at dusk and deactivates it at dawn, providing consistent illumination throughout the night.
- Motion Sensor Mode: When motion is detected within range, the light automatically increases to 100% brightness. After motion ceases, it returns to 30% brightness to conserve energy. The radar sensing distance is approximately 32-39 feet.
- Remote Control: Use the included remote control to easily turn the LED street light on/off, switch between modes, and adjust settings as needed.
Visual representation of motion sensor and dusk to dawn modes.
Illustration of the radar sensing distance for motion detection.
5. Maintenance
The KingHe Solar Street Light is designed for durability with an IP65 waterproof rating, allowing it to withstand various outdoor weather conditions including hurricanes, snowfall, and thunderstorms. To ensure optimal performance and longevity:
- Regularly clean the surface of the solar panel to remove dust, dirt, or debris that may obstruct sunlight absorption.
- Ensure the light sensor and motion sensor are clear of any obstructions.
- While the unit is robust, avoid physical impact or unnecessary tampering with components.
The light's IP65 rating ensures resistance to water and harsh weather.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at dusk. | Insufficient solar charge; light sensor obstructed; battery issue. | Ensure solar panel receives 4-5 hours of direct sunlight daily. Clean the solar panel and light sensor. Check remote control settings. |
| Light is dim or turns off too early. | Insufficient charge; prolonged cloudy weather; battery degradation. | Allow several days of full sunlight for charging. If issue persists after 1-2 years, battery may need replacement (contact support). |
| Motion sensor not working. | Sensor obstructed; incorrect mode selected; sensor range issues. | Ensure sensor is clear of obstructions. Verify motion sensor mode is active via remote control. Adjust light position if necessary. |
| Remote control not responding. | Remote battery low/dead; remote not aimed correctly; interference. | Replace remote control batteries. Ensure direct line of sight to the light's receiver. Reduce potential interference. |
7. Specifications
| Feature | Detail |
|---|---|
| Color | Black |
| Material | Aluminum, Glass, Plastic |
| Style | Modern |
| Light fixture form | Wall |
| Room Type | Garage |
| Specific Uses For Product | Garden |
| Indoor/Outdoor Usage | Outdoor |
| Power Source | Solar Powered |
| Installation Type | Wall Mount |
| Special Feature | Dusk to Dawn, Motion Sensor, Waterproof, solar charging, Remote Control |
| Control Method | Remote |
| Light Source Type | LED |
| Finish Type | Brushed |
| Shade Material | Metal |
| Number of Light Sources | 336 |
| Voltage | 3.2 Volts |
| Theme | outdoor lighting, solar parking lot light, solar street lights |
| Light Color | Cool White |
| Shape | Rectangular |
| Included Components | Batteries included, LED Lens, LED Reflector, Remote Control |
| Wattage | 500 watts |
| Bulb Base | GX53 |
| Controller Type | Remote Control |
| Switch Type | Touch |
| Unit Count | 1.0 Count |
| Water Resistance Level | Waterproof |
| Brightness | 12000 Lumen |
| Efficiency | 26% |
| Mounting Type | pole mounting |
| Shade Color | black |
| Color Temperature | 6500 Kelvin |
| Average Life | 50000 Hours |
| Maximum Compatible Wattage | 500 Watts |
8. Warranty and Support
This KINGHE solar street light comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use.
For any questions, concerns, or warranty claims, please contact our customer service team. We are devoted to providing a satisfying purchase experience and will reply within 24 hours.
Contact Information: Please refer to your purchase platform or product packaging for the most current customer service contact details.
