1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your PQY 12V Electric Fuel Pump, Model HEP-04. This universal inline fuel pump is designed for use with petrol and diesel engines in various applications, including automobiles, motorcycles, ATVs, lawn mowers, trucks, boats, and generators.
Please read this manual thoroughly before installation and operation to ensure proper function and safety.
2. Product Features
The PQY HEP-04 Electric Fuel Pump offers reliable fuel delivery with the following key features:
- Optimizes fuel combustion for increased efficiency and reduced emissions.
- Features a superior impeller outer-case mechanism for maximum fuel flow.
- Ensures consistent fuel flow even at low electric amperage.
Image 2.1: PQY Electric Fuel Pump highlighting its features and specifications (Voltage: 12V, Flow: 90L/H, Pressure: 4-7PSI).
3. Specifications
| Specification | Value |
|---|---|
| Brand | PQY |
| Model Number | HEP-04 (also compatible with EP12S, FEP12SV, HEP-02A) |
| Voltage | 12V |
| Flow Rate | 90 L/H |
| Pressure | 4-7 PSI |
| Material | Copper |
| Operation Mode | Electric |
| Compatible Fuel Types | Petrol, Diesel |
| Vehicle Service Type | Motorcycle, ATV, Automotive |

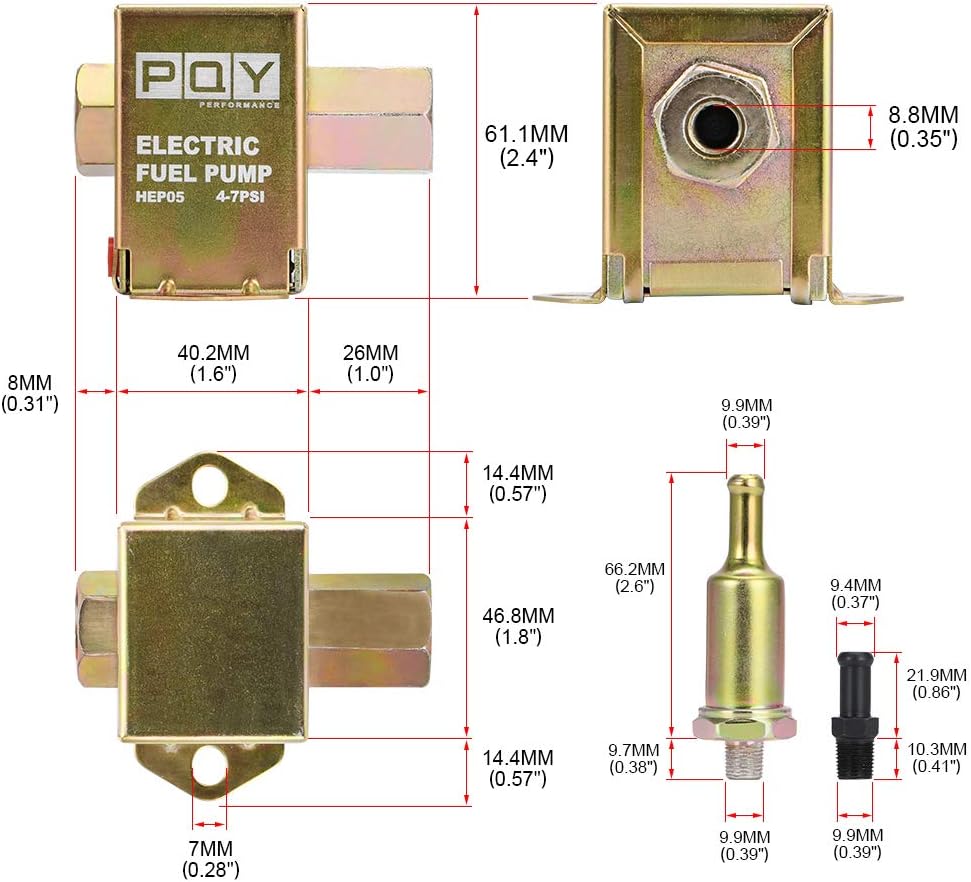

Image 3.1: Detailed dimensions of the PQY Electric Fuel Pump and its components.
4. Installation Instructions
Follow these steps carefully for proper installation of the electric fuel pump. Always ensure the vehicle's battery is disconnected before beginning any electrical work.
- Disconnect the battery: Ensure the vehicle's battery is completely disconnected to prevent electrical hazards.
- Uninstall the mechanical fuel pump: If replacing an existing mechanical pump, remove it according to the vehicle manufacturer's instructions.
- Select mounting area: Choose an area close to the existing fuel lines and near the fuel tank to mount the electric fuel pump. Ensure it is protected from road debris and heat.
- Connect fuel lines: Connect the fuel line from the tank to the fuel filter, and then connect the fuel filter to the inlet port of the electric fuel pump.
- Connect carburetor delivery line: Connect the carburetor delivery line to the outlet port of the fuel pump.
- Connect power lead: Connect the positive (+) power lead from the fuel pump to the (P) terminal of the oil switch or a suitable switched 12V power source.
- Connect ground wire: Connect the negative (-) ground wire from the fuel pump securely to a clean, unpainted metal surface on the vehicle's chassis or frame.
- Check for leaks: Reconnect the battery. Start the engine and carefully check all fuel line connections for any leaks.
Image 4.1: Visual guide for installing the electric fuel pump, including a wiring diagram and examples of fuel line connections.
NOTE: Avoid routing fuel lines in areas that could cause chafing or damage due to heat or moving parts.
5. Operating Instructions
Once properly installed, the PQY 12V Electric Fuel Pump operates automatically when the vehicle's ignition is turned on, delivering a consistent flow of fuel to the engine. No specific user interaction is required during normal operation.
- Ensure your fuel tank always contains an adequate amount of fuel to prevent the pump from running dry, which can cause damage.
- Listen for the pump's characteristic hum when the ignition is first turned on (before starting the engine) to confirm it is priming the fuel system.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your fuel pump and fuel system.
- Fuel Filter: Regularly inspect and replace your fuel filter according to your vehicle's service schedule or more frequently if operating in dusty conditions. A clogged fuel filter can strain the fuel pump.
- Connections: Periodically check all electrical and fuel line connections for tightness and signs of wear or corrosion.
- Visual Inspection: Inspect the pump for any physical damage, leaks, or unusual noises during operation.
7. Troubleshooting
If you experience issues with your fuel pump, consider the following common troubleshooting steps:
- No Power to Pump: Check the electrical connections, fuses, and relays in the fuel pump circuit. Ensure the ground connection is secure.
- Engine Cranks but Won't Start: Verify there is fuel in the tank. Check the fuel filter for clogs. Listen for the pump priming when the ignition is turned on.
- Low Fuel Pressure/Poor Performance: A clogged fuel filter is a common cause. Inspect fuel lines for kinks or restrictions. The pump itself may be failing if other components are ruled out.
- Leaks: Immediately address any fuel leaks. Check all hose clamps and fittings for tightness.
If these steps do not resolve the issue, it is recommended to consult a qualified mechanic.
8. Safety Information
Working with fuel and electrical systems can be dangerous. Always prioritize safety.
- Fire Hazard: Fuel is highly flammable. Work in a well-ventilated area away from open flames, sparks, or other ignition sources. Have a fire extinguisher readily available.
- Electrical Shock: Always disconnect the vehicle's battery before working on electrical components.
- Eye Protection: Wear appropriate eye protection to guard against fuel splashes or debris.
- Fuel Spills: Clean up any fuel spills immediately and dispose of contaminated materials properly.
- Professional Help: If you are unsure about any installation or repair steps, seek assistance from a qualified automotive technician.
9. Warranty and Support
For specific warranty information regarding your PQY 12V Electric Fuel Pump (Model HEP-04), please refer to the documentation provided at the time of purchase or contact the seller directly. PQY stands behind the quality of its products.
For additional support or inquiries, you may visit the official PQY store on Amazon: PQY Store
