Snap Circuits Green Energy Electronics Exploration Kit Instruction Manual

Introduction

The Snap Circuits Green Energy STEM building kit is designed to introduce users to the fundamentals of building electronic circuits and exploring various green energy technologies. This kit utilizes unique building blocks with snaps for easy assembly of different electrical circuits. Each block serves a specific function, including switches, lights, batteries, and various wire lengths. The components are color-coded and numbered for straightforward identification during the building process. This set offers over 125 different circuit projects, providing an engaging way to learn about alternative energy sources such as wind, solar, and water power.

Safety Information

This product is covered by a 2 Year Limited Warranty. Always ensure proper battery installation and follow all instructions carefully to prevent damage or injury. Do not attempt to modify components or use them in ways not specified in this manual. Adult supervision is recommended for users under the age of 8.

What's in the Box

The Snap Circuits Green Energy kit includes the following components:

• Base Grid
• 1-Snap Wire, 2-Snap Wire, 3-Snap Wire, 4-Snap Wire, 5-Snap Wire
• NiMH H-1/3AAA120mA/3.6V battery
• Solar Cell
• 470mF Capacitor
• Color LED, Red/Yellow LED
• Copper Electrode, Zinc Electrode, Copper Electrode with Snap
• Gear 1.75", Geared Motor, Crank Arm
• Black Jumper Wire, Red Jumper Wire
• Liquid Holder
• Motor, Wind Fan, Water Wheel
• Meter
• Mini Car
• Pivot Stand Base, Pivot Post, Pivot Top
• Rubber Ring 0.375"
• Press Switch, Switcher
• Clock, Melody IC
• Nut 8-32, Screw 8-32

Setup

Before beginning any projects, ensure you have 3 AA batteries (not included) ready for installation into the battery holder component. The Snap Circuits kit is designed for easy assembly without the need for soldering or additional tools.

1. Unpack Components: Carefully remove all parts from the packaging tray. Familiarize yourself with the different color-coded and numbered components.
2. Prepare the Base Grid: The transparent base grid serves as the foundation for all projects. It has a series of snap points where components will be attached.
3. Install Batteries: Locate the battery holder component. Insert 3 AA batteries, ensuring correct polarity (+/-) as indicated inside the holder.
4. Refer to the Project Manual: The included full-color project manual provides step-by-step instructions for each project. Begin with Project #1 to understand the basic principles of circuit building.

Image: The Snap Circuits Green Energy kit packaging, displaying the main components and an example circuit setup. This kit allows for hands-on learning about electronics and green energy.

Operating Instructions: Building Projects

The core of the Snap Circuits experience is building various electronic projects by snapping components onto the base grid. Each project in the manual is clearly illustrated with circuit diagrams and written instructions.

1. Select a Project: Choose a project from the manual. It is recommended to start from Project #1 and progress sequentially as projects gradually increase in complexity.
2. Identify Components: Each project diagram shows the specific components required and their placement on the grid. Identify these components from your kit.
3. Snap Components into Place: Align the metal snaps on the components with the corresponding holes on the base grid and press firmly until they snap into place. Ensure all connections are secure.
4. Test the Circuit: Once all components are connected according to the diagram, activate the circuit (e.g., by pressing a switch or turning a crank) to observe the intended outcome, such as a light illuminating, a fan spinning, or a sound playing.
5. Experiment and Explore: After successfully building a project, feel free to experiment by slightly altering the circuit (if the manual allows) to understand how changes affect the outcome.

Image: A young user engaged in building a circuit with the Snap Circuits Green Energy kit, demonstrating the hands-on nature of the learning experience.

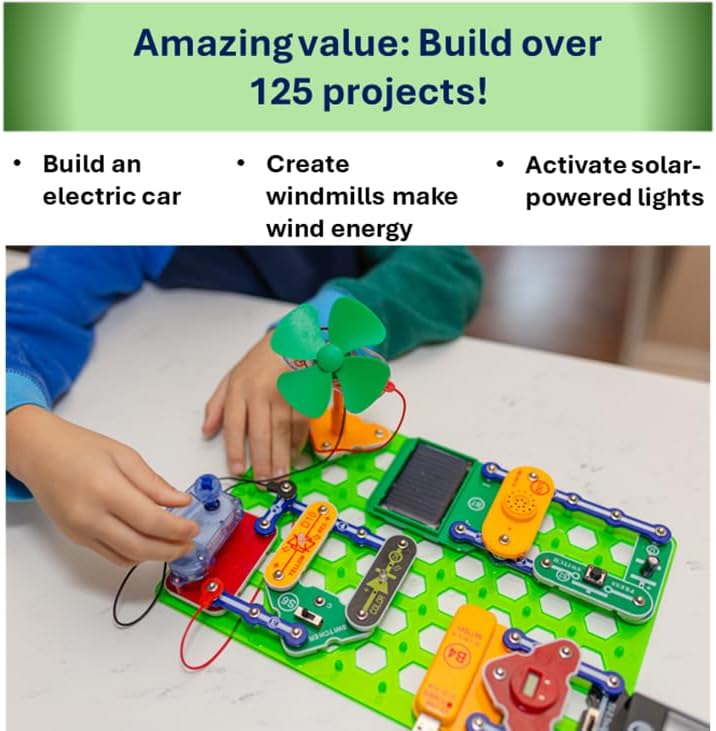

Image: An overview of the kit's capabilities, highlighting the ability to build over 125 projects, including electric cars, windmills, and solar-powered lights.

Image: Two children collaboratively learning about alternative energy principles using the Snap Circuits kit, emphasizing the educational and interactive aspects.

Image: A close-up of assembled Snap Circuits components, demonstrating the simple snap-together mechanism that requires no additional tools.

Image: A detailed diagram of a Snap Circuits project, labeling key components such as the solar cell, motor, and hand crank, to illustrate how alternative energy concepts are explored.

Maintenance

• Cleaning: To clean the components, gently wipe them with a dry, soft cloth. Avoid using water or cleaning solutions, as this may damage the electronic parts.
• Storage: Store all components in their original tray and box to prevent loss and damage. Keep the kit in a cool, dry place away from direct sunlight.
• Battery Care: Remove batteries from the battery holder if the kit will not be used for an extended period to prevent leakage and corrosion.

Troubleshooting

• Circuit Not Working:
  • Ensure all components are securely snapped into place.
  • Verify that batteries are correctly installed with the correct polarity and are not depleted.
  • Double-check the circuit diagram in the manual to ensure all connections match the instructions precisely.
  • Inspect components for any visible damage.
• Intermittent Operation: If the circuit works sometimes but not always, check for loose connections or slightly bent snaps. Gently adjust connections as needed.
• Missing Parts: Refer to the "What's in the Box" section and contact customer support if any essential components are missing upon initial inspection.

Specifications

Warranty and Support

This Snap Circuits Green Energy kit comes with a 2 Year Limited Warranty. For warranty claims, technical support, or inquiries regarding missing parts, please contact Elenco Electronics LLC customer service. Detailed contact information can typically be found on the product packaging or the official Elenco website. Please retain your proof of purchase for warranty validation.

For additional resources and project ideas, visit the official Snap Circuits website: www.snapcircuits.net
