Whirlpool WIS7030PEF Fully Integrated Dishwasher User Manual
Model: WIS7030PEF
Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Whirlpool WIS7030PEF fully integrated dishwasher. Please read these instructions carefully before using the appliance and keep them for future reference.
Important Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.
- Ensure the appliance is properly grounded.
- Do not operate the dishwasher if it is damaged.
- Keep children away from the dishwasher, especially when it is operating.
- Use only detergents and rinse aids recommended for automatic dishwashers.
- Sharp items should be loaded with points down to prevent injury.
Product Overview
The Whirlpool WIS7030PEF is a 60cm fully integrated dishwasher designed for seamless integration into your kitchen cabinetry. It offers a capacity of 14 place settings and operates at a quiet 43 dB.
Figure 1: Front view of the Whirlpool WIS7030PEF fully integrated dishwasher. The control panel is visible at the top edge of the door, with the interior racks partially shown.
Key Features:
- 14 Place Settings capacity.
- Low noise level of 43 dB for quiet operation.
- Fully integrated design for a sleek kitchen aesthetic.
- Efficient washing and drying performance.
Installation and Setup
Installation of the Whirlpool WIS7030PEF dishwasher should be performed by a qualified technician to ensure proper functioning and safety. Refer to the detailed installation guide provided separately with the appliance for specific instructions.
General Steps:
- Unpacking: Carefully remove all packaging materials.
- Positioning: Place the dishwasher in its intended cabinet opening, ensuring it is level.
- Water Connection: Connect the water inlet hose to a cold water supply and the drain hose to a suitable drain.
- Electrical Connection: Connect the appliance to a grounded electrical outlet.
- Cabinet Door Installation: Attach the custom cabinet door panel to the dishwasher door.
- First Use: Before first use, ensure salt and rinse aid dispensers are filled according to the operating instructions.
Operating Instructions
To achieve optimal cleaning results and ensure the longevity of your dishwasher, follow these operating guidelines.
Loading the Dishwasher:
- Scrape off large food particles from dishes.
- Place larger items in the lower rack and smaller, delicate items in the upper rack.
- Ensure that spray arms can rotate freely and are not blocked by dishes.
- Load cutlery into the cutlery basket with handles down for most items, but sharp knives with points down.
Adding Detergent and Rinse Aid:
- Fill the detergent dispenser with the appropriate amount of dishwasher detergent.
- Check the rinse aid indicator and refill the rinse aid dispenser when necessary.
Selecting a Wash Program:
The control panel, located on the top edge of the door, allows you to select various wash programs. Refer to the program chart in your full manual for detailed descriptions of each cycle.
- Close the dishwasher door.
- Press the Power button to turn on the appliance.
- Select your desired wash program using the program selection buttons.
- Press the Start button to begin the cycle.
Note: Some models feature an automatic door opening at the end of the cycle to improve drying performance.
Care and Maintenance
Regular cleaning and maintenance will help keep your dishwasher performing optimally and extend its lifespan.
Cleaning the Filters:
- Regularly check and clean the filter assembly at the bottom of the dishwasher.
- Remove food debris and rinse the filters under running water.
- Reassemble the filters correctly before operating the dishwasher.
Cleaning the Spray Arms:
- Periodically remove the spray arms and clean the nozzles to prevent blockages.
Exterior and Interior Cleaning:
- Wipe the exterior with a soft, damp cloth.
- Clean the interior with a dishwasher cleaner or a mixture of vinegar and water to remove limescale and odors.
Troubleshooting
Before contacting customer service, consult the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power supply issue, door not closed properly, program not selected. | Check power connection, ensure door is latched, select a program and press start. |
| Dishes are not clean | Improper loading, clogged spray arms, insufficient detergent, dirty filters. | Reload dishes correctly, clean spray arms and filters, add more detergent. |
| Water not draining | Clogged drain hose or filter, drain pump issue. | Clean filters, check drain hose for kinks or blockages. |
| Excessive noise | Dishes rattling, foreign object in pump, improper installation. | Rearrange dishes, check for foreign objects, ensure dishwasher is level. |
Technical Specifications
Below are the key technical specifications for the Whirlpool WIS7030PEF dishwasher:
- Model Number: WIS7030PEF
- Built-in Dimensions (H x W x D): Approximately 82 cm x 60 cm x 56 cm (as per energy label)
- Overall Product Dimensions: 68 cm (Depth) x 62 cm (Width) x 92 cm (Height)
- Capacity: 14 Place Settings
- Noise Level: 43 dB
- Weight: 38 kg
- Energy Efficiency Class: D (New EU Label)
- Water Consumption per Cycle (Eco): 9.5 Liters
- Energy Consumption per 100 Cycles (Eco): 85 kWh
- Program Duration (Eco): 3 hours 10 minutes

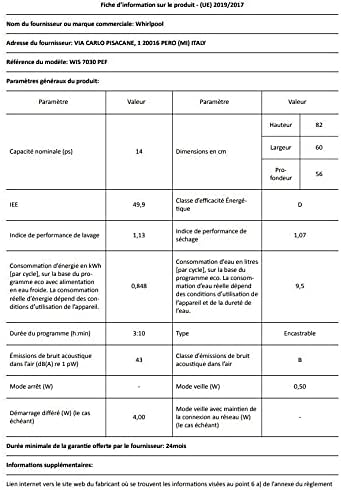

Figure 2: Technical data sheet providing detailed specifications for the dishwasher.
Figure 3: EU Energy Label for the Whirlpool WIS7030PEF dishwasher, indicating its energy consumption and performance ratings.
Warranty and Support
Your Whirlpool WIS7030PEF dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions. For technical support, spare parts, or service requests, please contact Whirlpool customer service or visit the official Whirlpool website.
