Important Safety Information
Please read and understand all instructions before assembly and use. Keep this manual for future reference.
- Weight Capacity: This swing chair is designed to support a maximum weight of 750 pounds (approximately 340 kg). Do not exceed this limit.
- Stable Placement: Always place the swing chair on a flat, stable, and level surface to prevent tipping.
- Assembly: Ensure all bolts, nuts, and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
- Children: Supervise children at all times when they are using the swing chair.
- Weather Conditions: In strong winds or severe weather, remove the canopy and consider storing the swing indoors or securing it to prevent damage or injury.
- Modifications: Do not modify the product in any way, as this may compromise its safety and void any warranty.
Package Contents
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer service.
- Main Frame Components (Legs, Crossbars, Top Bar)
- Swing Seat Assembly
- Canopy Frame and Fabric
- Cushions and Pillows
- Side Tables/Cup Holders
- Hardware Kit (Bolts, Nuts, Washers, Wrenches)
- Instruction Manual
Assembly Instructions
Assembly typically requires two adults. Follow the detailed instructions provided in your package. Pay close attention to part orientation, as incorrect placement can hinder assembly or affect stability.
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out and compare them against the parts list in your manual to ensure everything is present.
- Assemble the Main Frame: Connect the leg sections and crossbars using the provided hardware. Ensure all connections are finger-tightened initially.
- Attach the Top Bar: Secure the top bar to the assembled side frames.
- Install the Swing Seat: Hang the swing seat onto the main frame using the sturdy spring hooks. Ensure the hooks are fully engaged and secure.
- Assemble the Canopy: Attach the canopy frame to the top bar and then secure the canopy fabric. Adjust for proper tension.
- Attach Side Tables: Install the foldable side tables on both sides of the swing frame.
- Final Tightening: Once all components are in place, systematically tighten all bolts and nuts with the provided tools. Do not overtighten.
- Place Cushions: Position the thick padded cushions and any included pillows on the swing seat.
Image: Overall dimensions of the swing chair, including height, width, and depth, along with seat dimensions and weight capacity.
Operating Instructions
Adjusting the Canopy
The canopy features an adjustable tilt mechanism to provide optimal shade. Loosen the gear knobs located on the sides of the canopy frame, adjust the canopy to your desired angle, and then re-tighten the knobs to secure it in place.
Image: The adjustable canopy, highlighting the gear knob for smooth operation and its UV protection and waterproof features.
Using the Foldable Side Tables
The swing chair is equipped with foldable side tables on both sides. These trays provide convenient storage for drinks, phones, or small items. Simply pull them up to use and fold them down when not needed.
Image: The swing chair's attentive design, featuring a comfortable round pillow and a practical foldable side table.
Converting to Bed Mode
This swing chair can be converted into a flat bed for lounging. Refer to your specific assembly manual for detailed steps on how to recline the backrest and extend the seat into a flat position. Ensure the mechanism is securely locked in the desired position before use.

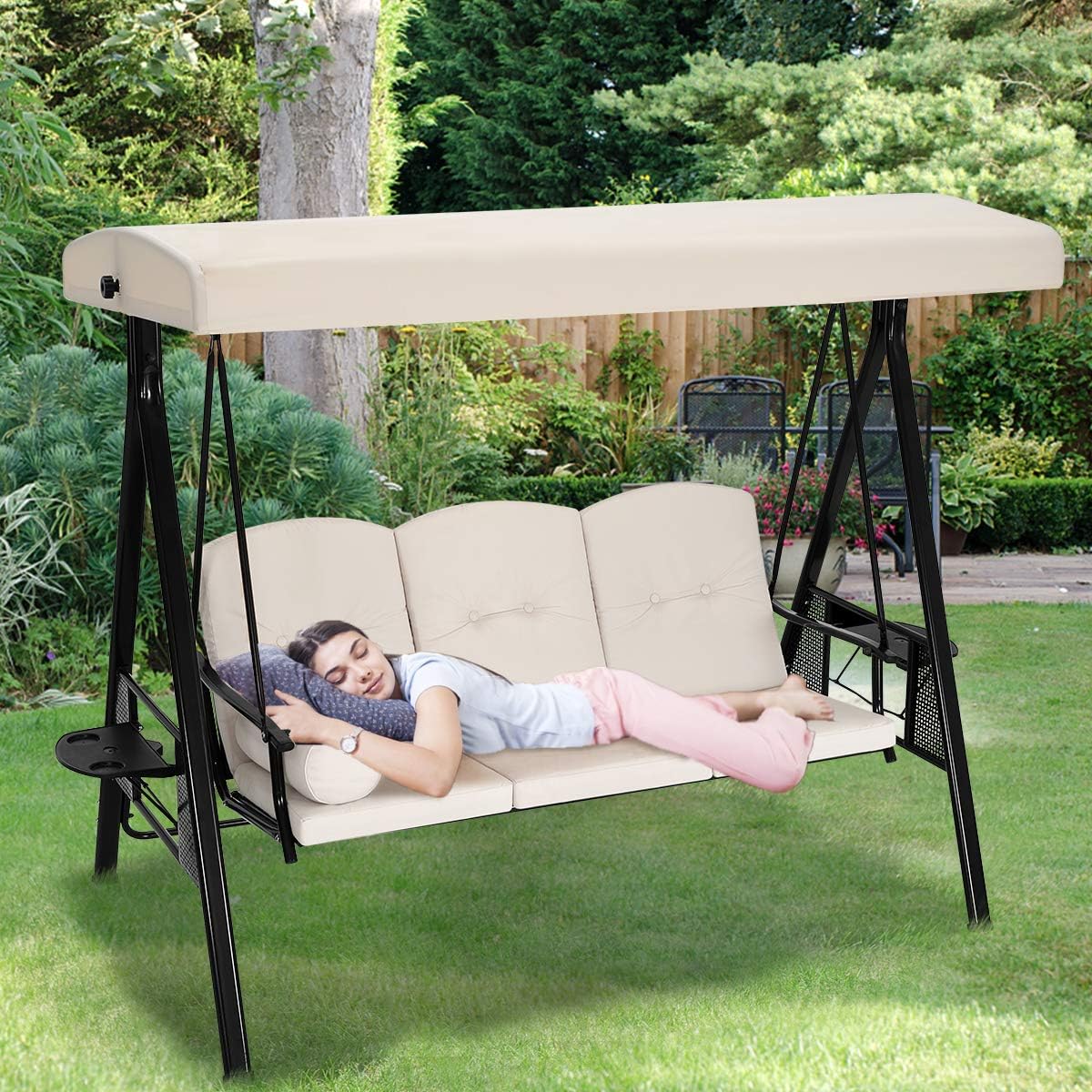

Image: A person relaxing on the U-MAX swing chair, demonstrating its ability to convert into a comfortable bed.
Maintenance and Care
Regular maintenance will extend the life and appearance of your U-MAX Patio Swing Chair.
- Cleaning the Frame: Wipe the alloy steel frame with a damp cloth and mild soap. Rinse thoroughly and dry completely to prevent rust. Avoid abrasive cleaners.
- Canopy Care: The canopy fabric is UV-resistant and water repellent. Clean with a soft brush and mild soap solution. Rinse and air dry. To prolong its lifespan, especially in windy conditions or during off-season, it is recommended to remove and store the canopy indoors.
- Cushion Care: The cushions are made from Oxford Cloth-B. Spot clean with a mild detergent and water. Allow to air dry completely. Store cushions indoors during inclement weather or when not in use for extended periods to prevent fading and wear.
- Hardware Check: Periodically inspect all bolts, nuts, and connections. Re-tighten any loose hardware to maintain structural integrity.
- Anti-slip Foot Pads: Ensure the anti-slip foot pads are intact to prevent ground scratches and provide stability.
Image: Details of the swing chair, including the sturdy spring hook for smooth motion, the comfortable cushions, and the elegant back design.
Troubleshooting
If you encounter any issues with your U-MAX Patio Swing Chair, refer to the following common solutions:
- Difficulty with Assembly: Ensure all parts are correctly oriented as per the instruction manual. Some parts may appear similar but have specific alignments. Do not force parts together. If issues persist, contact customer service.
- Cushions Feel Too Thin: The included cushions provide comfort for general use. For additional plushness, consider adding supplementary padding or thicker outdoor cushions.
- Missing or Damaged Parts: If any components are missing or damaged upon arrival, do not proceed with assembly. Contact U-MAX customer service immediately for assistance and replacement parts.
- Swing Instability: Check that the swing is placed on a completely level surface. Verify that all bolts and nuts are securely tightened. Ensure the anti-slip foot pads are properly installed.
- Canopy Damage from Wind: To prevent damage, always remove the canopy fabric during high winds or severe weather conditions. If the canopy is damaged, replacement parts may be available through customer service.
Specifications
| Feature | Detail |
|---|---|
| Brand | U-MAX |
| Model (ASIN) | B08QD967P2 |
| Color | Beige |
| Material Type | Oxford Cloth-B (Cushions) |
| Frame Material | Alloy Steel |
| Product Dimensions (D x W x H) | 46.4"D x 78.7"W x 68"H |
| Item Weight | 90 Pounds |
| Maximum Weight Recommendation | 750 Pounds |
| Seat Depth | 19.7 inches |
| Maximum Compatible Number of Seats | 3 |
| Required Assembly | Yes |
| Finish Type | Powder Coated |
Warranty and Support
U-MAX is committed to providing quality products and customer satisfaction.
- Returns: This product is eligible for 30-day easy returns. Please refer to your purchase platform's return policy for detailed instructions.
- Customer Service: For any questions regarding assembly, missing parts, or product operation, please contact U-MAX customer service. We aim to provide 24-hour customer service.
